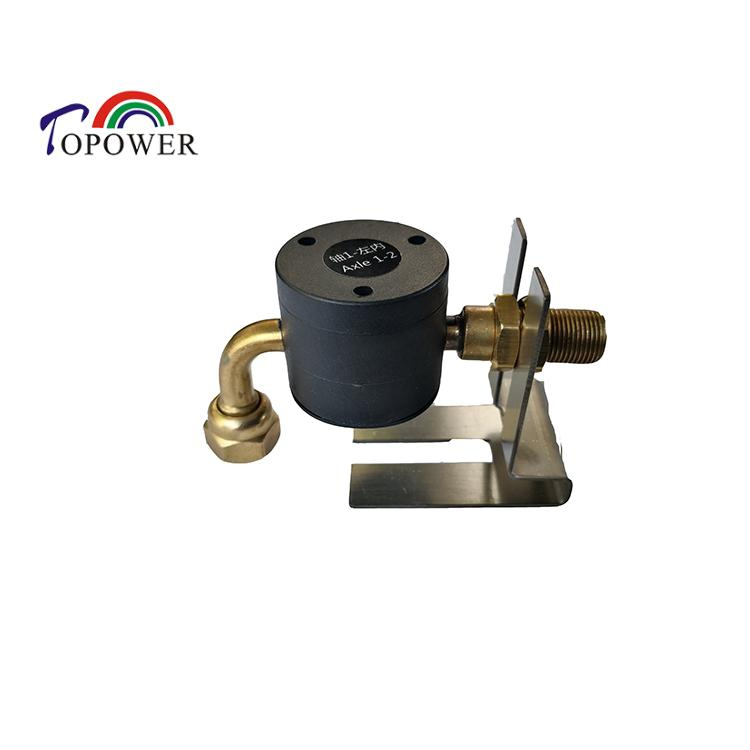

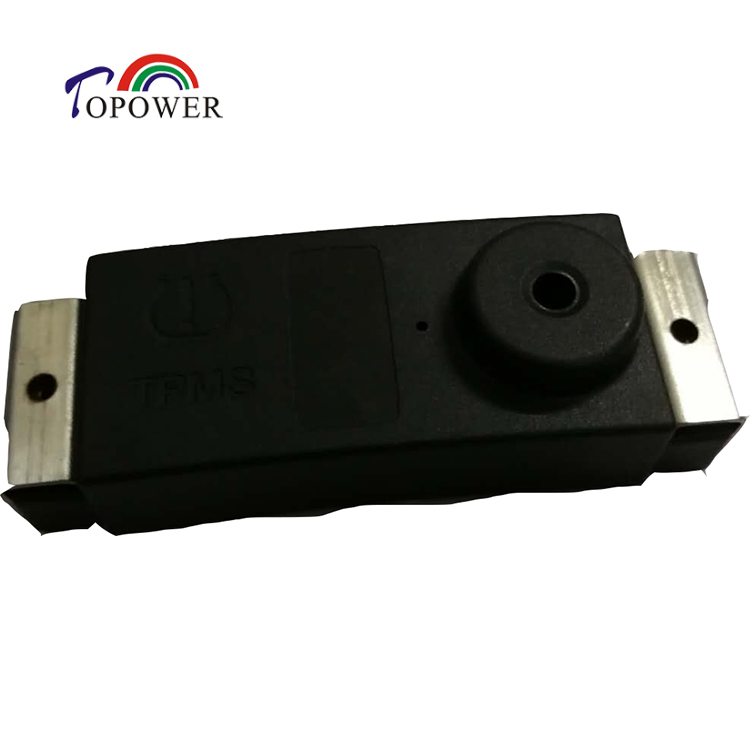

Tire Air Pressure Monitor System Display Sensor TPMS Sensor System for Heavy Trucks

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO.
LQ-TR100C
Equipment Type
Automotive Lighting Detector
Certification
ISO
Condition
New
Product Name
Tire Pressure Monitoring System
Sensor Chips
Mems
Sensor Lifetime
3-5 Years
Production Capacity
10

Product Description

Production Name: Tire Pressure Monitoring System

Application: Front Crane, Reach Stacker, Forklift

Size/Model: LQ-TR100C

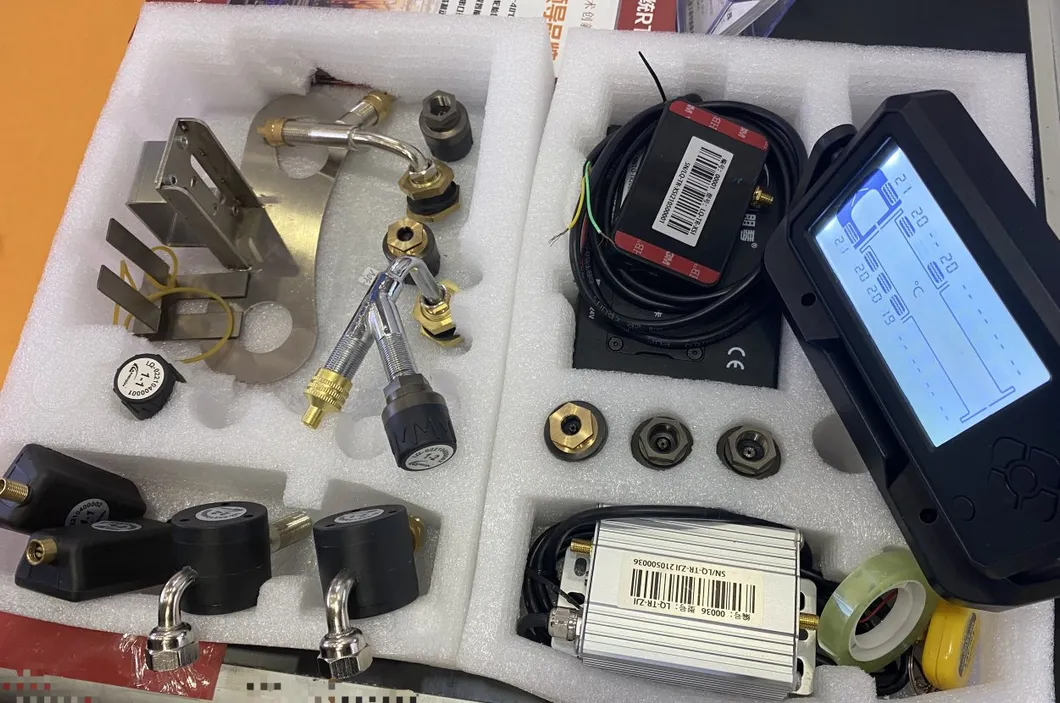

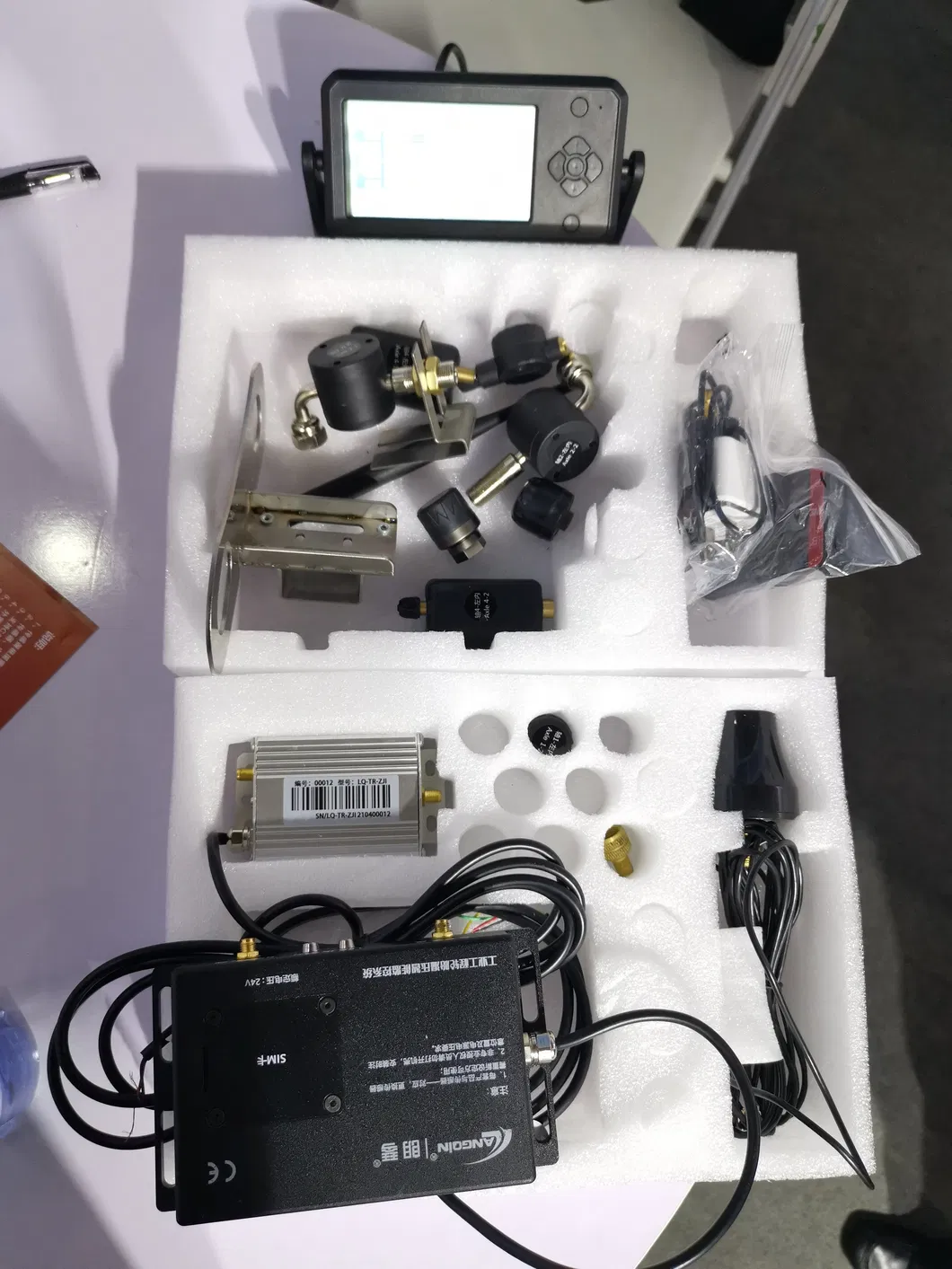

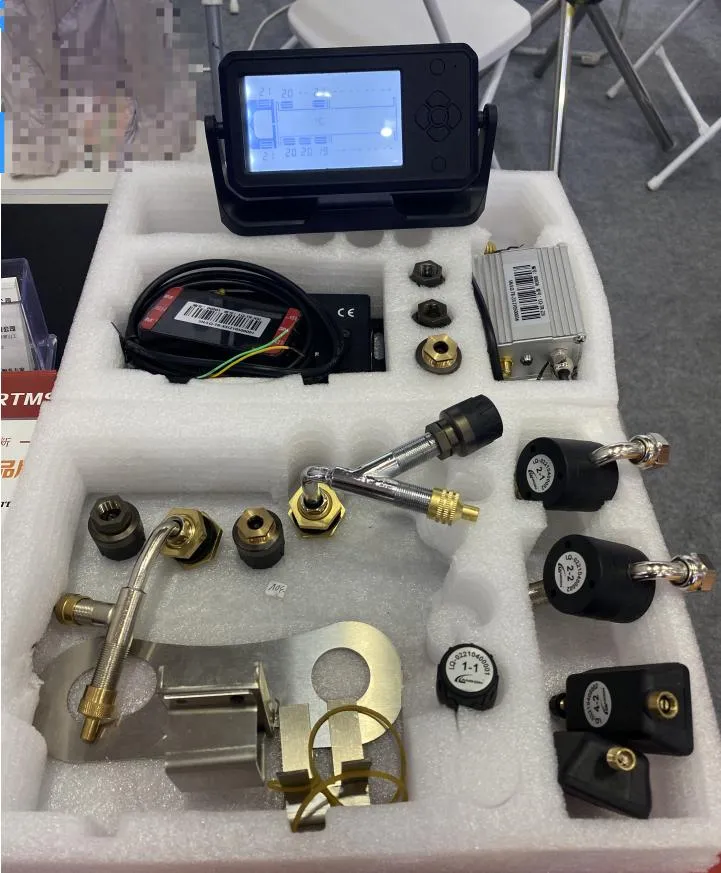

Package Contents:

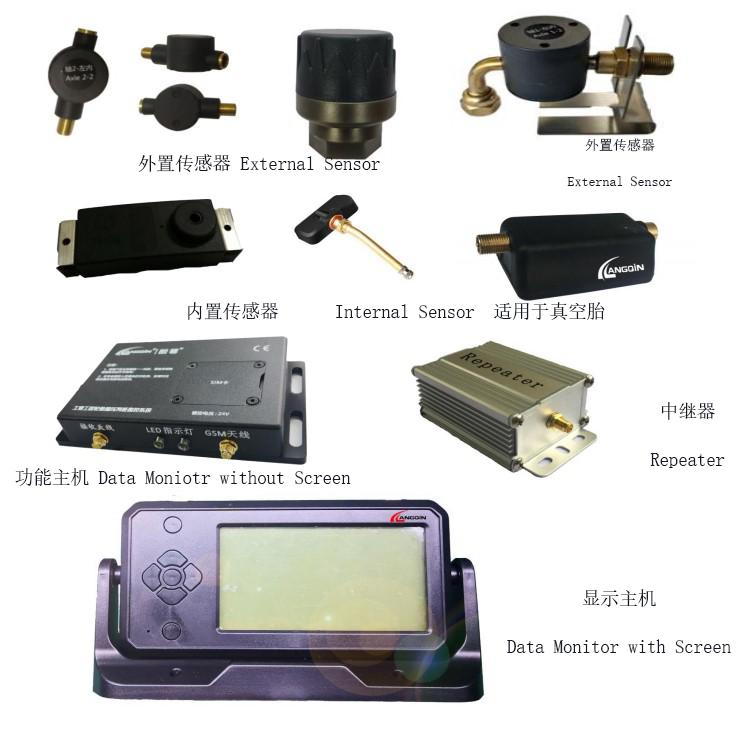

  • 6 Sensors (Internal/External)
  • Data Monitor with Display Screen
  • Complete Set of Installation Accessories
Tire Air Pressure Monitor System Display

This is the most intelligent TPMS on the market, featuring 15 CPUs to monitor tire temperature and pressure simultaneously. Engineered for construction machinery, it integrates with management strategies to provide real-time alarms and coordinate with braking systems. Its technology represents an international advanced level, offering significant performance advantages.

Designed specifically for mechanical operators and tire managers, it provides real-time sound and light warnings for abnormal conditions (high pressure or extreme temperatures), ensuring driving safety and preventing potential failures.

Technical Parameters

Parameter Item Specification Details
Working Temperature -40 to 70ºC (Sensor), -20 to 55ºC (System Host)
Storage Temperature -50 to 125ºC (Sensor), -30 to 100ºC (System Host)
Working Voltage Sensor: 3V; System Host: 12V/24V
Pressure Measurement Error ±0.2 kg reading
Environmental Pressure Range 0-14 kgf/cm
Working Humidity 0-100% (Condensing)
MTBF 30,000 Hours
Operating Frequency 433.92MHz ±75KHz
📷

Visual Display

?

Frequently Asked Questions

Can I install the monitor on my car?
The monitor uses a power supply of 25 mA - 150 mA. If used for a long period without driving (over one month), it may drain the car battery. It is recommended to unplug the monitor if the vehicle is stored for an extended time.
Can I use sealant or balancing powder with the sensors?
If sealant or equalizing substances are used, a Dill filter valve is recommended. Standard sealants can plug the valve core and block pressure readings.
Do I need to readjust my tires when using the sensor?
Sensors weigh about 2/3 ounce. For large tires (RV/truck), wheel balance is rarely affected. Smaller tires might require a small weight adjustment to balance the sensor.
Does the display require a cigarette lighter for power?
Not necessarily. Hard-wiring is often a better choice as it reduces potential feedback interference and provides a cleaner installation.
What if no signal is received from the sensor during installation?
RF transmissions work best with a clear line of sight. If the monitor fails to read a sensor, try moving the monitor slightly and wait for 5 minutes for the signal to update.
How do I delete a sensor?
Select the tire position in normal mode, then press and hold the PROG key for about 10 seconds. When the process is complete, "del" will appear on the display screen.
