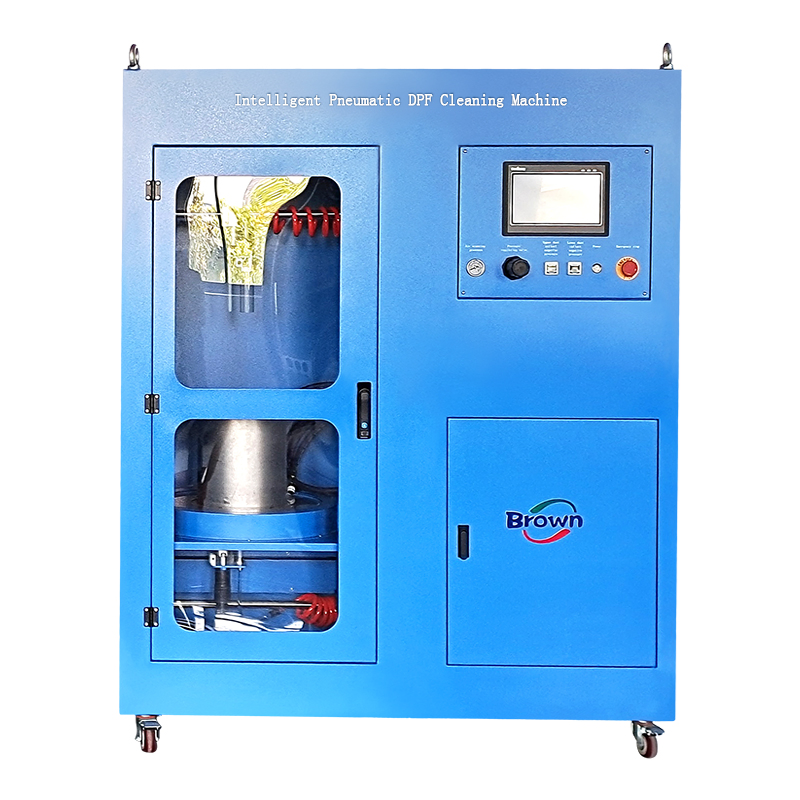

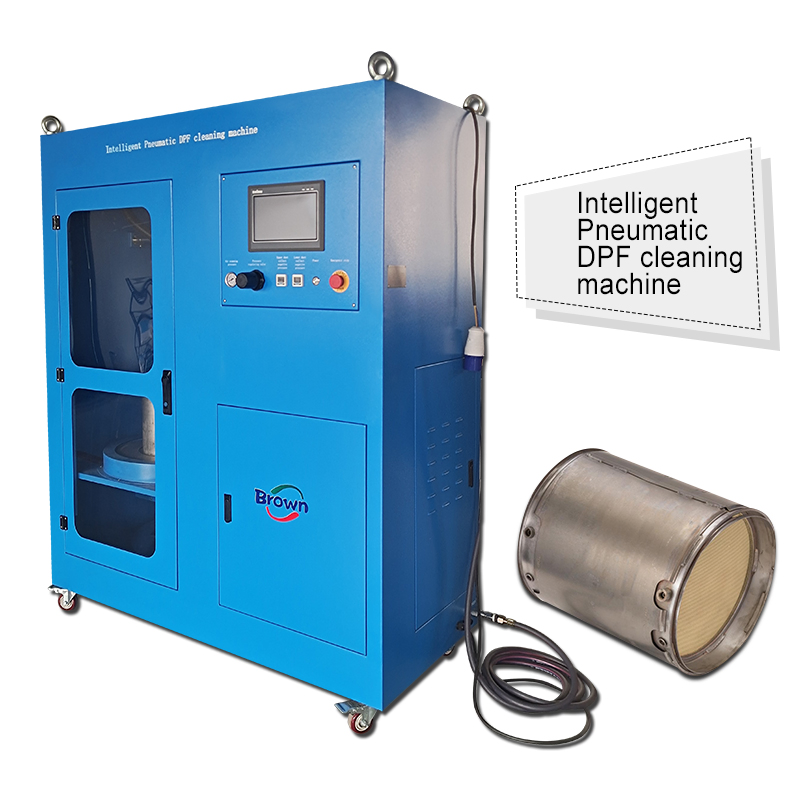

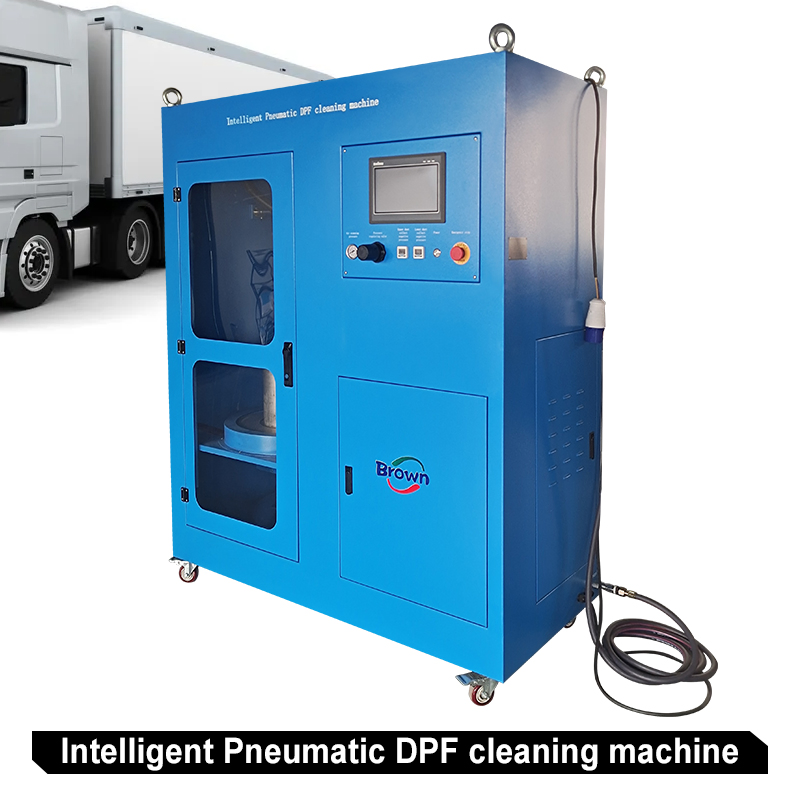

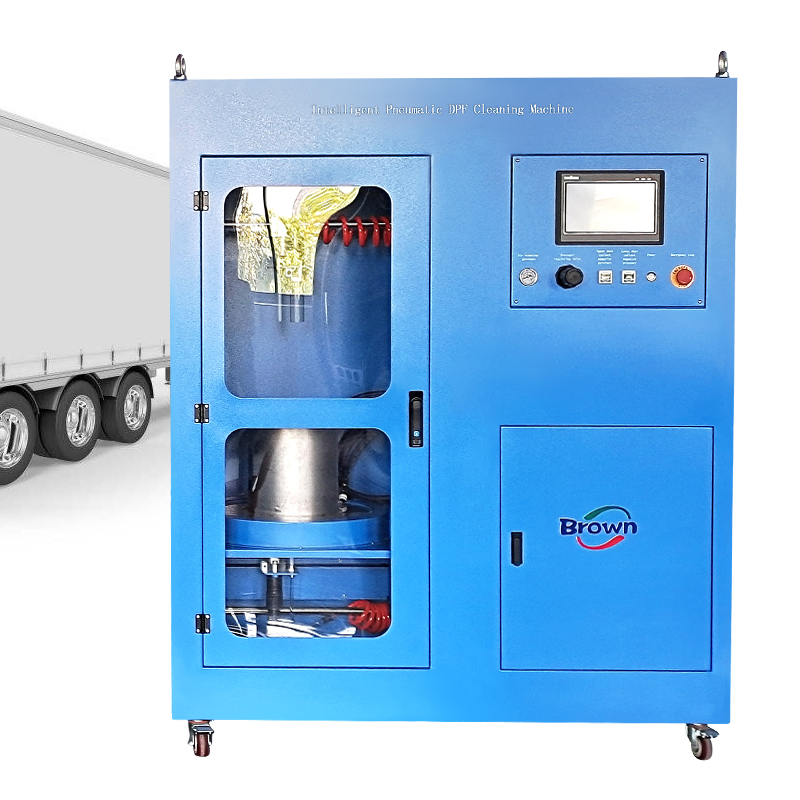

Brown 2025 New Intelligent DPF Thermal Regeneration Pneumatic Cleaning Detecting System
Brown 2025 New Intelligent DPF Thermal Regeneration Pneumatic Cleaning Detecting System
Brown 2025 New Intelligent DPF Thermal Regeneration Pneumatic Cleaning Detecting System
Brown 2025 New Intelligent DPF Thermal Regeneration Pneumatic Cleaning Detecting System
Brown 2025 New Intelligent DPF Thermal Regeneration Pneumatic Cleaning Detecting System
1 / 5
Brown 2025 New Intelligent DPF Thermal Regeneration Pneumatic Cleaning Detecting System
Brown 2025 New Intelligent DPF Thermal Regeneration Pneumatic Cleaning Detecting System
Brown 2025 New Intelligent DPF Thermal Regeneration Pneumatic Cleaning Detecting System
Brown 2025 New Intelligent DPF Thermal Regeneration Pneumatic Cleaning Detecting System
Brown 2025 New Intelligent DPF Thermal Regeneration Pneumatic Cleaning Detecting System

Brown 2025 New Intelligent DPF Thermal Regeneration Pneumatic Cleaning Detecting System

Customization: Available
After-sales Service: Lifelong Technology Support
Warranty: 1 Year
Send Inquiry

Product Description

Overview Parameters Description Advantages Certifications FAQ
Basic Information
Model NO.
BR-IPC-MA01
Equipment Type
Automotive Lighting Detector
Certification
CE, ISO9001
Update Method
by Internet
Condition
New
Weight
270kg
Power
3kw
Air Pressure
0.3-0.7 MPa

High-tech manufacturing integrating R&D, technical services and sales, specializing in engine carbon cleaning machines, catalytic converter cleaning, SCR/DPF cleaning, and EGR cleaning solutions. We offer professional OEM/ODM services with global standards.

Technical Parameters
Model NumberBR-IPC-MA01
Weight270kg
Dimension1490mm*720mm*1900mm
Power3kw
Air Scanning Pressure0.3-0.7 MPa
Collecting Negative Pressure-25 -0 KPa
Air Supply RequirementExternal source ≥ 0.8MPa; Gas production ≥ 1.2m³/min
DPF Cleaning RangeDiameter: 150mm-420mm; Height ≤ 620mm
Filtration SystemTwo-stage: Cyclone dust collector + HEPA filter
Air ScanningBi-directional (Up and bottom both sides)
Product Description

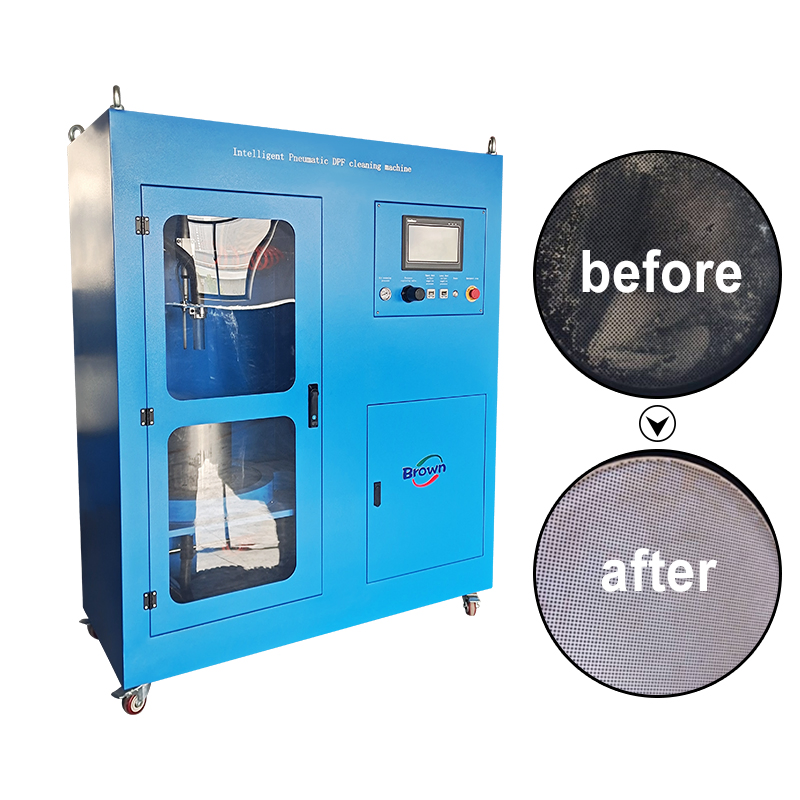

Utilizing unique bi-directional scanning technology, this system effectively blows off soot and ash particulates from every cell of the DPF. The integrated dust collector captures all released contaminants, ensuring high-efficiency DPF regeneration. Features include an automatic rotating platform and intelligent control units.

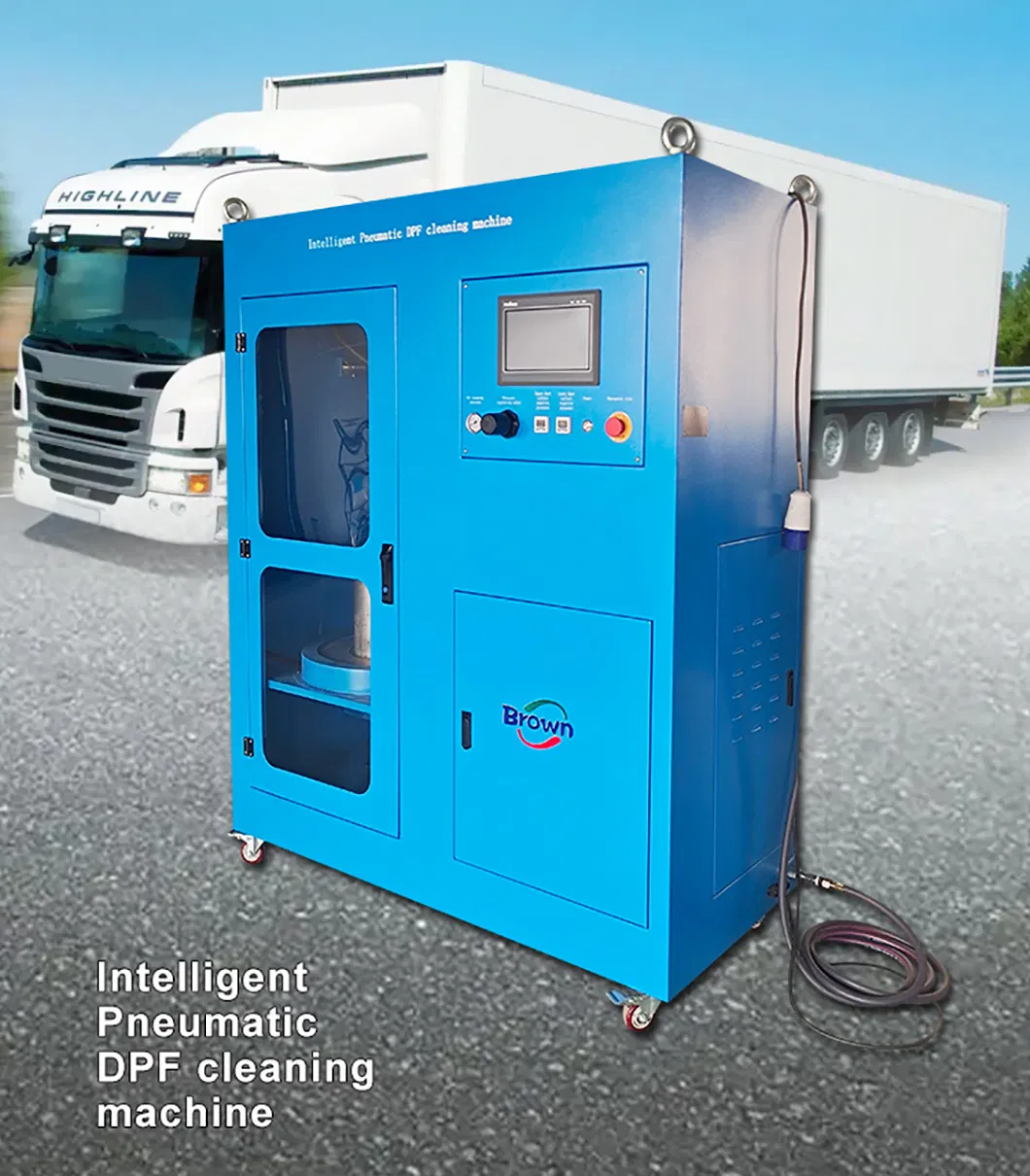

DPF Cleaning System

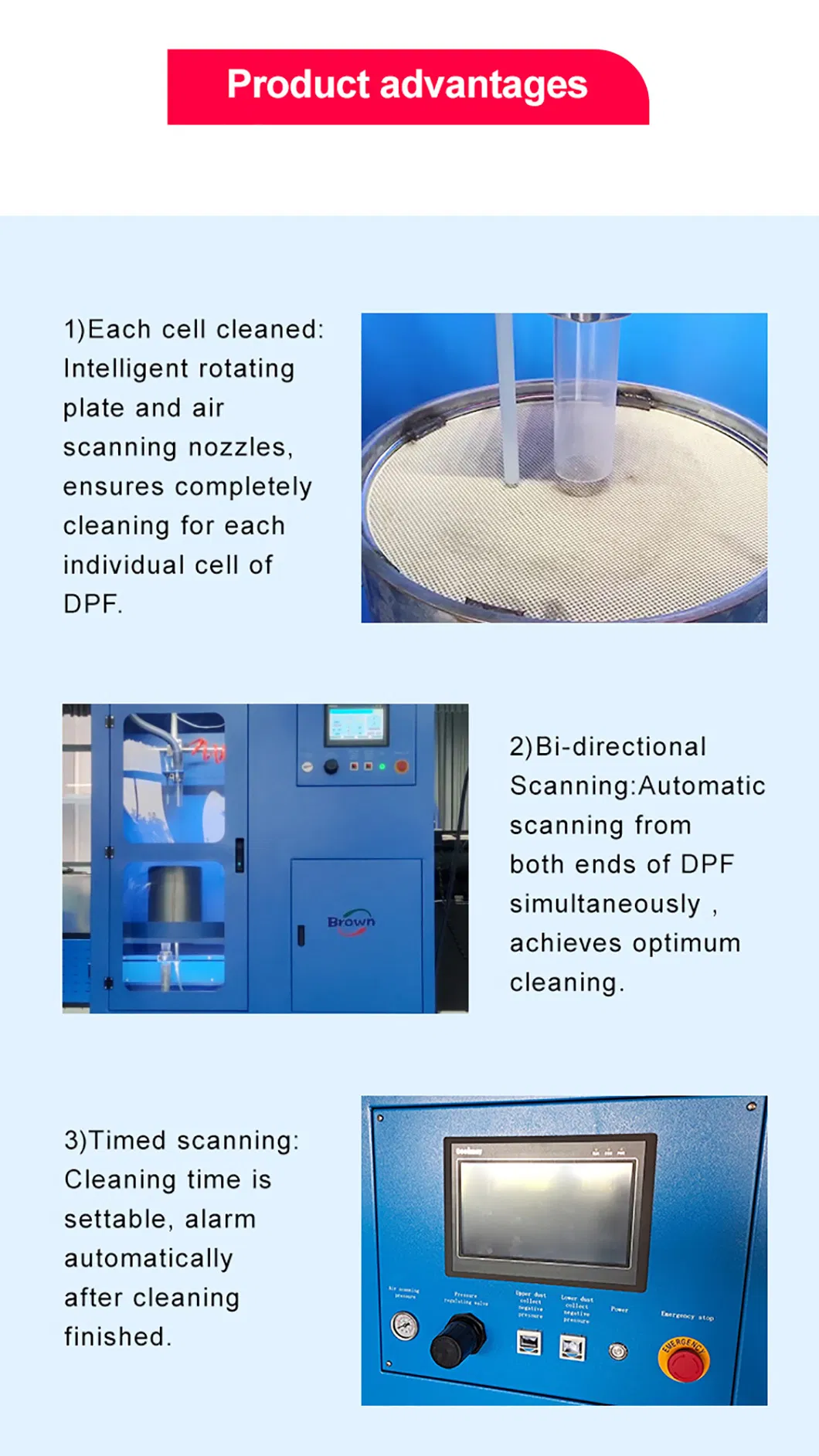

Core Advantages
1
Cell-by-Cell Cleaning: Intelligent rotating plate and scanning nozzles ensure every individual cell is reached.
2
Bi-directional Scanning: Automatic scanning from both ends simultaneously for optimum results.
3
Intelligent Control: Timed scanning with automatic alarms and adjustable positioning for focused cleaning.
4
Full Visibility: The entire process is visible to operators for monitoring quality.
5
Ultra-wide Compatibility: Adjustable for various DPF sizes (150-420mm diameter).
6

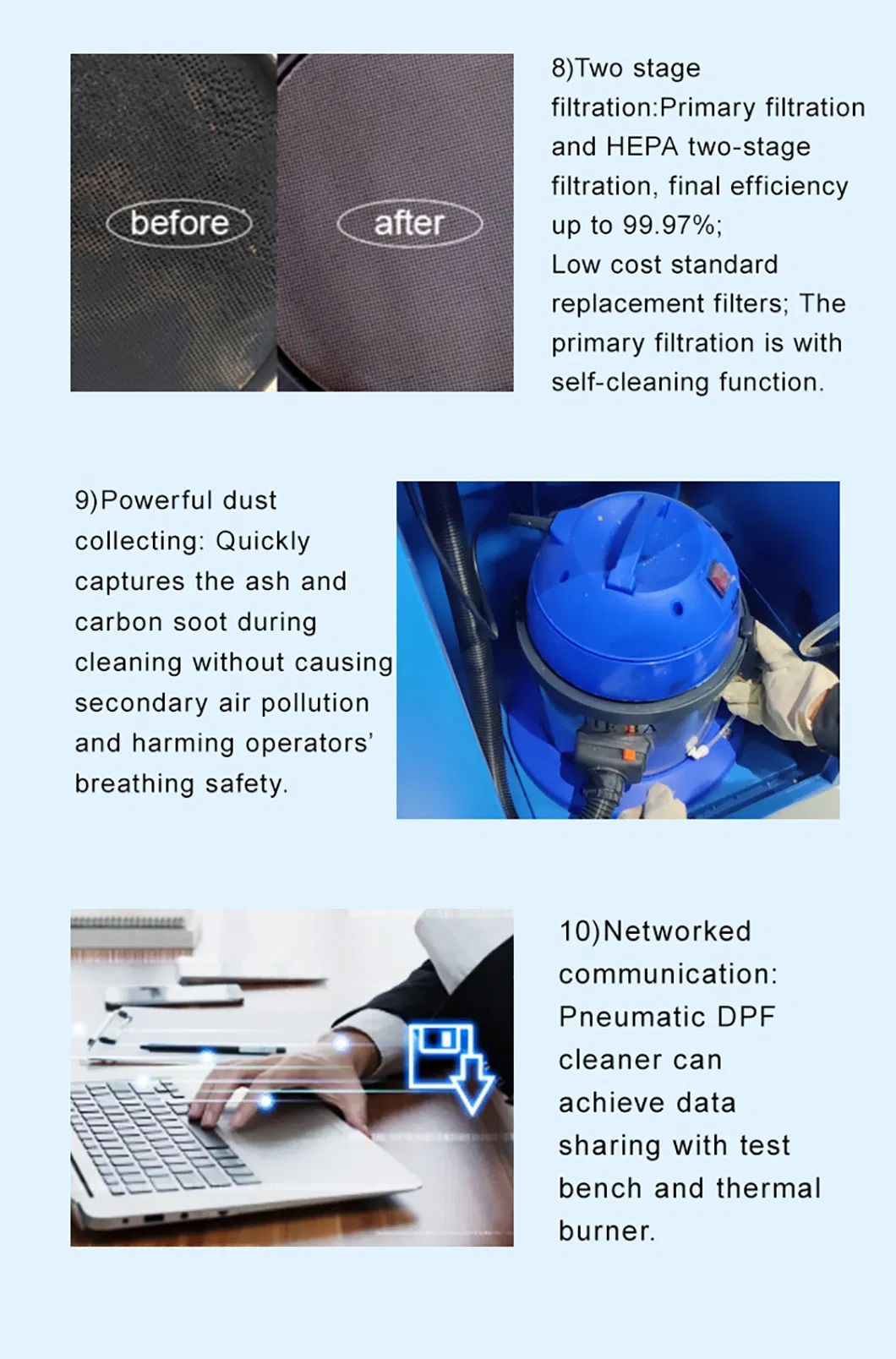

Advanced Filtration: HEPA two-stage filtration with 99.97% efficiency and self-cleaning primary filters.
Advantage 1
Advantage 2
Advantage 3
Exhibition & Certifications
Exhibition
Certifications

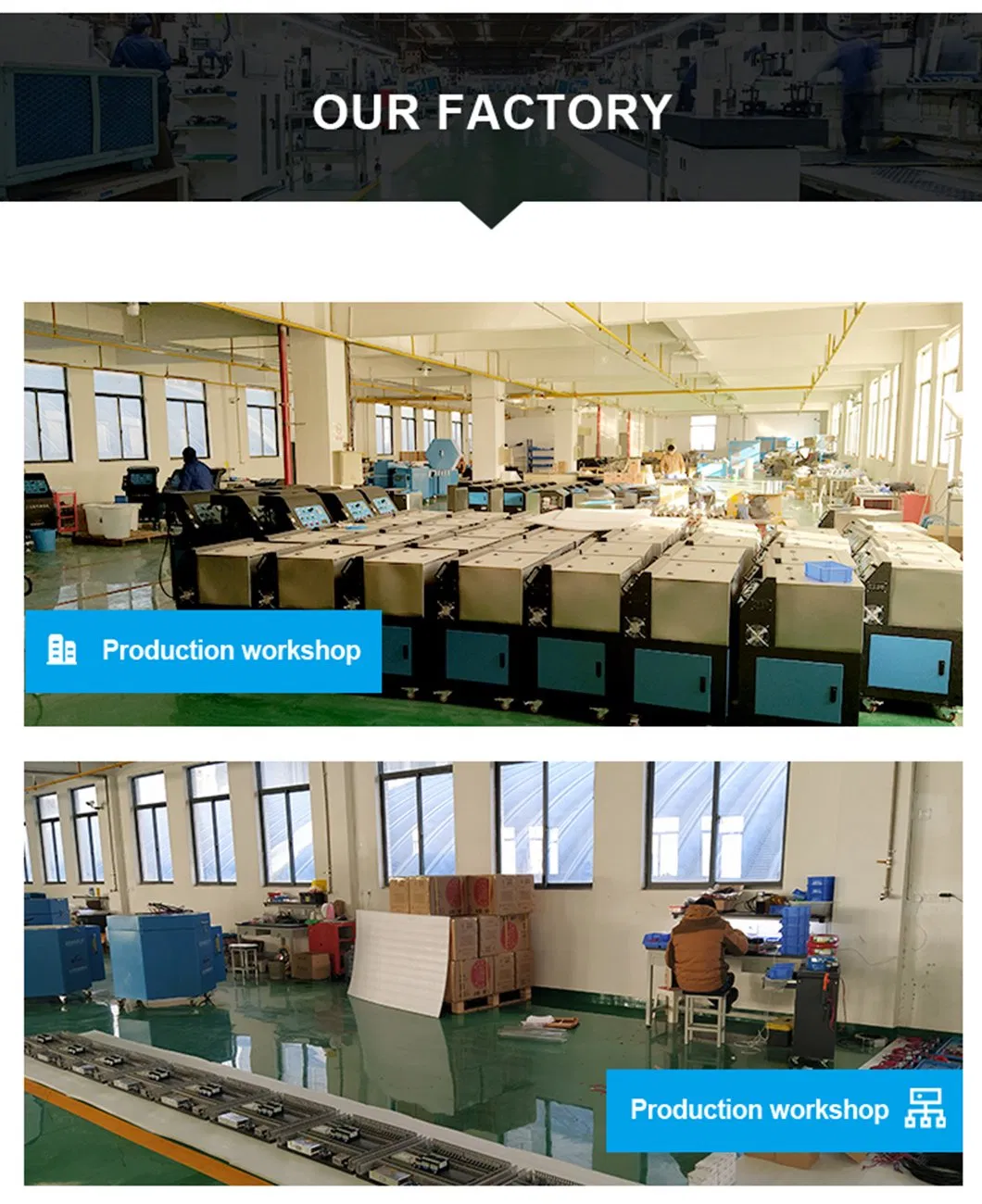

Process 1

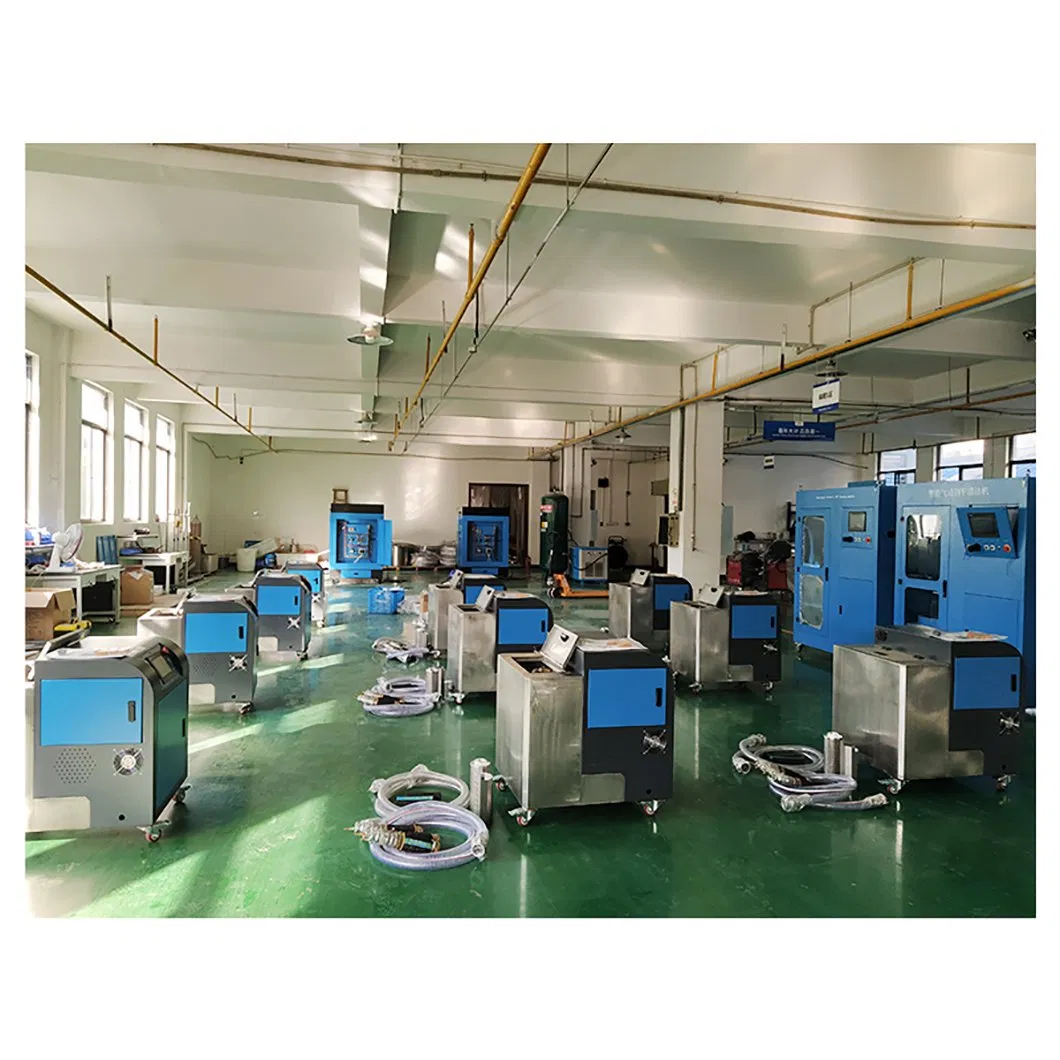

Process 2
Detail 1

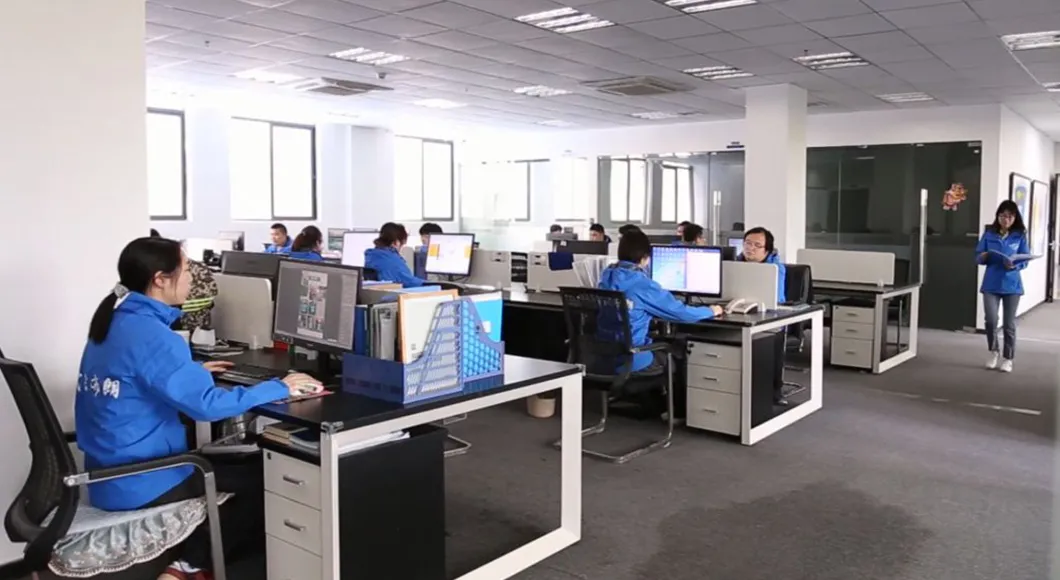

Detail 2

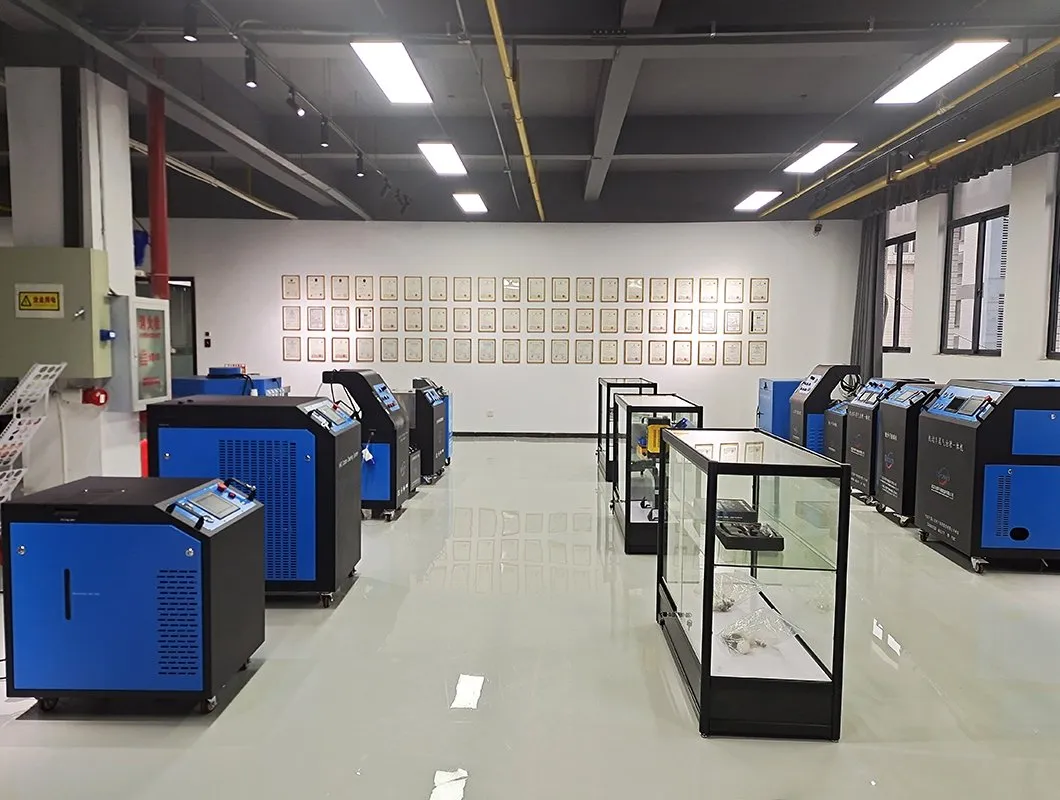

Detail 3

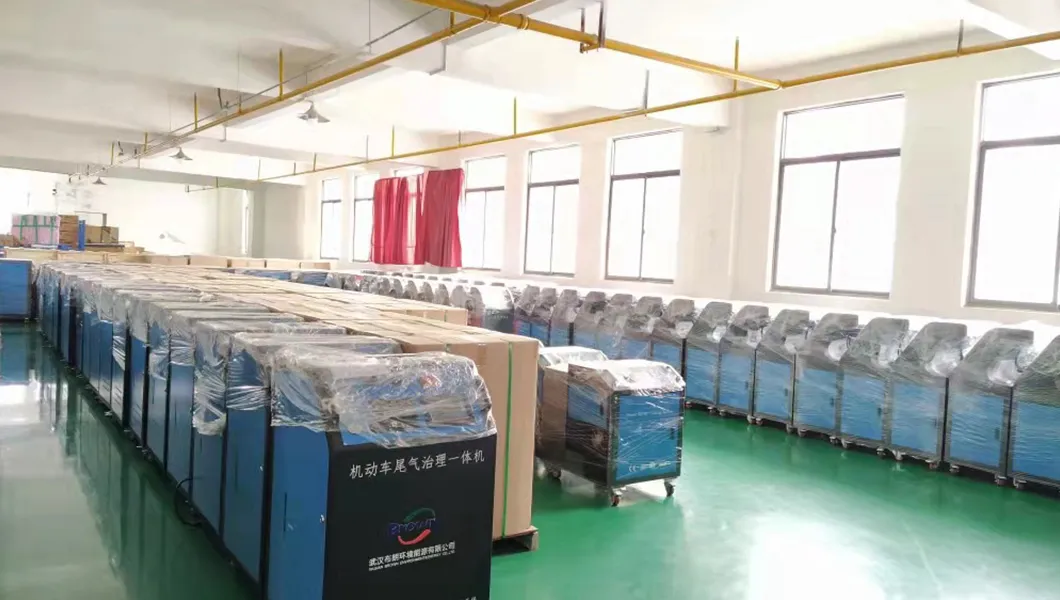

Detail 4
Detail 5

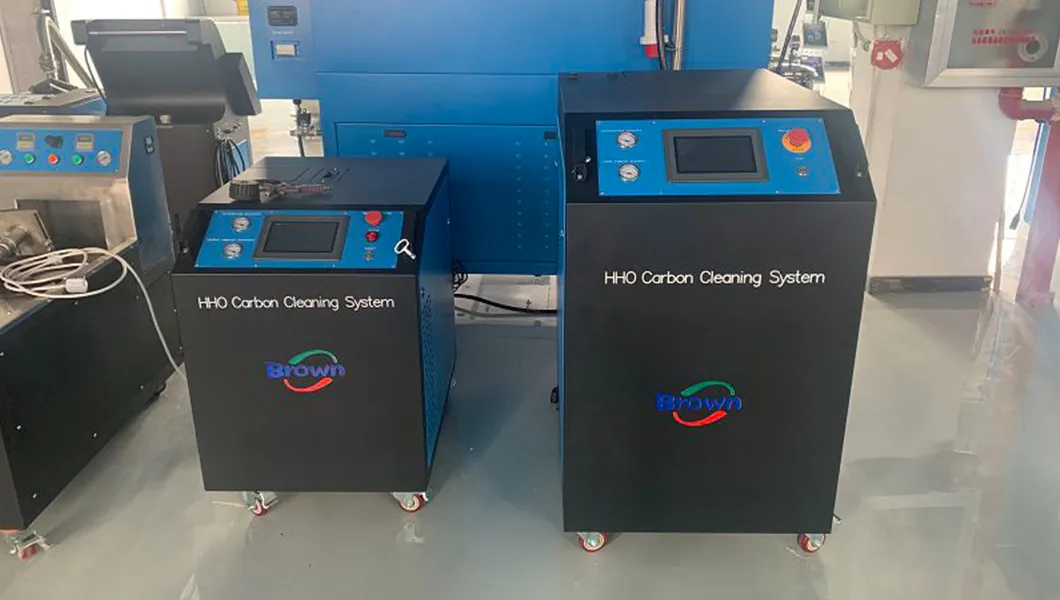

Detail 6
Frequently Asked Questions
Q: What range of DPF sizes can this machine clean? A: The system is designed to handle DPF diameters from 150mm to 420mm, with a maximum height of 620mm.
Q: How does the bi-directional scanning technology benefit cleaning? A: It performs automatic air scanning from both ends of the DPF simultaneously, ensuring soot and ash are removed from every individual cell more effectively than single-sided methods.
Q: What is the efficiency of the filtration system? A: The machine uses a two-stage system consisting of a cyclone dust collector and a HEPA filter, achieving a final filtration efficiency of up to 99.97%.
Q: Are the air source requirements specific? A: Yes, an external air source with pressure no less than 0.8MPa and gas production of at least 1.2m³/min is required for optimal performance.

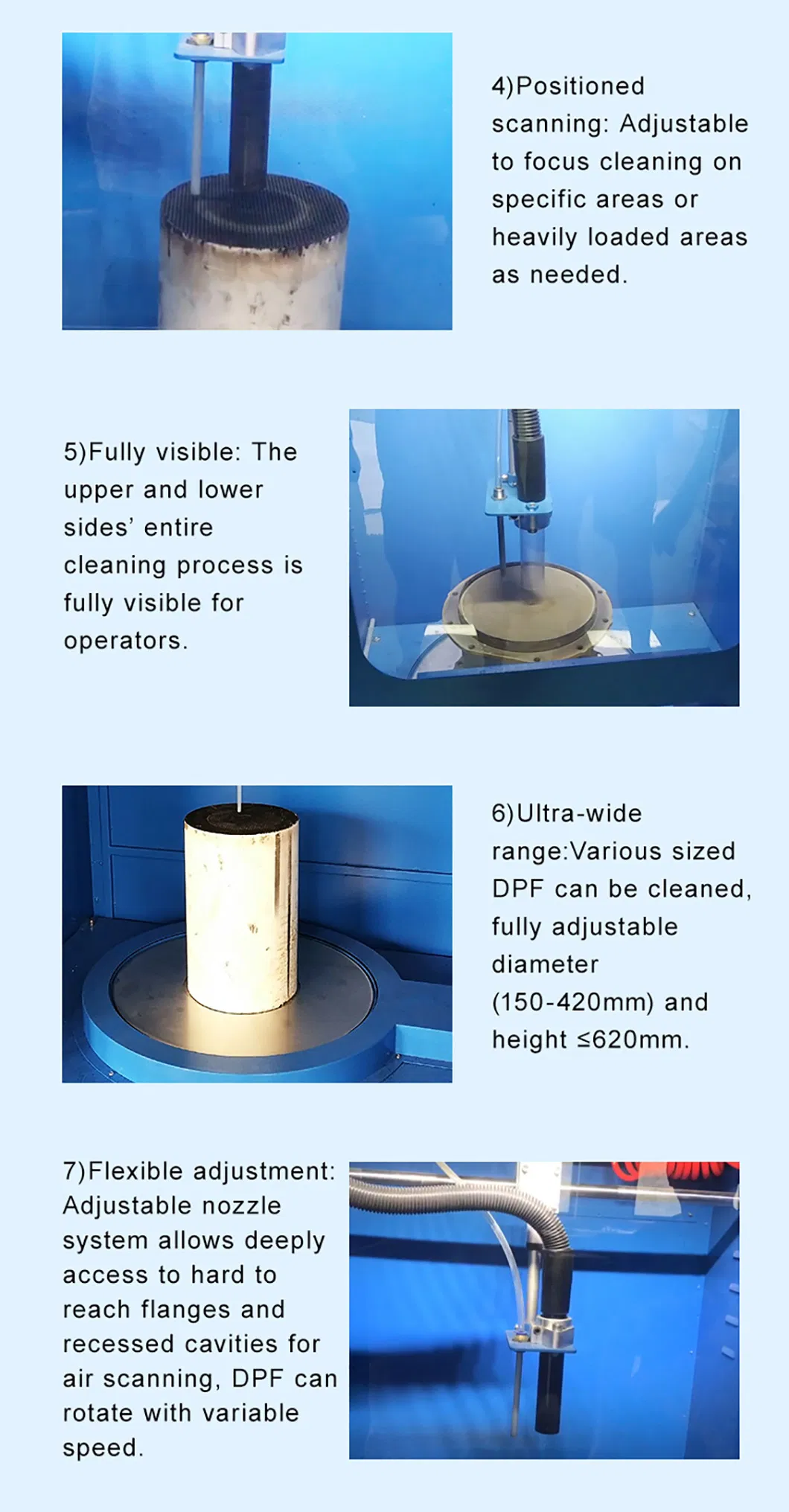

Q: Can I focus cleaning on specific heavily loaded areas? A: Yes, the system supports positioned scanning, allowing operators to adjust the focus on specific areas or heavily loaded sections as needed.
Q: Is the dust collection system safe for the operator? A: Absolutely. The powerful dust collection system captures ash and carbon soot instantly, preventing secondary air pollution and protecting the operator's breathing safety.
