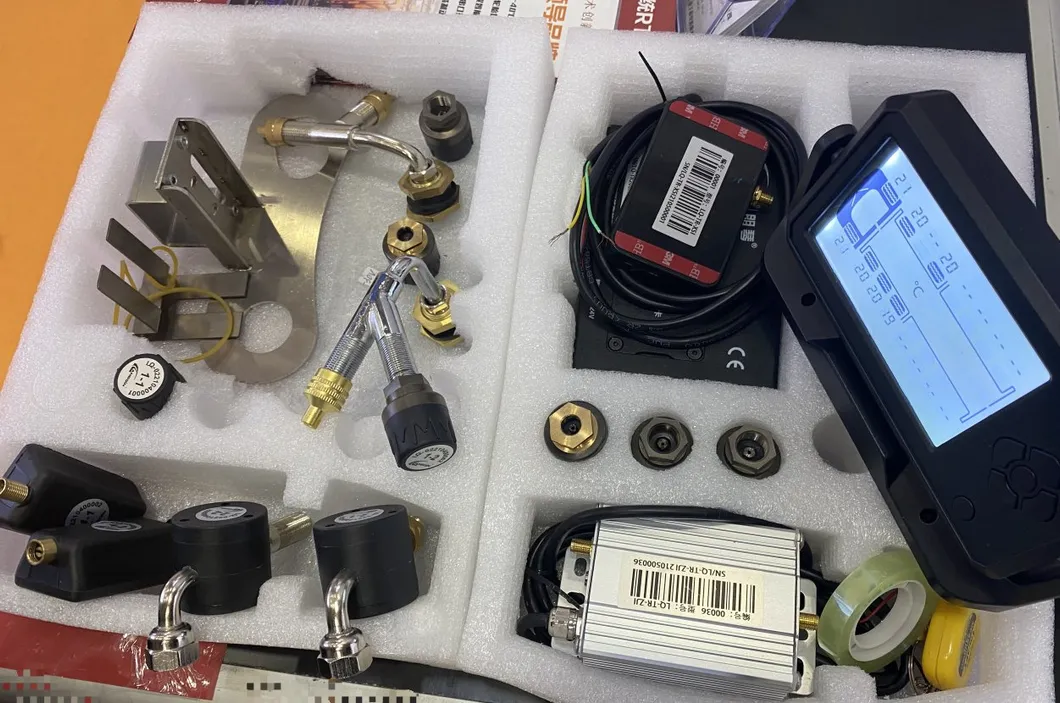

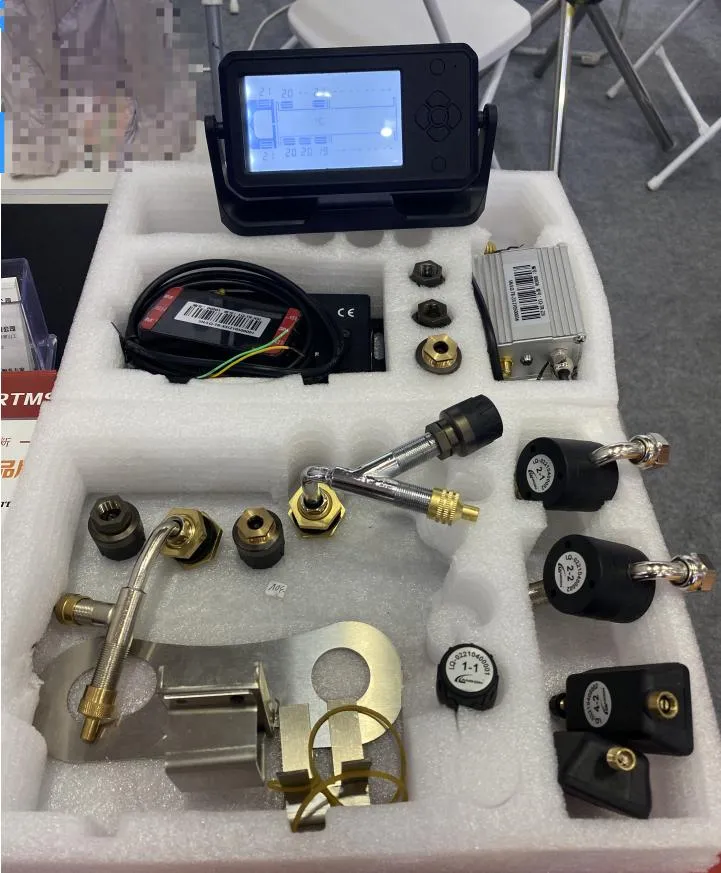

Product Name: Tire Pressure Monitoring System
Application: Tow Tractor on Airports
Contents:
Interface Types: CAN, TTL, RS232, RS485
| Parameter Name | Specifications | ||
|---|---|---|---|
| Working temperature | -40-70ºC (sensor), -20-55ºC (host) | Environmental pressure | 0-14kgf/cm |
| Storage temperature | -50-125ºC (sensor), -30-100ºC (host) | Working humidity | 0-100% (condensing) |
| Working voltage | Sensor 3V; 12V/24V System host | Mechanical impact | 100 times gravity acceleration |
| Pressure Error | +-0.2 kg reading | Temperature Error | +-2ºC |
| Display Voltage | 3.7V - 5.0V | MTBF | 30000 hours |

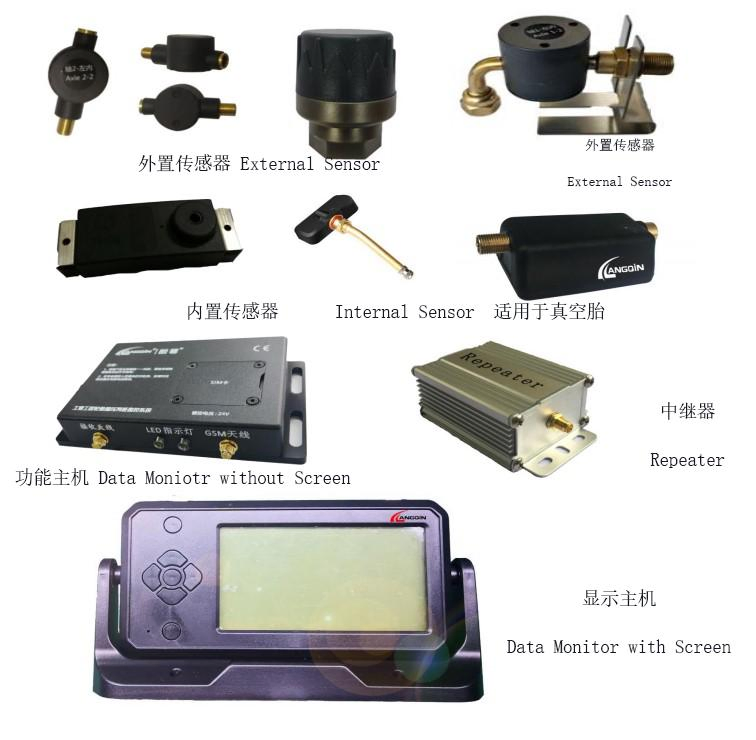

This is one of the most intelligent TPMS solutions available for construction machinery, featuring a multi-CPU architecture (15 CPUs total). It monitors tire temperature and pressure simultaneously and can integrate with management strategies to trigger alarms or machinery braking, ensuring maximum safety.
Developed specifically for construction machinery, this system allows operators to grasp tire conditions in real-time. When abnormal pressure or extreme temperatures occur, sound and light warnings alert the driver immediately. Combined with remote management platforms, it ensures driving safety and prevents accidents before they happen.
