🚚 Product Description

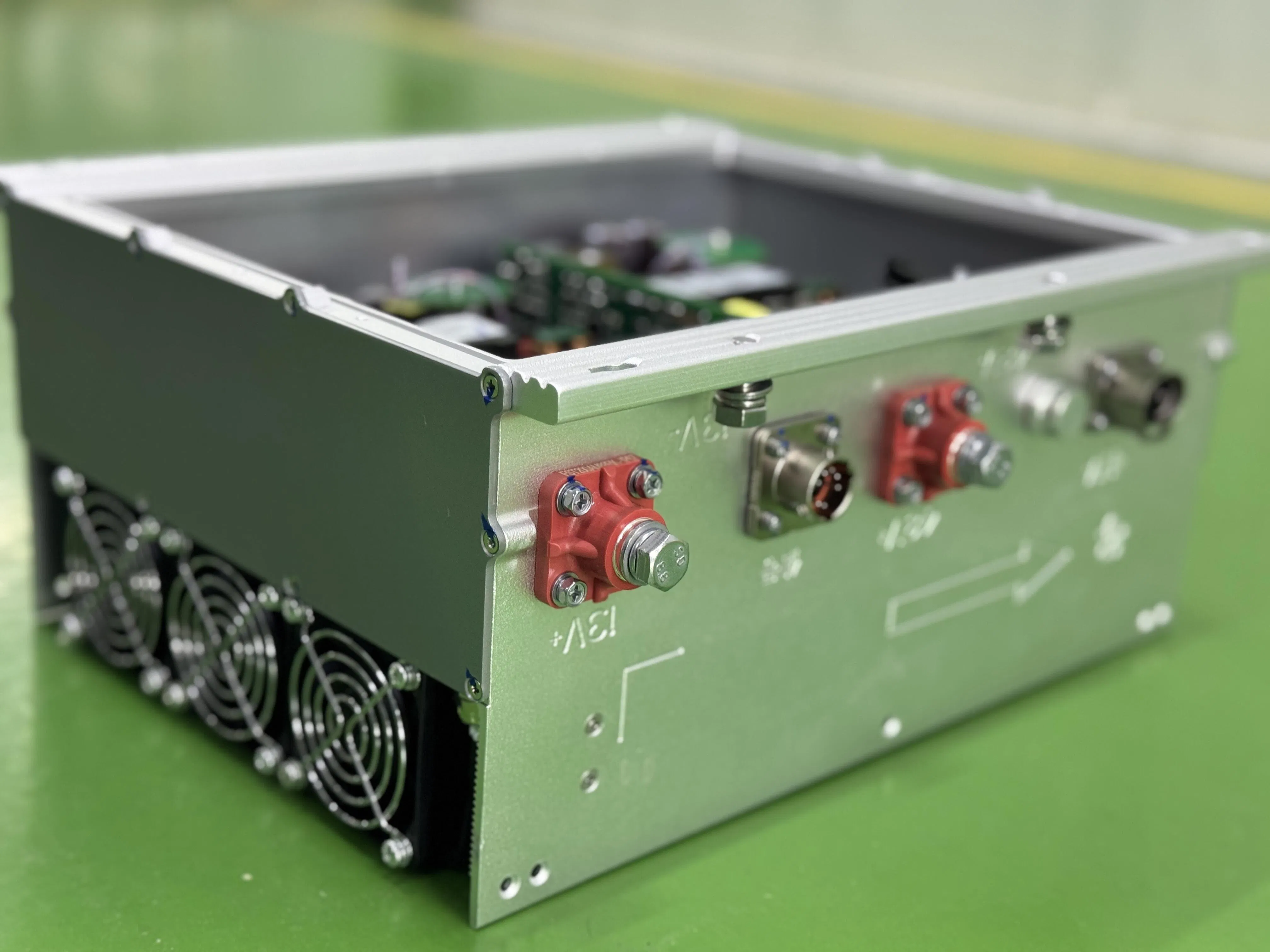

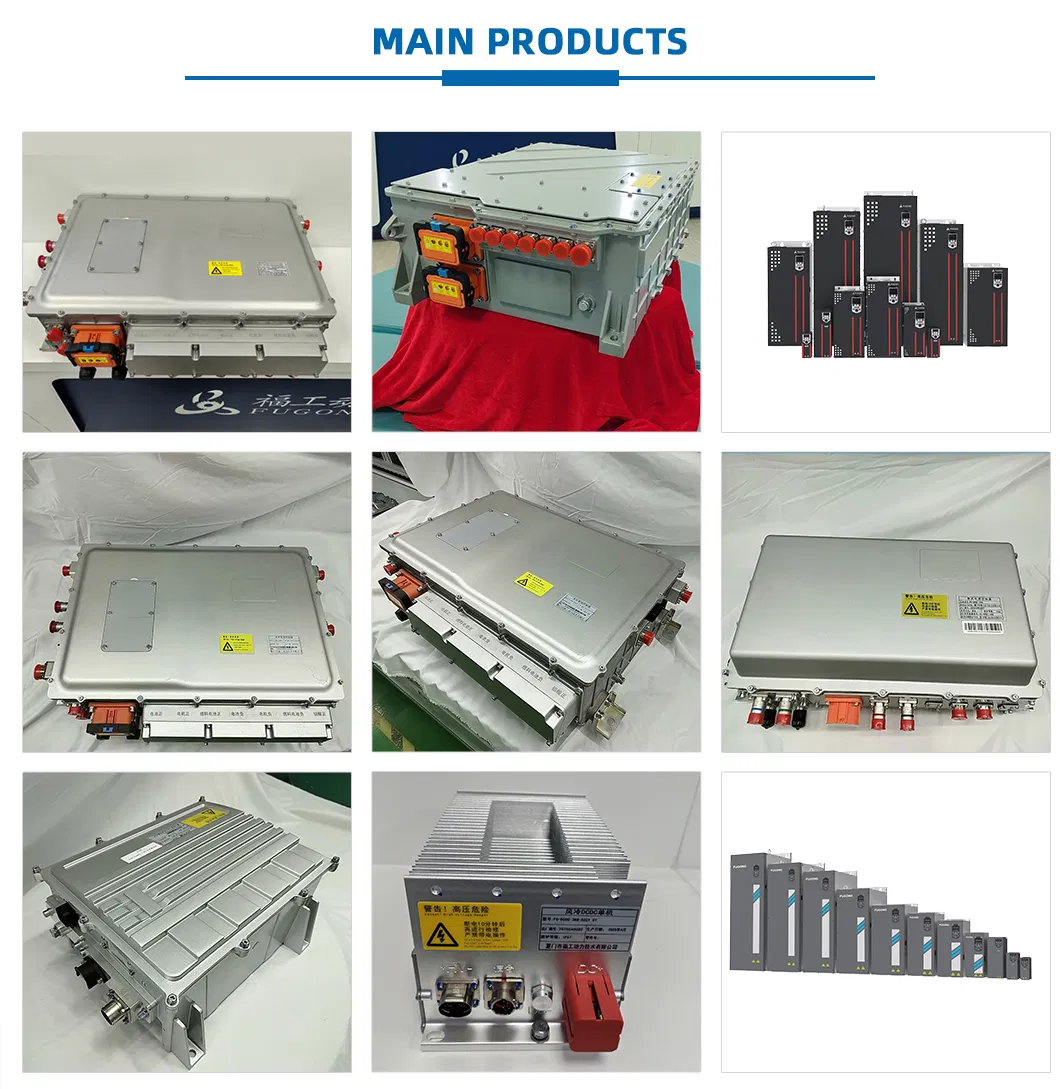

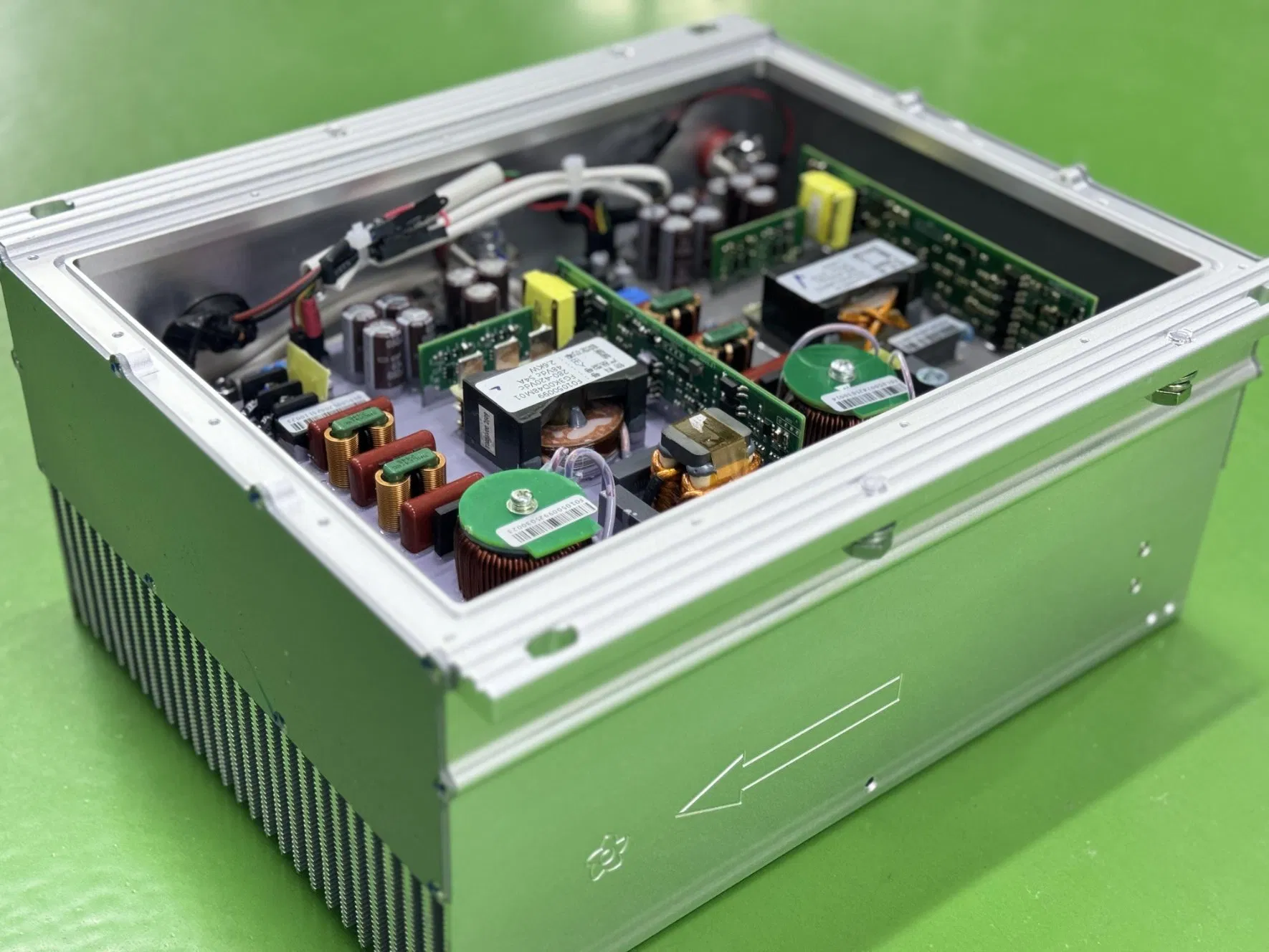

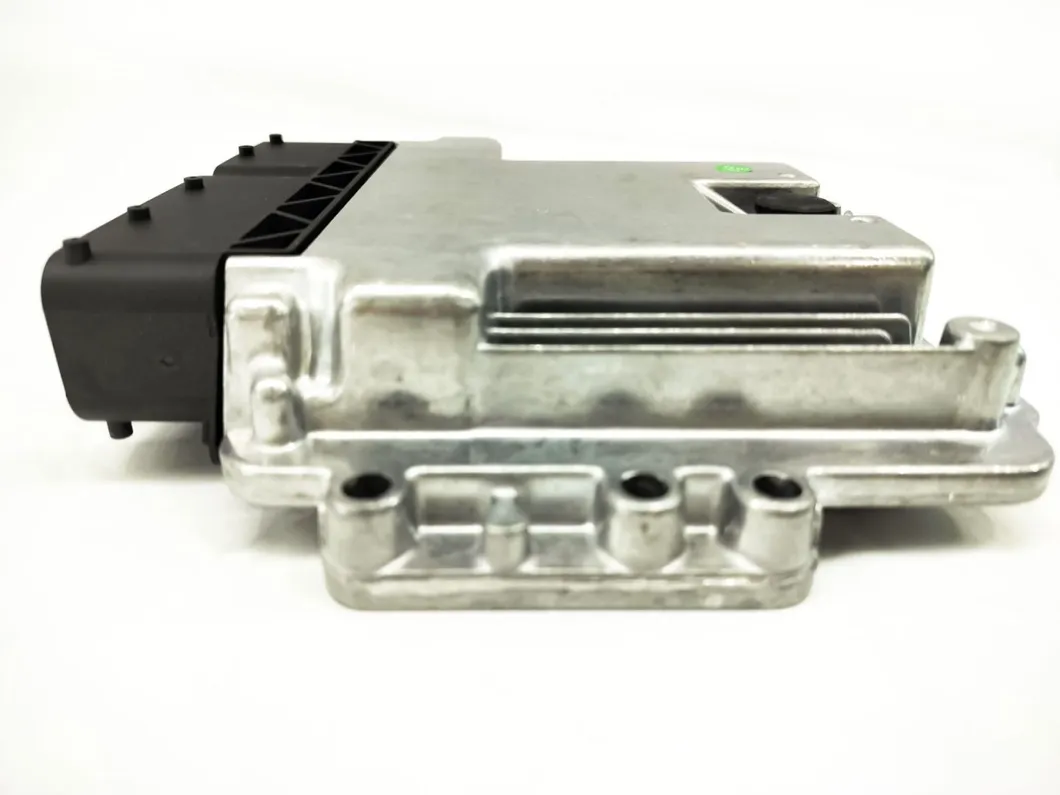

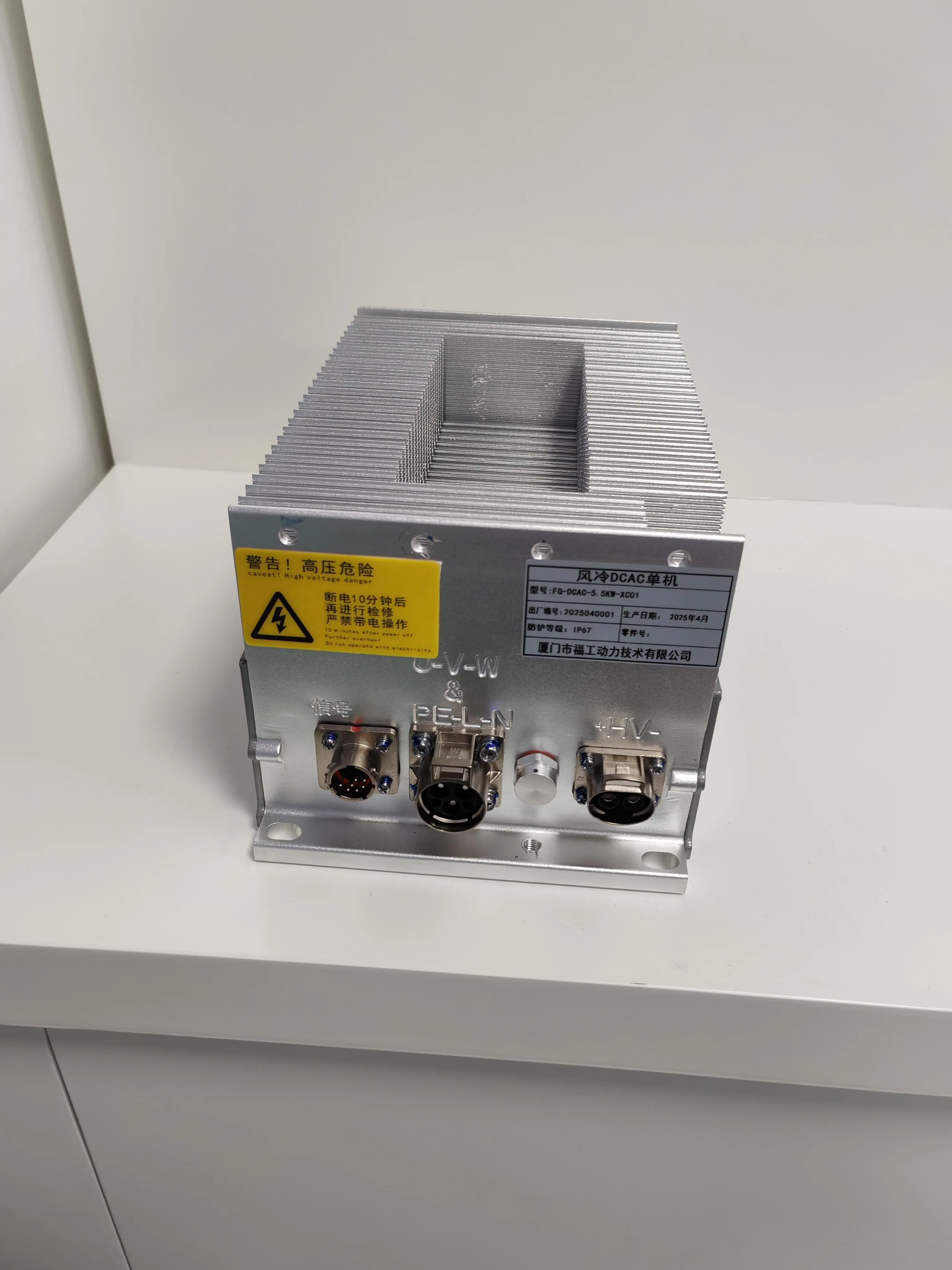

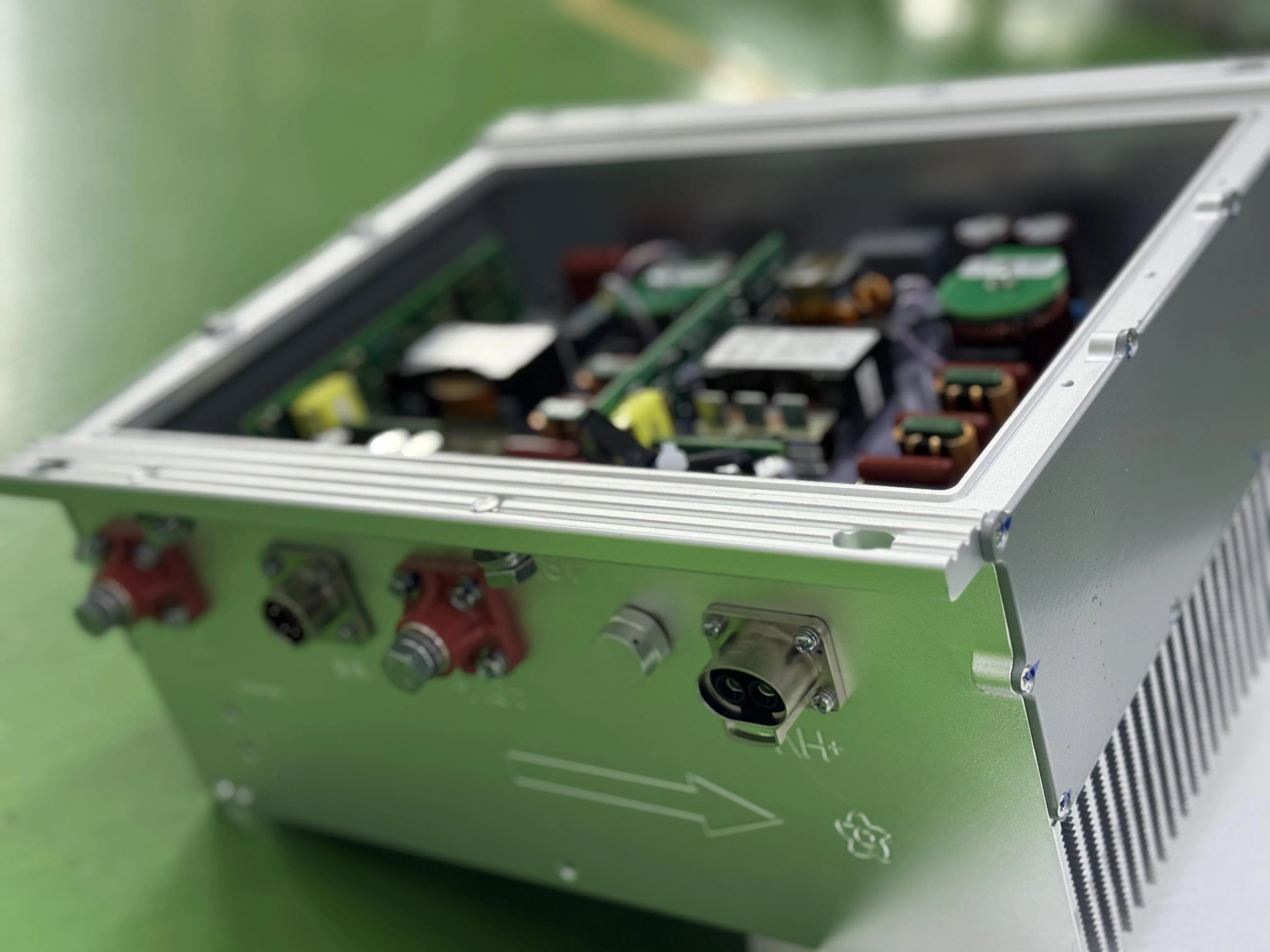

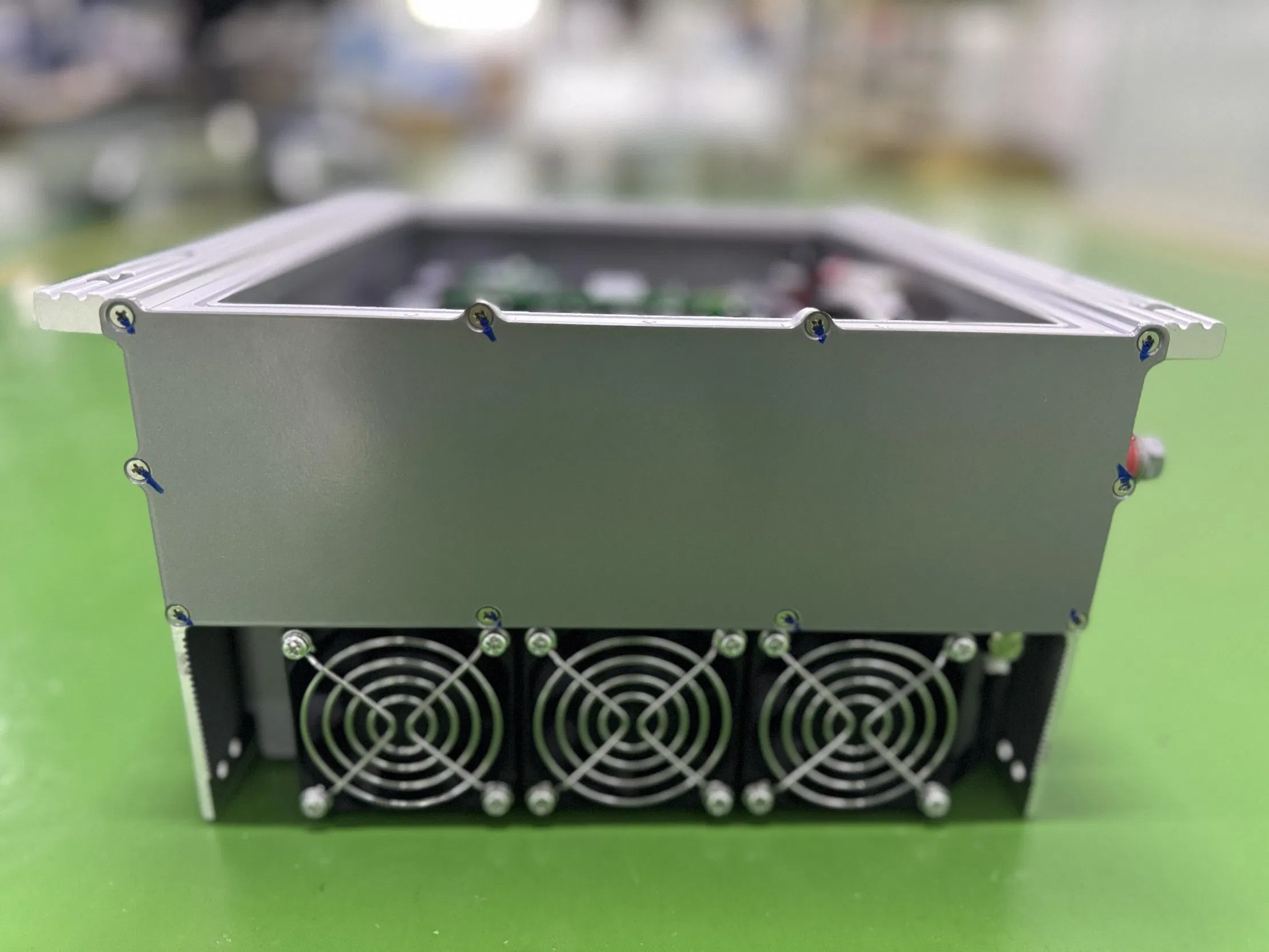

The power supply product series mainly includes DC/DC power modules, DC/AC motor controllers (vehicle-mounted), and OBC power products. The main features of these products are: high power density, high efficiency, and highly reliable DC/DC converters, as well as highly integrated, bidirectional vehicle-mounted chargers. Equipped with multiple protection functions including input over/under voltage protection, output overcurrent protection, output overvoltage protection, output short-circuit protection, and over temperature protection. It can be widely applied in battery charging, automotive air conditioning power supply, fuel cell vehicle fan power supply, ships, etc.
DC/DC Power Supply Module Parameters
| Item |
FG1K8-540DCDC14 |
FG2k-540DCDC14 |
FG3k-540DCDC14 |
FG1k8-380DCDC14 |
FG3k3-540DCDC27 |
| Dimension (mm) |
200*120*45 |
200*120*45 |
200*120*45 |
200*120*45 |
200*120*45 |
| Weight (kg) |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
| Input Voltage (VDC) |
200-750 |
200-750 |
200-750 |
200-430 |
400-720 |
| Output Voltage (VDC) |
14±0.2 |
14±0.2 |
14±0.2 |
14±0.2 |
27.5±0.5 |
| Rated Power (kW) |
1.5 |
1.8 |
2.4 |
1.5 |
3 |
| Peak Power (kW) |
1.8 |
2 |
3 |
1.8 |
3.3 |
Application Note: DC/DC converters are mainly used in new energy vehicles, ships, automotive air conditioning, photovoltaic power generation, intelligent manufacturing, 5G communication, and other specialized fields.
🏭 Research & Development

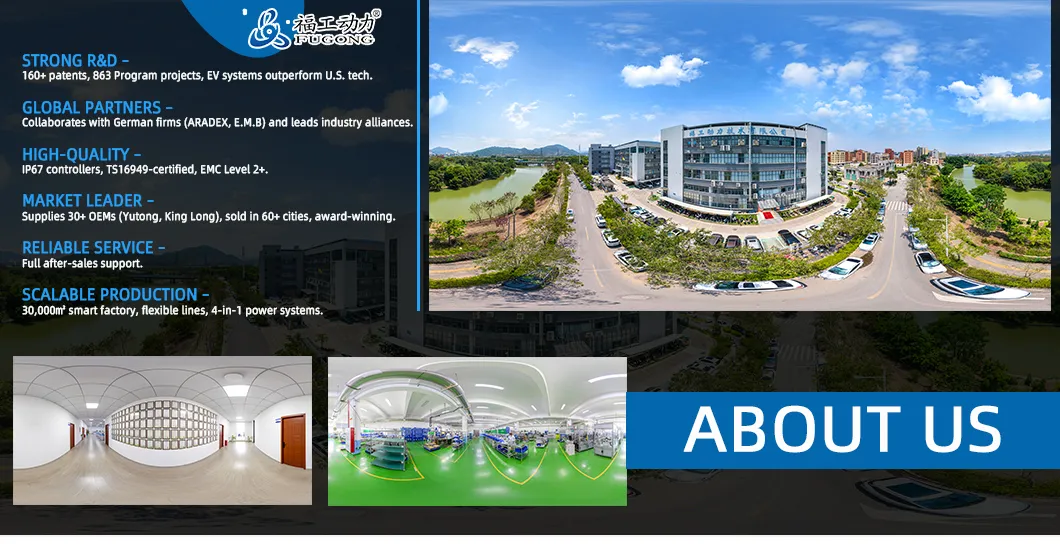

Established in March 2009, this national key high-tech enterprise specializes in the integration of new energy vehicle drive systems, as well as the research, manufacturing, and sales of related core components. The products cover pure electric drive system assemblies, fuel cell vehicle core components, heavy-duty truck and construction machinery components, and industrial frequency converters.
The R&D team has accumulated 161 national patent applications, including 34 invention patents and 31 software copyrights. Recognition includes awards such as the Most Powerful Product Award for Chinese Bus Components and the Innovation Enterprise Award for New Energy Bus Power Control Systems.
❓ Frequently Asked Questions
What are the primary applications for these DC/DC converters?
Our converters are widely used in new energy vehicles (battery charging, air conditioning), fuel cell vehicles, ships, 5G communication systems, and industrial intelligent manufacturing.
What protection features are included in the power modules?
The modules feature comprehensive protection, including input over/under voltage, output overcurrent, output overvoltage, output short-circuit, and over-temperature protection.
Can the power supply products be customized?
Yes, we provide customization services to meet specific technical requirements for different vehicle models or industrial applications.
What is the typical lead time for an order?
The standard delivery time is generally between 35 to 45 days, depending on the order volume and customization needs.
Do the products hold international certifications?
Yes, our power supply products are CE certified and manufactured under strict quality control standards.
What is your Minimum Order Quantity (MOQ)?
The minimum order quantity for these specialized power modules starts as low as 2 Kg.
