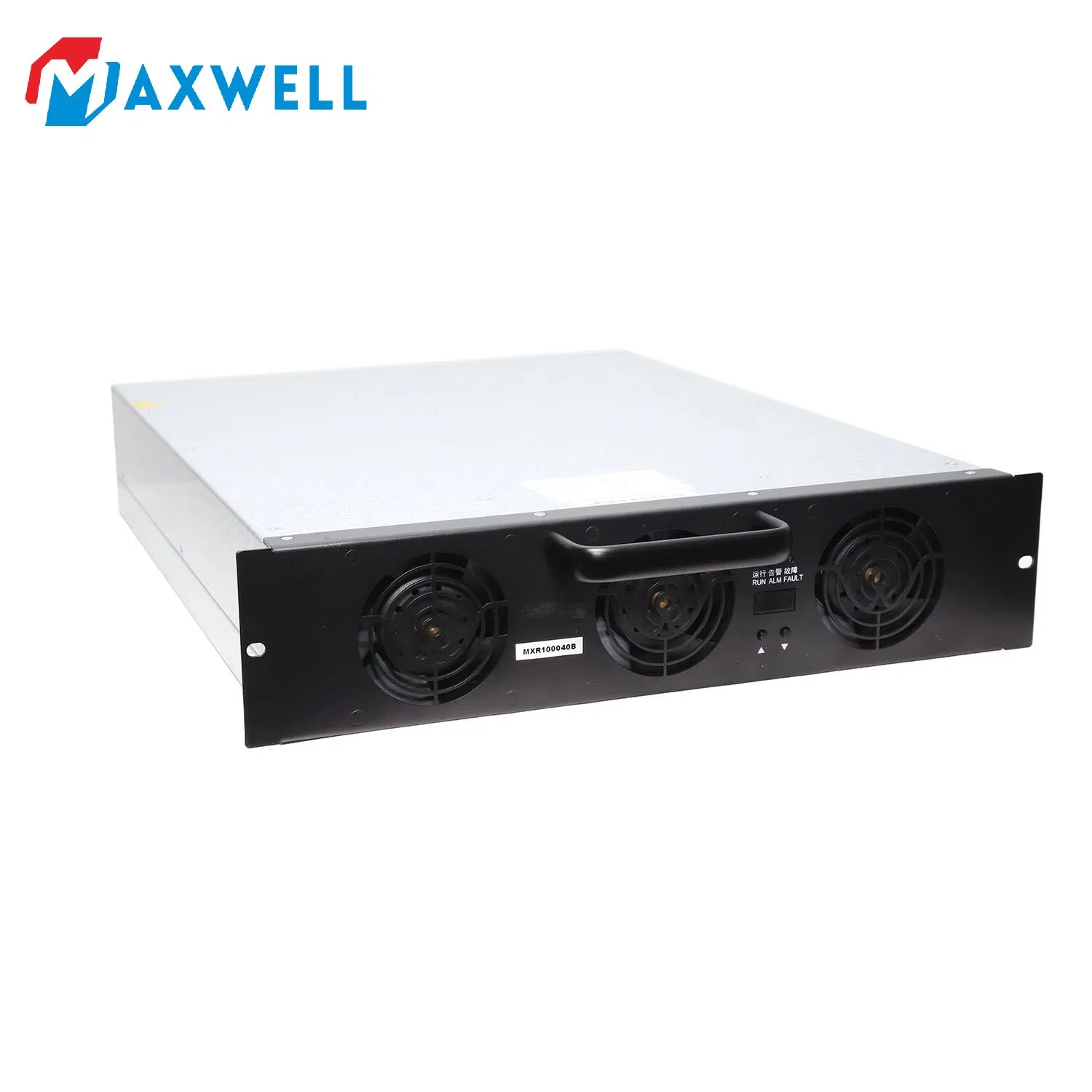

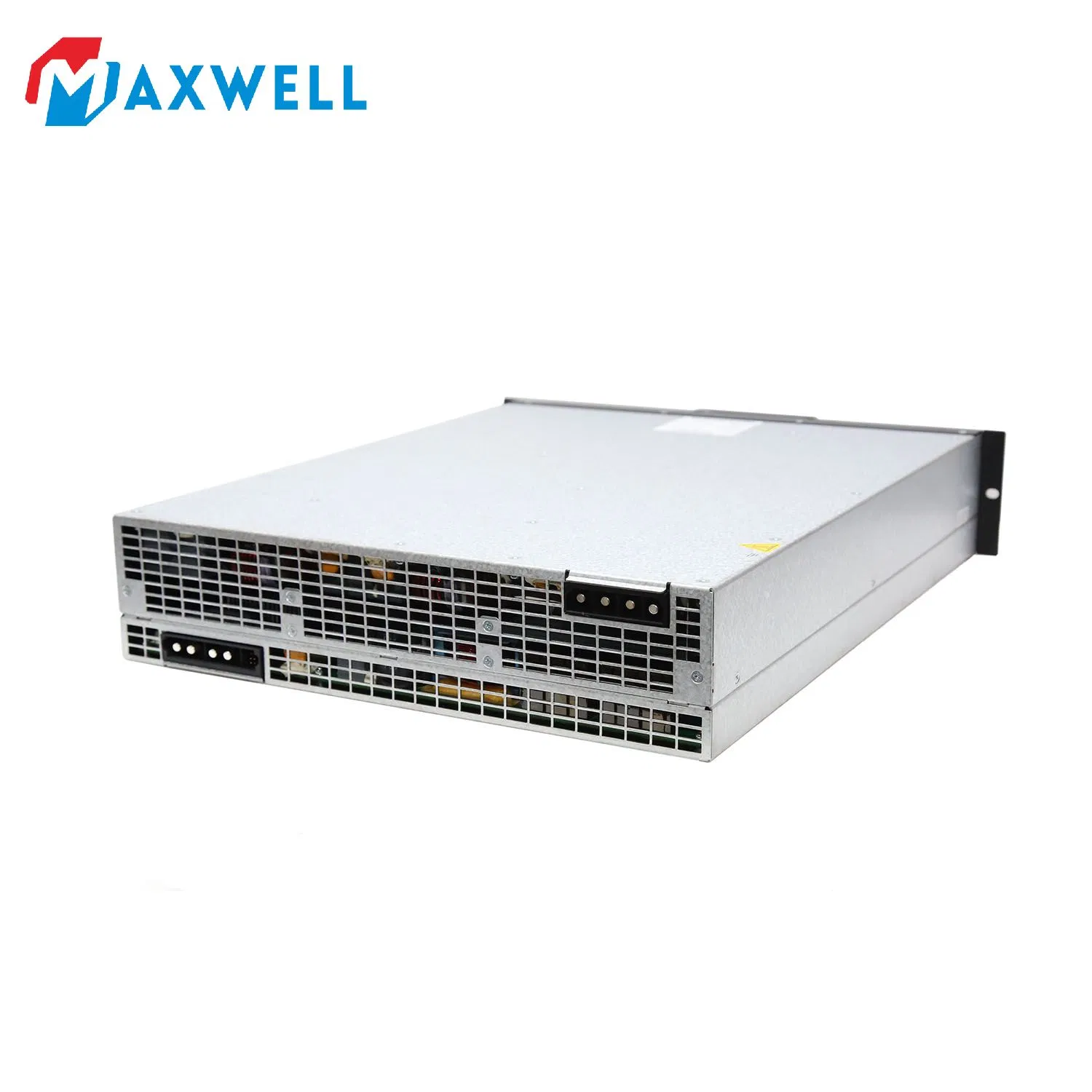

Electric Vehicle battery Charging Power Module 40kw EV Charging Converter

1 / 5

Electric Vehicle battery Charging Power Module 40kw EV Charging Converter

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.	MXR100040
Installation	Wall Mounted
Charge Method	Quick Charge
Cooling Mode	Fan Cooling
Efficiency (Full Load)	≥95.5%
Communication Protocol	CAN bus
Dimensions	85mm(H)360mm(W)459mm(D)
Input Voltage	285 Vac~475 Vac, 3 phase+PE
Output Voltage	100 Vdc~1000 Vdc
MTBF	500,000 Hours
Weight	21kg
Certification	CE, ISO, TUV, RoHS

★

Product Description

1. Function Details:

Hot Swap: The charging module adopts plug-in technology, which is convenient for installation and maintenance.
Current Sharing: The charging modules can automatically share the current, and the unbalance degree is less than 3%.

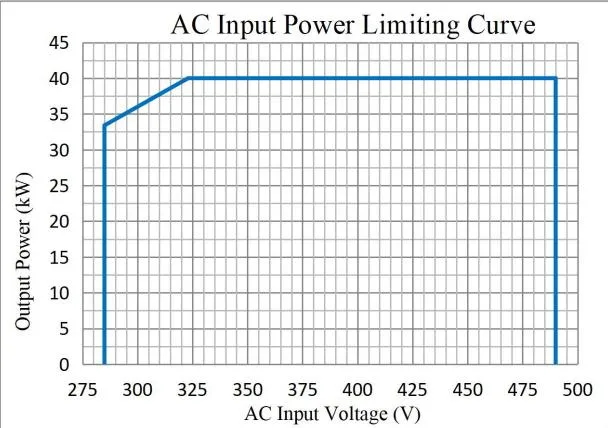

Input Limited Power Control: When the input voltage is between 323Vac and 475Vac (hysteresis is less than 15V), the module can output the maximum power.

2. Output Constant Power Control:

When the MXR100040 rated input voltage is applied, the allowable output power of the module is 40kW.

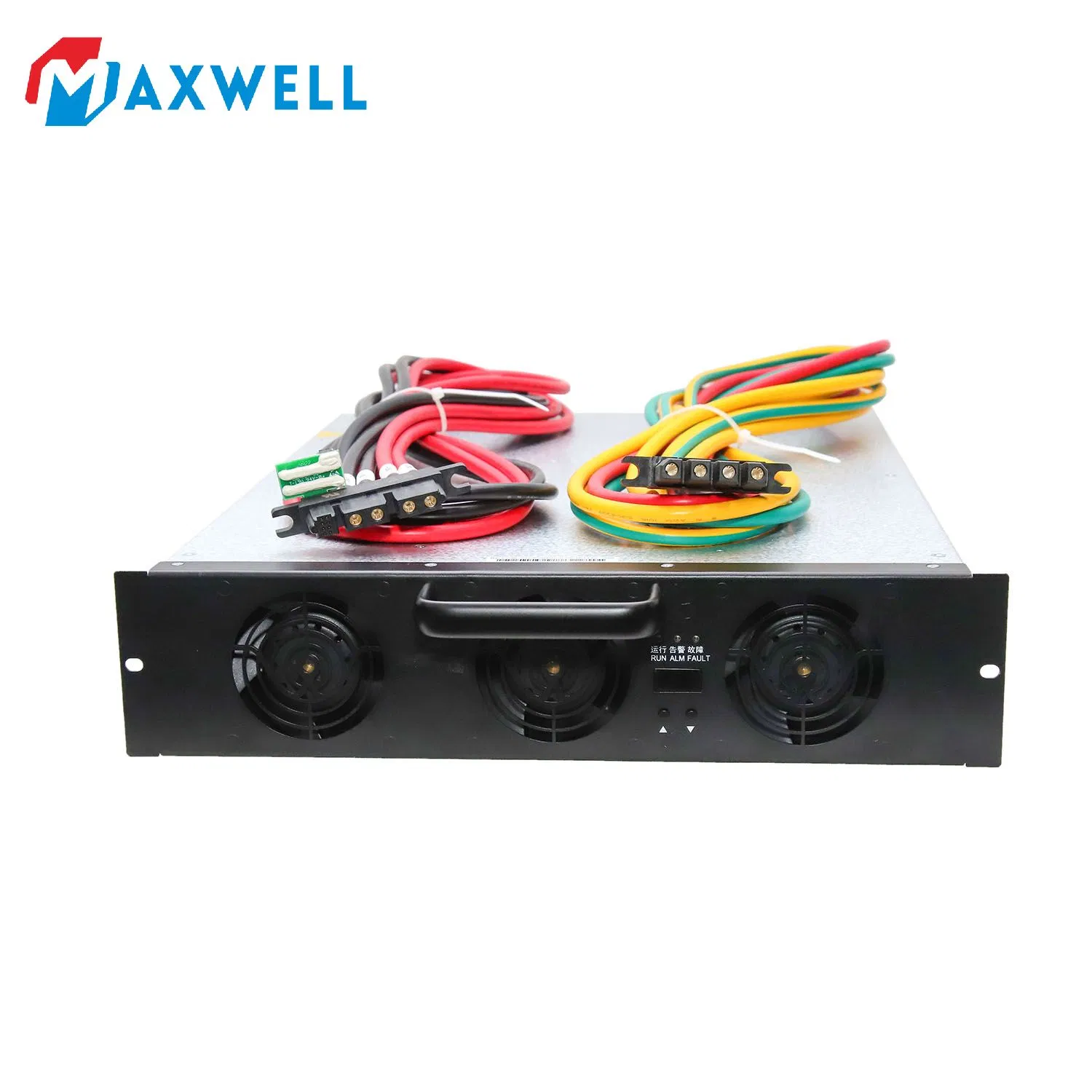

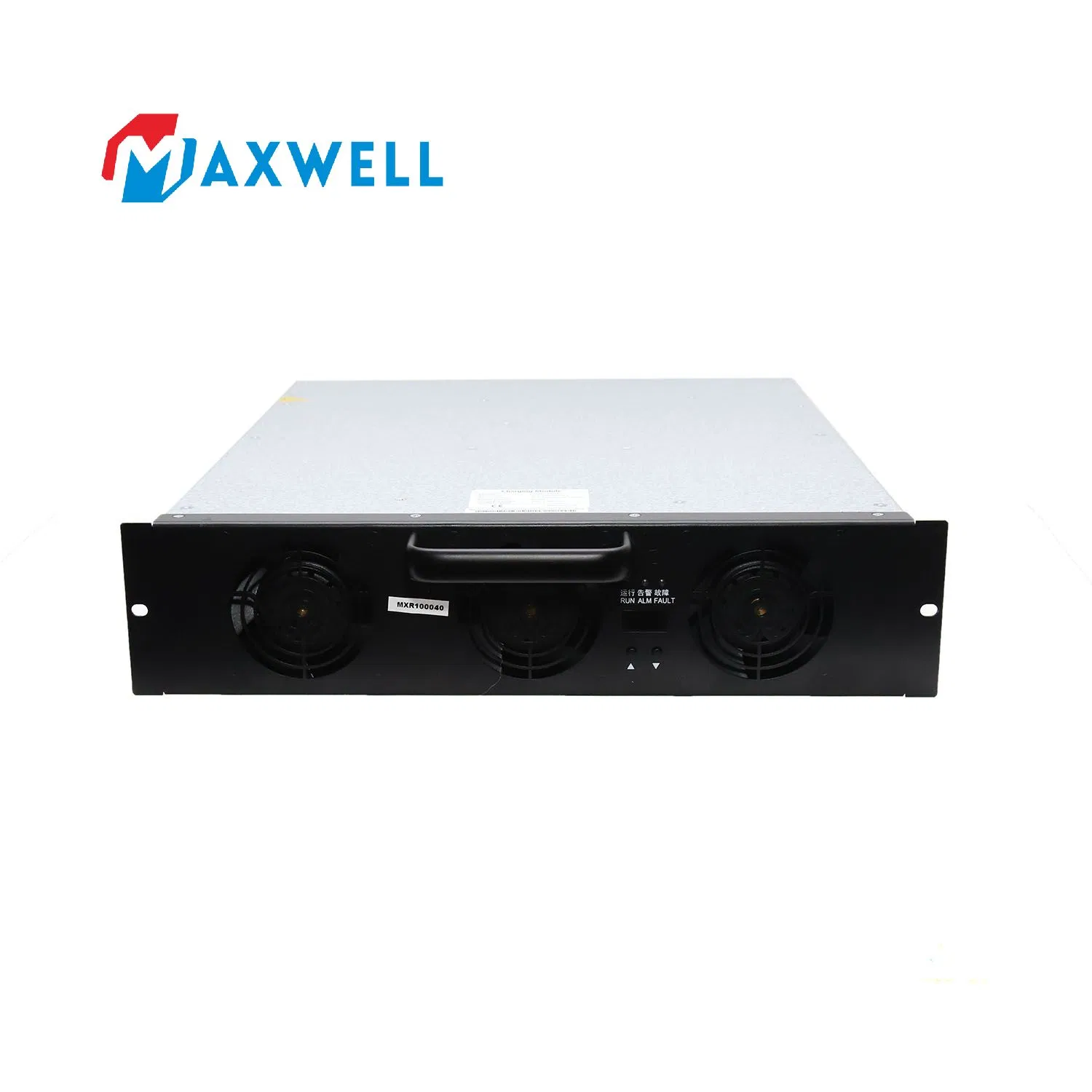

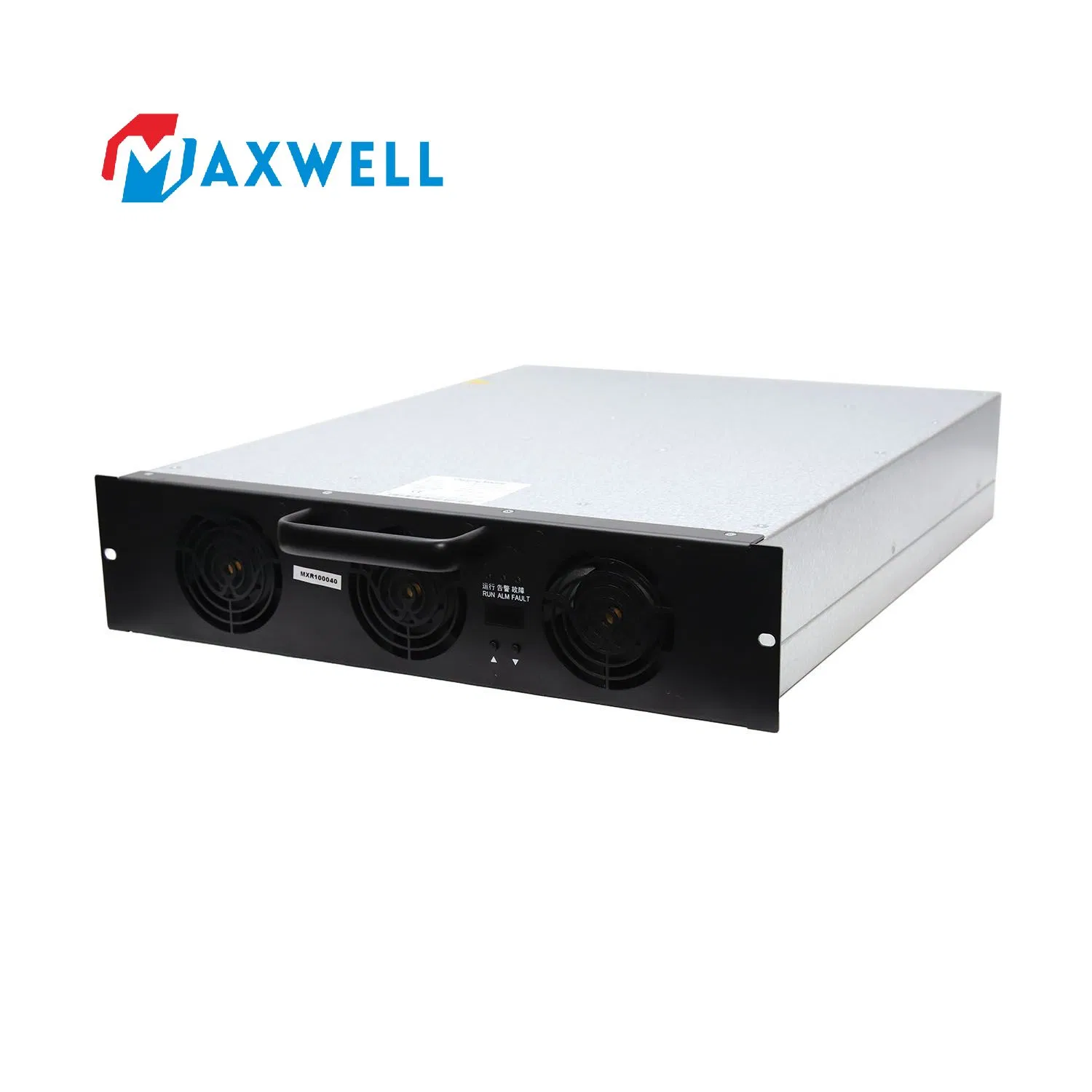

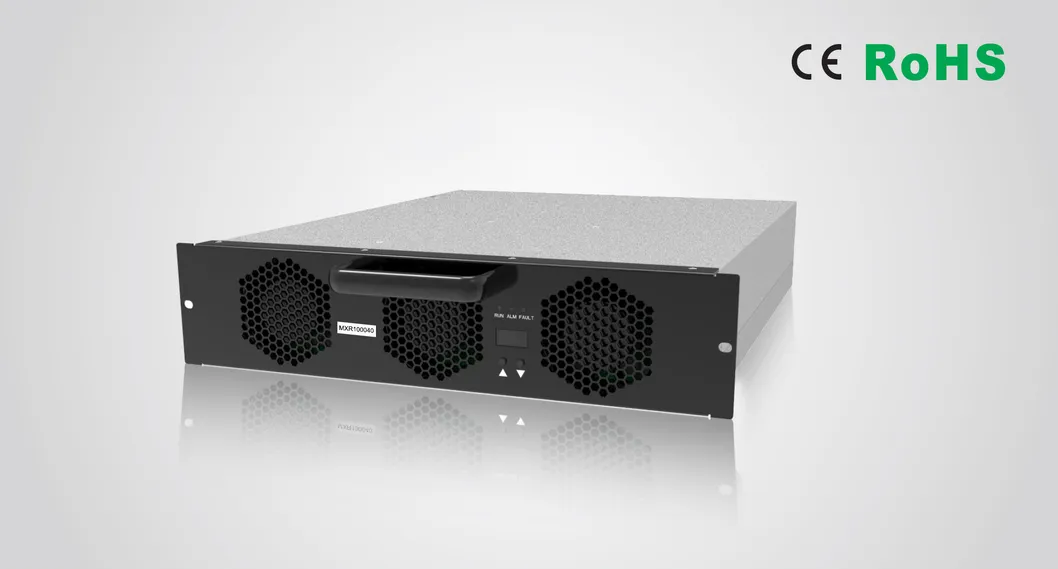

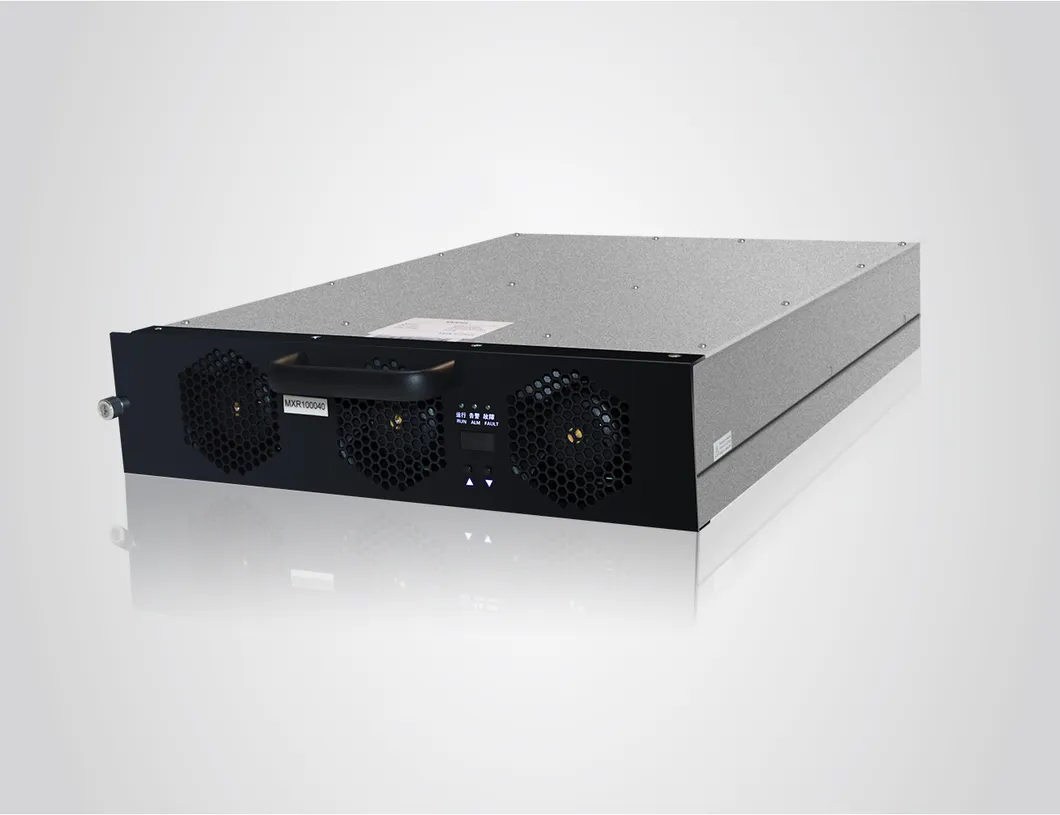

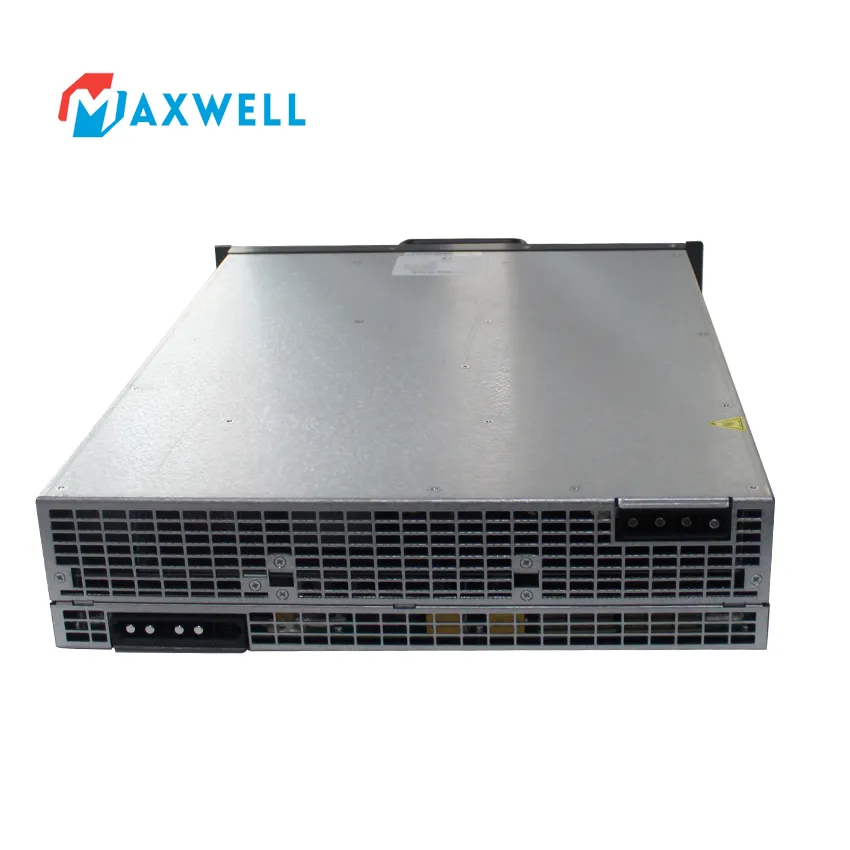

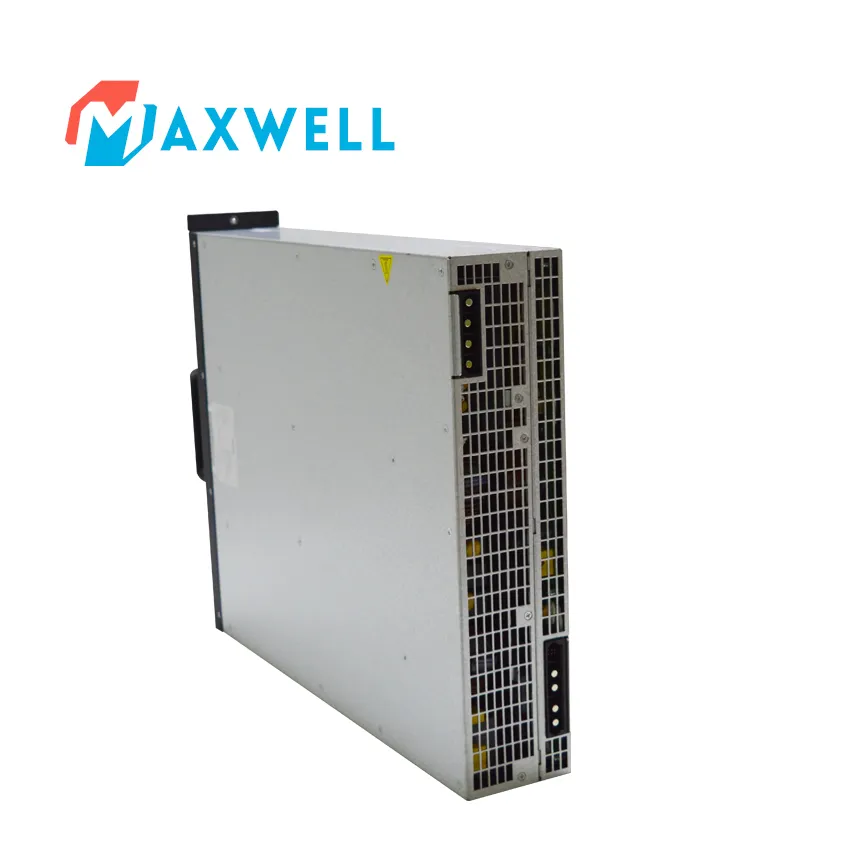

Detailed Photos

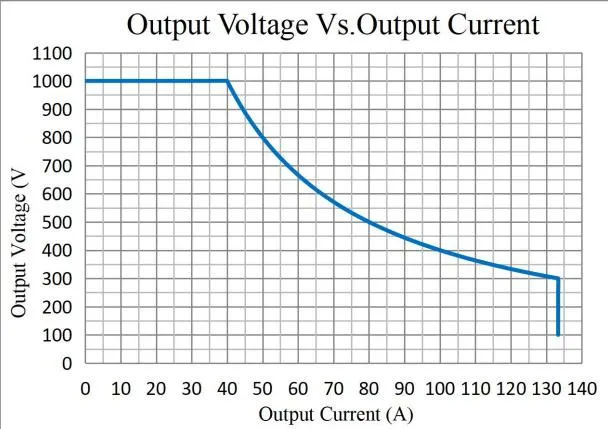

Product Parameters

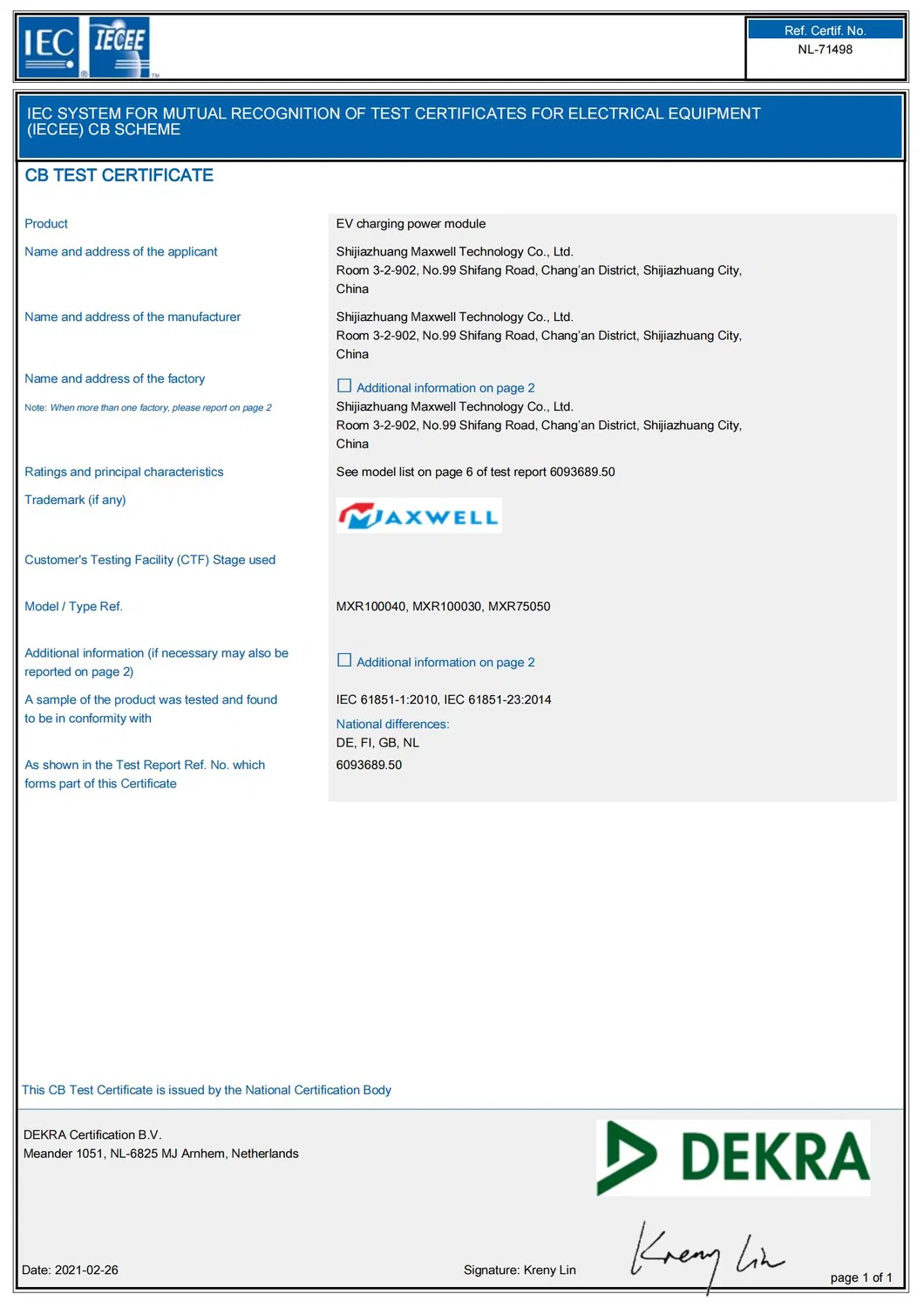

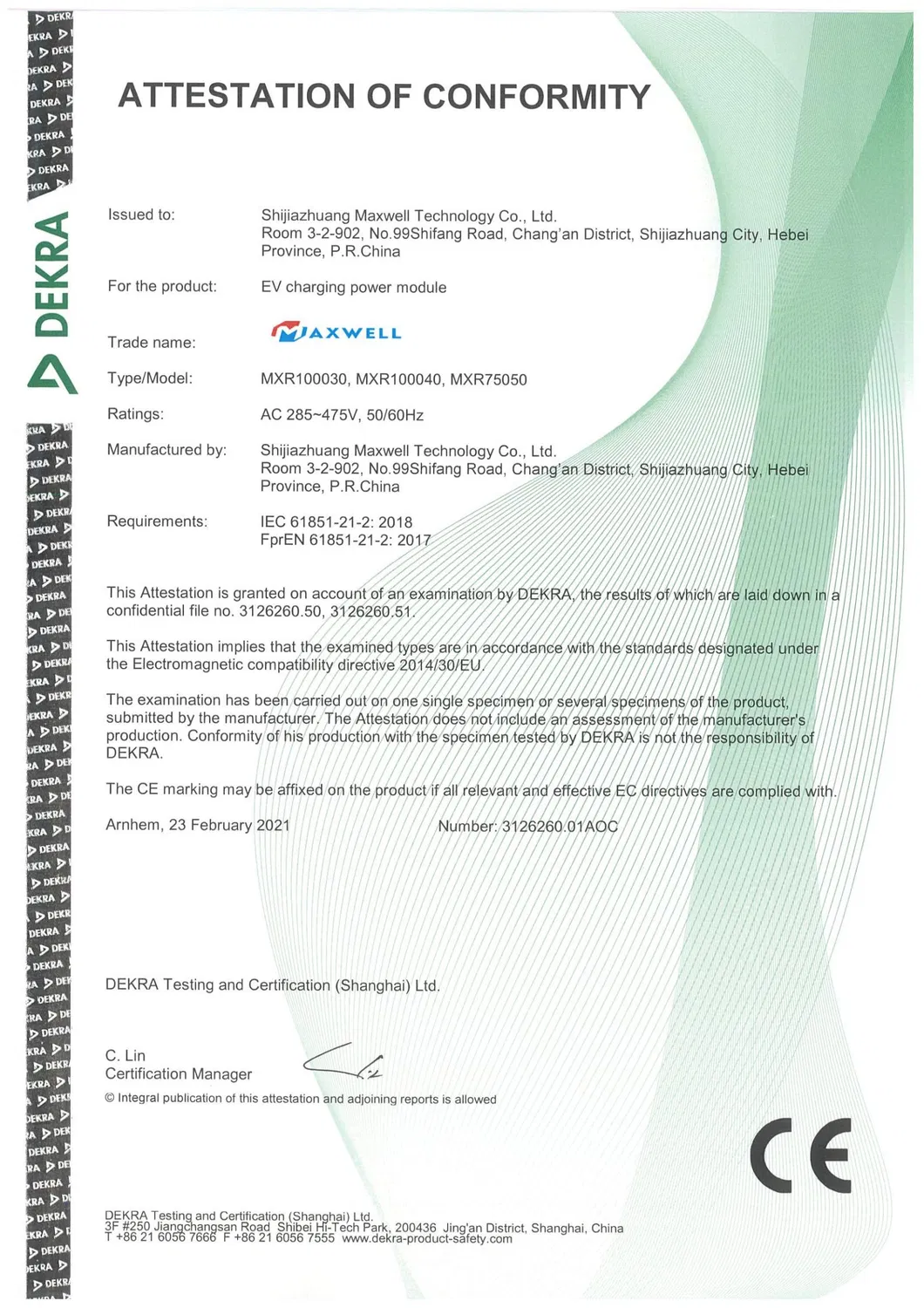

Certifications

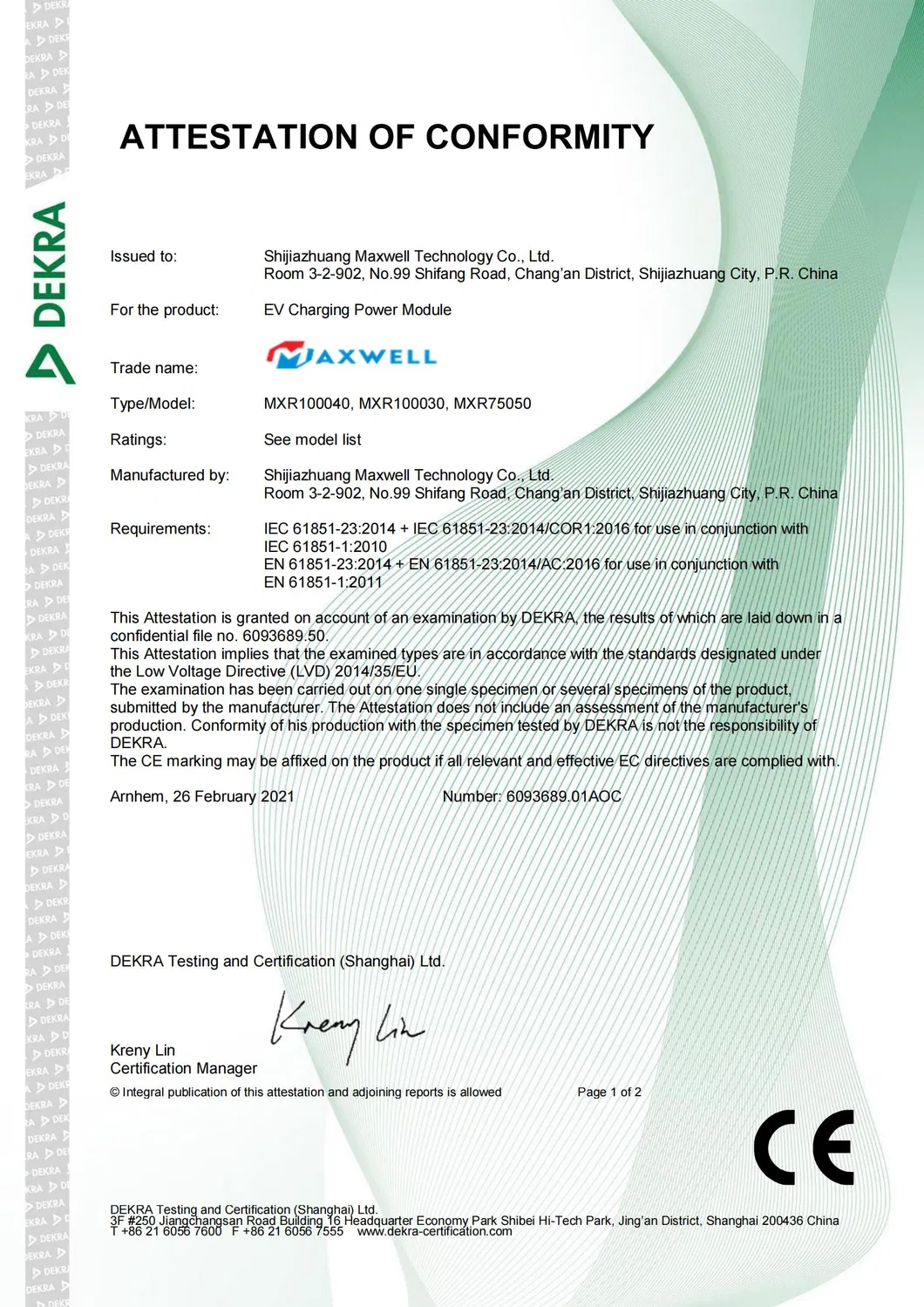

CE/ TUV / EMC	EN IEC 61000-6-1:2019; EN IEC 61000-6-2:2019; EN IEC 61000-6-3:2021; EN IEC 61000-6-4:2019; EN IEC 61851-21-2:2021

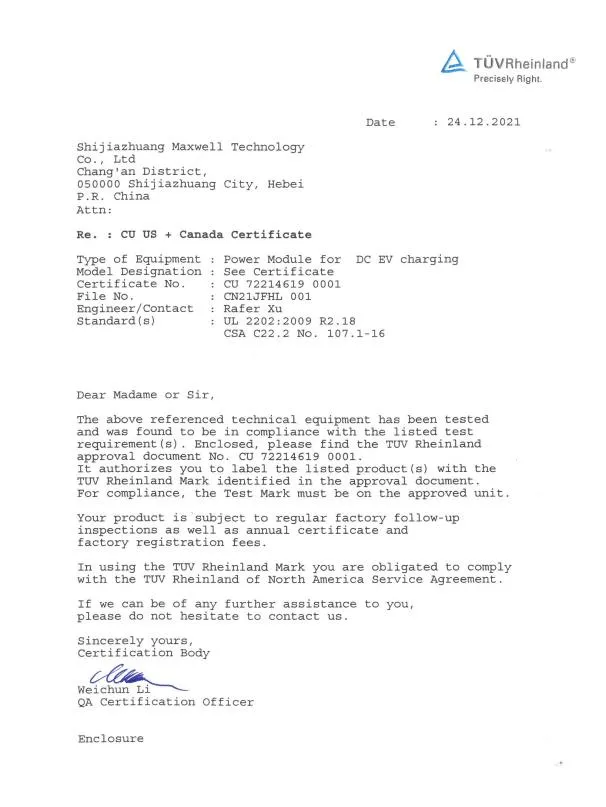

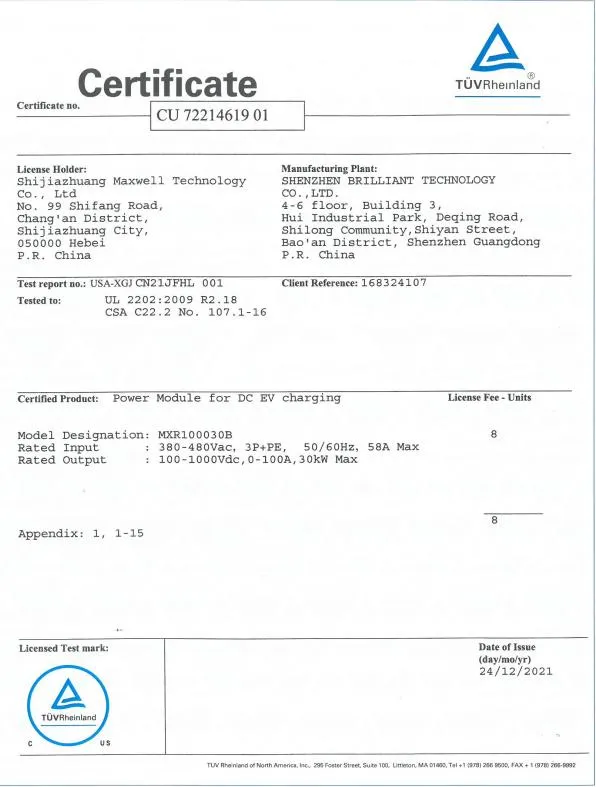

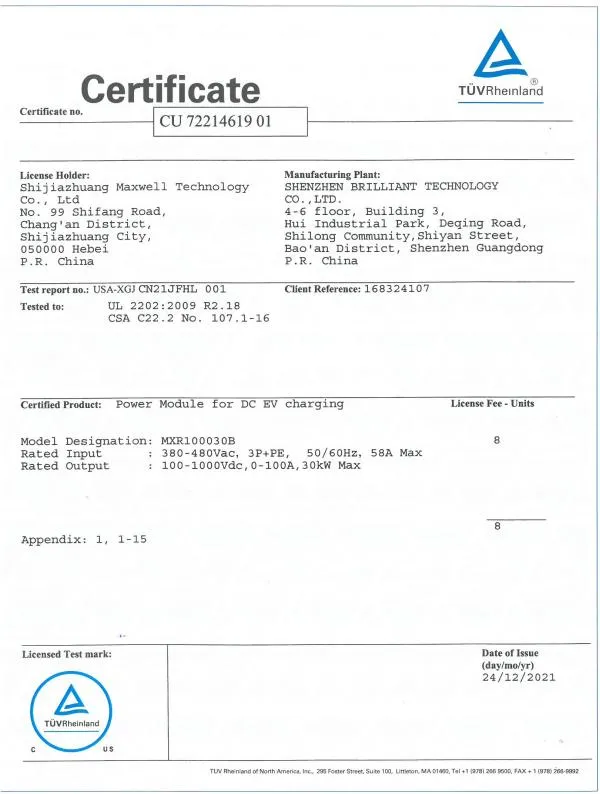

cTUVus	UL 2202:2009 R2.18; CSA C22.2 NO.107.1-16

Packaging & Shipping

Background & Development

Established in 2009, the company initially focused on power converters for the stable power industry. In 2014, the strategic direction shifted towards photovoltaic, energy storage, and new energy sectors due to market evolution.

Current Core Products for New Energy Charging: 1000V 20KW, 1000V 30KW, 1000V 40KW, 1000V 50KW.

Energy Storage (V2G) Solutions: MXR80025, MXR75027, MXC75050B, etc.

Future goals include deepening new energy industry involvement, iterating charging modules as core products, and developing strategic partnerships within the charging station operator network.

After Sales Service

Warranty Period: 12 Months

For non-human damage within the first 6 months, we offer a free replacement with a new unit (freight costs shared). In the second half of the year, free repairs are provided for non-human damage. Technical assistance from our engineers is available throughout your testing processes.

Frequently Asked Questions

What is the efficiency of the MXR100040 charging module?

The module achieves a full-load efficiency of ≥95.5%, ensuring optimal energy conversion and minimal waste heat.

Does this module support hot-swapping?

Yes, the charging module uses plug-in technology which supports hot-swapping for easier installation and maintenance.

What is the input voltage range for this module?

The module operates within an input voltage range of 285 Vac to 475 Vac (3 phase + PE).

How is the cooling handled for this power module?

The module utilizes an efficient fan cooling system to maintain optimal operating temperatures.

What kind of communication protocol is used?

The module uses the standard CAN bus communication protocol for reliable data exchange and control.

What happens if the module is damaged?

We provide a 12-month warranty. Within the first six months, non-human damaged units are replaced for free; in the following six months, free repair services are provided.
