📋 Basic Information
| Model NO. |
WY13 |
| Location |
Public Use |
| Charging Interfaces |
One Pile with Multiple Charges |
| Start Mode |
Credit Card Payment, Mobile Remote Operation, RFID Authentic, Any |
| Weight |
550kg-750kg |
| Cable Length |
5m |
| Connectors |

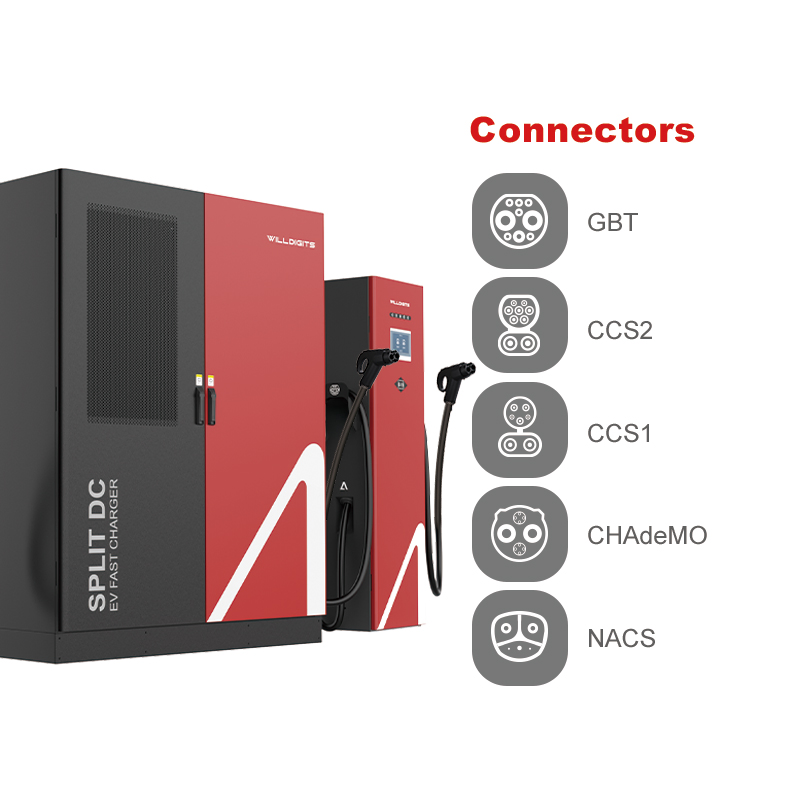

Gbt, CCS2, CCS1, Chademo, Nacs |
| Input Voltage |
400VAC / 480VAC (3p+N+PE) |
| Output Voltage |
200 - 1000VDC |
| Rated Power |
240-1920kw |
| Efficiency |
Peak Efficiency ≥96% |
| Ingress Protection |
IP54 Ik10 |
| Origin |
China |
🚗 Product Description

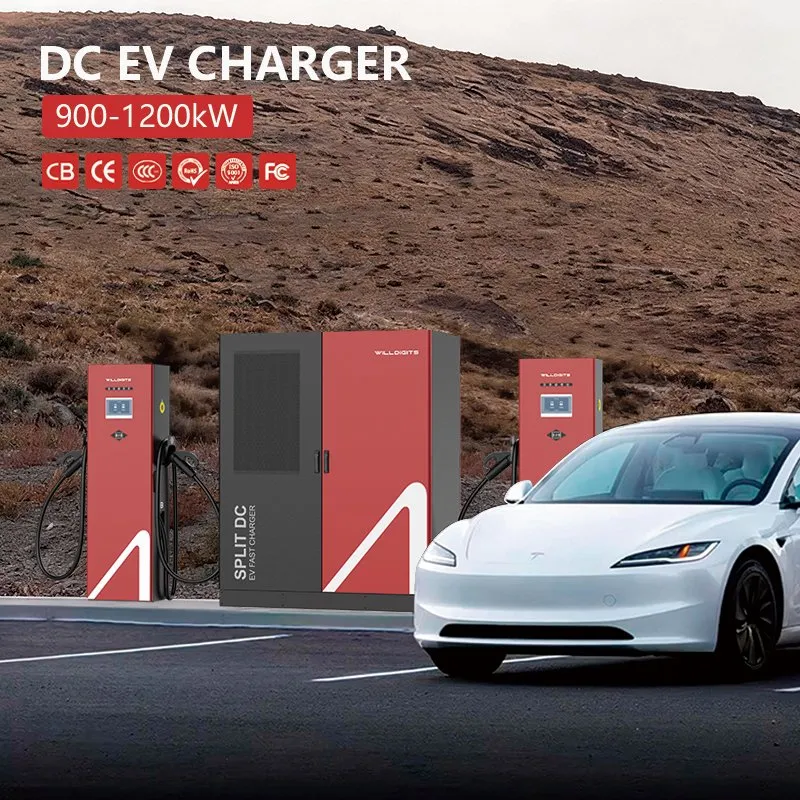

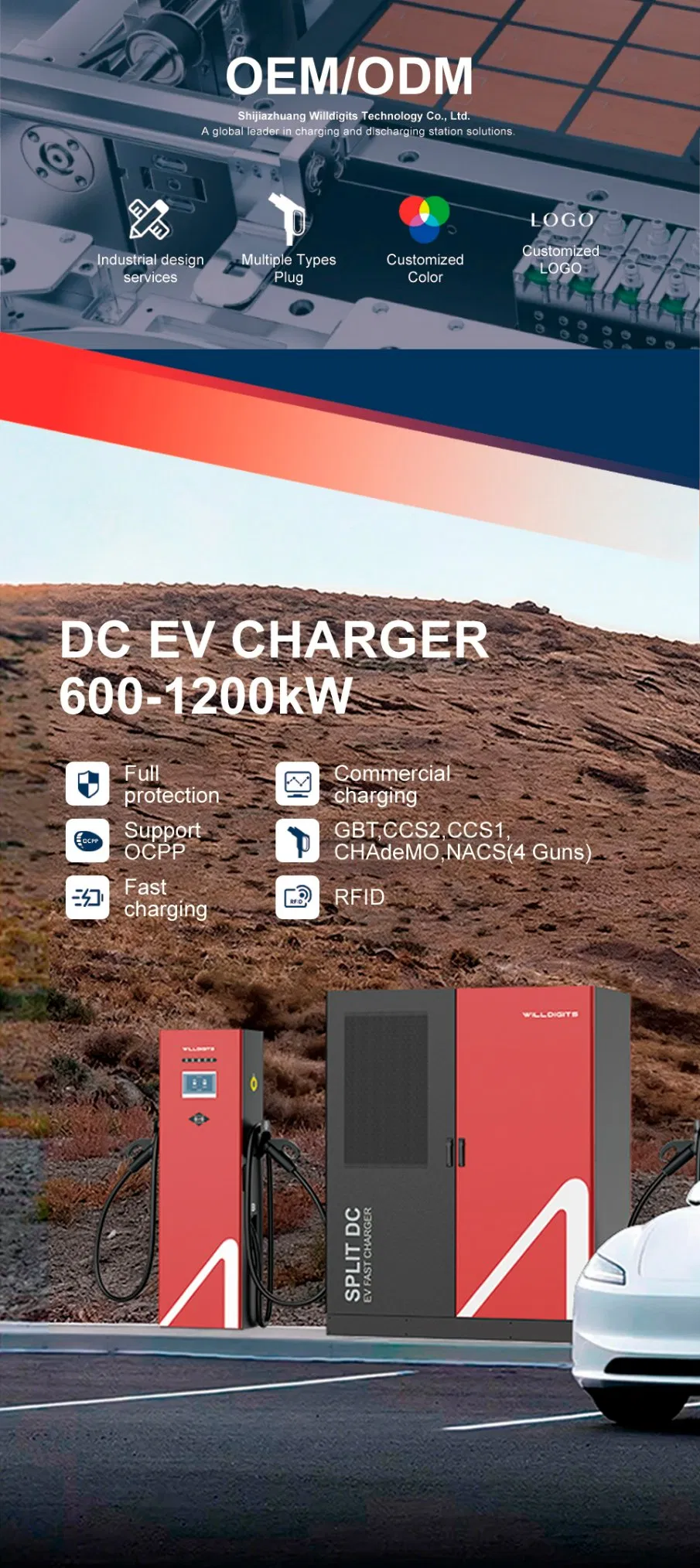

WY13 240-960kW Split-Type DC Charging Station: Pioneering the Future of Efficient Charging
This next-generation split-type DC fast charging station is specifically engineered for high-load, high-intensity operational environments. Its core advantage lies in advanced power pool technology and a modular architecture, supporting flexible power configurations from 240kW to 960kW.

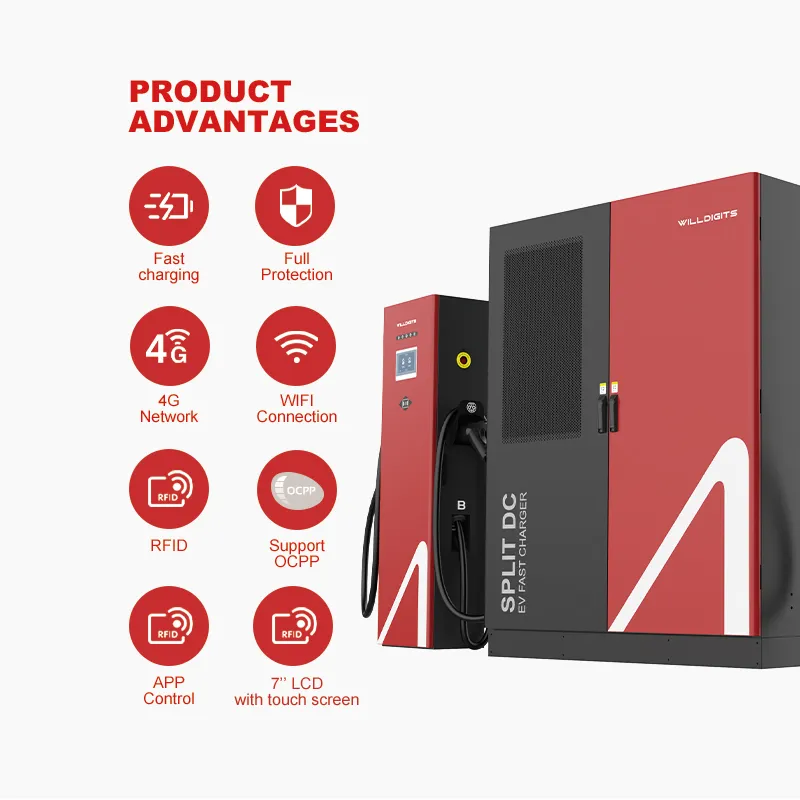

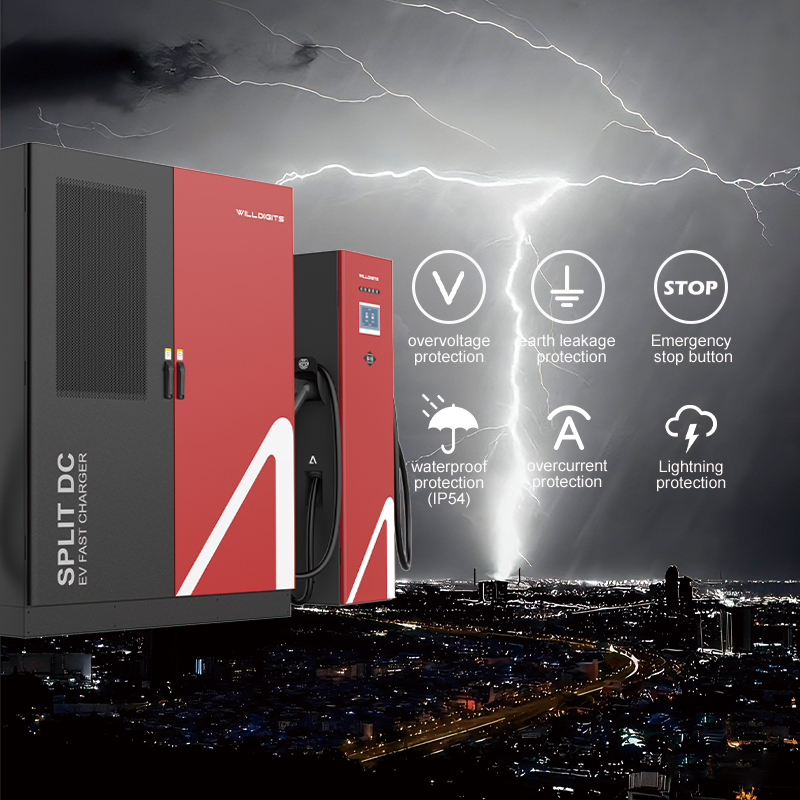

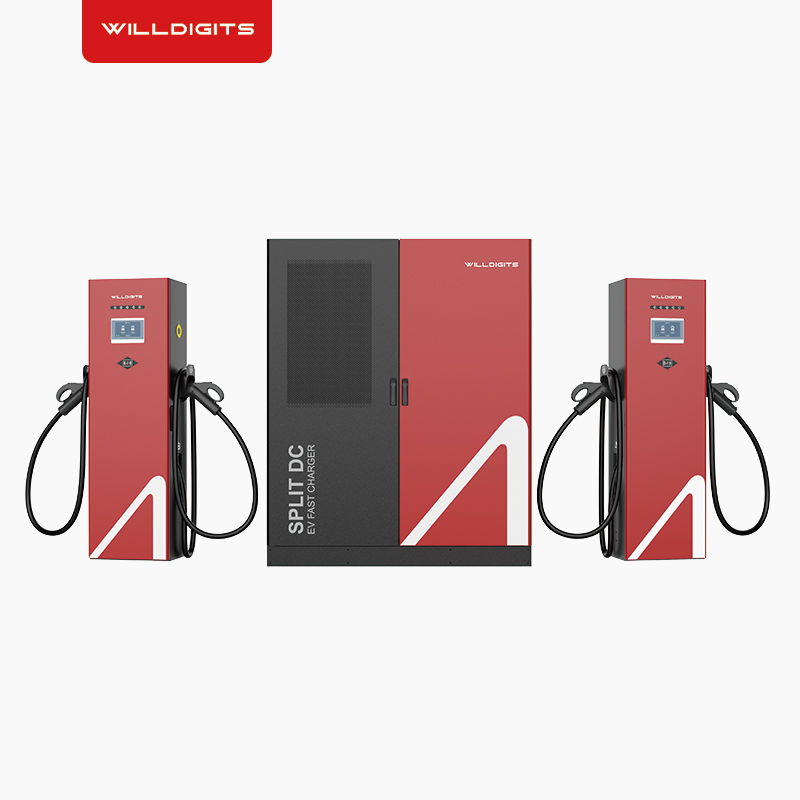

Featuring a "one-to-many" split design, it separates the intelligent power cabinet from the charging terminals. A single power cabinet can simultaneously supply multiple terminals, enabling dynamic and intelligent power resource allocation. This design significantly reduces installation space and cable investment while markedly improving equipment utilization and operational efficiency.
Equipped with high-performance DC charging modules, these stations achieve conversion efficiencies exceeding 96% with low standby power consumption, delivering outstanding energy savings. The entire product line exhibits exceptional environmental adaptability, operating stably across a wide temperature range from -30°C to 55°C.
⚙ Technical Specifications
| Category |
Parameter |
Details |
| Appearance |
Dimensions |

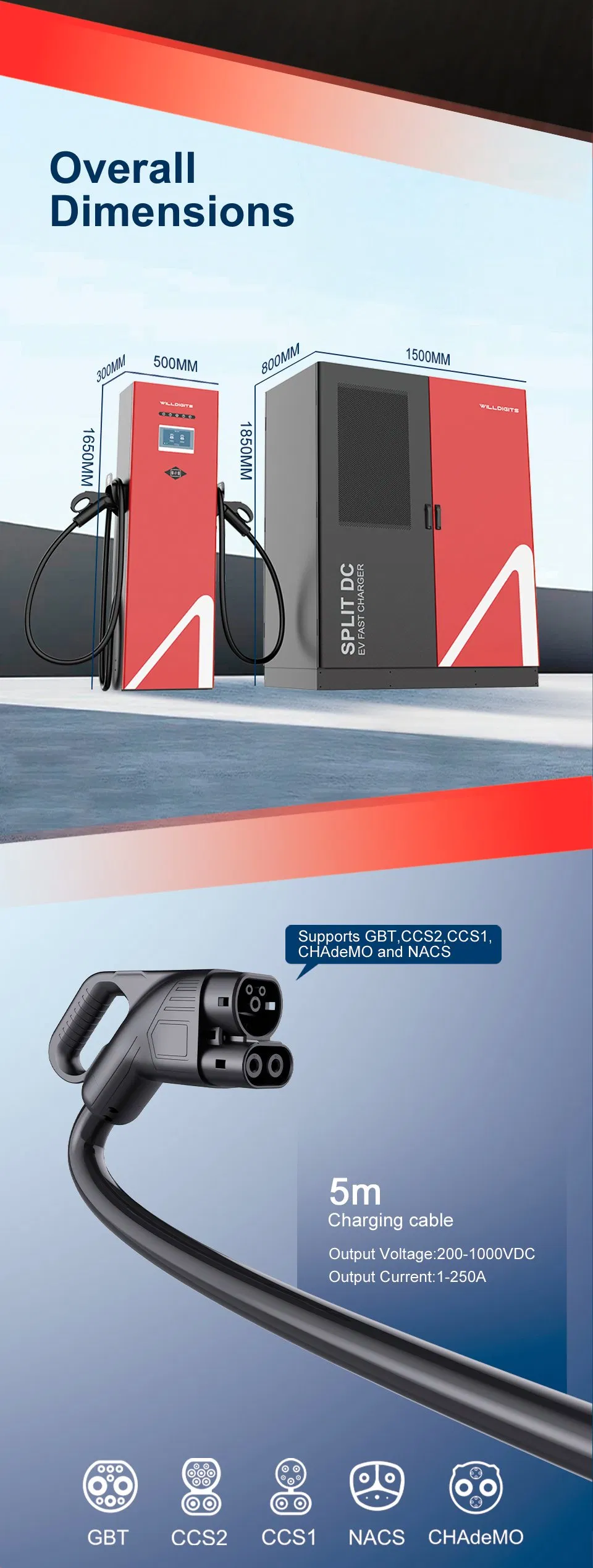

1500mm x 800mm x 1850mm (480kW) / 1900mm x 900mm x 1950mm (960kW) |
| Weight |
550kG — 750kG |
| Cable Length |
5m — 7m |
| Electrical |
Input Voltage |
400VAC / 480VAC (3P+N+PE) |
| Output Voltage |
200 - 1000VDC |
| Rated Power |
240-1920kW |
| Efficiency |
Peak efficiency ≥ 96% |
| Environment |
Operating Temp |
-30°C to 75°C |
| Protection |
IP54 || IK10 |
🏭 Professional Capabilities
We are a high-tech enterprise dedicated to providing comprehensive energy solutions for clients. We consistently prioritize technology as our foundation, integrating R&D, design, manufacturing, sales, and service under one roof.
Our company boasts a robust technical team, with R&D personnel constituting over 50% of our workforce. Core team members possess over 10 years of experience in the new energy sector. We have provided technical support to dozens of charging pile manufacturers worldwide through independently developed products such as CCU, PCU, and SECC.
❓ Frequently Asked Questions
Are you a factory or trading company?
We are a professional manufacturer of new and sustainable energy applications for over 5 years.
What is the warranty period?
The warranty ranges from 12 to 60 months. During this period, we provide technical support and replace parts free of charge.
What are your terms of packing?
We use standard wooden box packaging and standard carton packaging to ensure safety during transport.
What is your typical delivery time?
Generally, it takes 5 to 25 working days after receiving your advance payment, depending on the items and order quantity.
Do you test all goods before delivery?
Yes, we conduct 100% testing on all products before they are dispatched.
What is the difference between a Movable Charger and a Wallbox?
The main difference is the application scenario. Portable chargers are for mobility and temporary top-ups, while wall-mounted chargers are fixed installations for regular use.
