Product Description

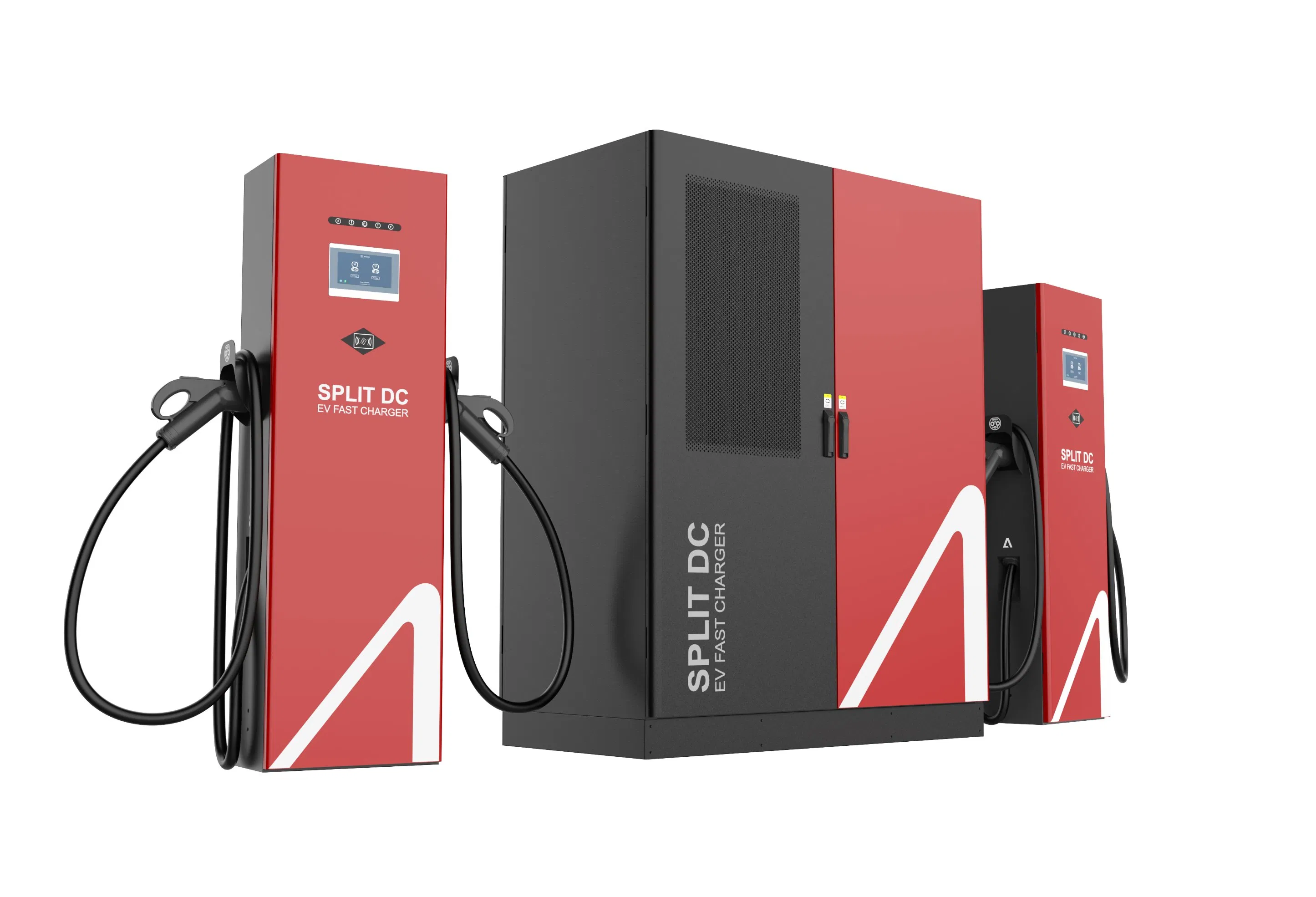

Charging System Overview
📊

Basic Information

Model NO.MS08A-12
LocationPublic Use
Charging InterfacesOne Pile with Multiple Charges
Start ModeCredit Card Payment, Mobile Remote Operation, RFID Authentic
Dimensions900mm X 700mm X 1900mm
Weight440kg (Wall-Mounted)
Cable Length5m-7m
ConnectorsGbt, CCS2, CCS1, Chademo, Nacs
Input Voltage400VAC / 480VAC (3p+N+PE)
Output Voltage200 - 1000VDC
Rated Power240-480kW
Ingress ProtectionIP54 IK10

Product Description

240kW-480kW High-Power Commercial/Heavy-Duty Truck Charging Station

As the electric vehicle industry, particularly in the commercial vehicle sector, accelerates toward electrification, the demand for efficient, reliable, and high-power charging infrastructure grows increasingly urgent. Our newly launched next-generation ultra-high-performance DC charging station is a milestone product born to meet this era's demands. It is not merely a charging device but a core power engine driving green transformation in logistics, engineering, and specialized operations.

This charging station embraces the design philosophy of "functional aesthetics." Its overall form is bold and steady, with rugged and resolute industrial character. It provides outstanding physical protection for environments like mines, ports, and highway supply stations.

The product adopts a modular and highly scalable design with 12 high-efficiency power module slots. It offers power scalability up to an impressive 480kW, effectively protecting infrastructure investments and avoiding rapid obsolescence.

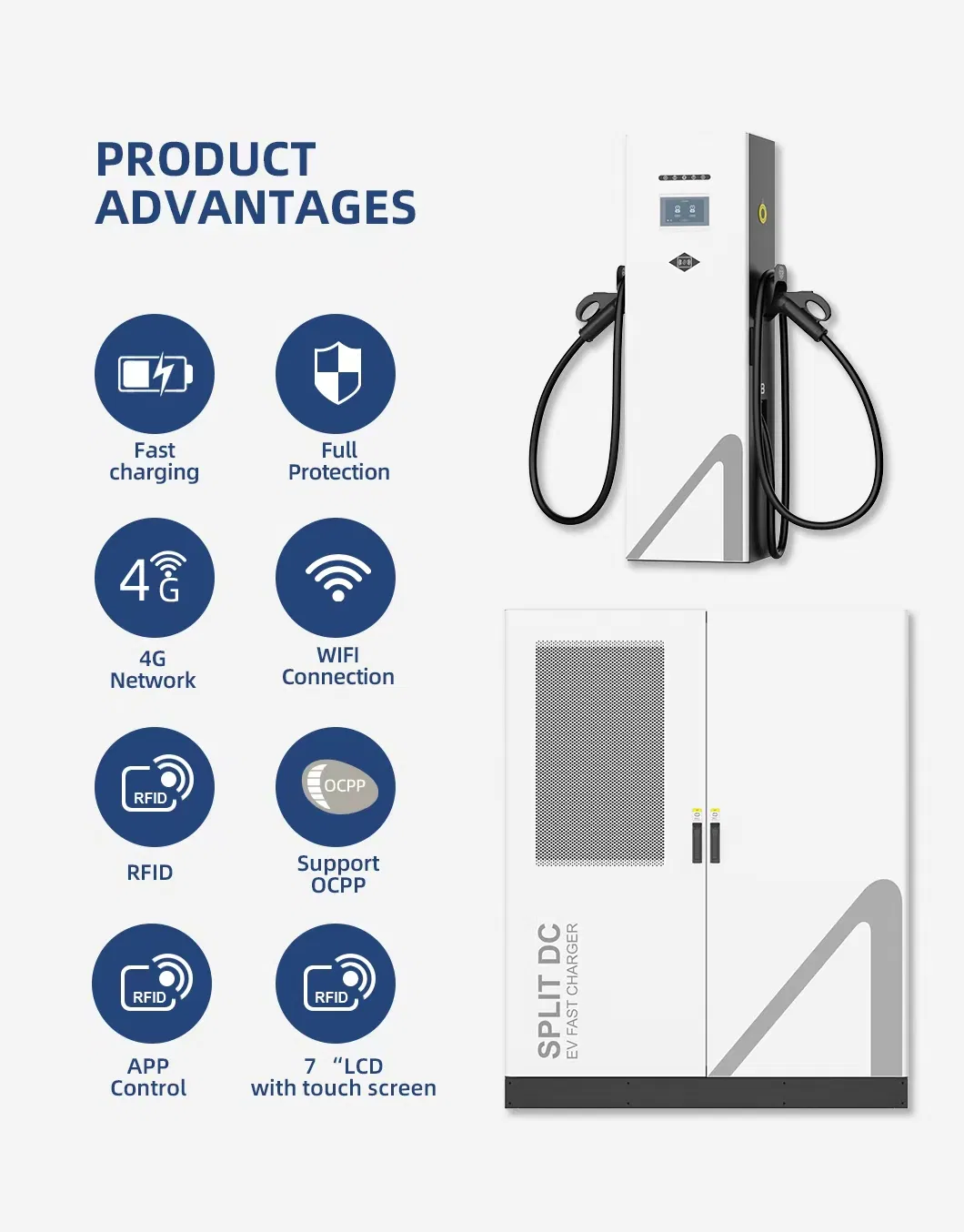

High-Performance DC Charging
Modular Charging Unit
Heavy-Duty Charging Interface
Industrial Power Module
Advanced Cooling System
Rugged Outer Casing
📋

Technical Specification

Category Feature Details
Structure Dimensions 900mm x 700mm x 1900mm
Weight 440kg
Cable Length 5m - 7m
Connectors GBT, CCS2, CCS1, CHAdeMO, NACS
Electrical Input Voltage 400VAC / 480VAC (3P+N+PE)
Output Voltage 200 - 1000VDC
Rated Power 240 - 480kW
Peak Efficiency ≥96%
Power Factor >0.99
Functional Display 7’’ LCD with touch screen
Access Control RFID (ISO/IEC 14443A/B), POS machine (Optional)
Communication WIFI, Ethernet, 3G/4G Modem (Optional)
Environment Temperature -30°C to 75°C
Humidity ≤ 95% RH (Non-condensing)
Protection IP54 | IK10

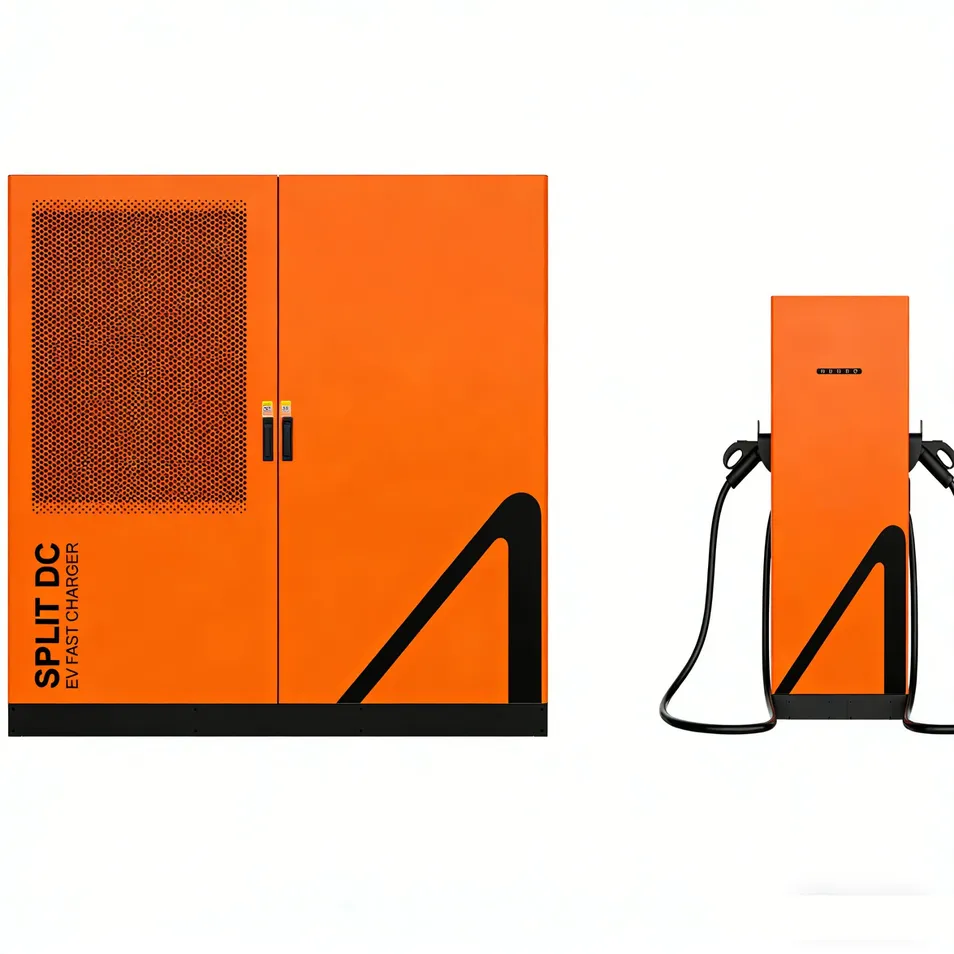

Unit Dimension Profile

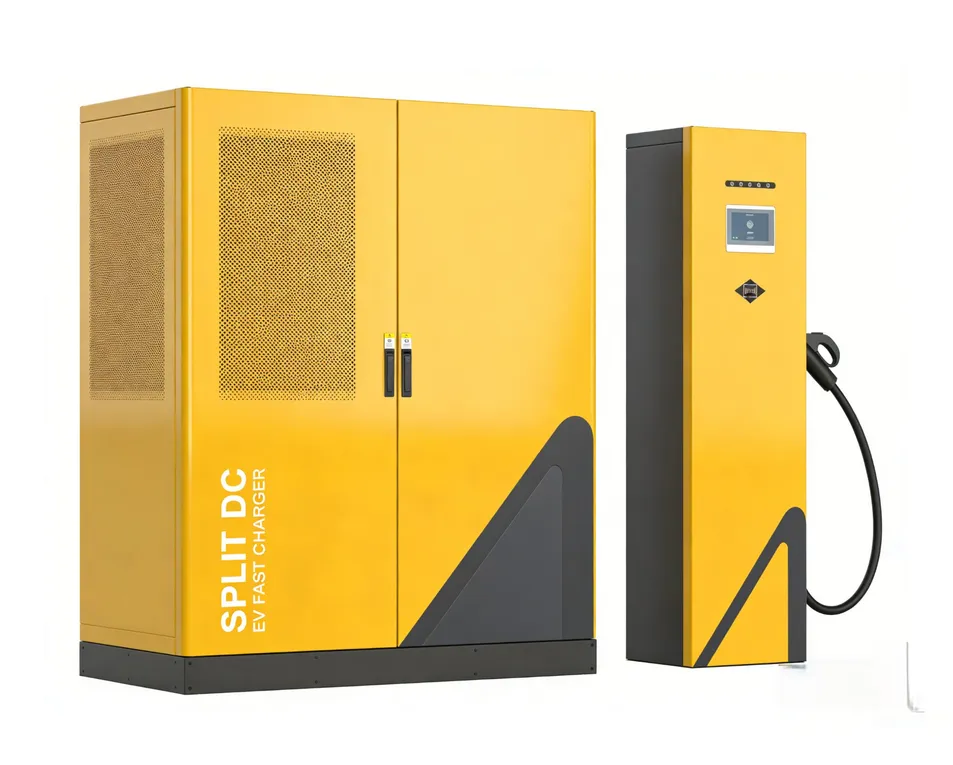

Internal Layout

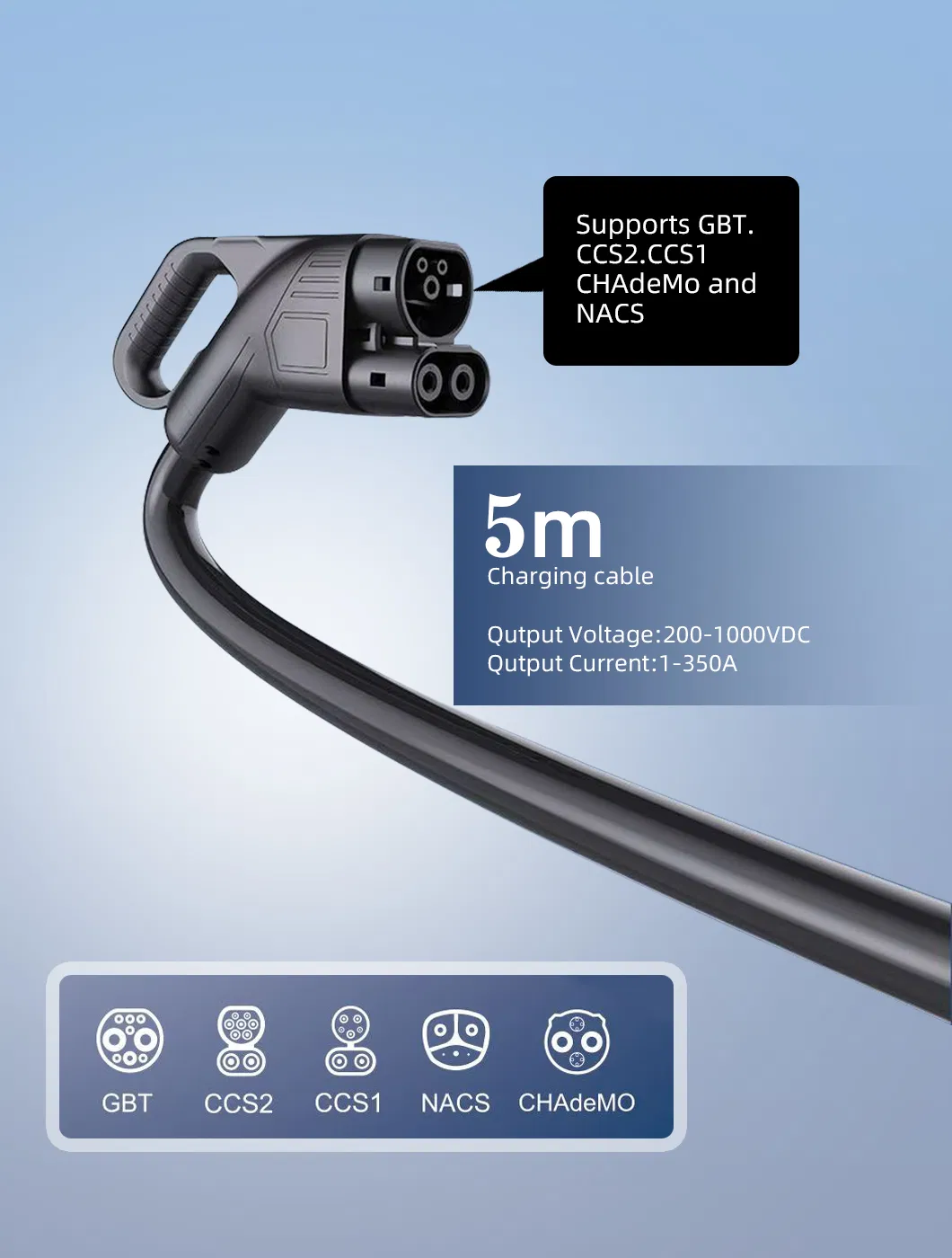

Connector Close-up

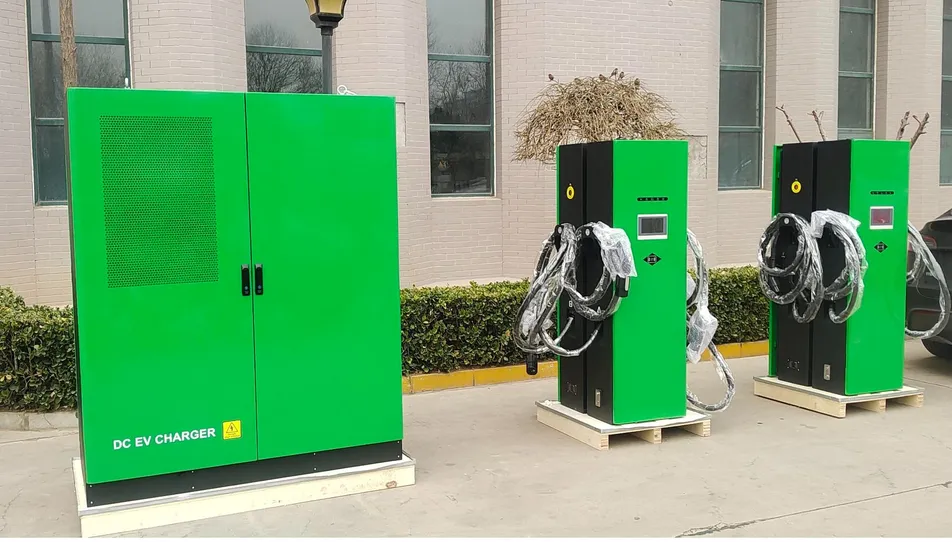

Installation Setup
Full Charging System Footer

Frequently Asked Questions

Q1. What is the warranty period for the charging station?
The warranty ranges from 12 to 60 months. During this period, we provide technical support and replacement of parts free of charge.
Q2. What safety protections are integrated into the system?
The unit includes overvoltage, lightning, overcurrent, leakage, and waterproof protection, along with an emergency stop button.
Q3. What is the typical delivery time for orders?
Generally, it takes 5 to 25 working days after receiving advance payment, depending on the specific items and quantity of your order.
Q4. Are the goods tested before delivery?
Yes, all products undergo 100% testing before they are shipped to ensure quality and safety.
Q5. What is the difference between a Movable Charger and a Wallbox?
Portable chargers are designed for mobility and temporary power top-ups, while wall-mounted (Wallbox) chargers are fixed installations for permanent locations.
Q6. What power output range can you provide?
We can produce charging solutions ranging from 20kW up to 1.5MW for mega-scale operations.
