Hybrid Inverter Battery System Air-Cooled C&l Energy Storage Cabinet

Customization:	Available
Application:	PV Supporting Energy Storage
Installation:	Cabinet Floor-Mounted

Basic Information

Model NO.

SET-E64WX

Energy Capacity

9.216 kWh / 1P24S

Cycle Life

5000 Cycles (80%DOD)

Cooling Method

Air Cooling System

Cell Type

LEP/120Ah

Rated DC Voltage

537.6V

Grid Type

3W+N+PE

Ingress Rating

IP55

Dimensions

800*1200*2030mm

Product Description

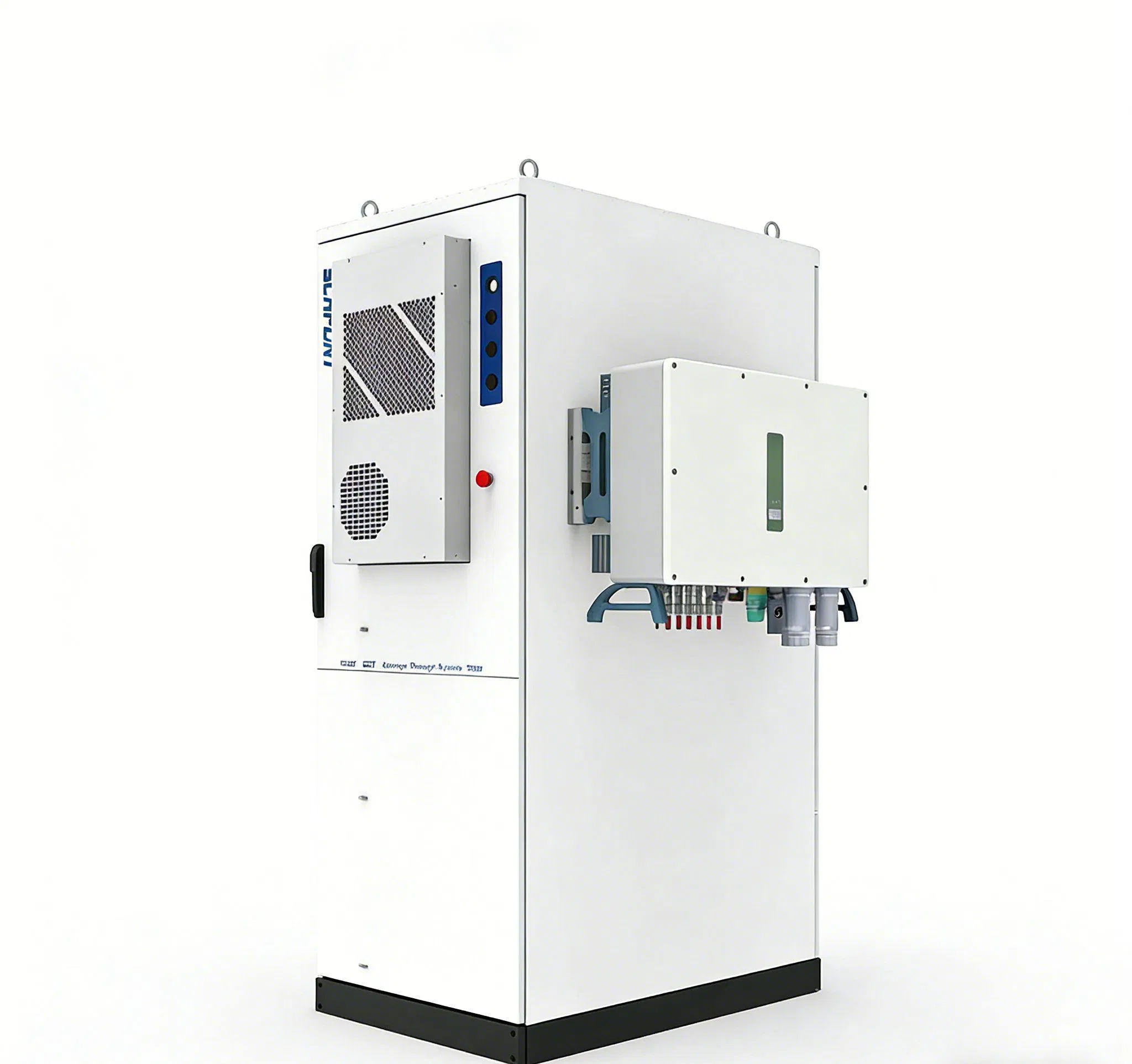

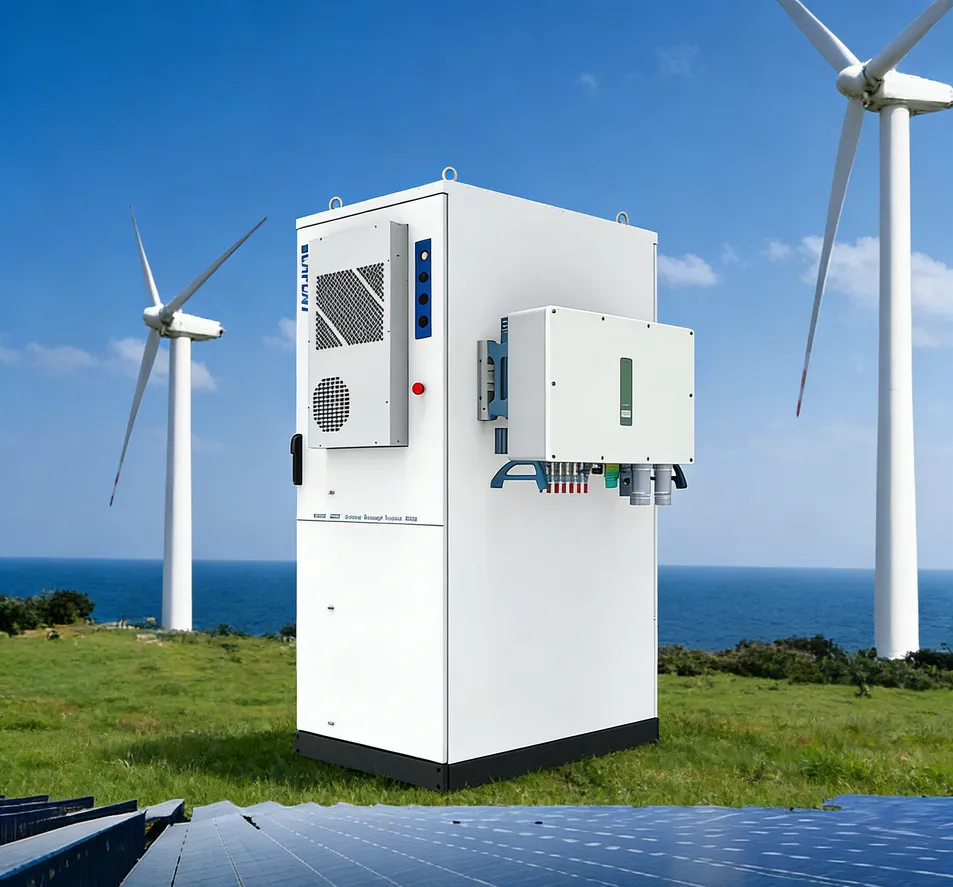

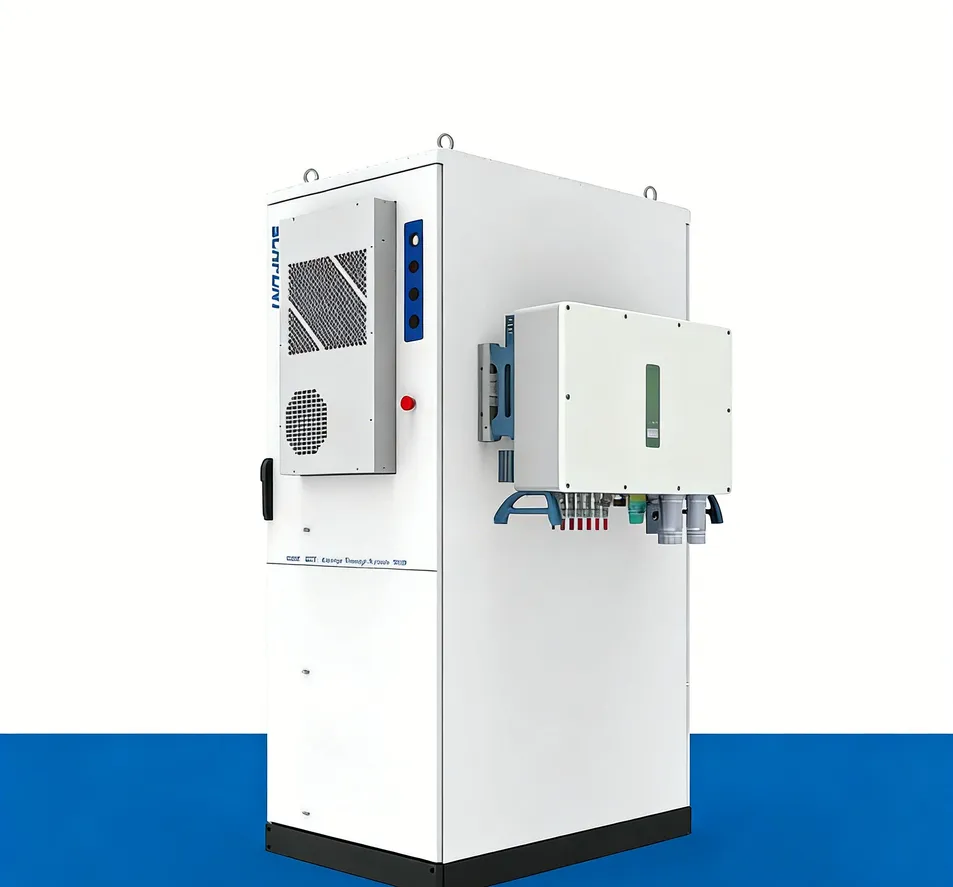

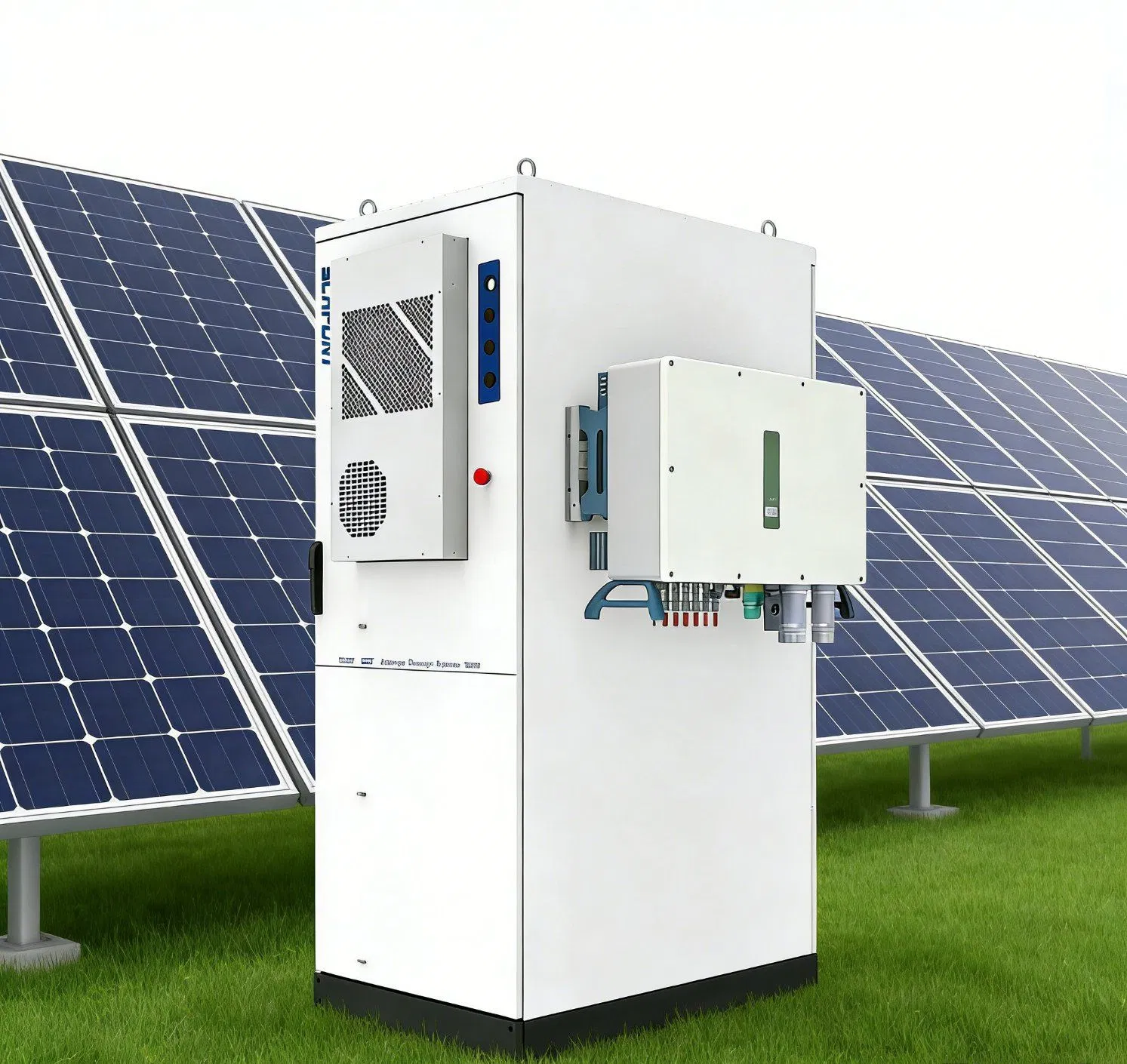

The SET-E64WX

It's a compact PV-plus ESS solution, designed on ESS integration and digital monitoring technologies. The cabinet integrates components such as lithium battery, HVAC, fire suppression system(FSS), and EMS. With compact structure, it enables easy installation and flexible capacity expansion. Paired with hybrid inverter, the ESS supports multiple work modes and various operation strategies.

Economical & Efficient RTE up to 87%, DOD up to 100%.

Safe & Reliable IP55, optimized ventilation design. Temperature difference within 6°C.

Compact & Convenient 0.96m footprint, easy to transport and install.

Expandable & Modular Modular design supports parallel connection for convenient system expansion.

Technical Specifications

Battery Cabinet
Cell Type	LFP / 120Ah
Pack Configuration	9.216kWh / 1P24S
System Configuration	64.512kWh / 1P168S
Rated DC Voltage	537.6V
Max. Depth of Discharge	100% (25±2℃)
PV Input
Max. Input Power	37.5KW / 45KW / 54KW / 60KW / 75KW
PV Voltage Range	200V - 850V
MPPT	4
AC Side
Rated Output Power	25kW / 30kW / 36kW / 40kW / 50kW
Rated AC Voltage	400V
Grid Type	3W+N+PE
General Data
Cycle Life	≥ 5,500 cycles
Ingress Rating	IP55
Operating Temperature	-25℃ to 55℃ (Derating after 45℃)
Safety/EMC	UN38.3, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4

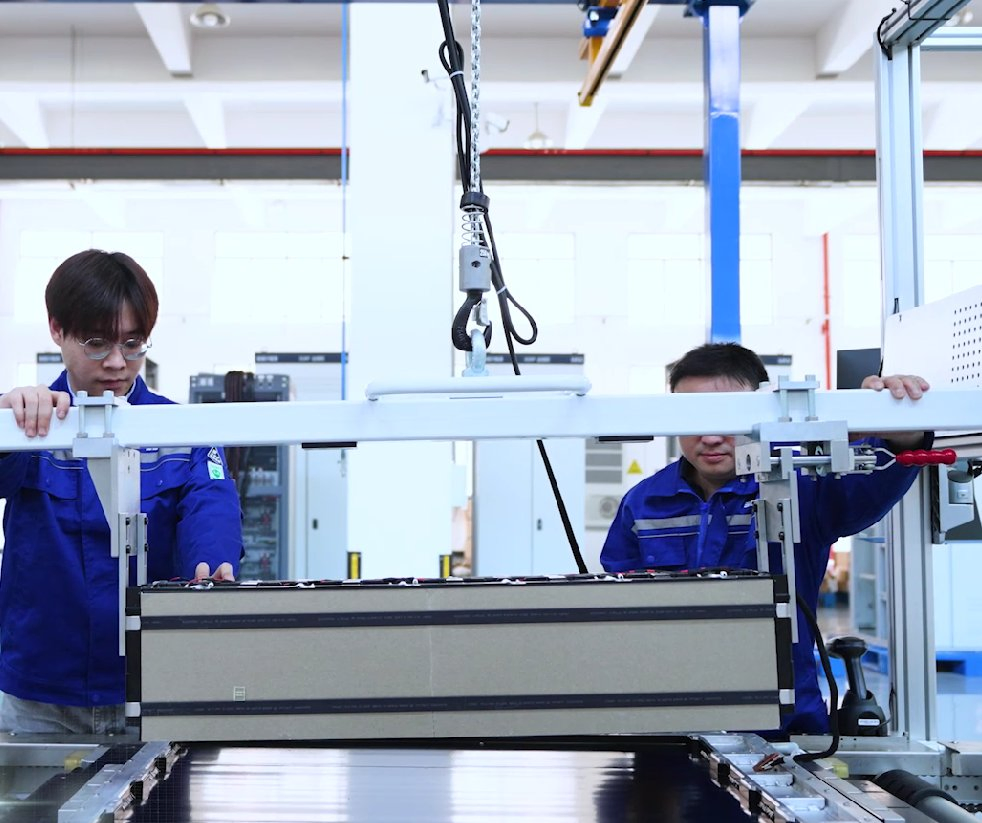

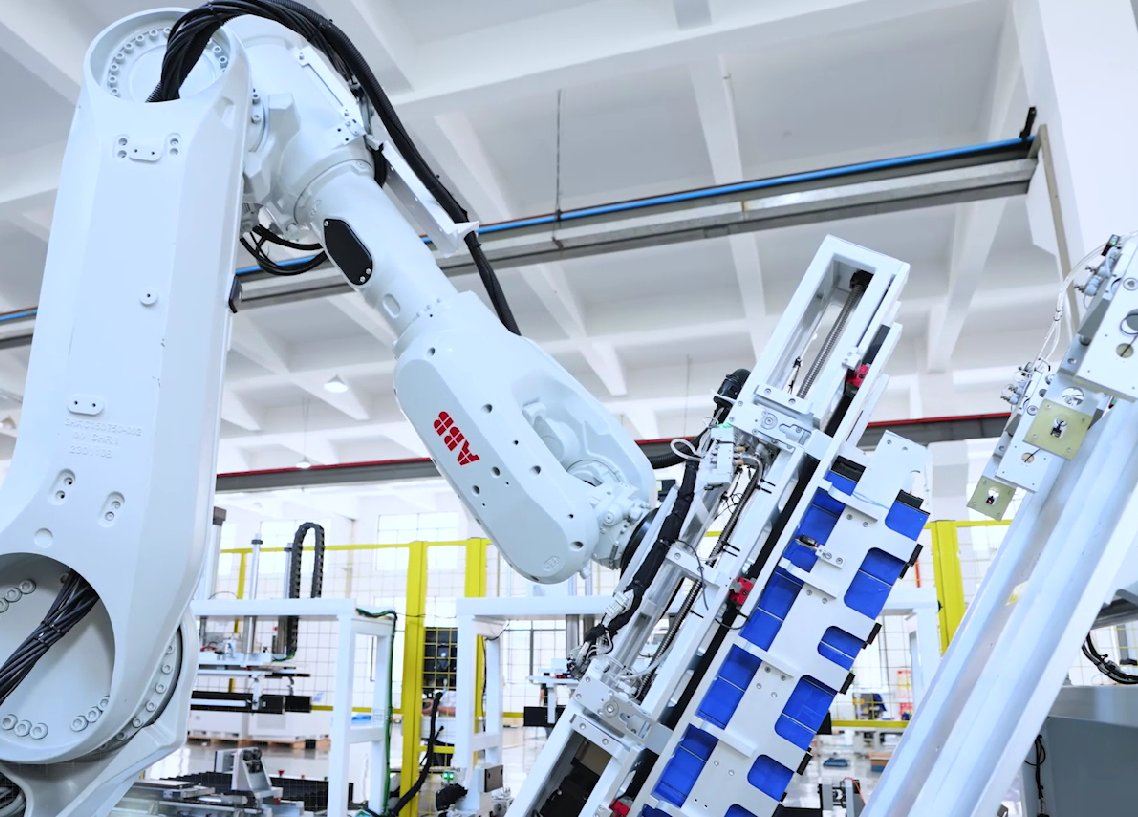

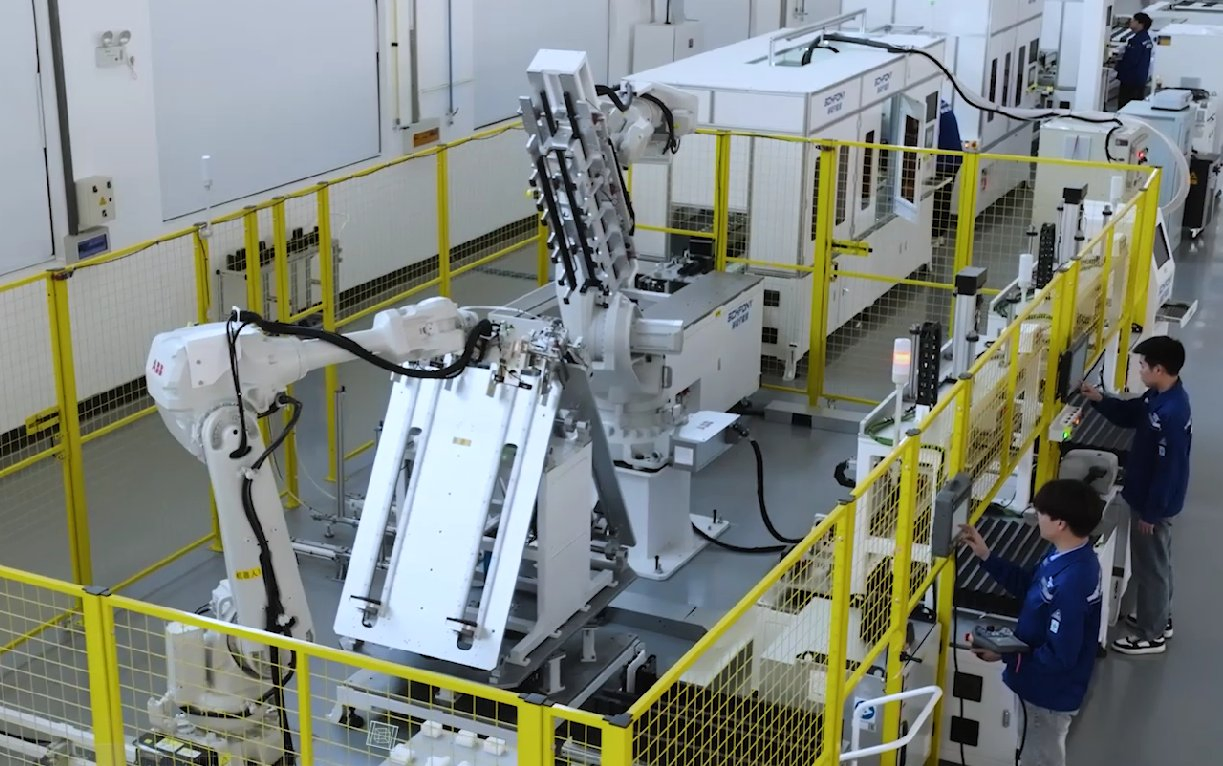

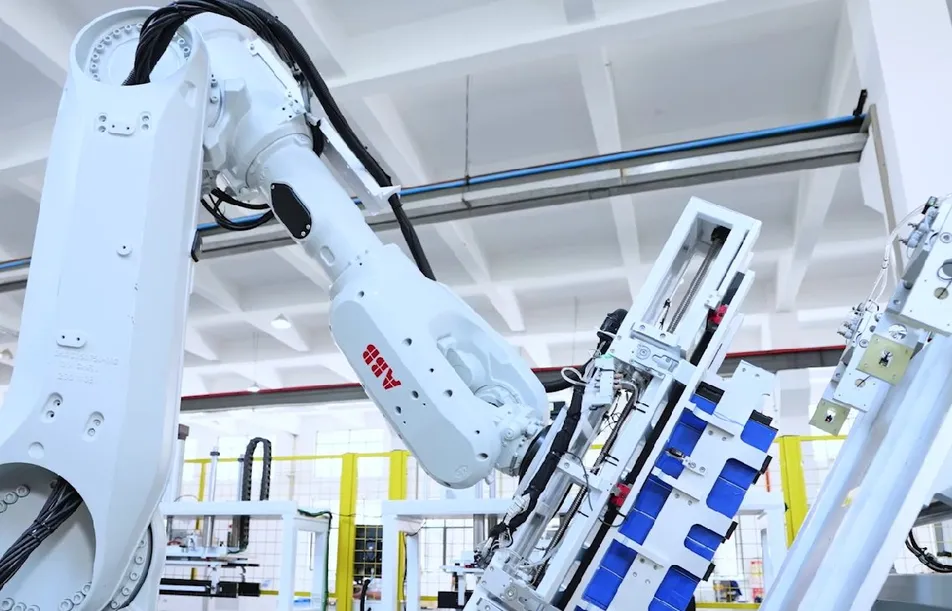

Production & Facility

Focusing on distributed energy storage through foresight, security, and sustainable energy infrastructure products. We provide customized energy management solutions to help users use clean energy more efficiently. Our expertise covers energy storage battery modules, air and liquid cooling distributed systems, and intelligent management platforms.

Frequently Asked Questions

Why Choose Us?

We offer robust OEM/ODM capabilities, competitive pricing with bulk discounts, fast shipping, and comprehensive turnkey project solutions.

What is the expected life cycle of the battery system?

The system provides a cycle life of ≥ 5,500 cycles, ensuring long-term reliability for industrial and commercial applications.

Is the cabinet suitable for outdoor installation?

Yes, the system features an IP55 ingress rating and an optimized air-cooling ventilation design, making it suitable for various environmental conditions.

What documents are provided for international export?

We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Compliance (COC).

Does the system support capacity expansion?

Absolutely. The modular design supports parallel connection, allowing for easy and flexible system capacity expansion based on your needs.

How can I place an order?

You can contact our team via email or phone to receive a customized quote, and then confirm your order with a formal Purchase Order (PO).
