Efficient Electric Bus Fleet Quick Charge System for Optimal Performance

Basic Info.

Installation:Floor Mounted

Housing:Metal

Input Voltage:400VAC ±15%

Input Frequency:45-65Hz

Efficiency:Beyond 95%

IP Class:IP55

Communication:2G, 3G, 4G, 10/100base-T Ethernet

Outlet Current:500A/850A

Specification:3174*1681*4866mm

Origin:China

Product Description

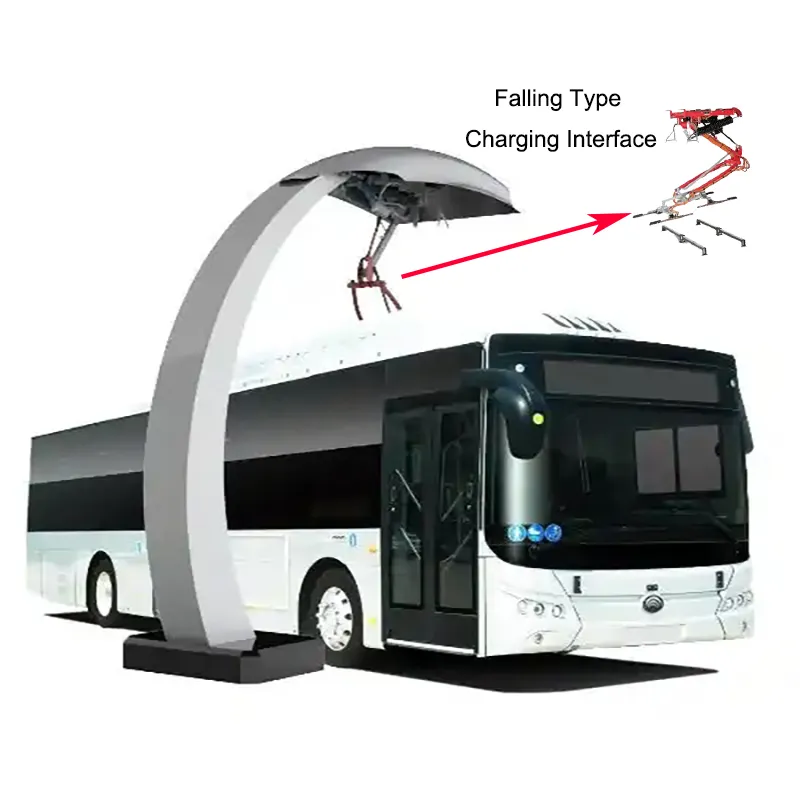

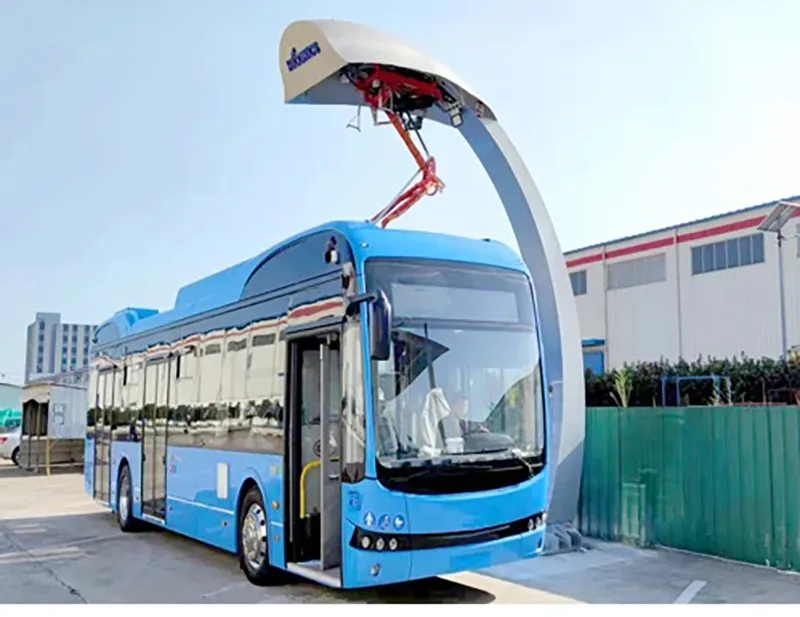

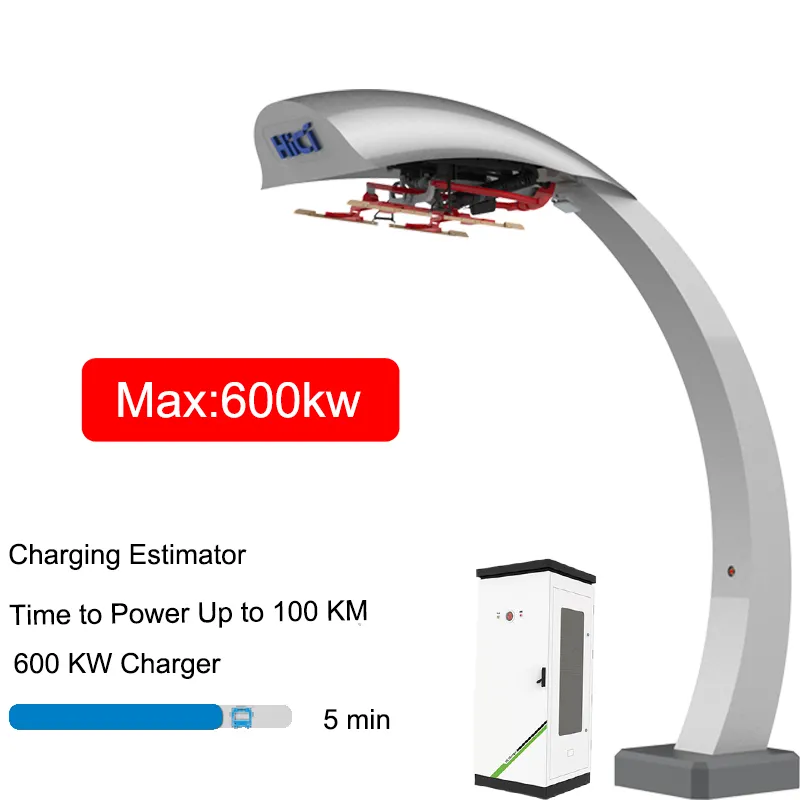

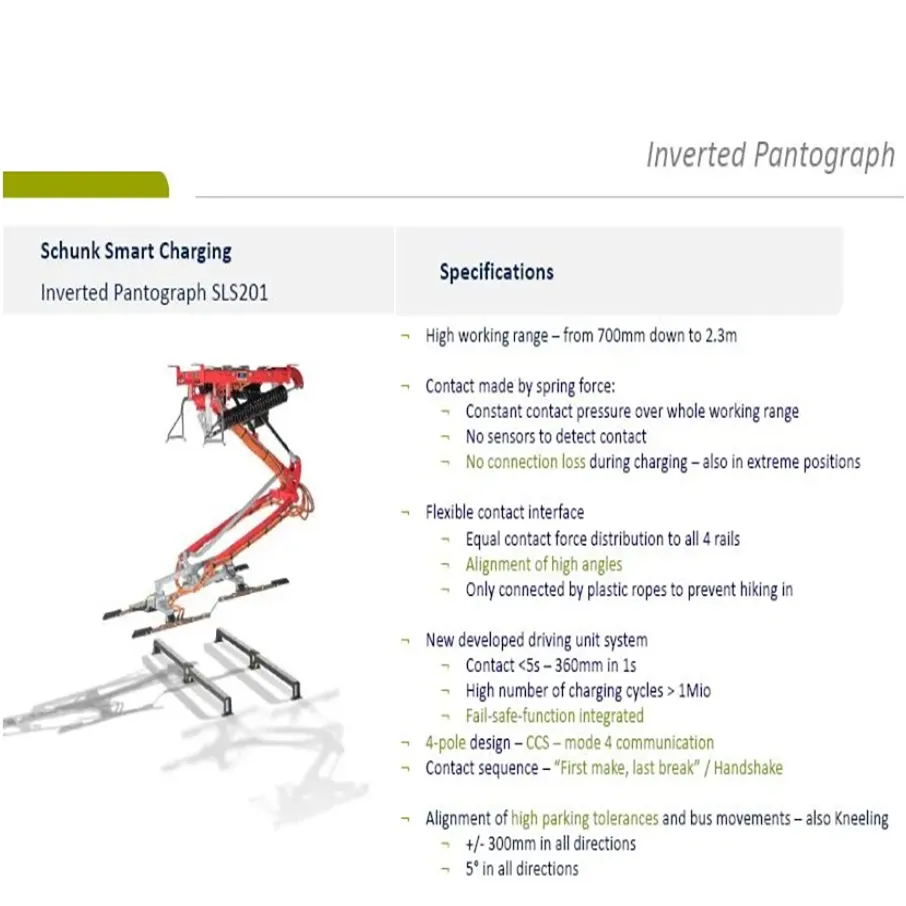

600 KW Split Type Fast Charging Solution Pantograph System For EV Bus

This Quick Charge Solution is designed for Electric Bus Fleets featuring a high-power pantograph, efficient auto charging, and 600 Kw capacity. It is an ideal solution for rapid charging of electric buses and trucks.

Efficient Electric Bus Fleet Quick Charge System

★ Key Features:

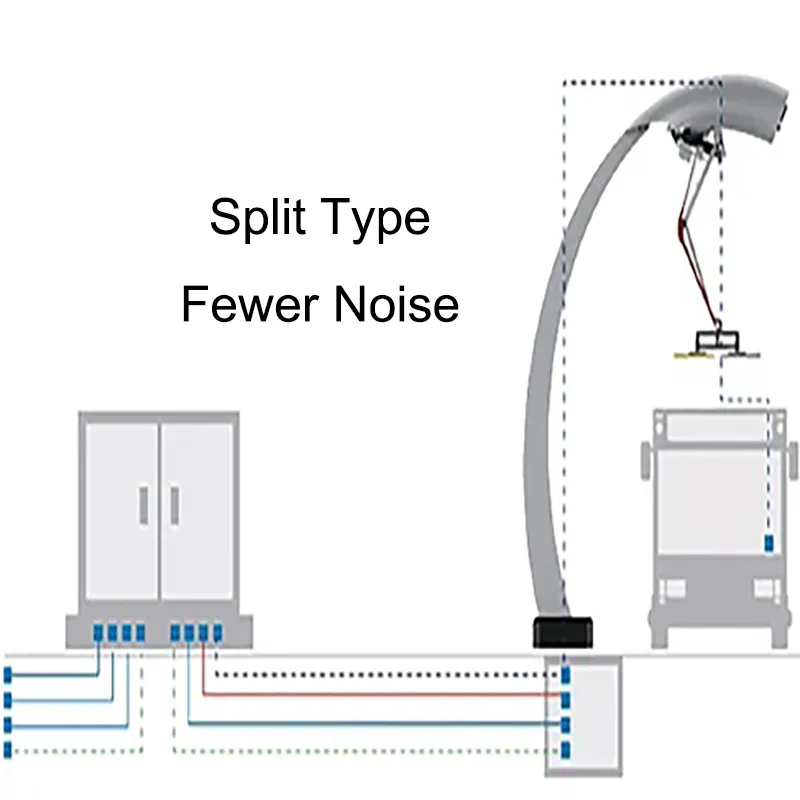

Split Type for reduced noise
Supports up to 600 kw/h

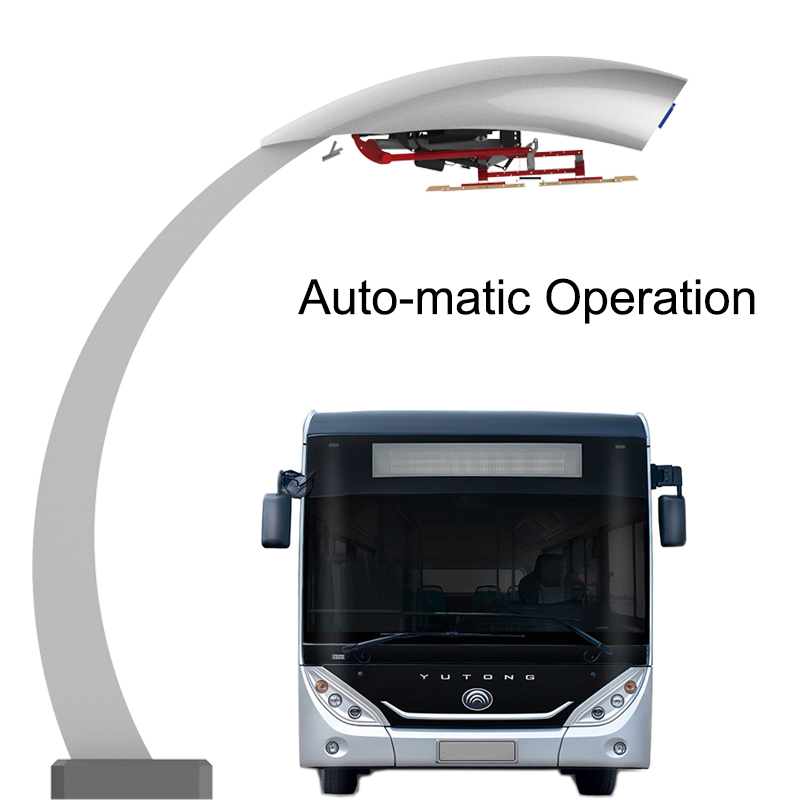

Automatic operation
IP55, IK10 rated for durability

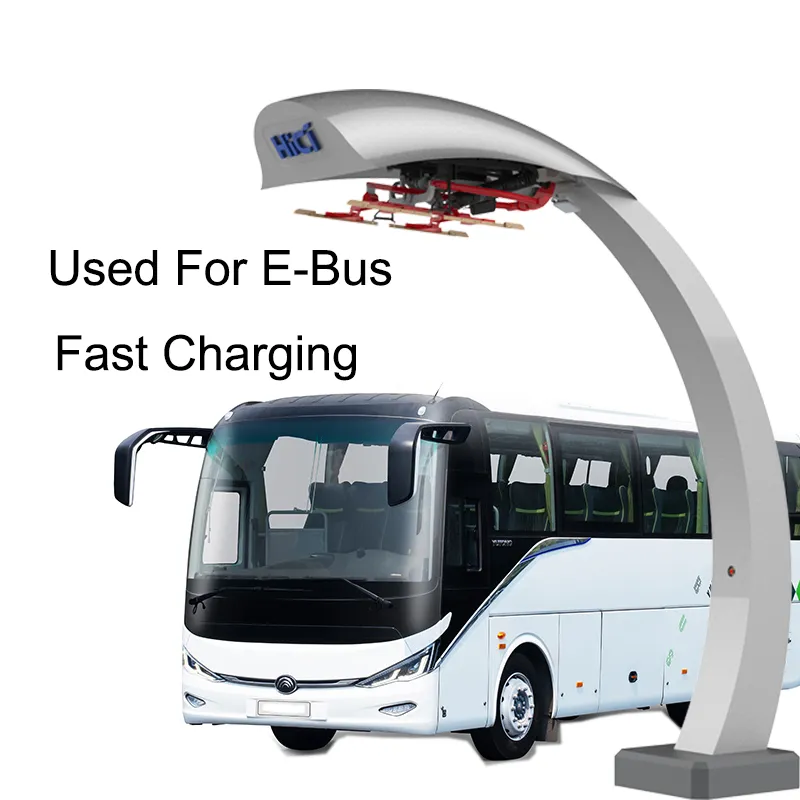

Designed specifically for fast charging EV buses

Production Parameters

Parameter		300KW System	600KW System
AC Input	Input Rating	400Vac±15%	400Vac±15%
	Connection	L1+L2+L3+N+PE	L1+L2+L3+N+PE
	Power Factor	>0.99 @full load	>0.99 @full load
	THDi	<5%	<5%
DC Output	Voltage Range	150-1000VDC	150-1000VDC
DC Output	Max Current	500A	850A
Interface	Connectivity	Ethernet/4G	Ethernet/4G
	Software	Remote Upgrade	Remote Upgrade
	Protocol	OCPP 1.6 JSON	OCPP 1.6 JSON
Environmental	IP Level	IP55	IP55
Environmental	Temperature	-30~55ºC	-30~55ºC
