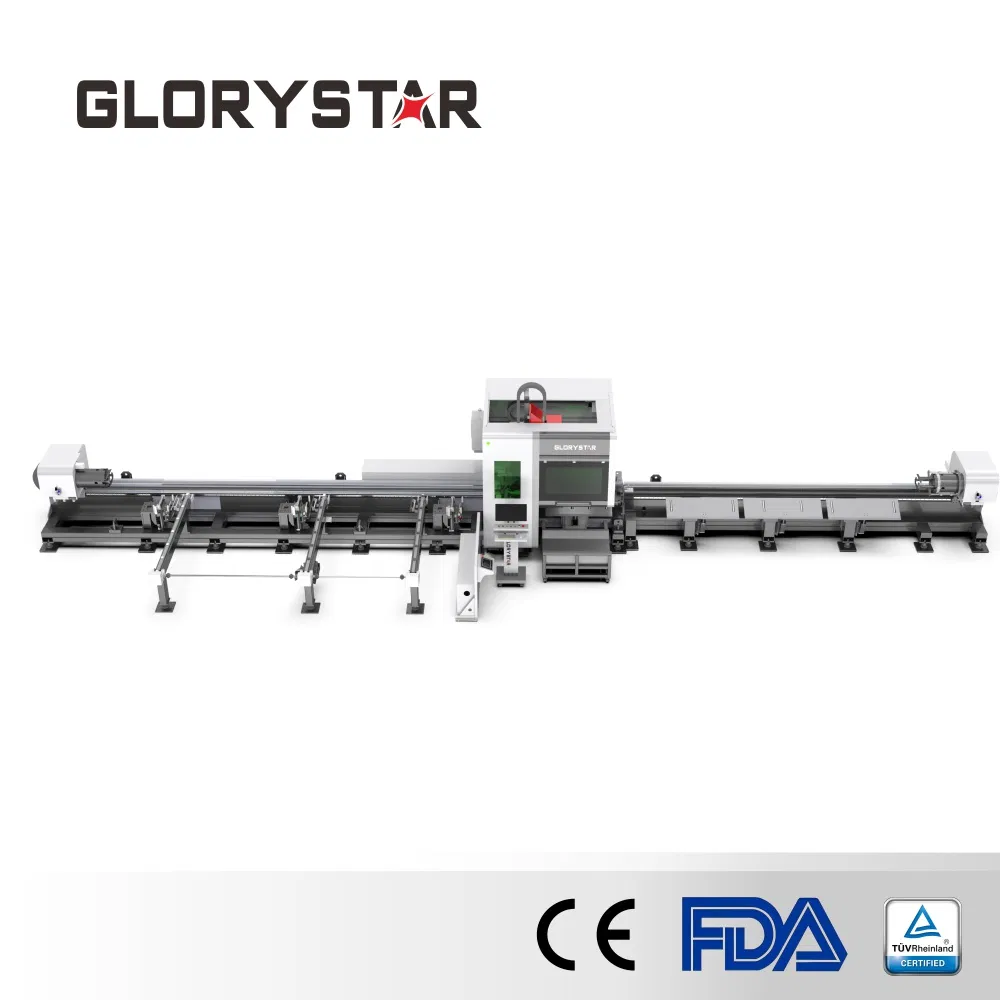

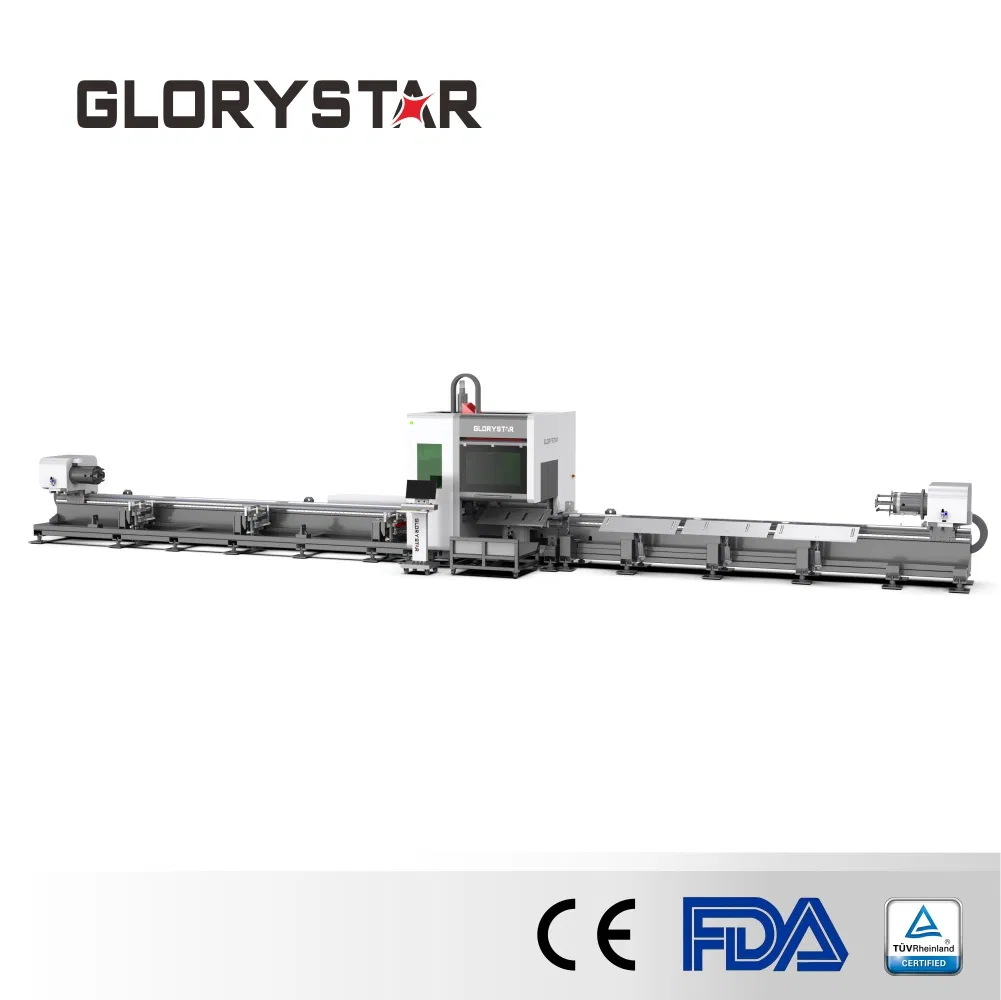

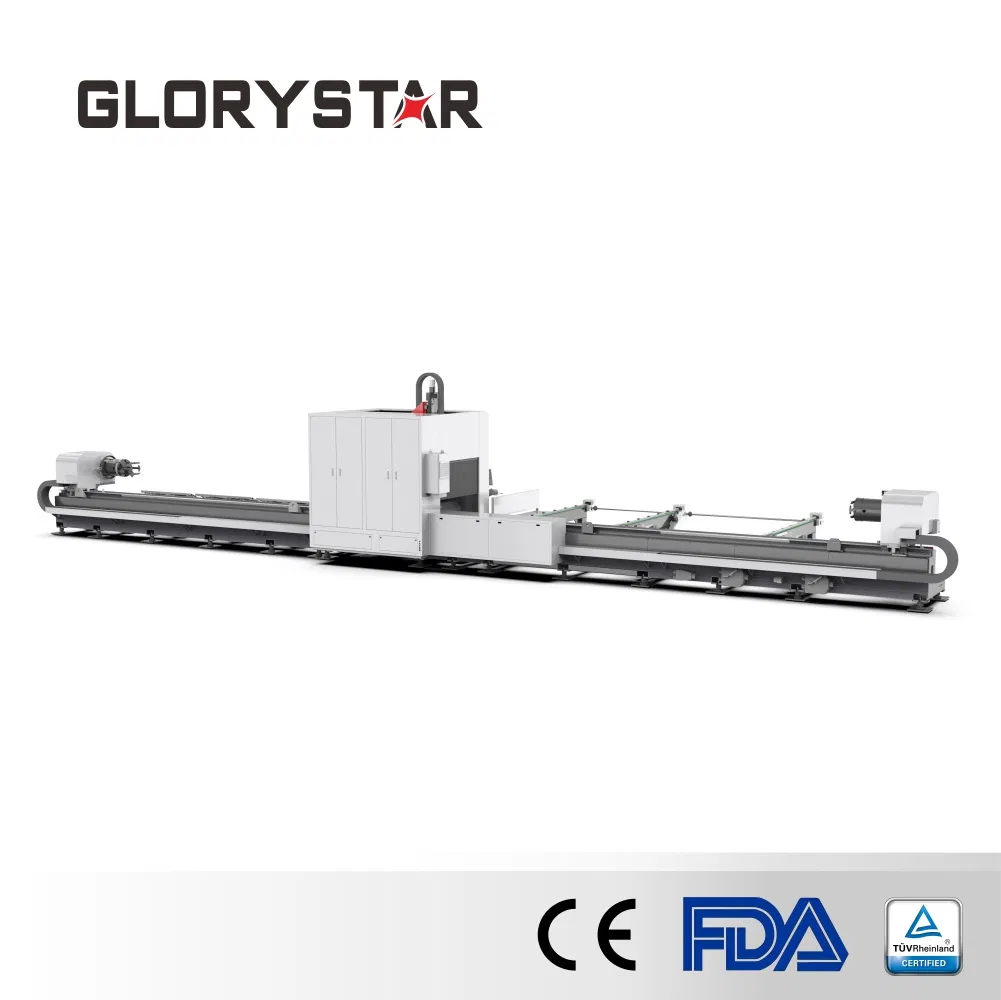

The series features a powerful cutting function with pneumatic three chucks, capable of processing square, round, rectangular, and various special-shaped pipes. Processing pipe diameter and length range can be customized (standard round pipe diameter Φ30~160mm, length 12000mm). The system adopts push-type cutting methods for high centering and processing precision.
| Parameter | GS-6024HG | GS-6036HG |
|---|---|---|
| Power | 3kw-80kw (Optional) | 3kw-80kw (Optional) |
| Maximum Pipe Length | 6400mm | 6700mm |
| Round Tube Processing Range | 10-230mm | 10-360mm |
| Square Tube Processing Range | 10-230mm | 10-360mm |
| Maximum Acceleration | 1.0G | 0.4G |
| Chuck Maximum Speed | 100r/min | 50r/min |
| Dimension | 13000mm * 2500mm | 18000mm * 4500mm |
| Weight | 10T | 10T |
Carbon steel, stainless steel, copper, aluminum, galvanized pipe, electrolytic plate, and other metal materials.
Square pass, round pipe, elliptical pipe, angle iron, channel steel, I-beam, etc.
Kitchen utensils, lighting hardware, precision parts, sheet metal processing, and other metal products processing industries.
Technicians can be sent for training and debugging. Remote maintenance system allows for troubleshooting via remote access.
All laser equipment provided with 12 months warranty. Maintenance or replacement services are available globally.
Free of charge training within warranty to ensure your operators are fully proficient with the equipment.
A1: It can cut all common metal pipes, including round, square, rectangular, elliptical, angle iron, channel steel, and I-beams.
A2: The pneumatic three-chuck design provides higher centering precision and allows for "Zero-tailing" cutting, which significantly reduces material waste.
A3: The IPG laser source typically comes with a 2-year warranty, while other parts are covered for one year (excluding consumables).
A4: Yes, it features a fully automatic loading device that finishes material loading automatically, increasing productivity and lowering labor costs.
A5: Yes, we provide remote diagnosis through our maintenance system, allowing technicians to perform troubleshooting without being on-site.
A6: The standard maximum length is up to 6000mm-6700mm depending on the specific model, ensuring high accuracy over long spans.
