| Model NO. | MXR150050B |
| Power Supply | 3phase+PE |
| Communication Mode | CAN BUS |
| Input Voltage | 260-530VAC |
| Input Current | <95A |
| Output Voltage | 0-1500VDC |
| Output Current | 0-134A |
| Cooling Mode | Forced Air Cooling |
| Warranty | 12 Months |
| Production Capacity | 10,000/PCS Per Month |
| HS Code | 8504409999 |

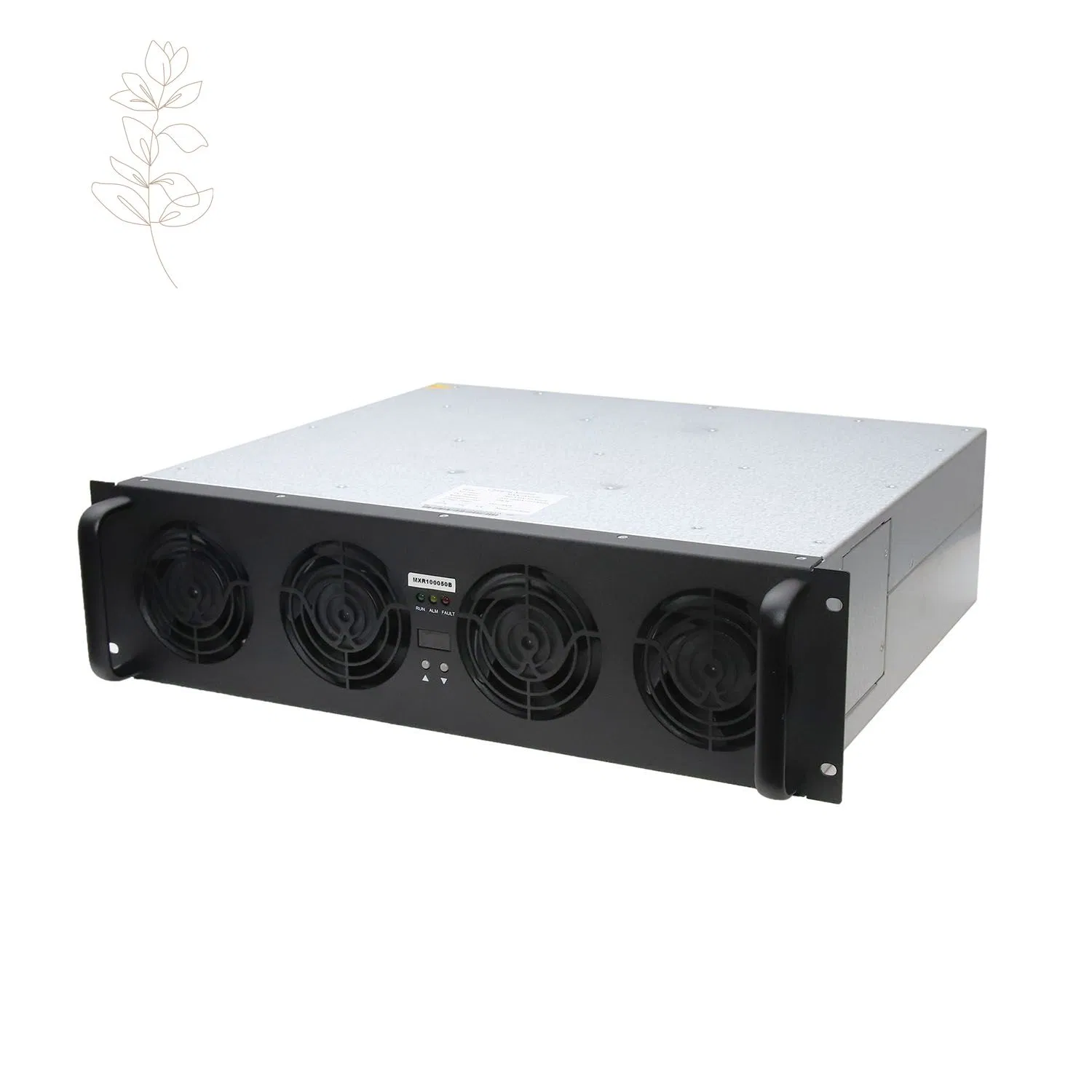

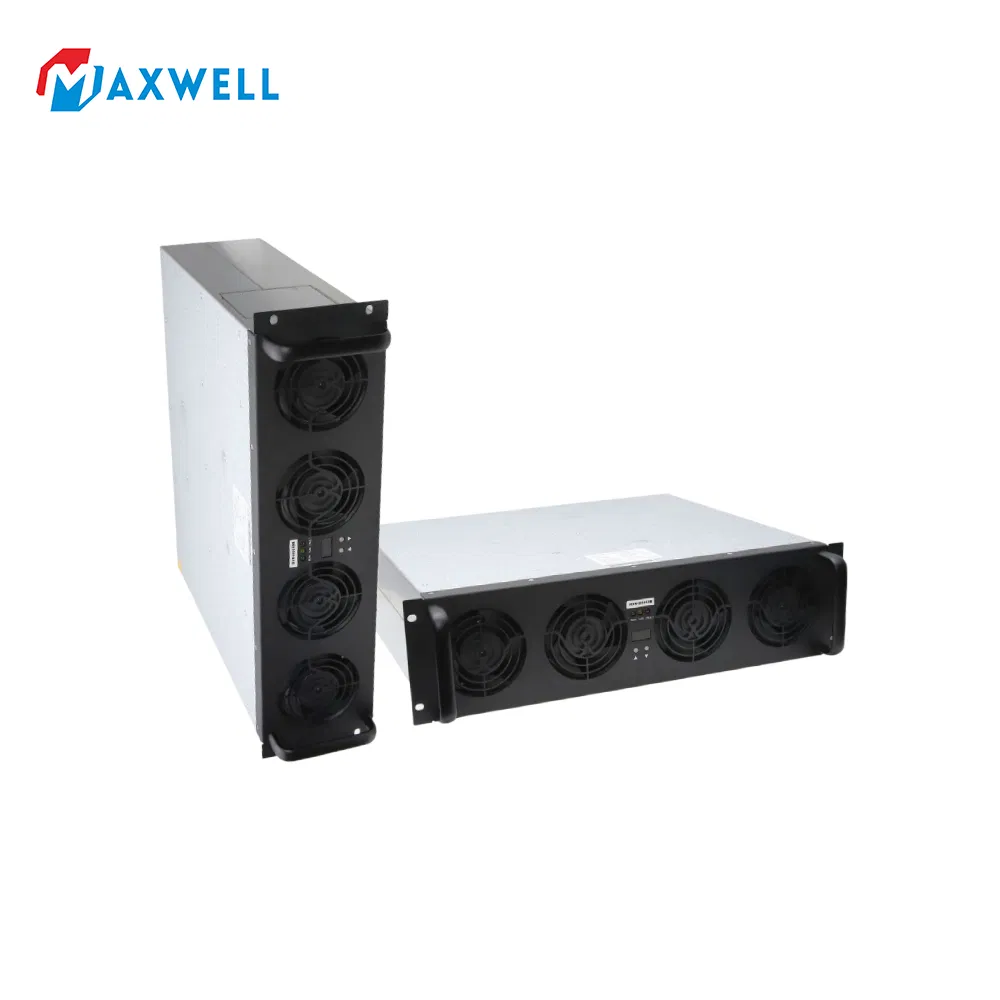

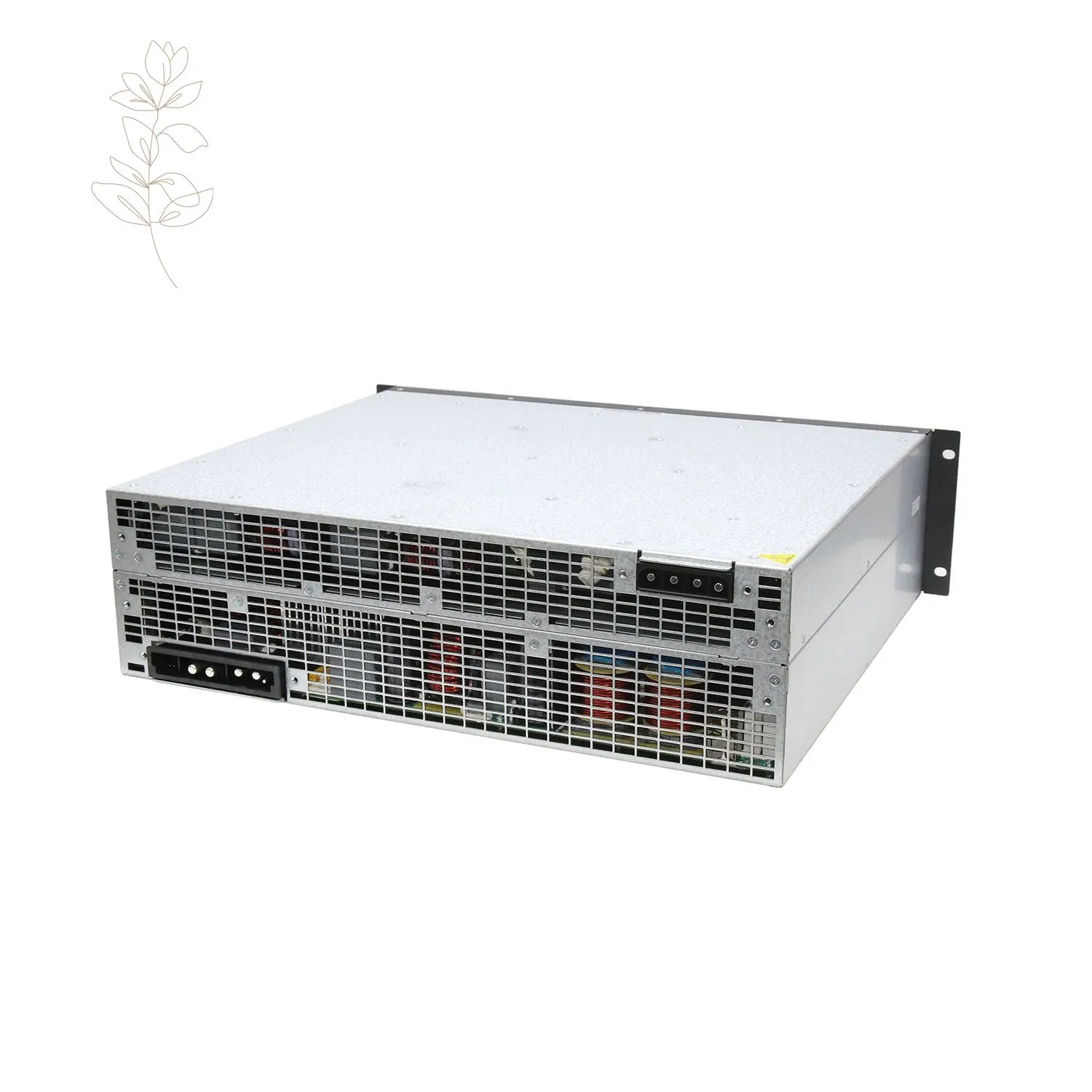

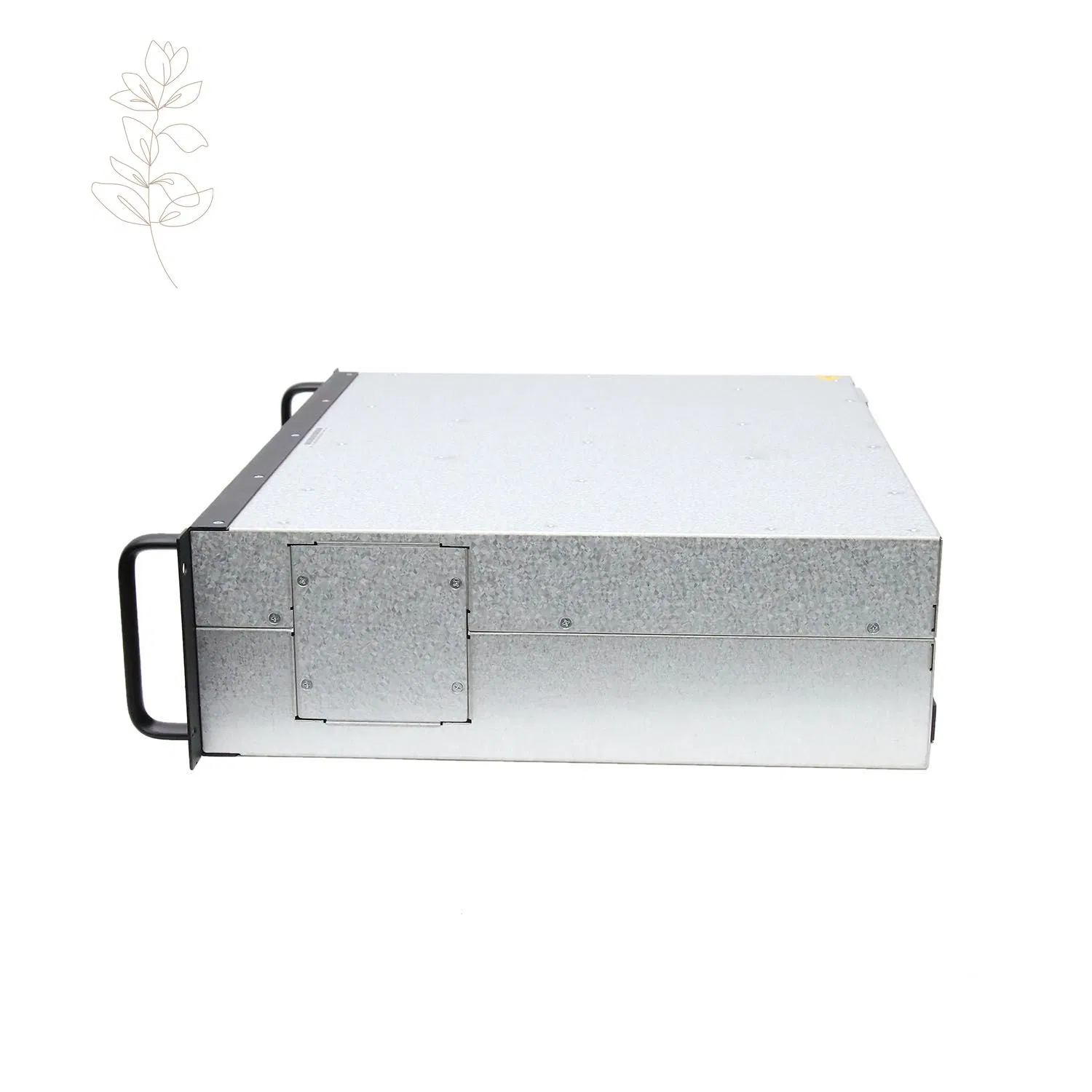

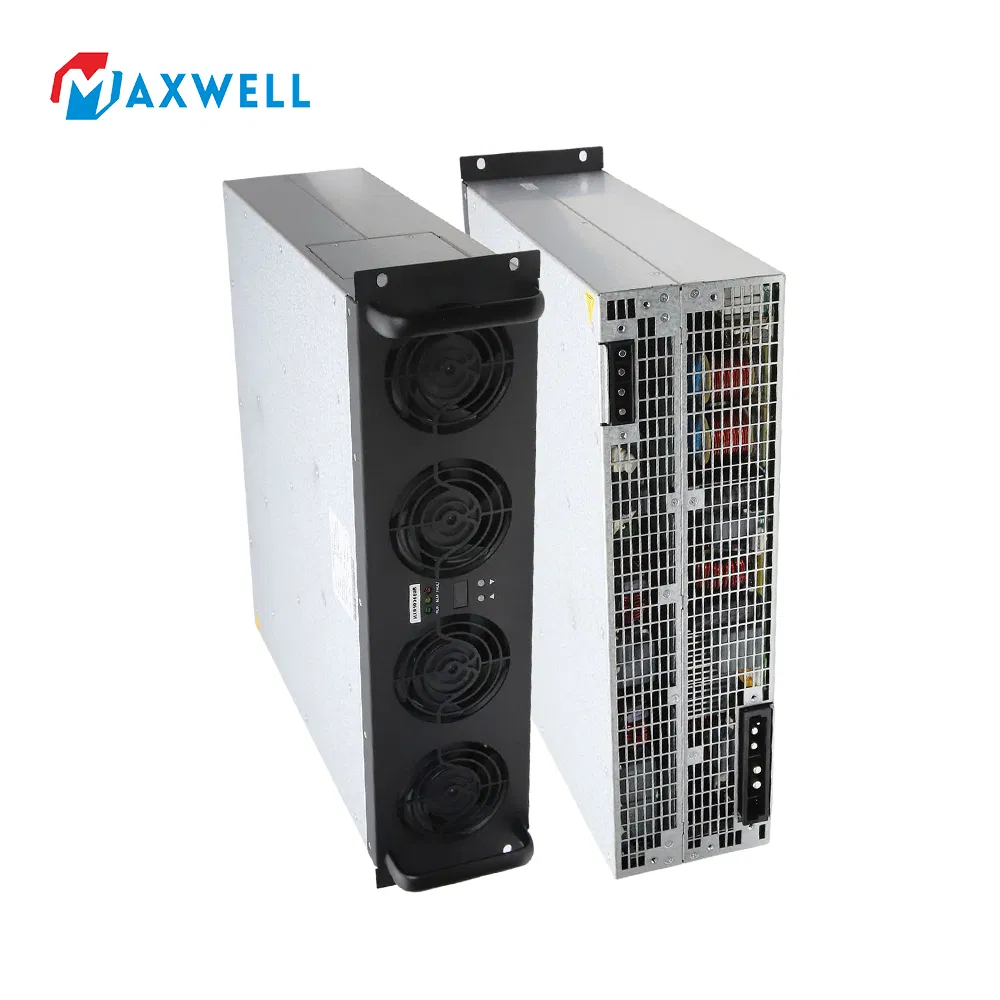

MXR150050B is a high-performance charging power module specifically designed for the charging pile industry. It offers prominent advantages in ultra-high full-load operating temperatures and an ultra-wide constant power range. This module is characterized by its high reliability, exceptional efficiency, high power factor, and high power density. With a wide output voltage range, low noise level, minimal standby power consumption, and excellent EMC performance, it stands as a leading solution for modern EV infrastructure.
| Dimensions | 125mm(H)*440mm(W)*380mm(D) |
| Communication Mode | CAN bus |
| Input Voltage | 260Vac-530Vac, three phase+PE |
| Power Factor | ≥0.99 |
| Output Power | 50kW @ output voltage ≤ 1500Vdc |
| Voltage Range | 0Vdc-1500Vdc |
| Operating Temperature | -40°C to +75°C |
| Package Size | 57.50cm * 57.00cm * 58.00cm |
| Gross Weight | 40.000kg |
| Transport methods | Wooden Carton or Kraft Carton, via Air or Sea |
We are a state-level high-tech enterprise and a leader in new energy and energy internet technology. Our focus lies in the research, development, production, and sales of power electronic products, specifically serving mid-to-high-end DC power supply system requirements.
With over a decade of experience, we have built a high-quality R&D team and hold multiple national invention patents and software copyrights. Our products are widely utilized in automotive, electric power, railway, metallurgy, and communications sectors globally.
