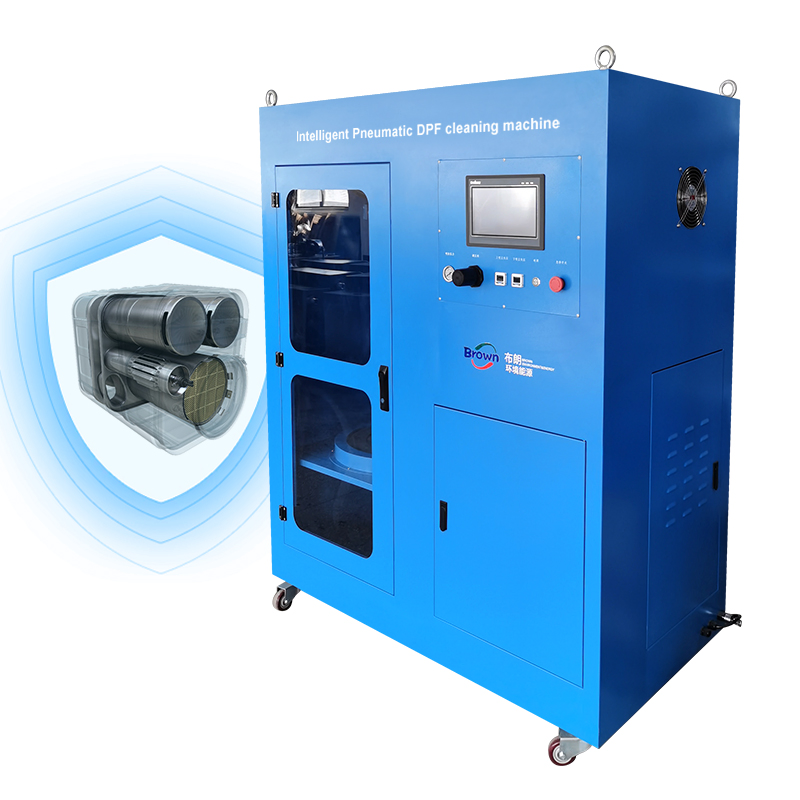

Patented Bi-Directional DPF Cleaning Machine – Fully Adjustable Visual Cleaning Process & Self-Cleaning System
Patented Bi-Directional DPF Cleaning Machine – Fully Adjustable Visual Cleaning Process & Self-Cleaning System
Patented Bi-Directional DPF Cleaning Machine – Fully Adjustable Visual Cleaning Process & Self-Cleaning System
Patented Bi-Directional DPF Cleaning Machine – Fully Adjustable Visual Cleaning Process & Self-Cleaning System
Patented Bi-Directional DPF Cleaning Machine – Fully Adjustable Visual Cleaning Process & Self-Cleaning System
1 / 5
Patented Bi-Directional DPF Cleaning Machine – Fully Adjustable Visual Cleaning Process & Self-Cleaning System
Patented Bi-Directional DPF Cleaning Machine – Fully Adjustable Visual Cleaning Process & Self-Cleaning System
Patented Bi-Directional DPF Cleaning Machine – Fully Adjustable Visual Cleaning Process & Self-Cleaning System
Patented Bi-Directional DPF Cleaning Machine – Fully Adjustable Visual Cleaning Process & Self-Cleaning System
Patented Bi-Directional DPF Cleaning Machine – Fully Adjustable Visual Cleaning Process & Self-Cleaning System

Patented Bi-Directional DPF Cleaning Machine – Fully Adjustable Visual Cleaning Process & Self-Cleaning System

Customization: Available
After-sales Service: Lifelong Technology Support
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO. BR-IPC-MA01 Testing Equipment Type Automotive Lighting Detector
Certification CE, ISO9001 Update Method by Internet
Condition New Standard Standard
Weight 270kg Power 3kw
Air Scanning Pressure 0.3-0.7 MPa Air Collecting Negative Pressure -25 -0 Kpa
Packaging & Delivery
Package Size 243.00cm * 107.00cm * 244.00cm
Package Gross Weight 900.000kg
Transport Package Wooden Box
Product Description

We are a manufacturing high-tech enterprise integrating R&D, technical services and sales, professional in producing engine carbon cleaning machines, catalytic converter cleaning machines, SCR/DPF cleaning machines, and EGR cleaning machines. We provide 1-year warranty and lifelong technical support.

Our unique bi-directional scanning technology blows off soot and ash particulates from each cell of the DPF. The dust collector then sucks all released dirt, ensuring efficient DPF cleaning and regeneration.

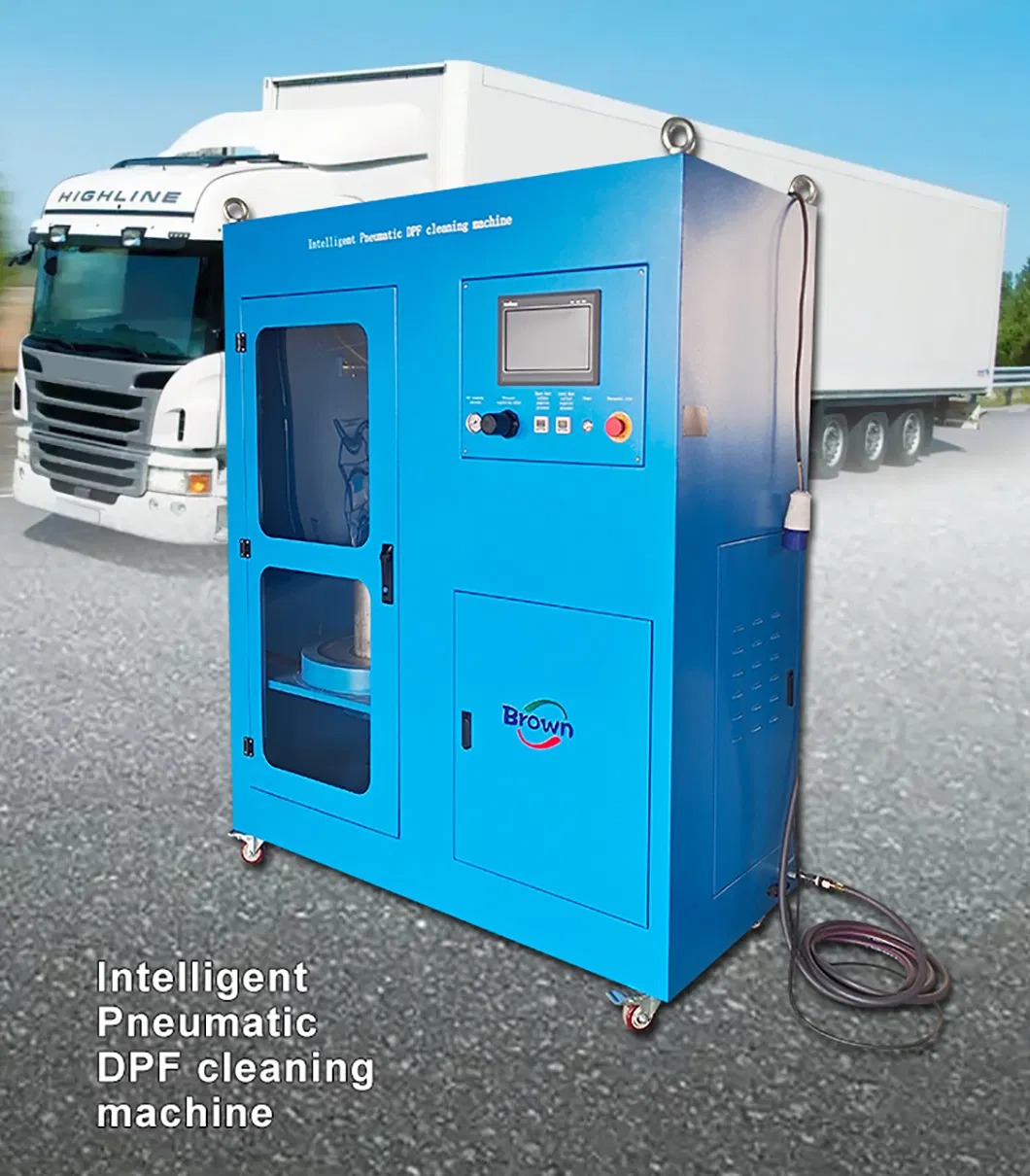

DPF Cleaning Process
Product Parameters
Parameter Specifications
Dimension1490mm*720mm*1900mm
Air supplyExternal source ≥0.8MPa, gas production ≥1.2m³/min
DPF cleaning rangeDiameter: 150mm~420mm, Height: ≤620mm
Filtration systemTwo-stage: Cyclone dust collector and HEPA filter
Air scanningDual-sided (Up and bottom) air blowing
Our Advantages
Advantage 1

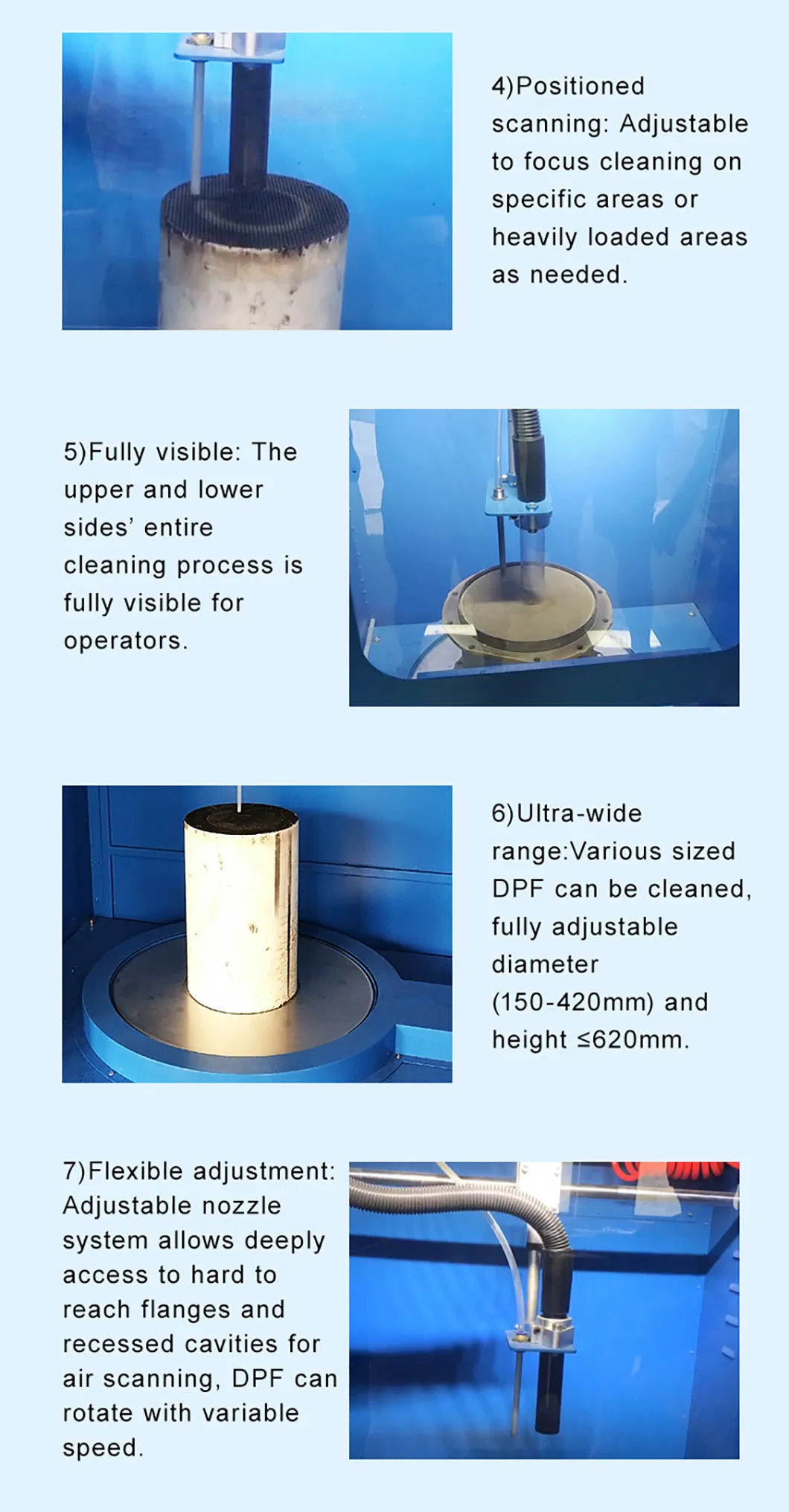

Advantage 2
Advantage 3

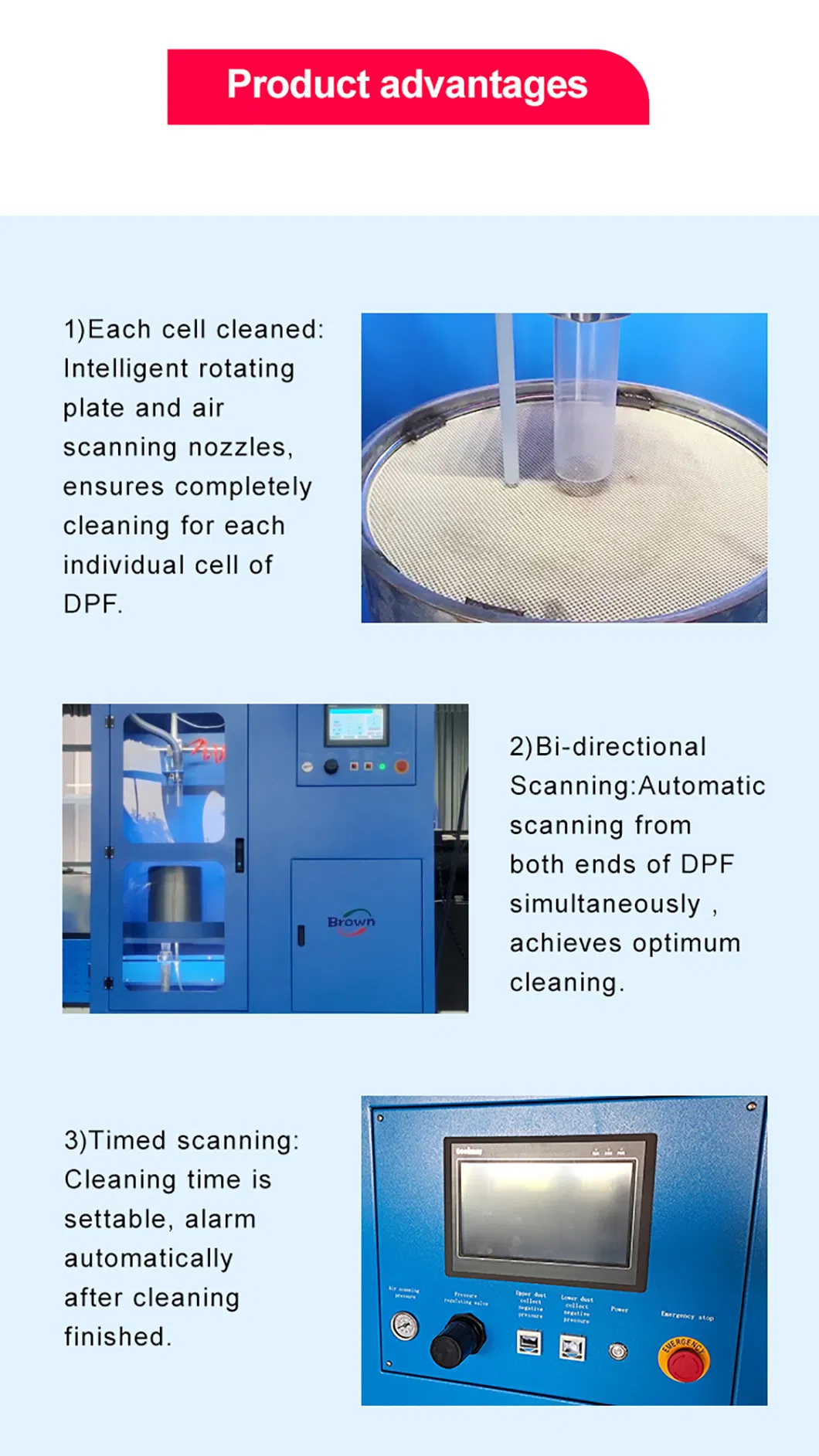

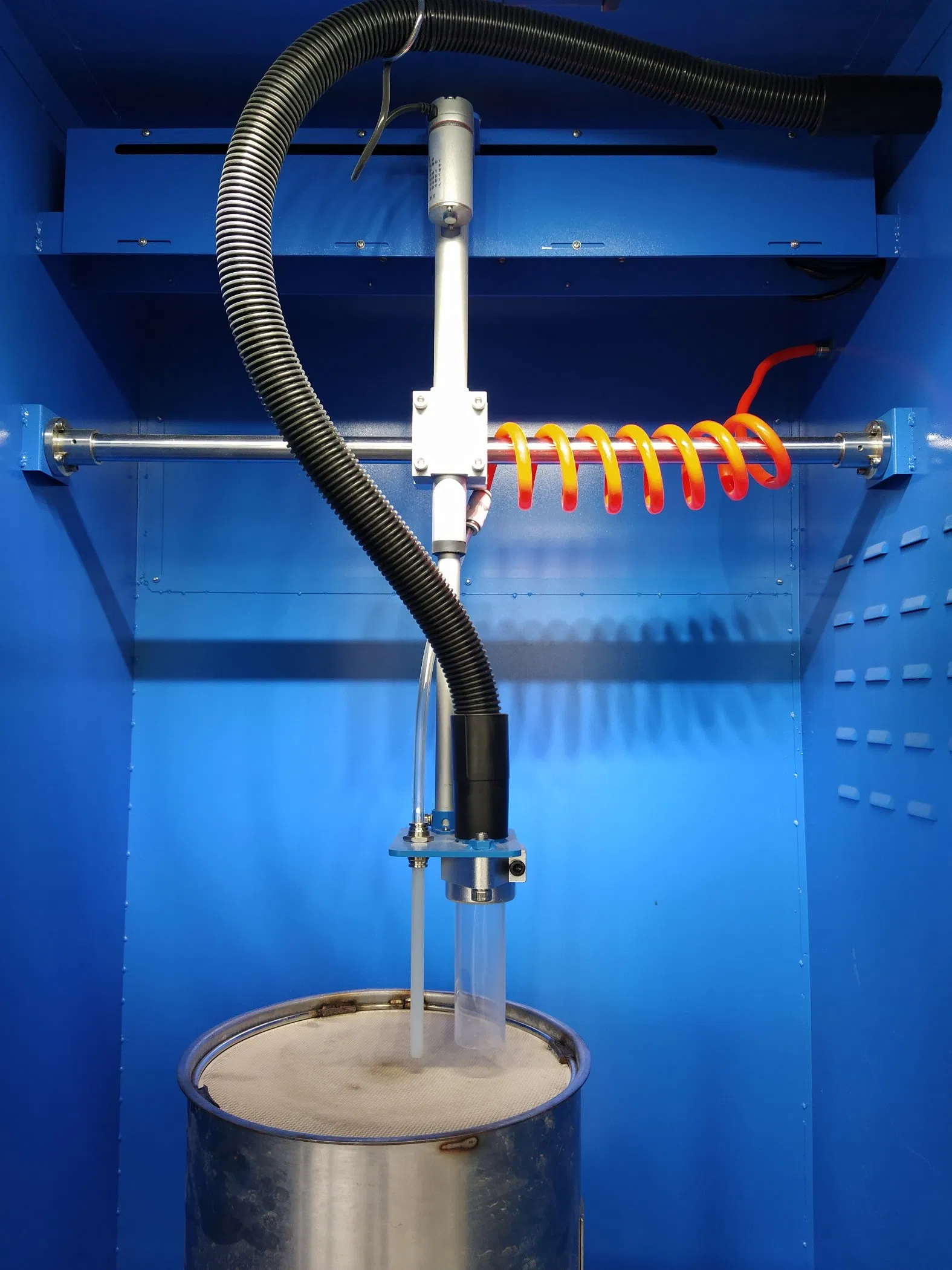

01 Each cell cleaned: Intelligent rotating plate and air scanning nozzles ensure complete cleaning for every individual cell.
02 Bi-directional Scanning: Automatic scanning from both ends simultaneously achieves optimum cleaning.
03 Timed scanning: Cleaning time is settable with an automatic alarm upon completion.
04 Fully visible: The entire process is visible to operators for safety and monitoring.

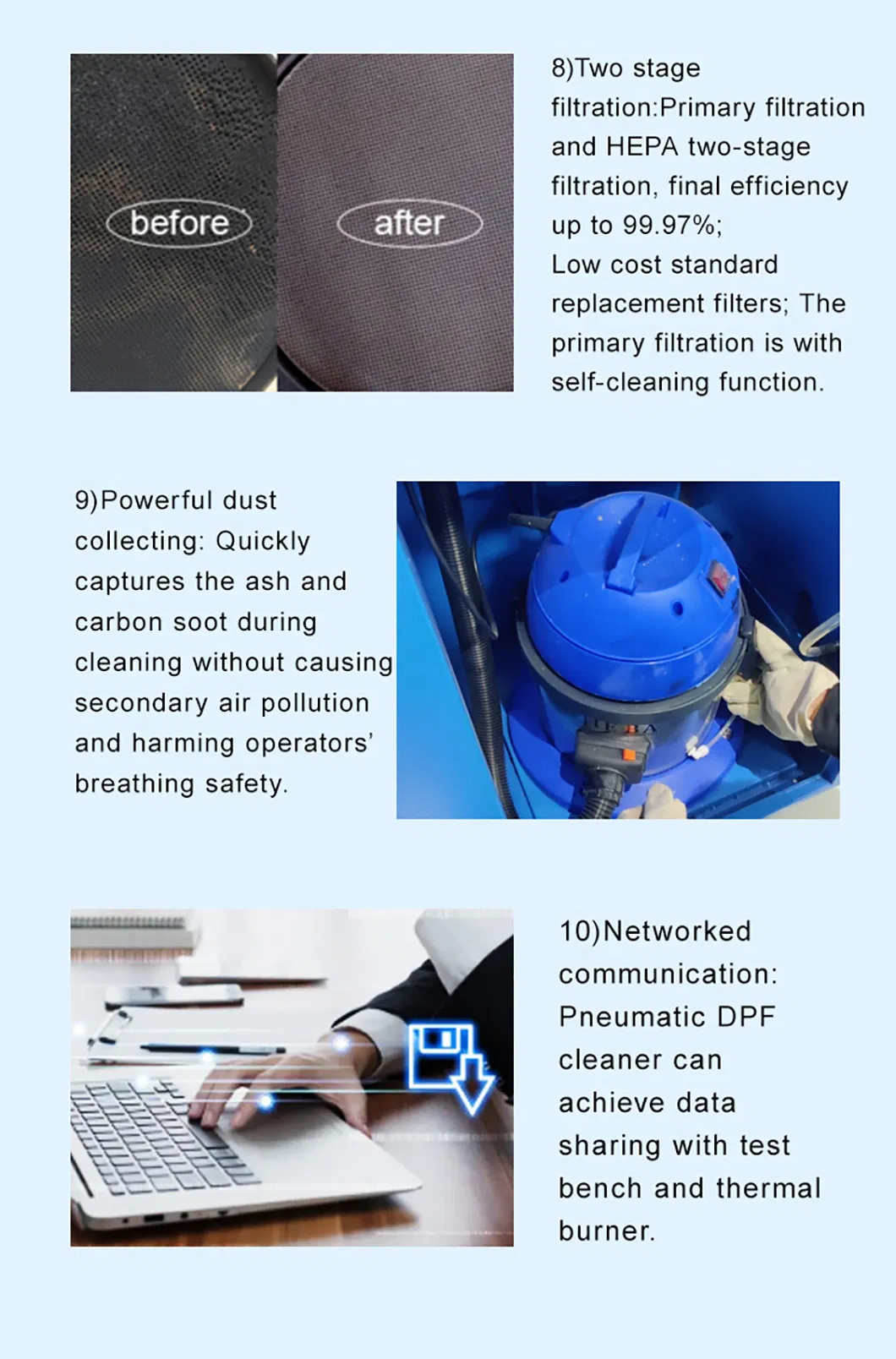

05 Two stage filtration: HEPA filtration reaches efficiency up to 99.97% with self-cleaning functions.
06 Powerful dust collecting: Quickly captures ash and carbon soot without secondary air pollution.
Visual Showcase & Certifications
Exhibition
Certifications
Working Mechanism
Gallery 1
Gallery 2

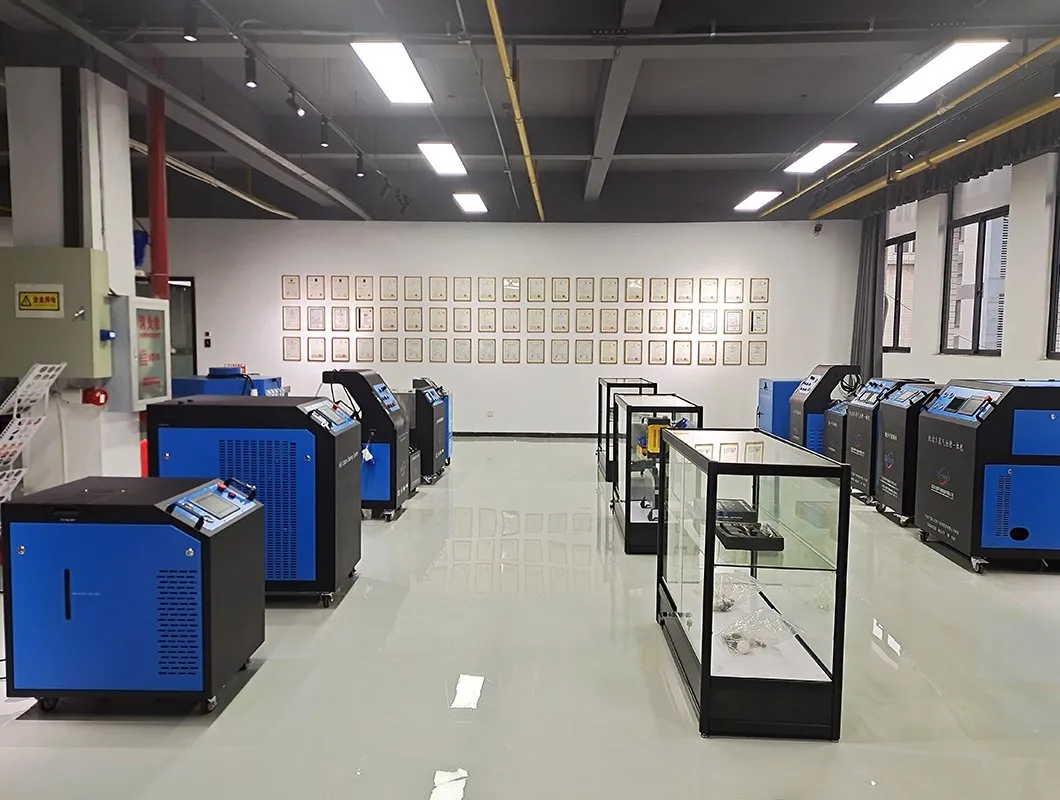

Gallery 3
Frequently Asked Questions
Q: What size DPF units can this machine clean?
A: The machine handles DPF diameters from 150mm to 420mm and heights up to 620mm, making it compatible with a wide range of vehicle filters.
Q: How does the bi-directional scanning technology work?
A: It uses high-pressure air blowing from both ends of the DPF simultaneously to ensure that even the most stubborn ash and soot are removed from every cell.
Q: Is the cleaning process safe for the environment?
A: Yes. The system includes a powerful dust collection unit and two-stage HEPA filtration (up to 99.97% efficiency) to prevent secondary air pollution.
Q: Can I adjust the cleaning focus for heavily blocked areas?
A: Yes, the machine supports positioned scanning, allowing operators to focus the air scanning nozzles on specific or heavily loaded areas as needed.
Q: Does the equipment require manual monitoring?
A: The cleaning process is fully visible through viewing windows, and the system includes timed scanning with an automatic alarm when the cycle is finished.
Q: What is the warranty period for this machine?
A: We offer a 1-year free warranty along with lifelong technical support and after-sales service.
