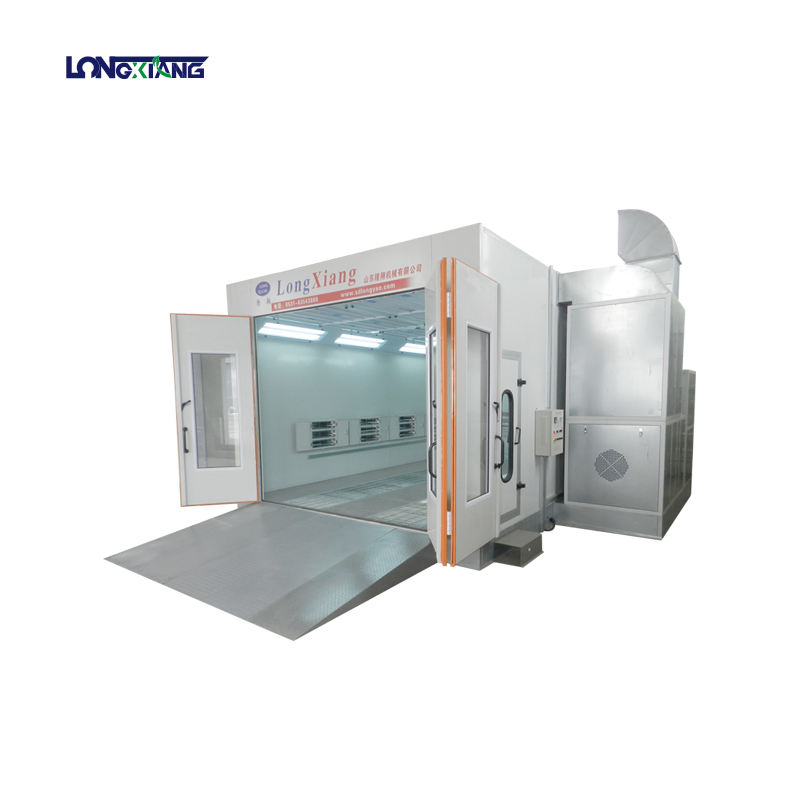

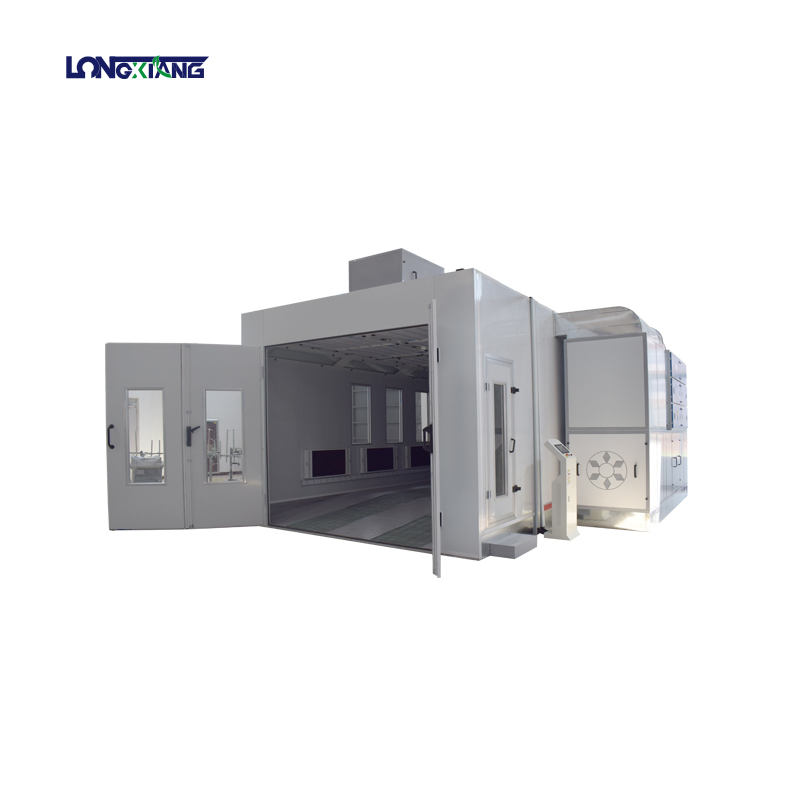

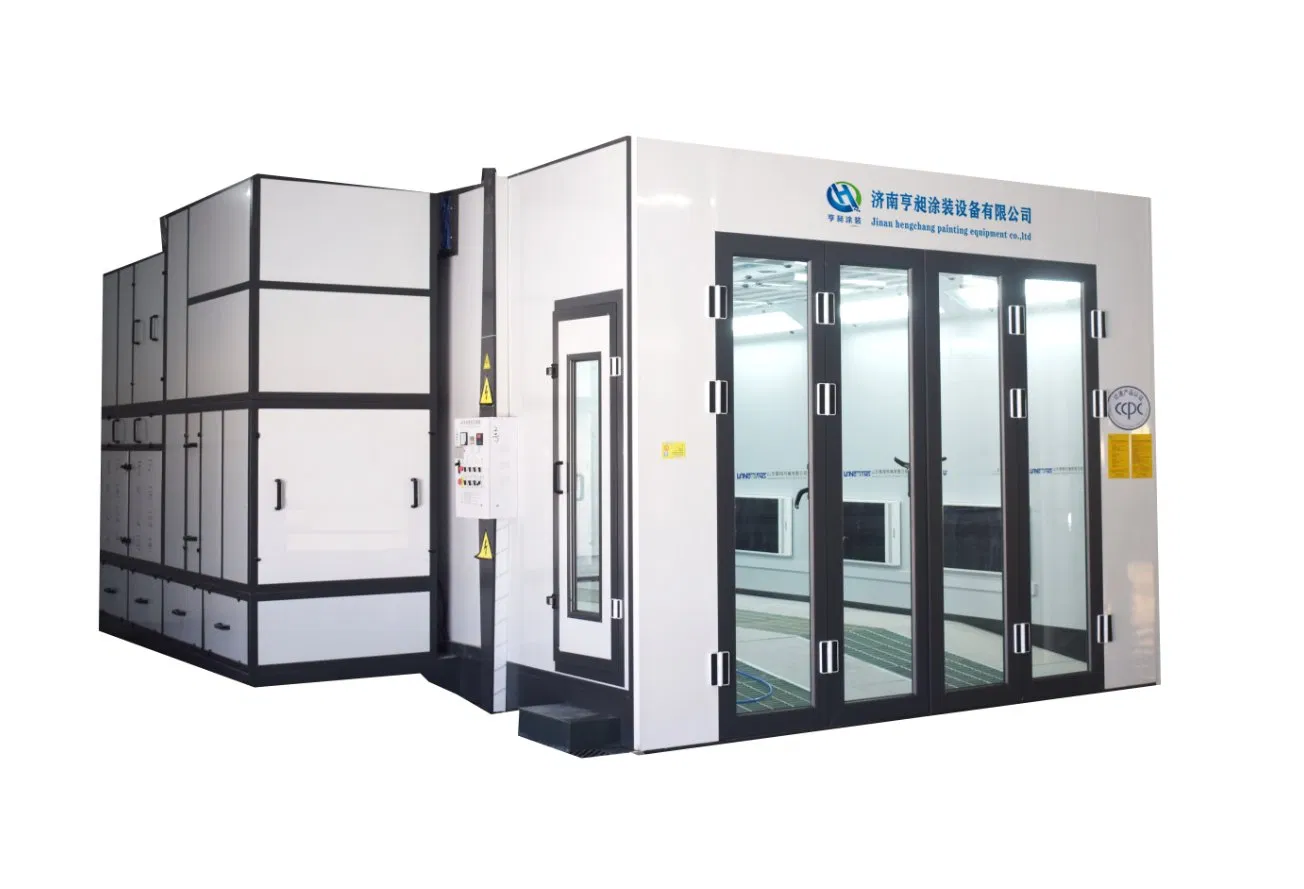

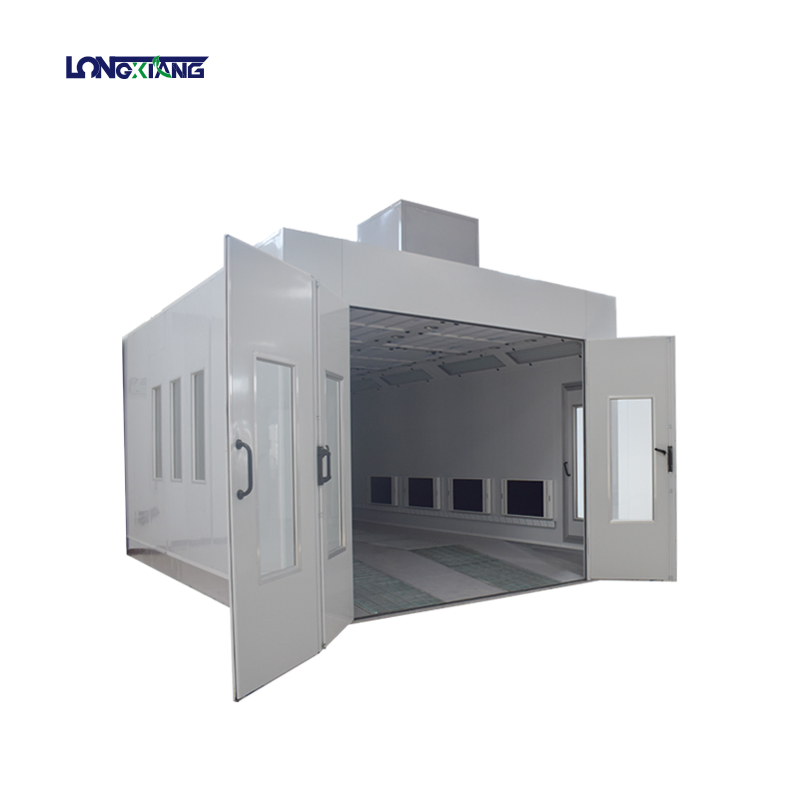

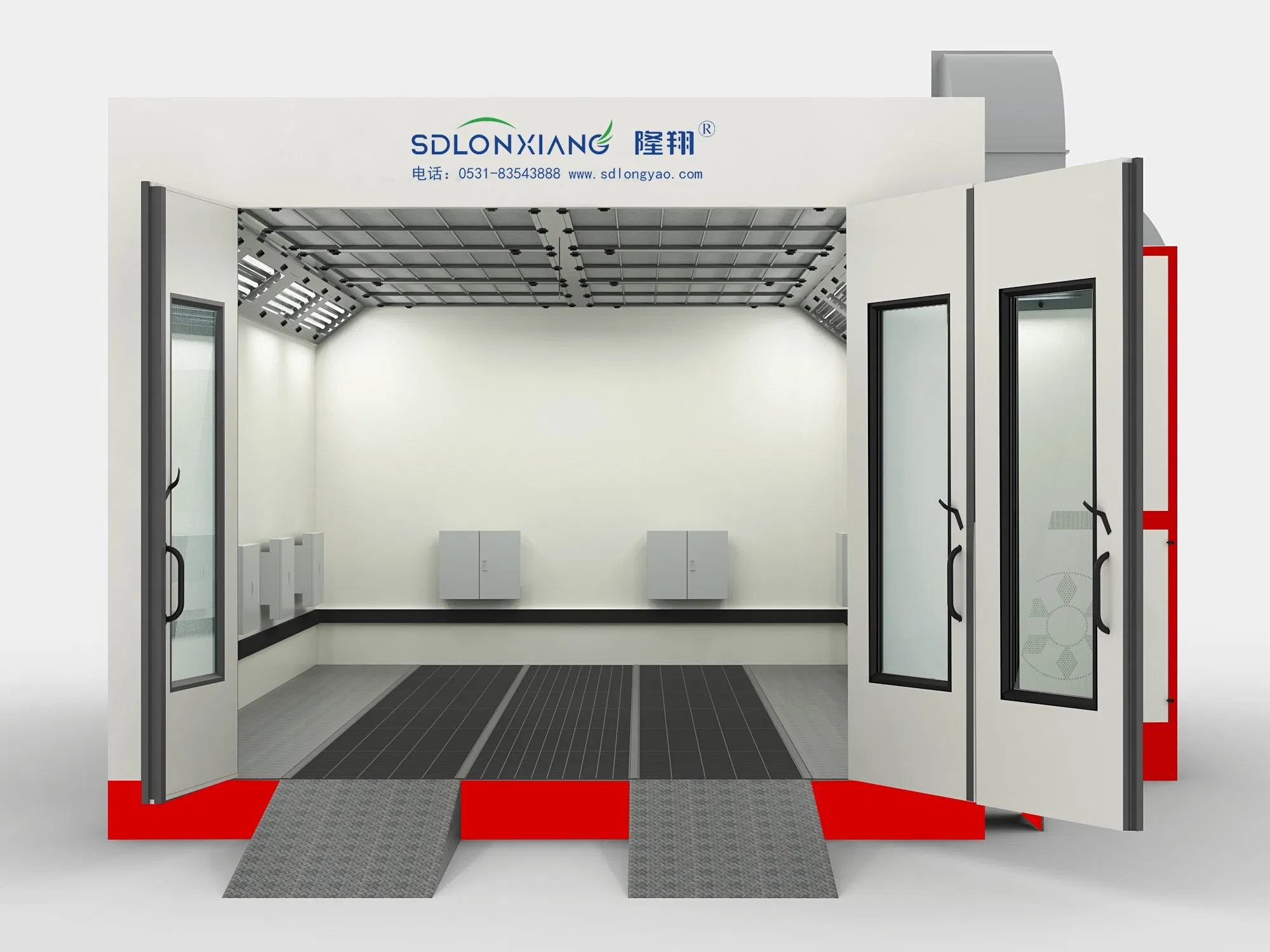

LX1 Automotive LED Lighting Paint Booth & Baking Oven System
| Outside Size | 8350 × 4000 × 3200 mm (L × W × H) |
| Inside Size | 6900 × 3900 × 2650 mm (L × W × H) |
| Entrance Door | 3 folds, 3000x2600 mm (W × H), bending steel door, cast aluminum hinge, tempered glass window |
| Wall Panel | Sandwich style EPS 50mm, 0.376mm thick steel, anti-flame and heat-insulation |

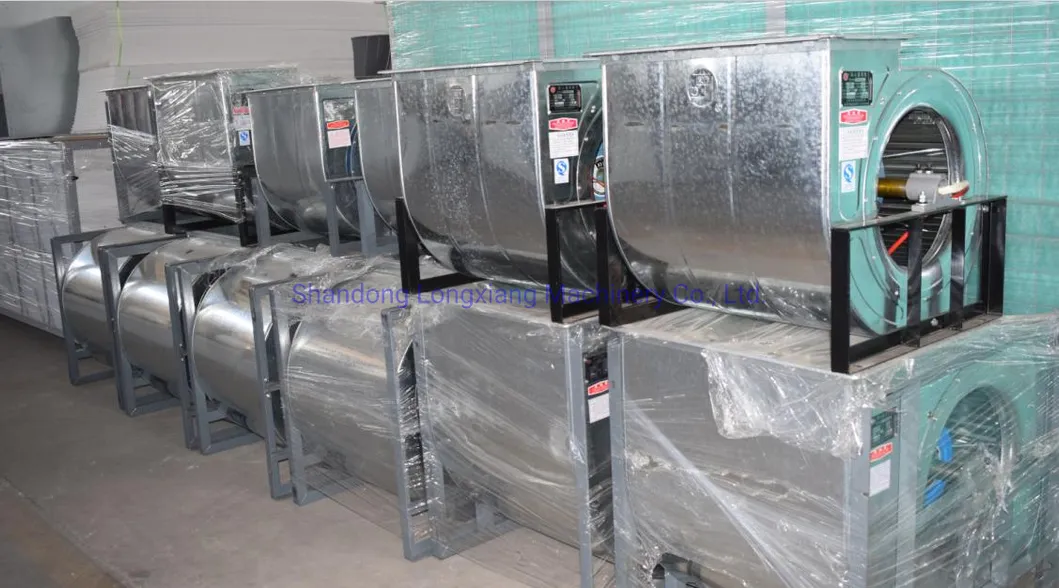

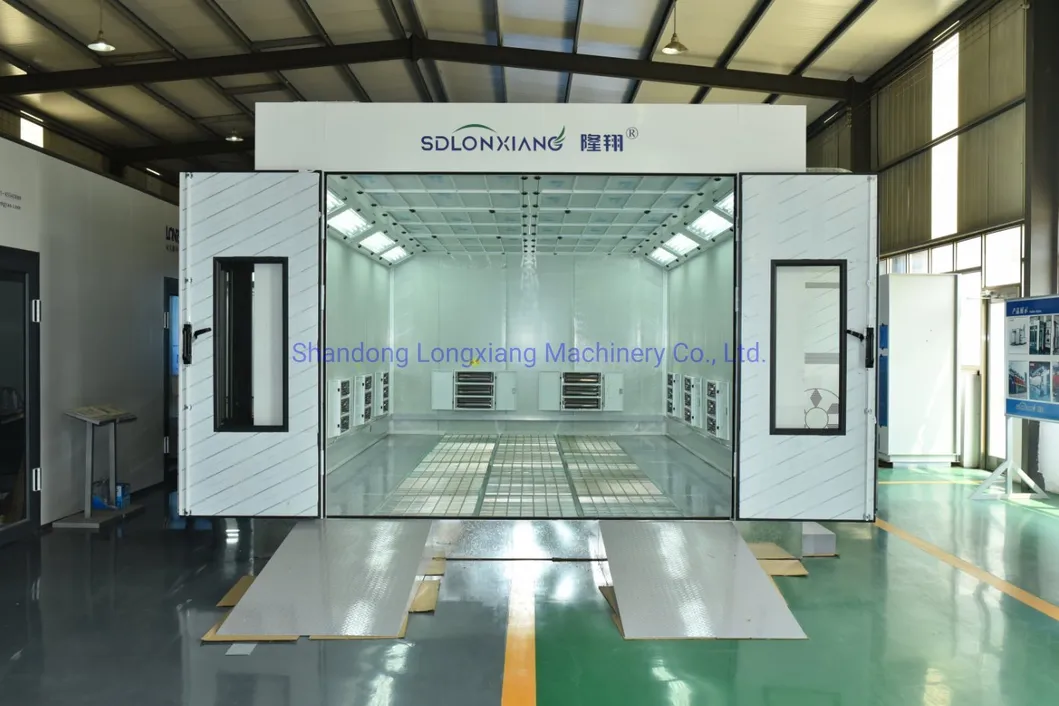

| Ventilation | European-style exhaust air fan (5.5KW), air capacity: 18000 m³/h |

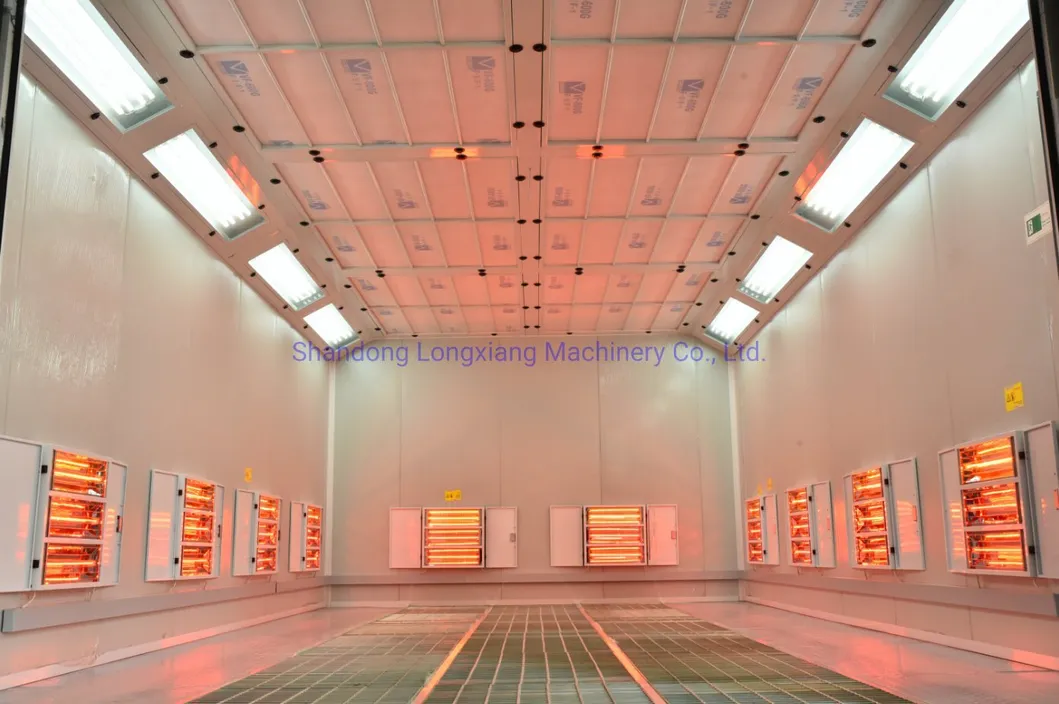

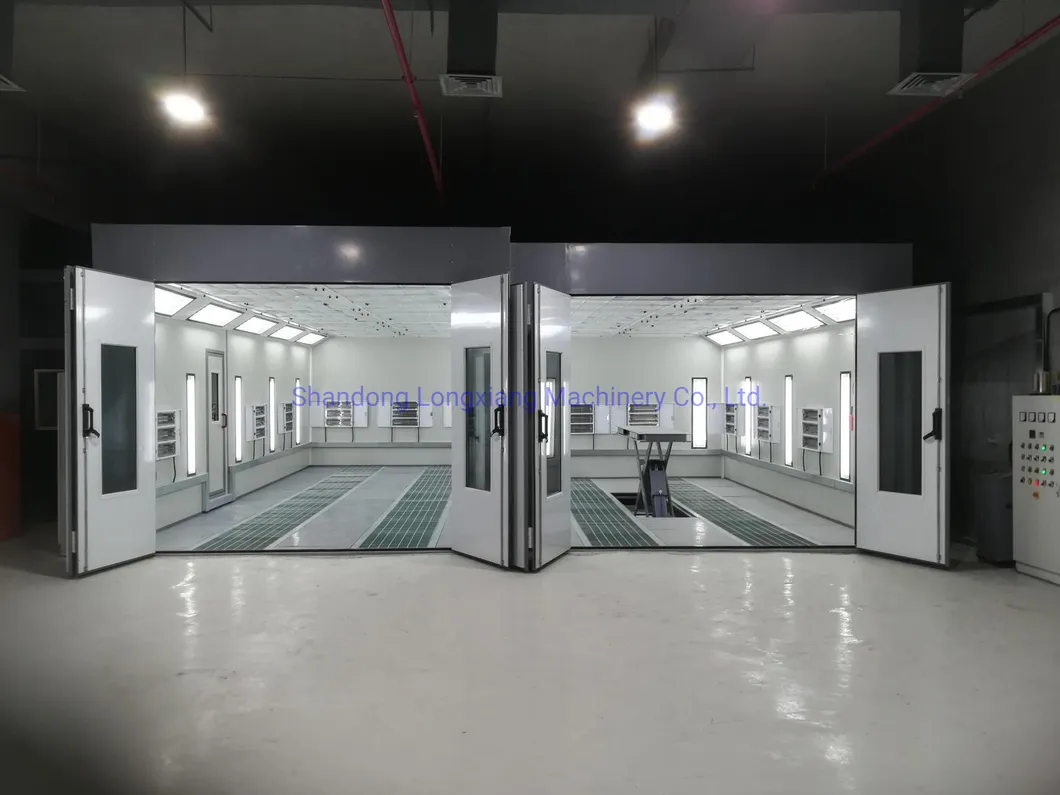

| Lighting | 8 groups * 4 units = 32 units * 16W LED Lighting |
| Filtering System | Primary filter (Grade G2, >83%) and floor multi-layer fiberglass filter (>70%) |
| Control System | Intelligent control for lighting, painting, overload, and phase protection |

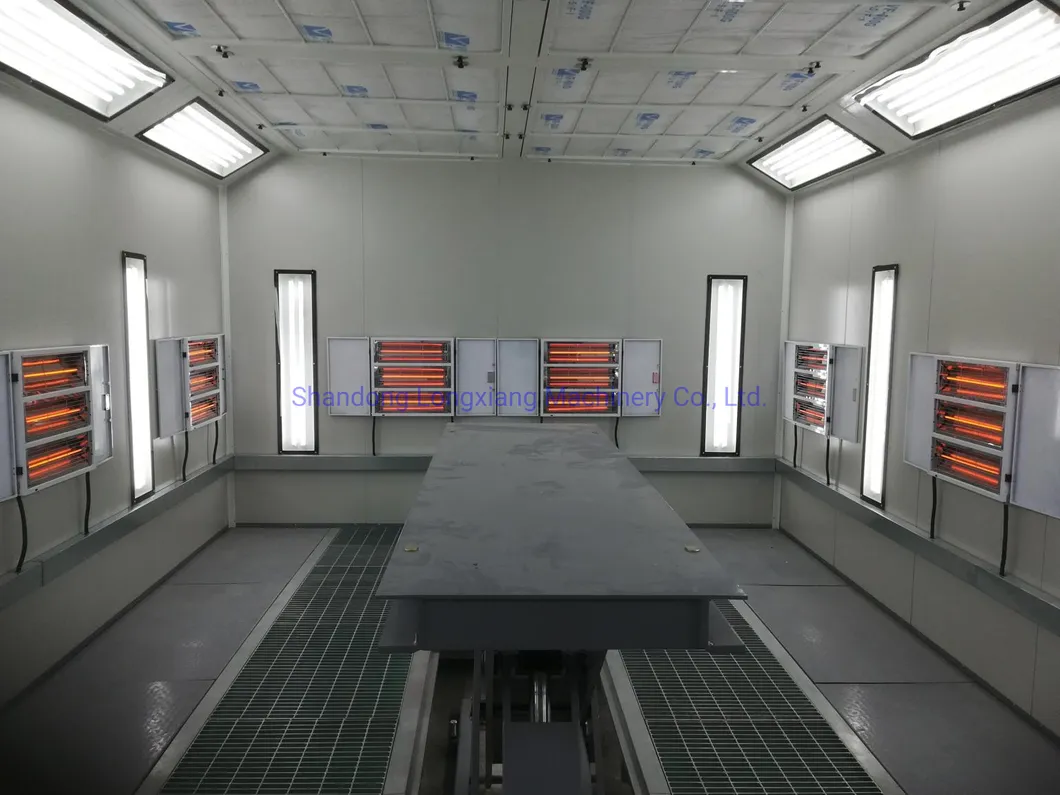

Ventilation Efficiency: The vertical airflow system creates an efficient environment where overspray is removed from the vehicle immediately and completely. This ensures a dust-free finish and optimal working conditions.
Energy Saving Baking Mode: During baking, 80%-85% of the air is recovered and recirculated. The heating system powers off once the target temperature is reached, significantly reducing energy consumption.

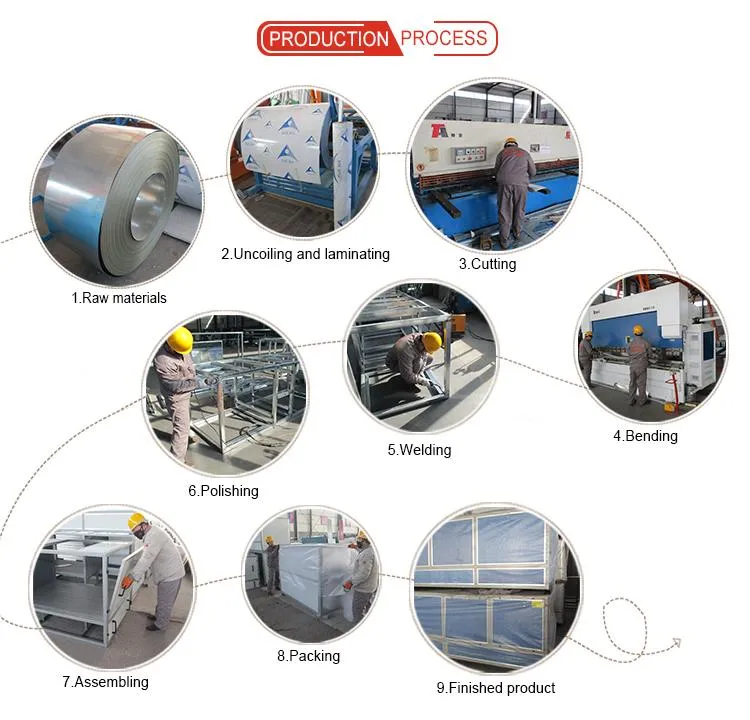

All equipment, excluding quick-wear parts (filters and lamps), comes with a 12-month warranty. Our products utilize powder-coated parts for beams, frames, and cabinets to ensure a prolonged service life and resistance to workshop environments.
Standard export packaging includes polyfoam, wooden boxes, or heavy-duty cartons. Standard orders are typically shipped within 7-10 days after payment confirmation.
