| Model NO. | MXC100050B |
| Bus Side Voltage | 200-950VDC |
| Bus Side Current | <95A |
| Battery Side Voltage | 200-1000VDC |
| Battery Side Current | 167A |
| Efficiency | >99% |
| Communication Mode | CAN |

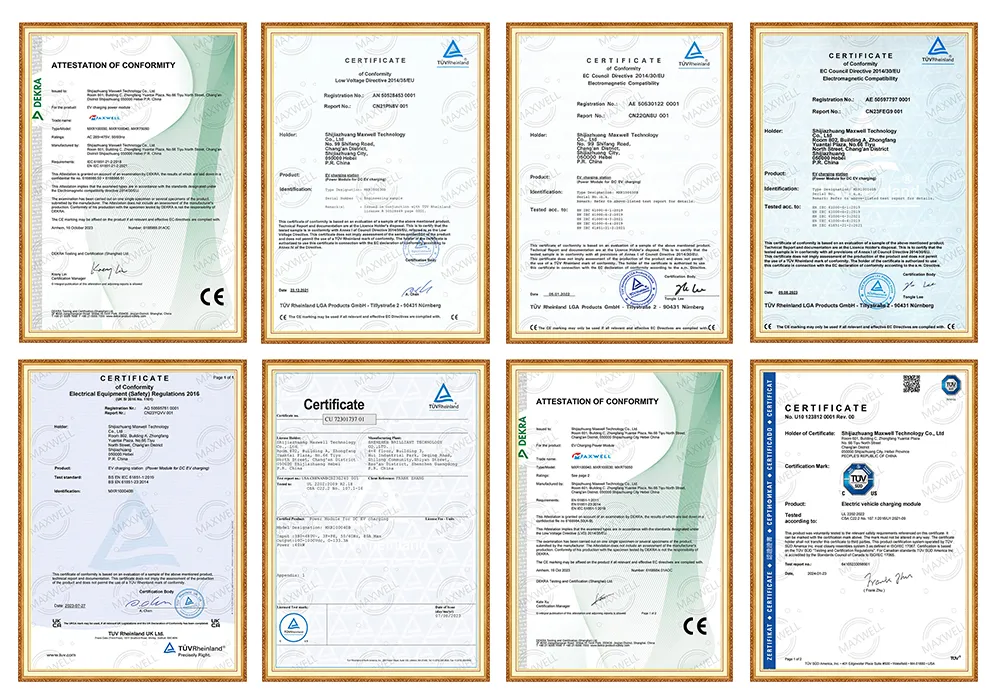

| Certification | Meet CE, ISO, TUV, RoHS Reference Standard |
| Warranty | 12 Months |
| Package Size | 56.00cm * 55.00cm * 38.00cm |
| Gross Weight | 28.500kg |

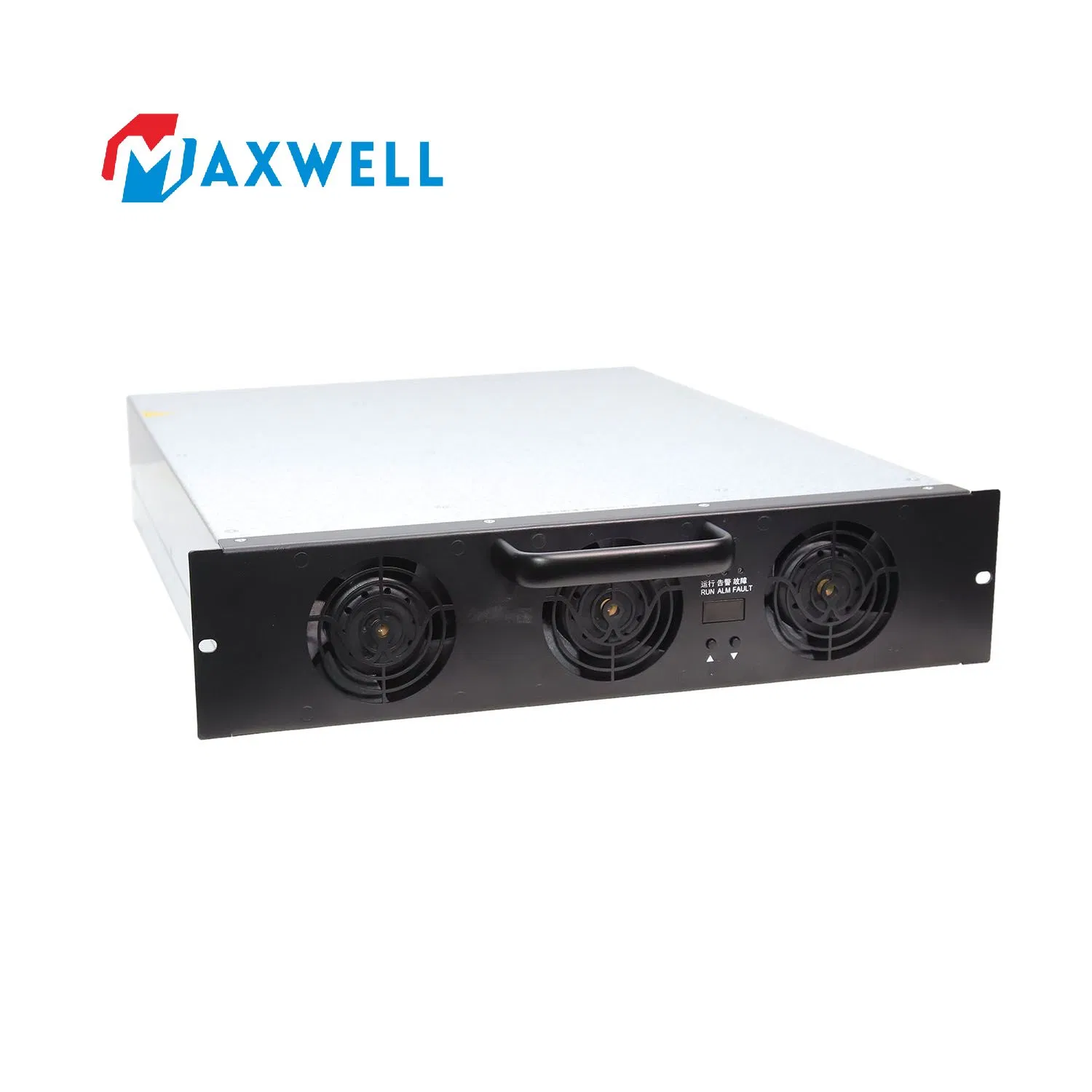

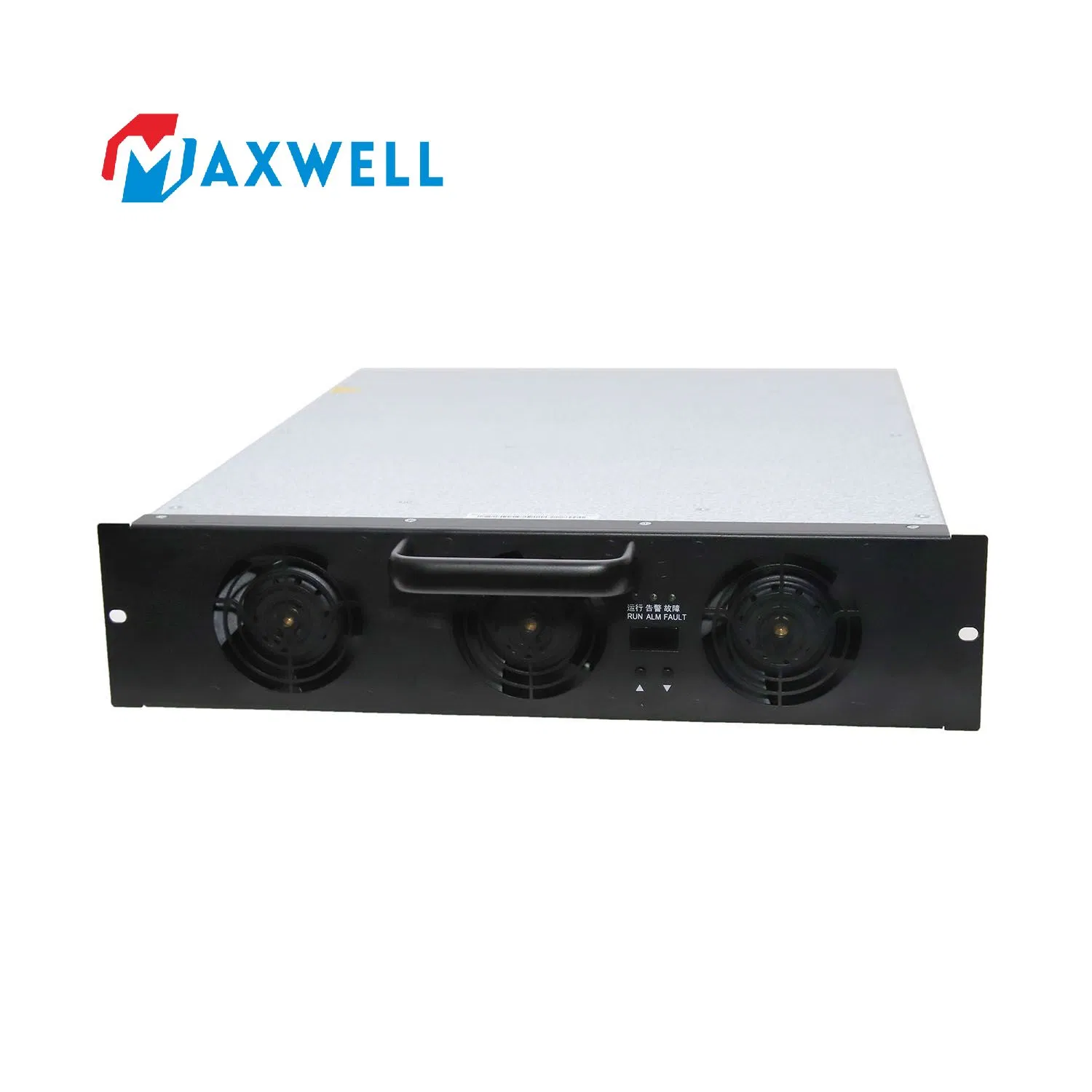

MXC100050B is a bidirectional power module developed for the energy storage industry. It features prominent advantages in ultra-high full-load operating temperature and an ultra-wide constant power range. Key characteristics include high reliability, high efficiency, high power factor, high power density, wide output voltage range, low noise, low standby power consumption, and excellent EMC performance.
| Feature | Specifications |
|---|---|
| Dimensions | 87mm(H)*330mm(W)*450mm(D) |
| Output Power | 50KW |

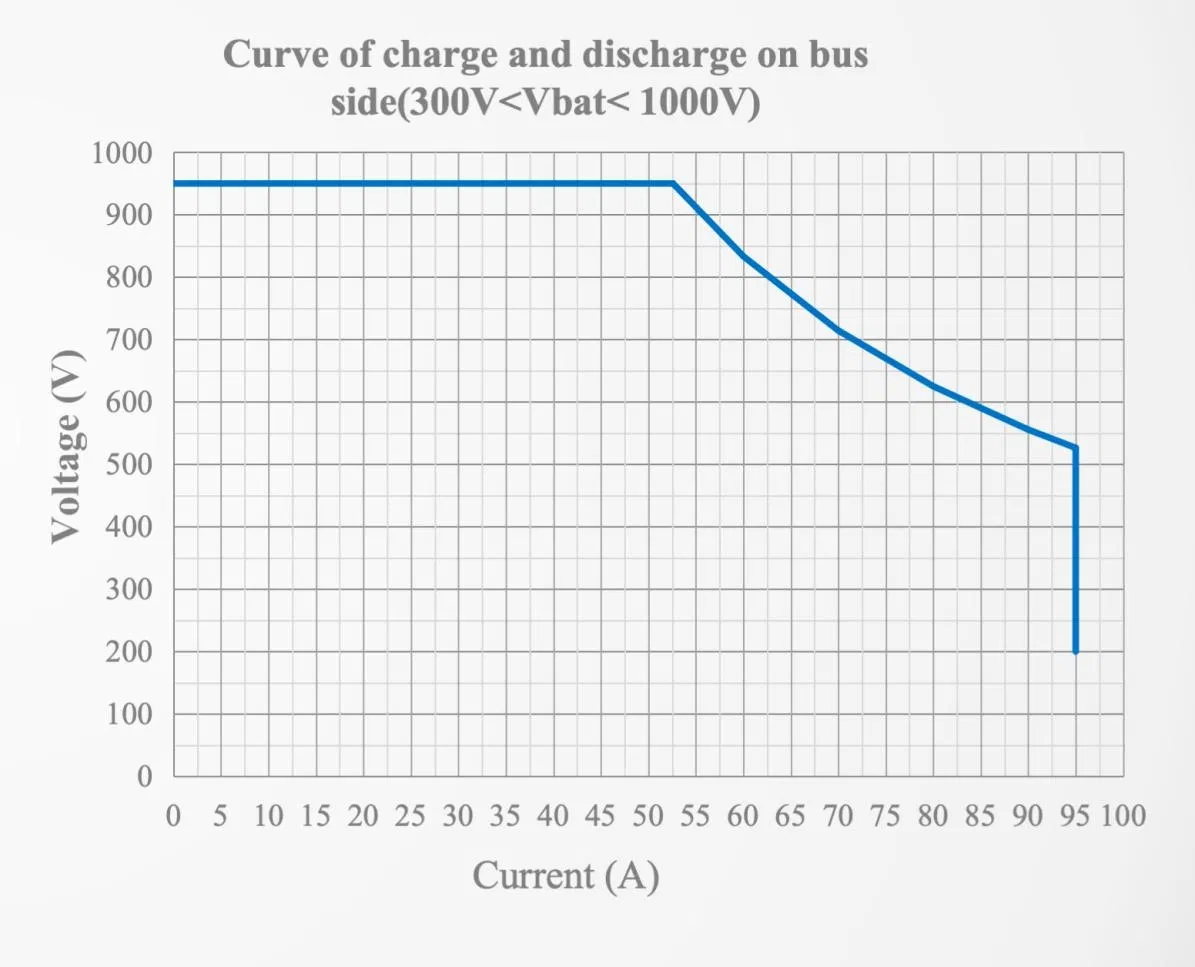

| Bus Side Voltage | 200V-950Vdc |

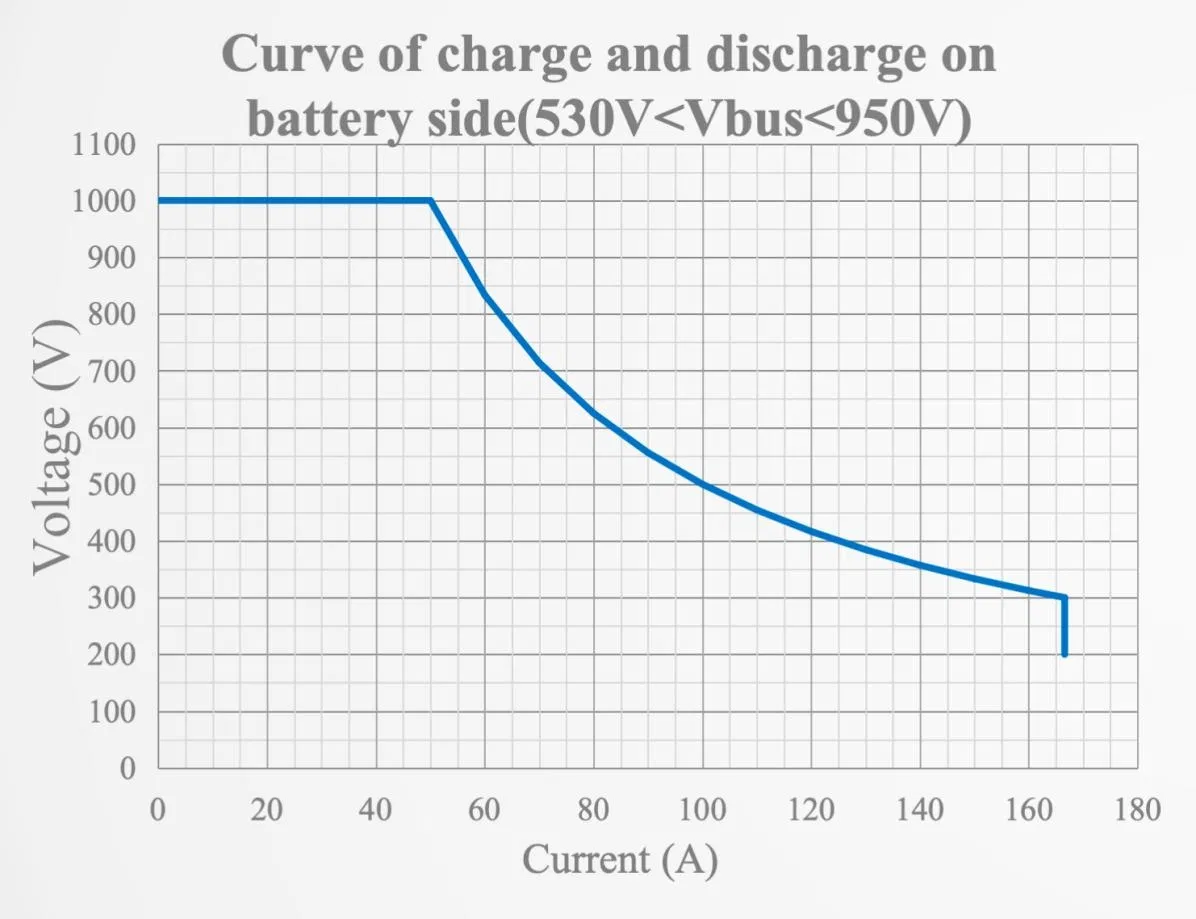

| Battery Side Voltage | 200-1000Vdc |
| Efficiency | ≥99% |

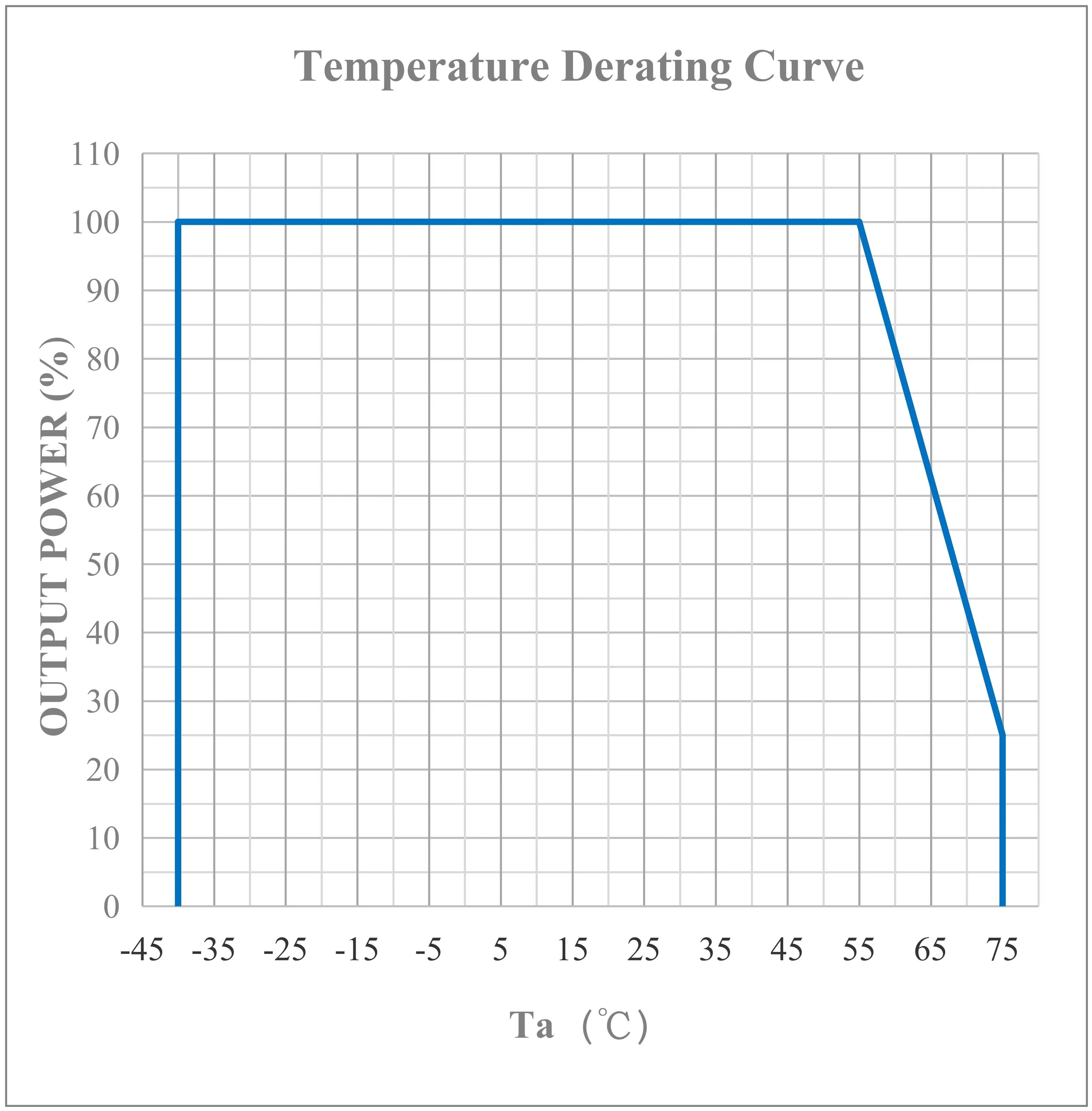

| Operating Temperature | -40°C to +75°C |

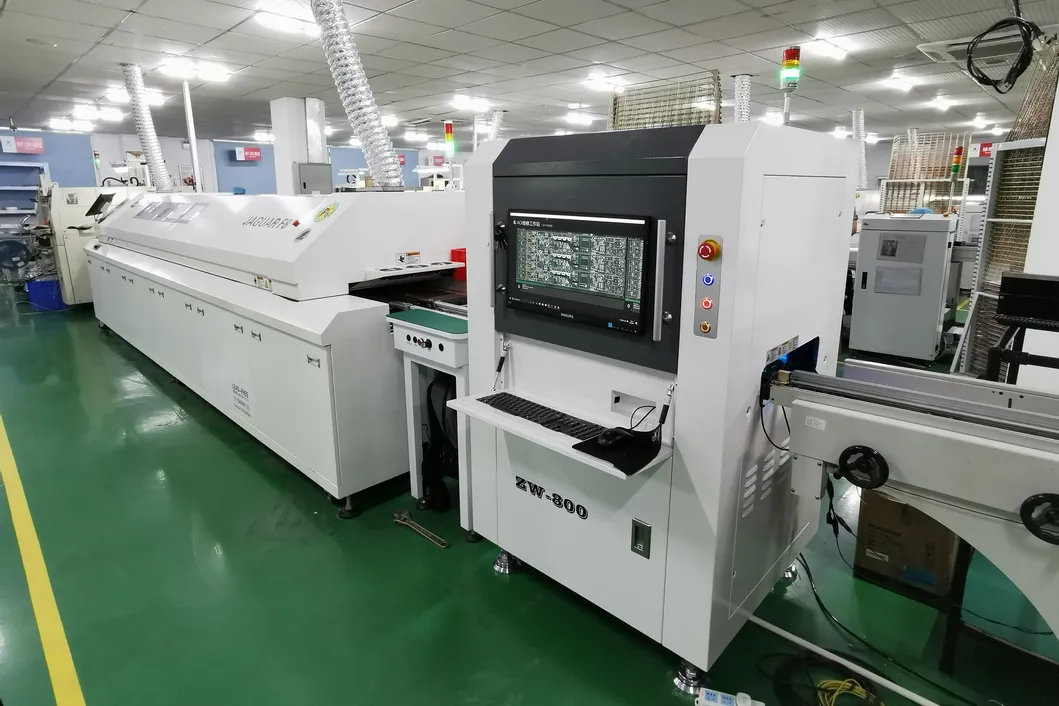

We are a state-level high-tech enterprise and a leader in new energy and energy internet solutions. Our focus lies in the research, development, production, and sales of power electronic products, serving mid-to-high-end DC power supply system manufacturers. With independent intellectual property rights and continuous technological innovation, we provide equipment and services that realize substantial corporate and customer value.
For over a decade, we have built a high-quality R&D team and practitioner of technological innovation in the power supply industry. Our products, including 15kW, 20kW, 30kW, 40kW, and 50kW series, are widely used in automotive, electric power, railway, metallurgy, and communications fields globally.
