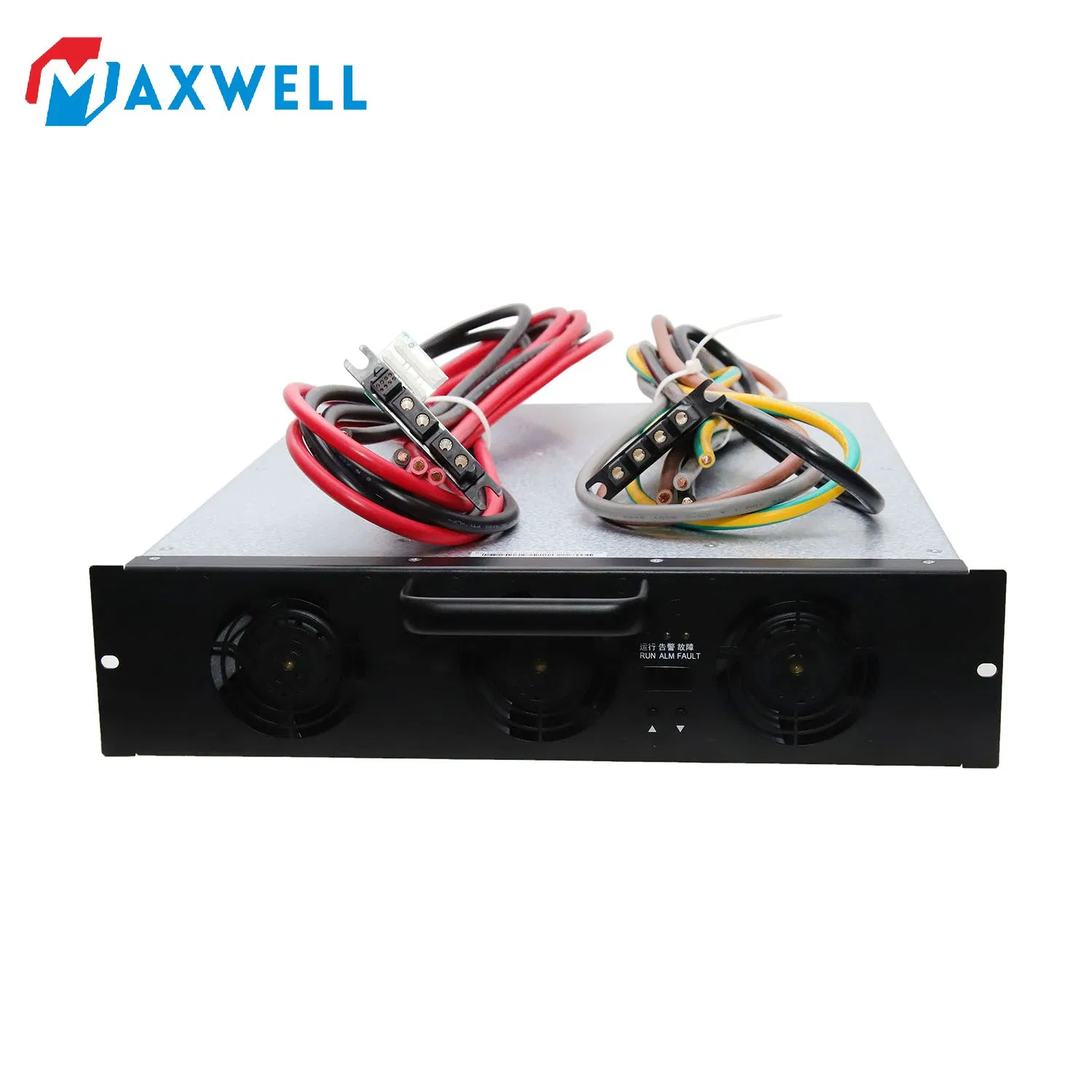

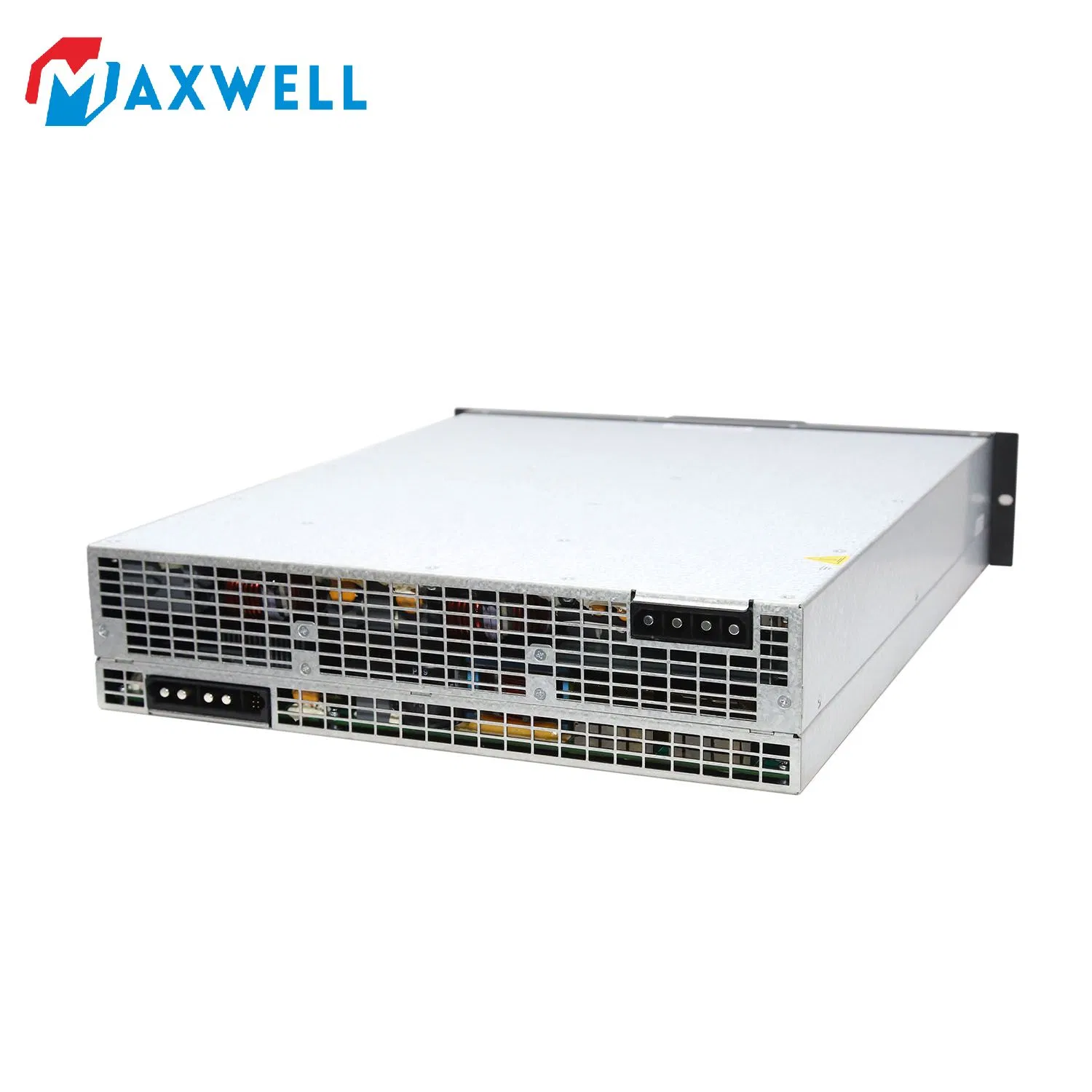

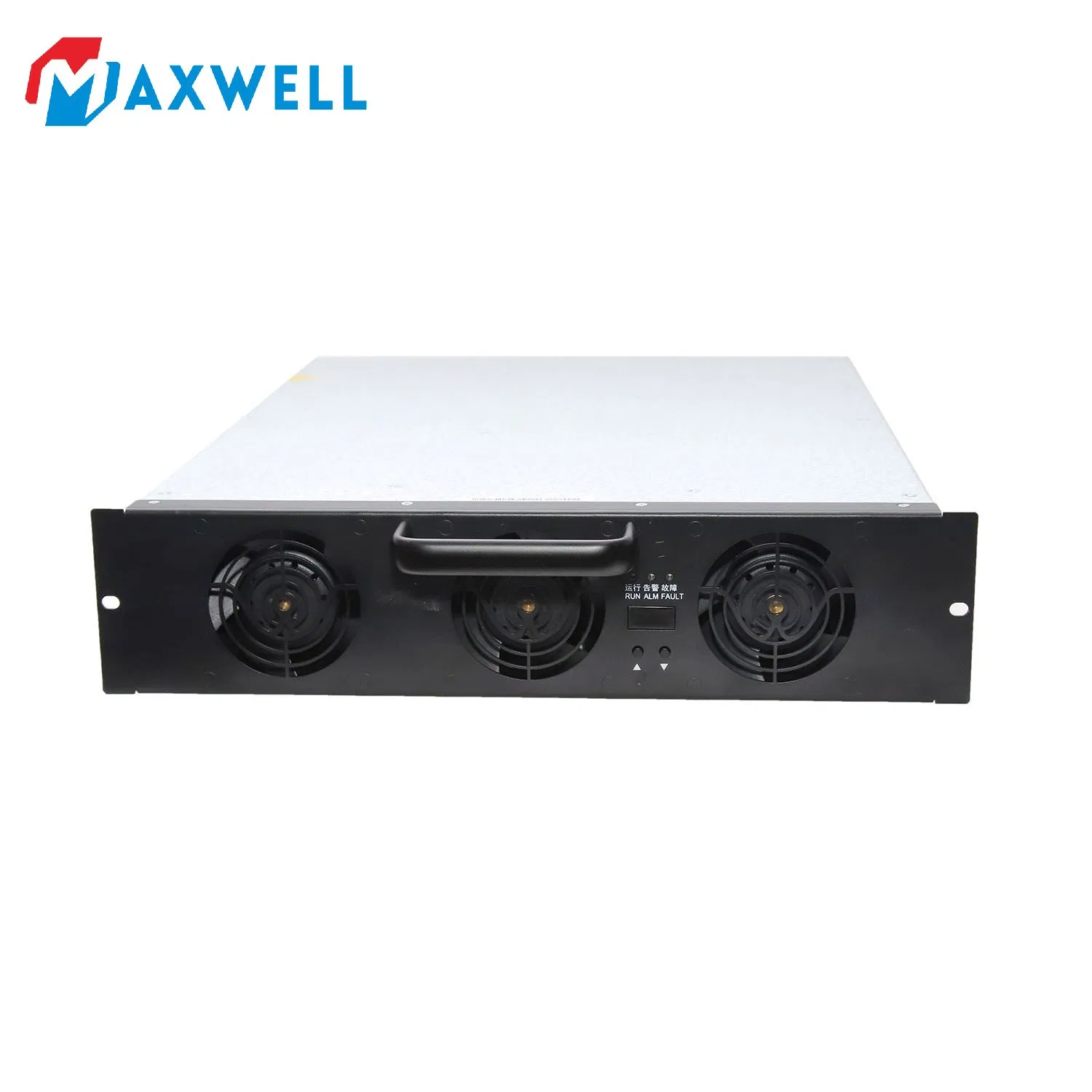

40kw DC-DC Car Battery Charger Module for Car Charging Station Mxr100040-DC

i

Basic Specifications

Model NO.

MXR100040-DC

Installation

Floor Type

Location

Public Use

Power

40kw

Input Voltage

400VDC-850VDC

Output Voltage

50VDC-1000VDC

Output Current

0-133.3A

Communication

CAN Bus

Type

Fast EV Charging Station

Warranty

12 Months

Dimensions

459*360*85mm

Certification

CE, ISO, TUV, RoHS

D

Product Description

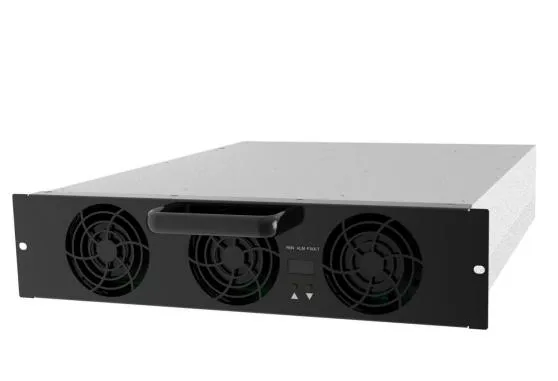

MXR100040-DC is a high-performance charging power module specifically developed to meet the demands of the EV charging industry. It offers prominent advantages in two major areas: ultra-high full-load operating temperature and an ultra-wide constant power range.

Key characteristics include high reliability, high efficiency, a high power factor, and high power density. With its wide output voltage range, low operational noise, and low standby power consumption, it ensures superior EMC performance for modern charging infrastructure.

P

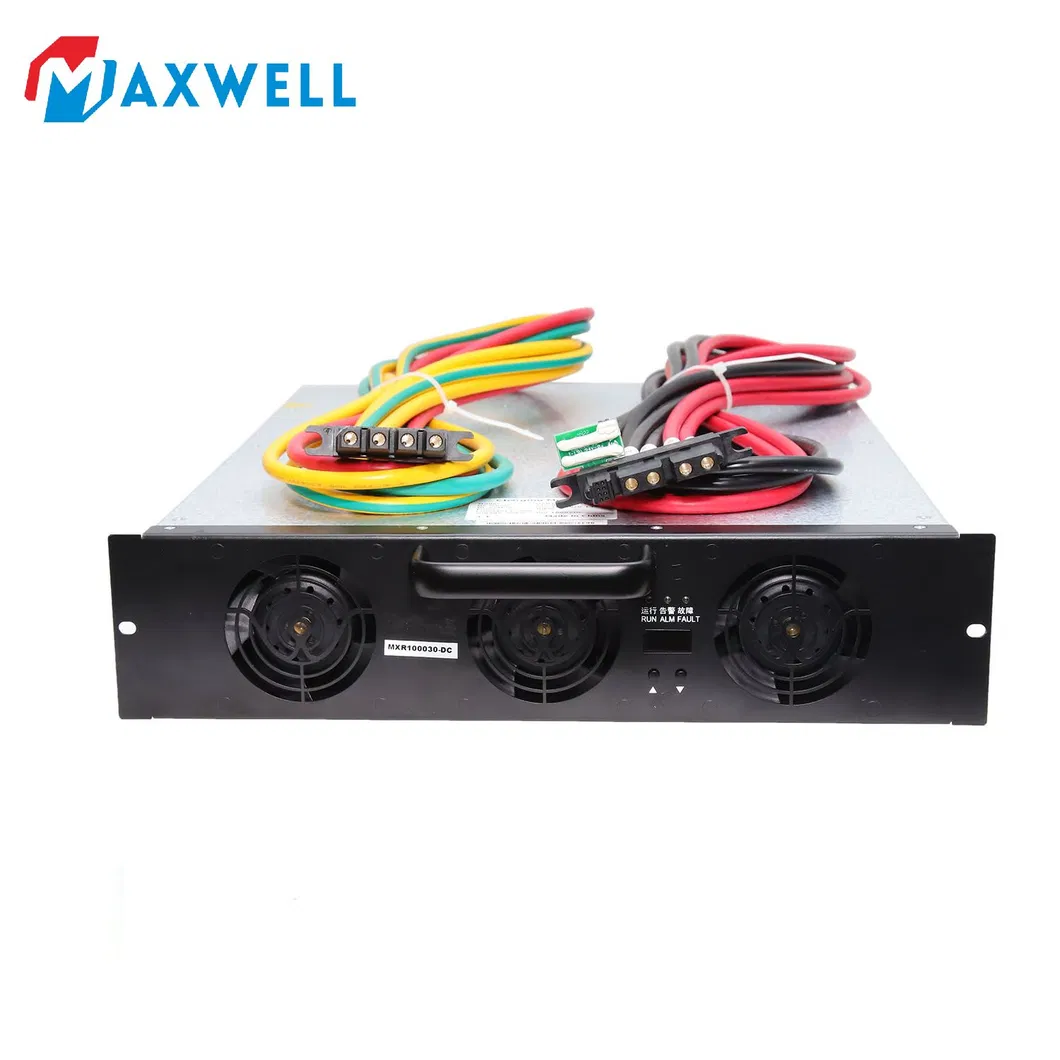

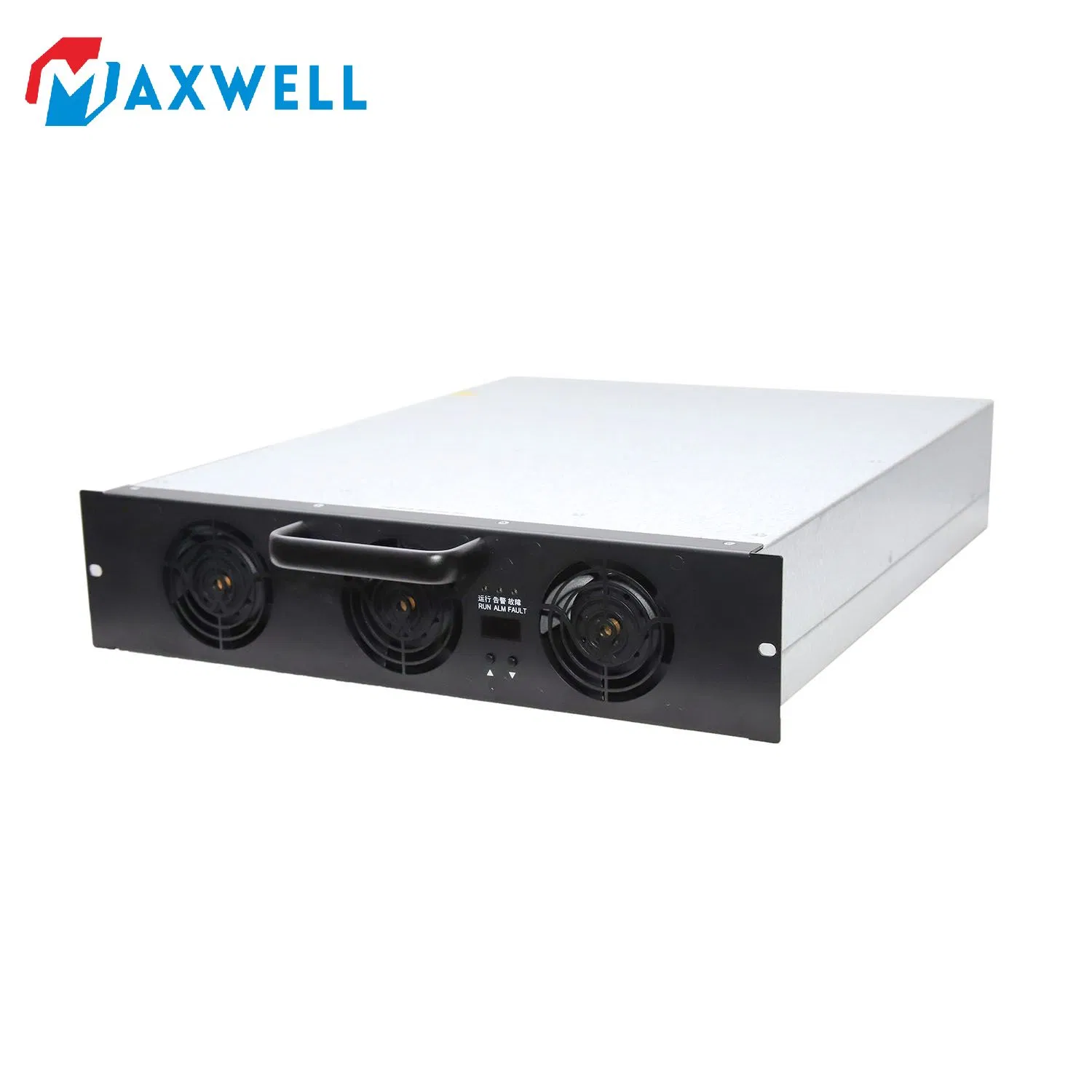

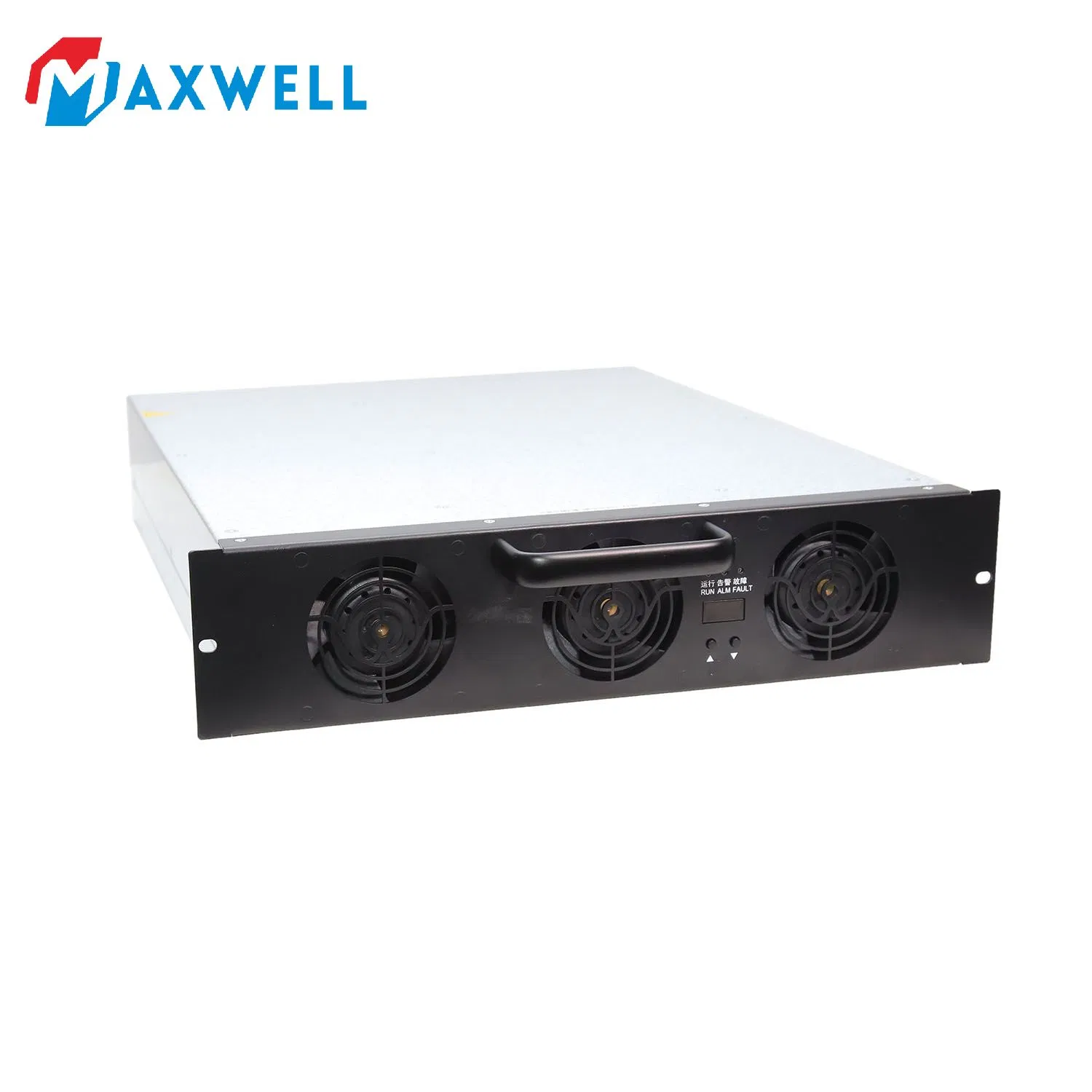

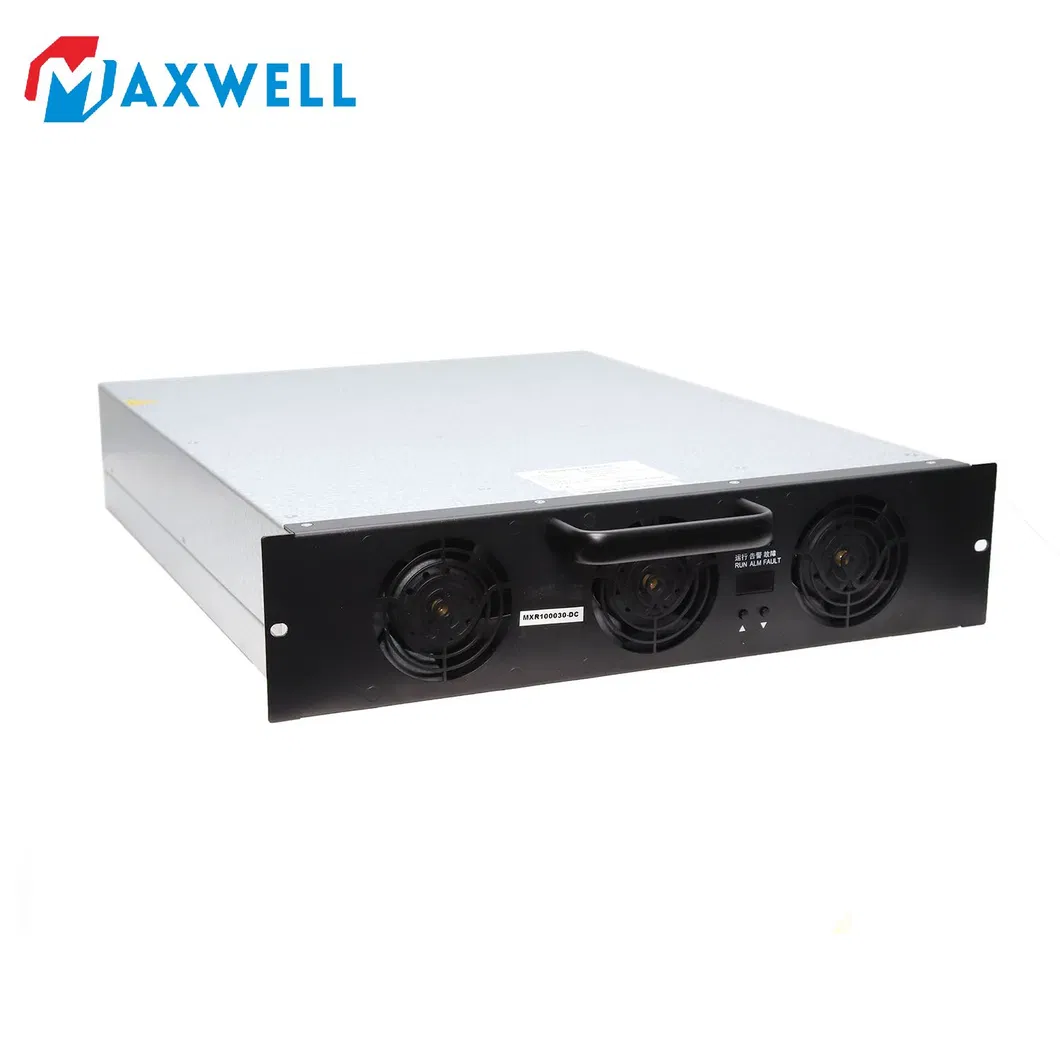

Detailed Visuals

S

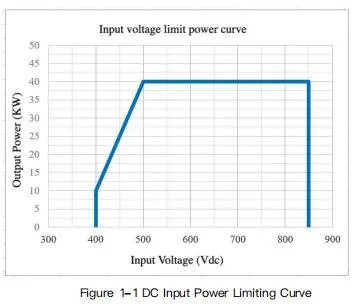

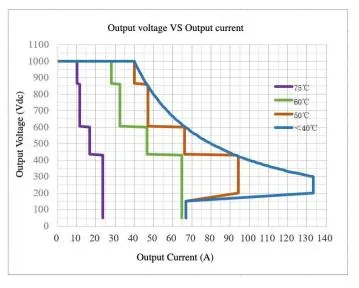

Technical Parameters

Dimensions	85mm(H)360mm(W)459mm(D)
Communication Mode	CAN Bus
Input Voltage	400Vdc-850Vdc, DC+PE
Power Factor	≥0.99
Output Power	40kw
Output Voltage Range	50Vdc-1000Vdc
Output Current	0A-133.3A

C

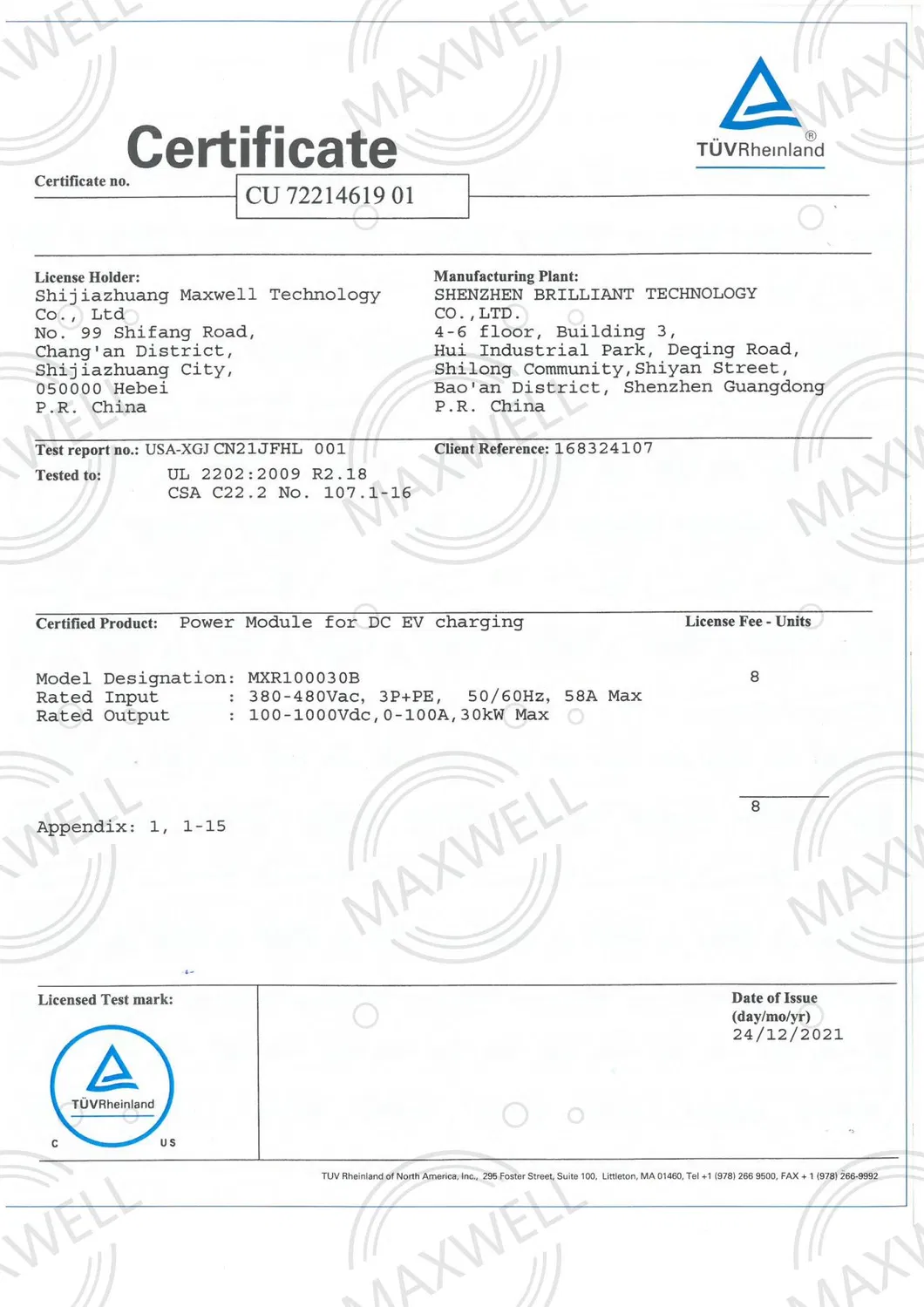

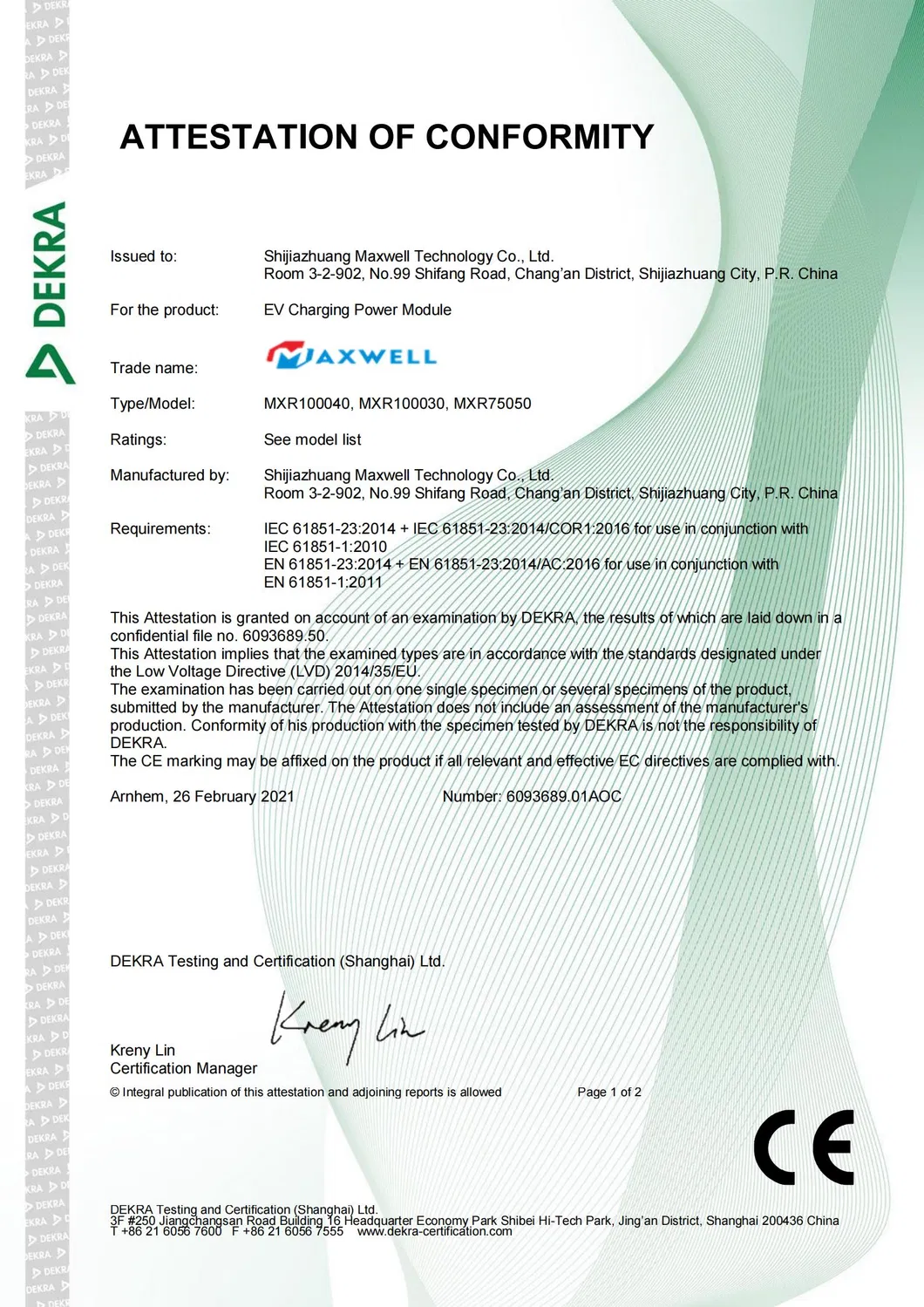

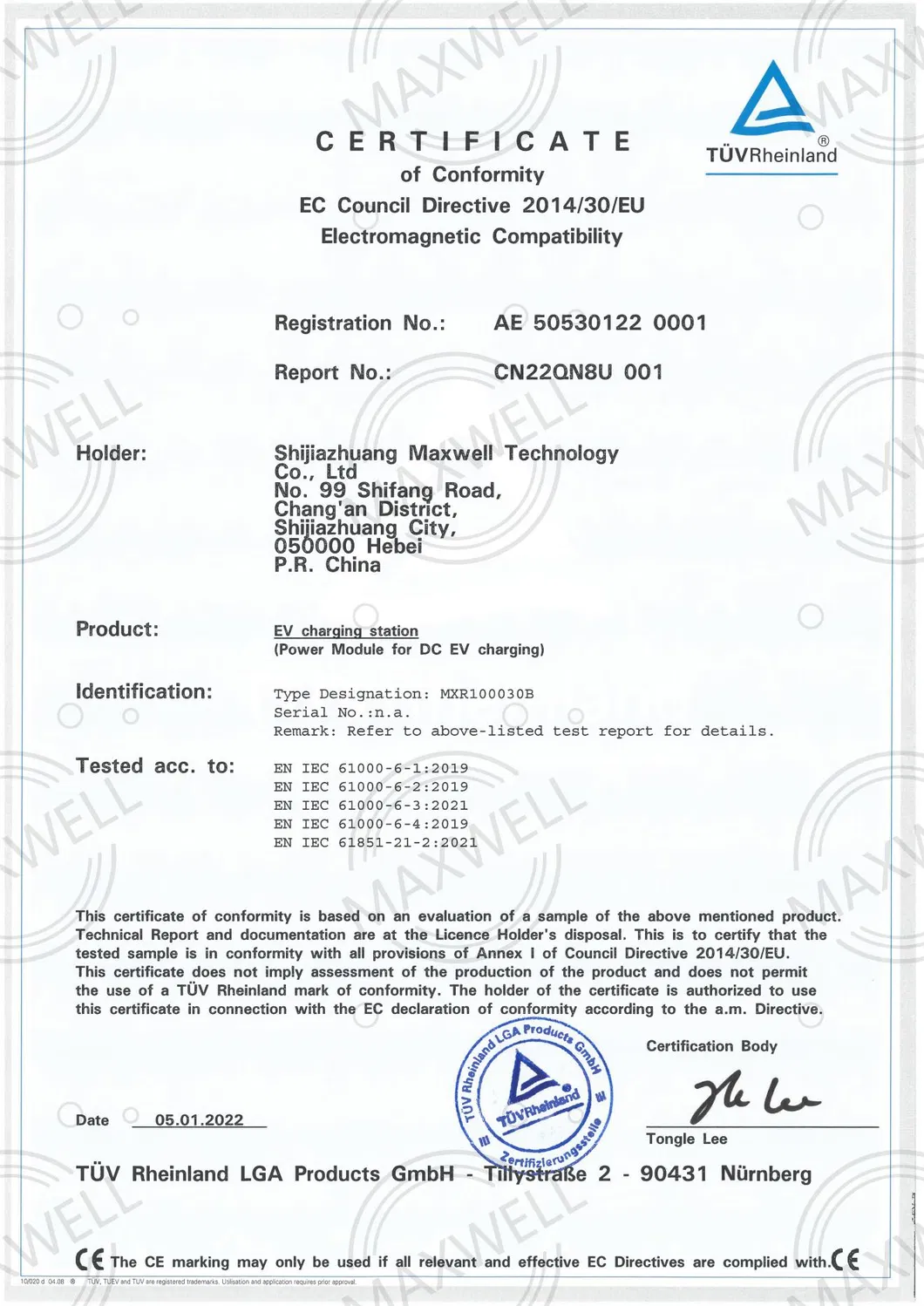

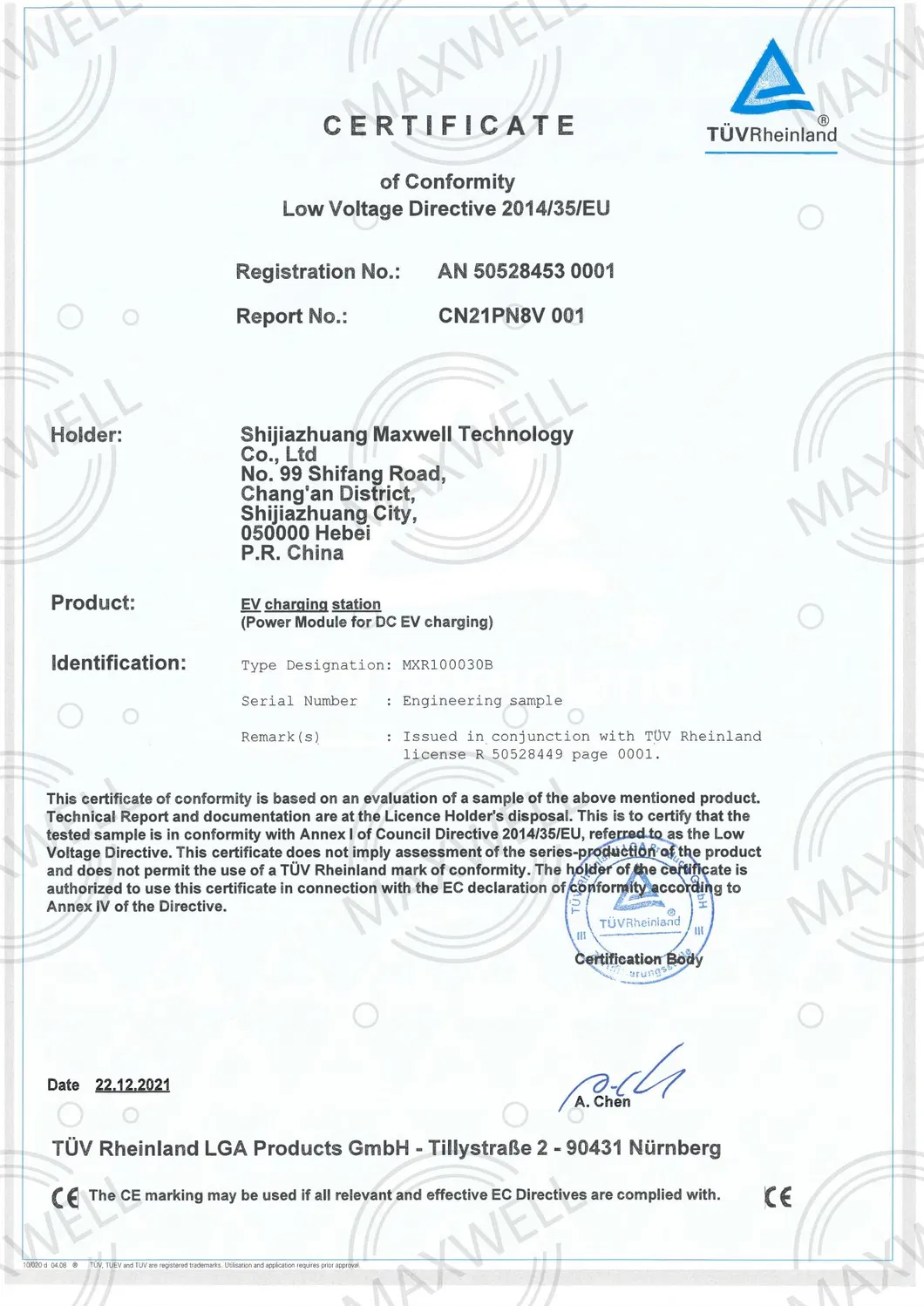

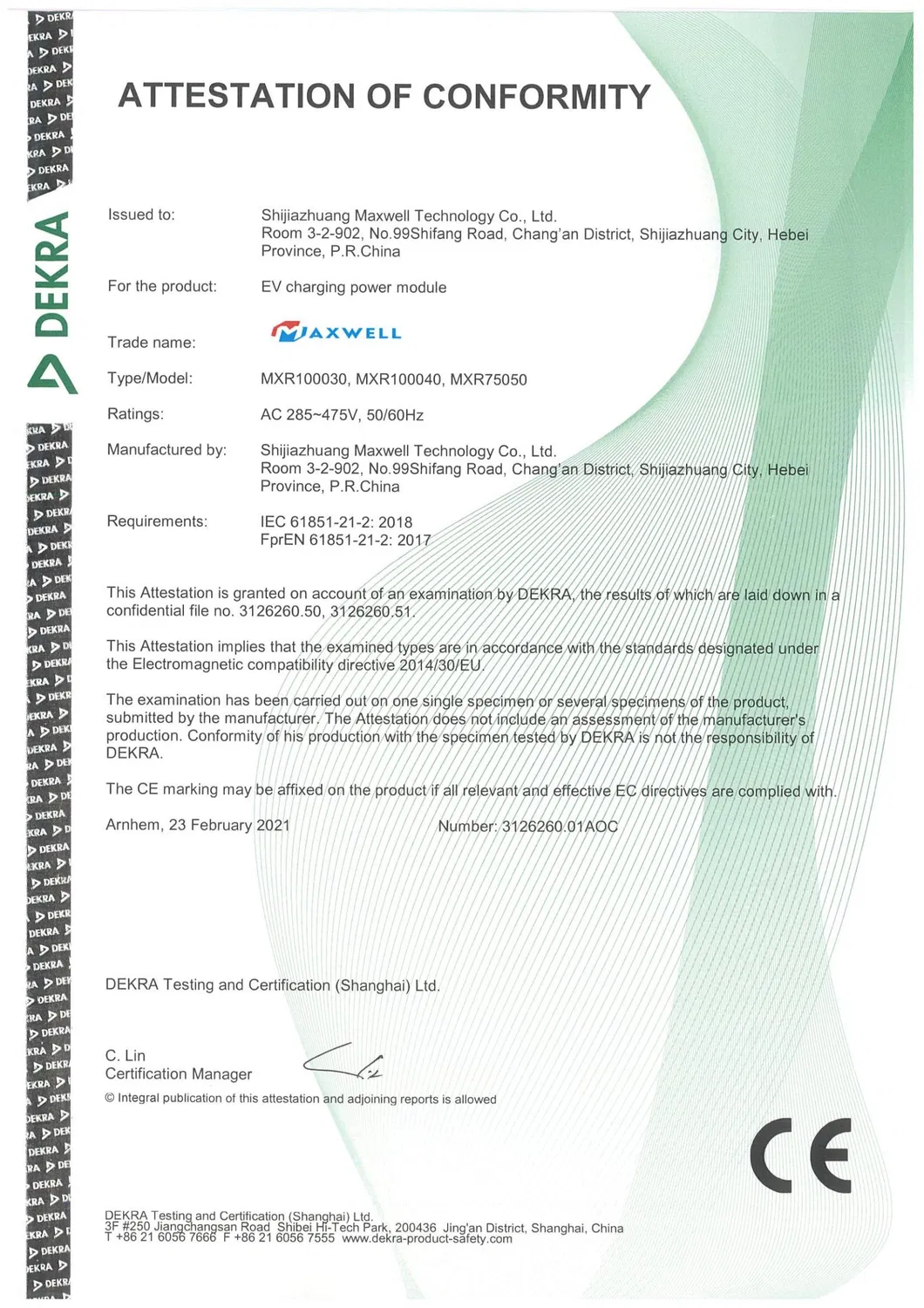

Quality Certifications

L

Logistics & Packaging

Products are securely packed in kraft cartons with pallets or wooden cases to ensure safe transport via air or sea. Gross weight per unit is approximately 32.00kg.

A

About the Manufacturer

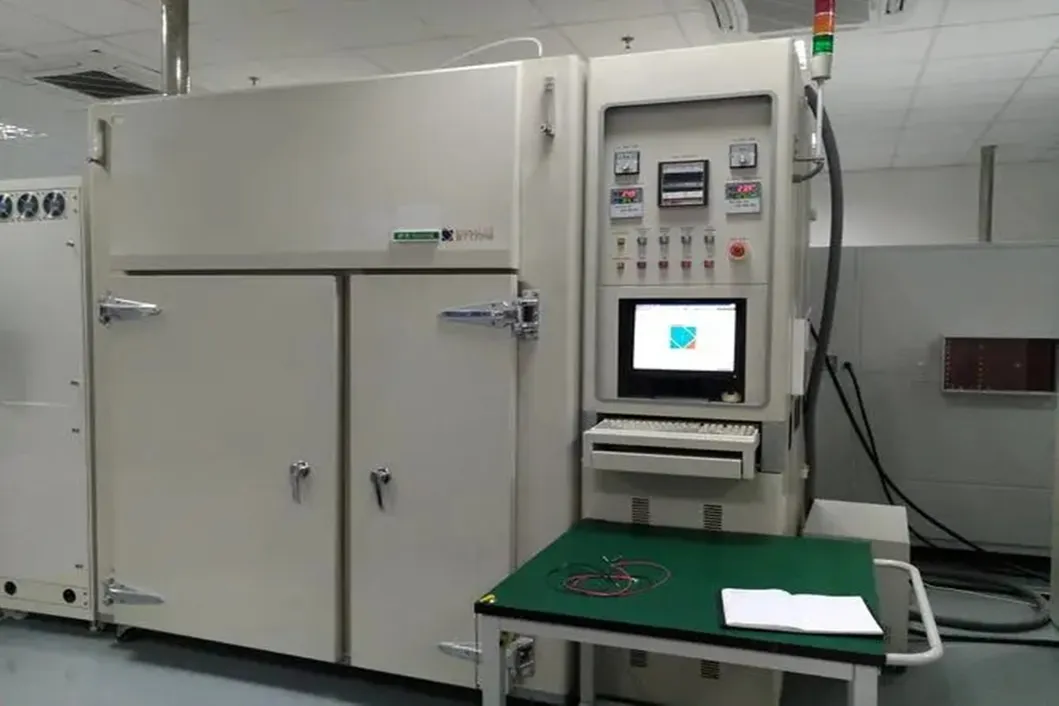

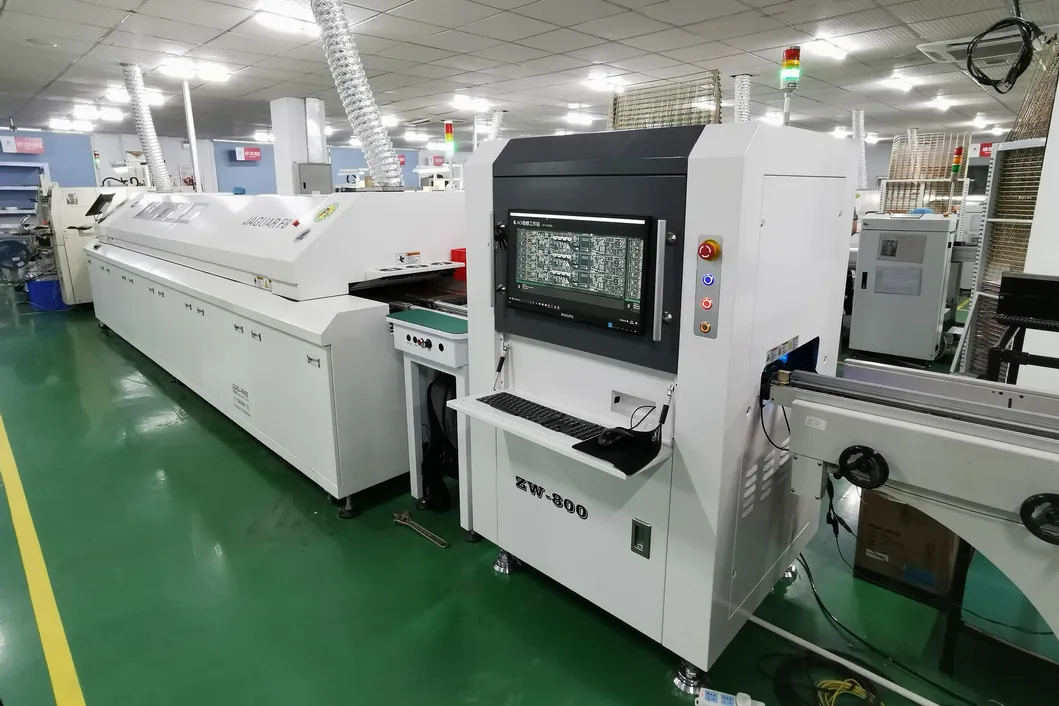

As a state-level high-tech enterprise, we are a leading player in the new energy and energy internet sector. We focus on the R&D, production, and sales of power electronic products, specializing in mid-to-high-end DC power supply systems.

With over a decade of experience, we have built a high-quality R&D team and hold multiple national invention patents and software copyrights. Our product range includes 15kW, 20kW, 30kW, 40kW, and 50kW series, widely used in automotive, electric power, railway, and communication fields globally.

?

Frequently Asked Questions

What makes your EV charger modules stand out in the industry?

Our modules feature an ultra-high full-load operating temperature and an ultra-wide constant power range. They are digital-controlled with active PFC (0.99 power factor) and comply with CCS, CHAdeMO, and GB/T standards.

Which global charging standards do your products support?

Our solutions support all major global standards including CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), and GB/T (China).

What safety protections are integrated into the DC module?

The modules include over/under voltage protection, surge protection on the input side, and over-current, short-circuit, and over-voltage protection on the DC output side.

What kind of after-sales technical support do you provide?

We offer comprehensive technical training, written materials, and instructional videos. For urgent situations, professional site guidance is also available to help customers master maintenance and parts replacement.

What is the typical lead time and payment terms?

Standard delivery is made within 2-3 weeks after order confirmation. We accept T/T in advance or Irrevocable L/C at sight.

How are the charging modules packaged for international shipping?

Generally, goods are packed in heavy-duty kraft cartons with pallets. Customized branded packaging is also available upon authorization for registered patent holders.
