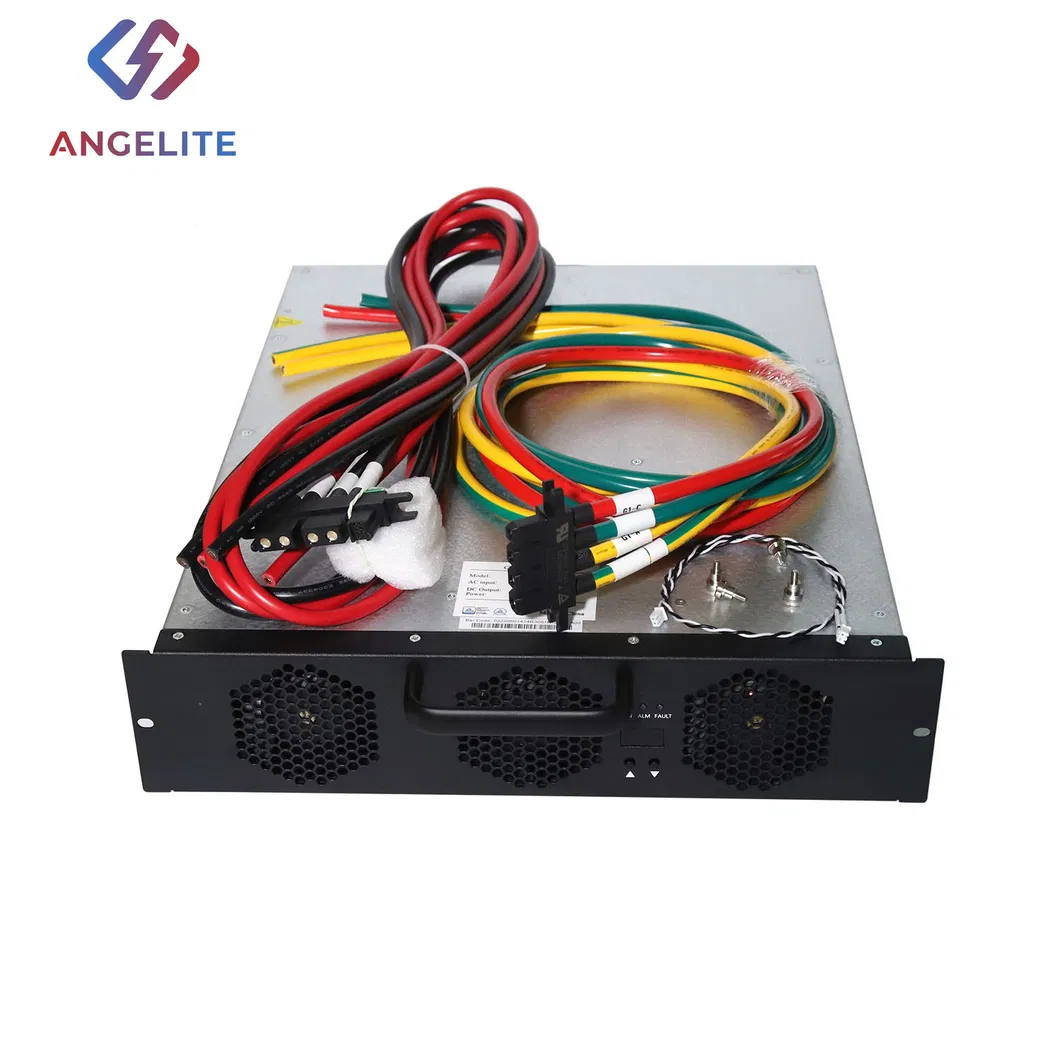

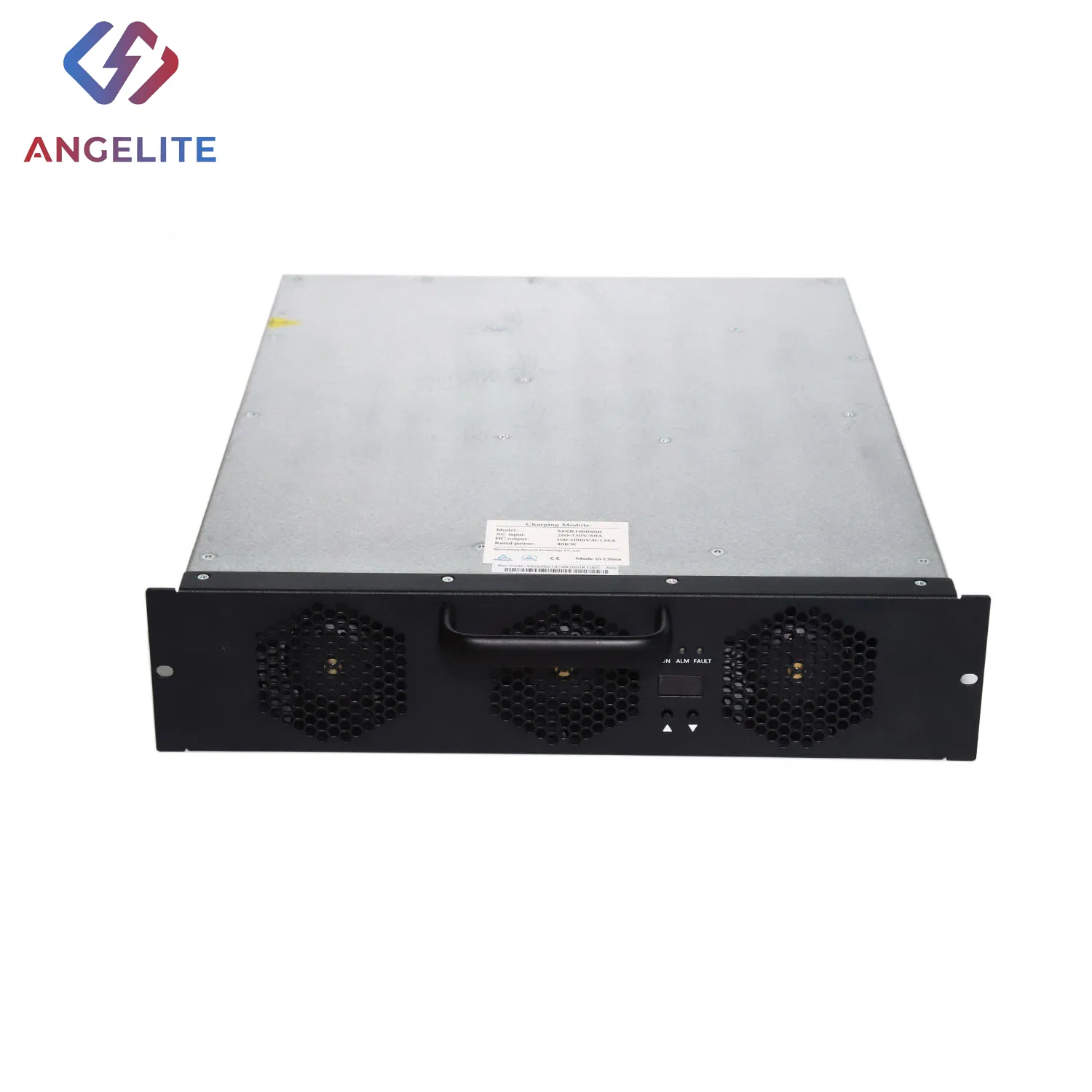

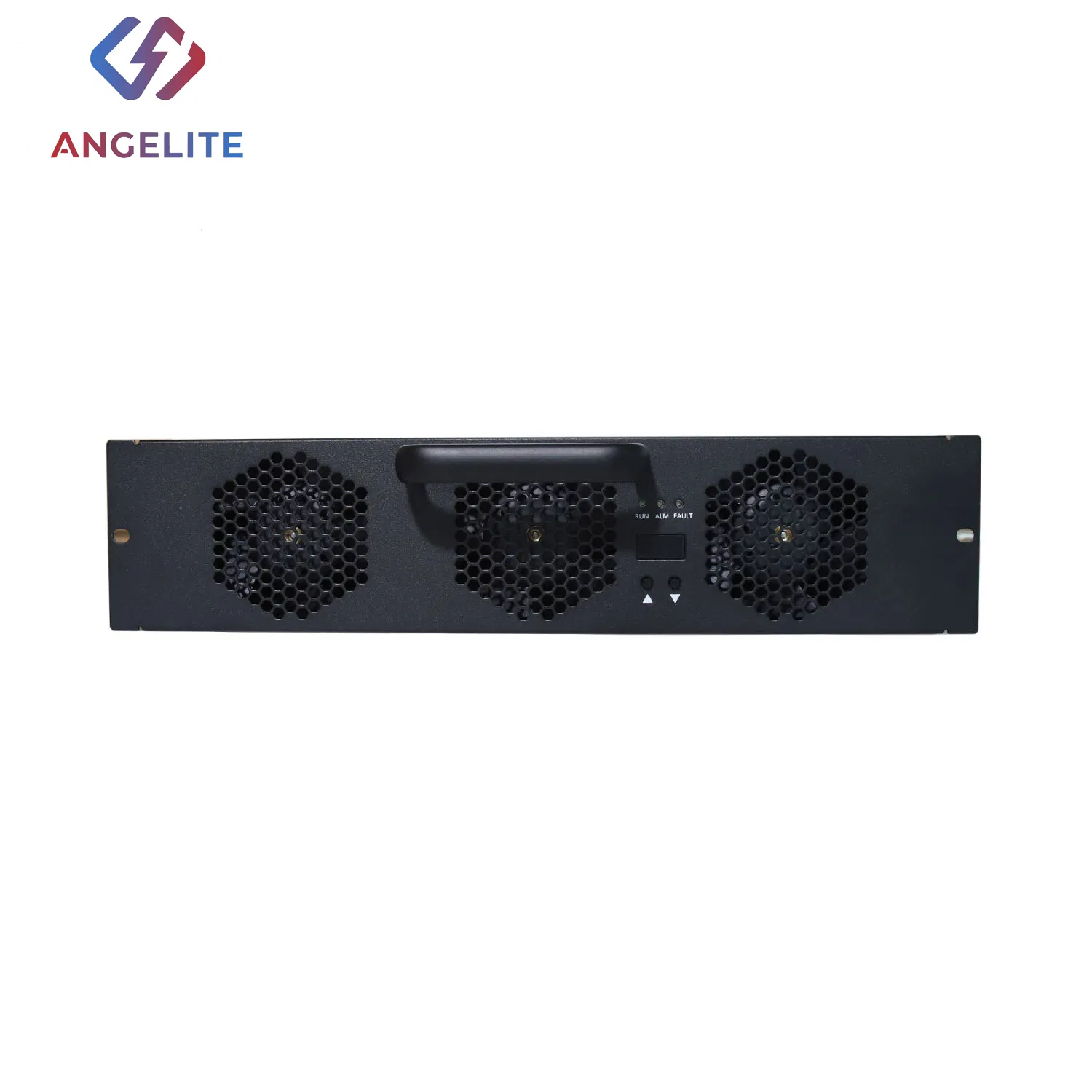

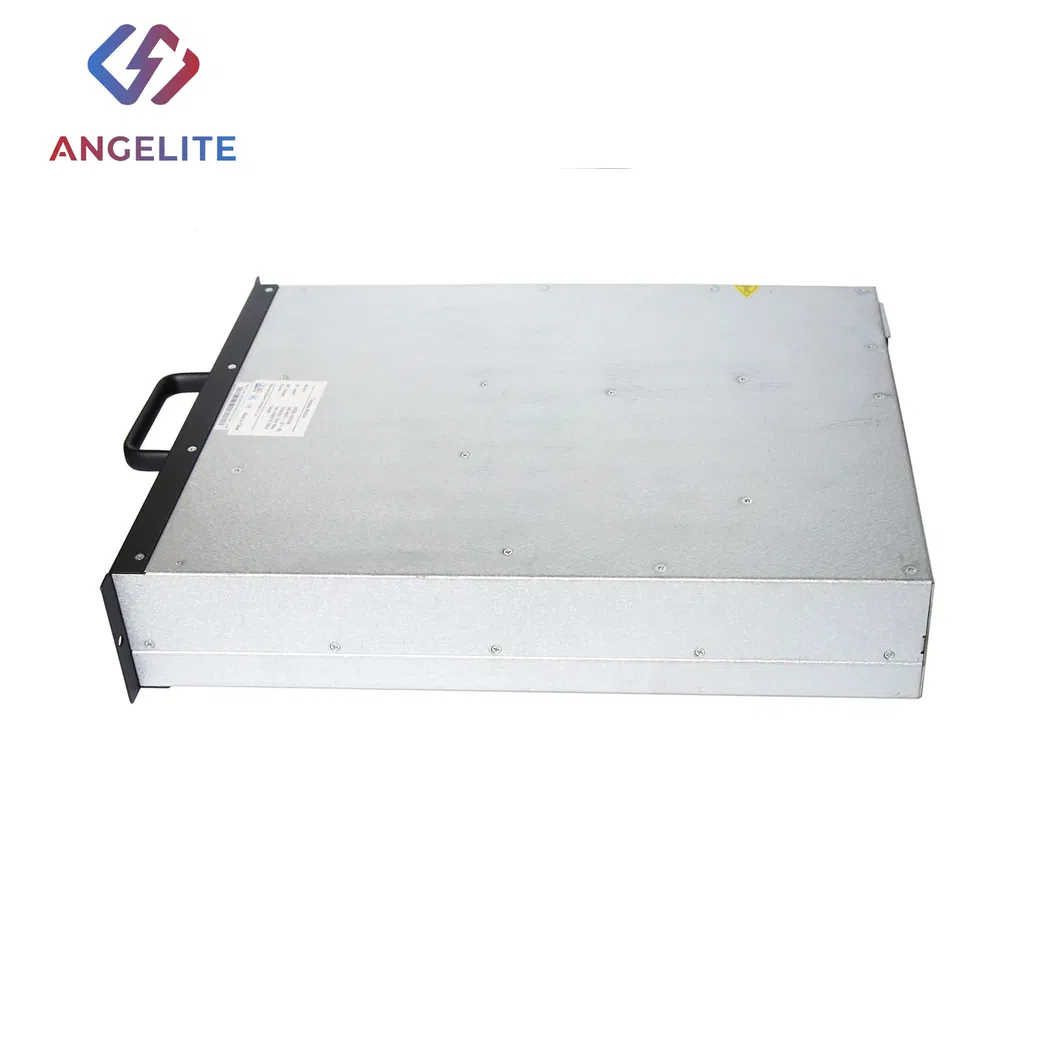

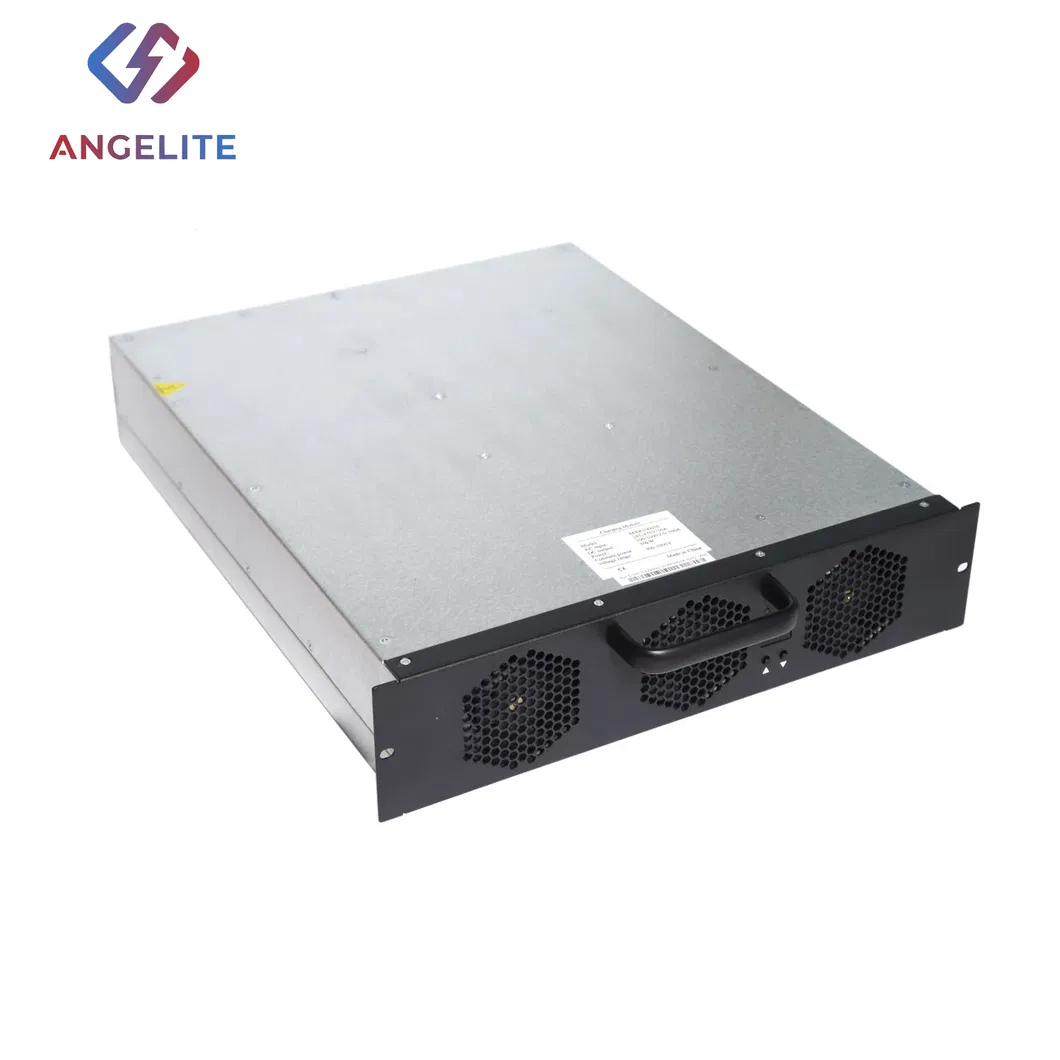

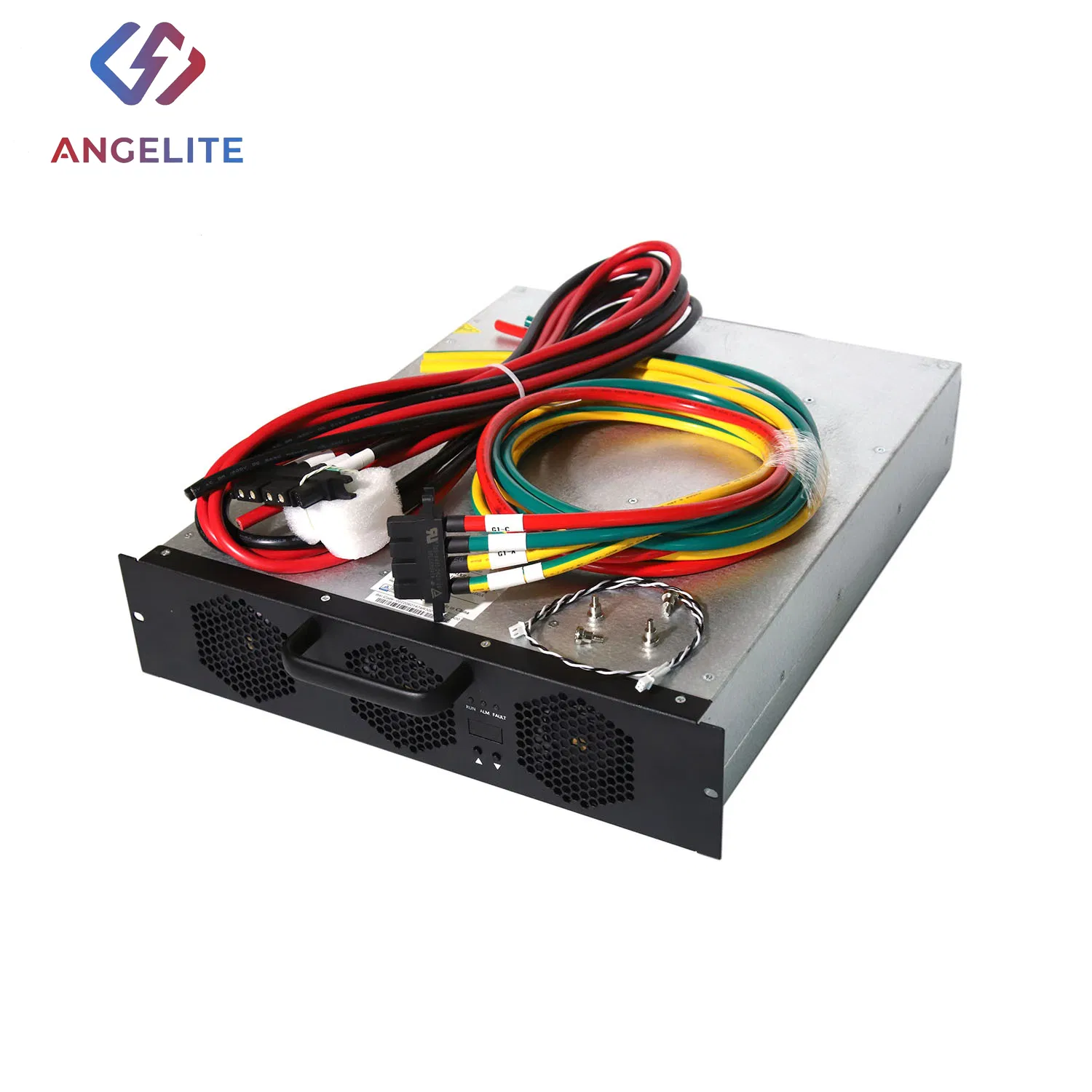

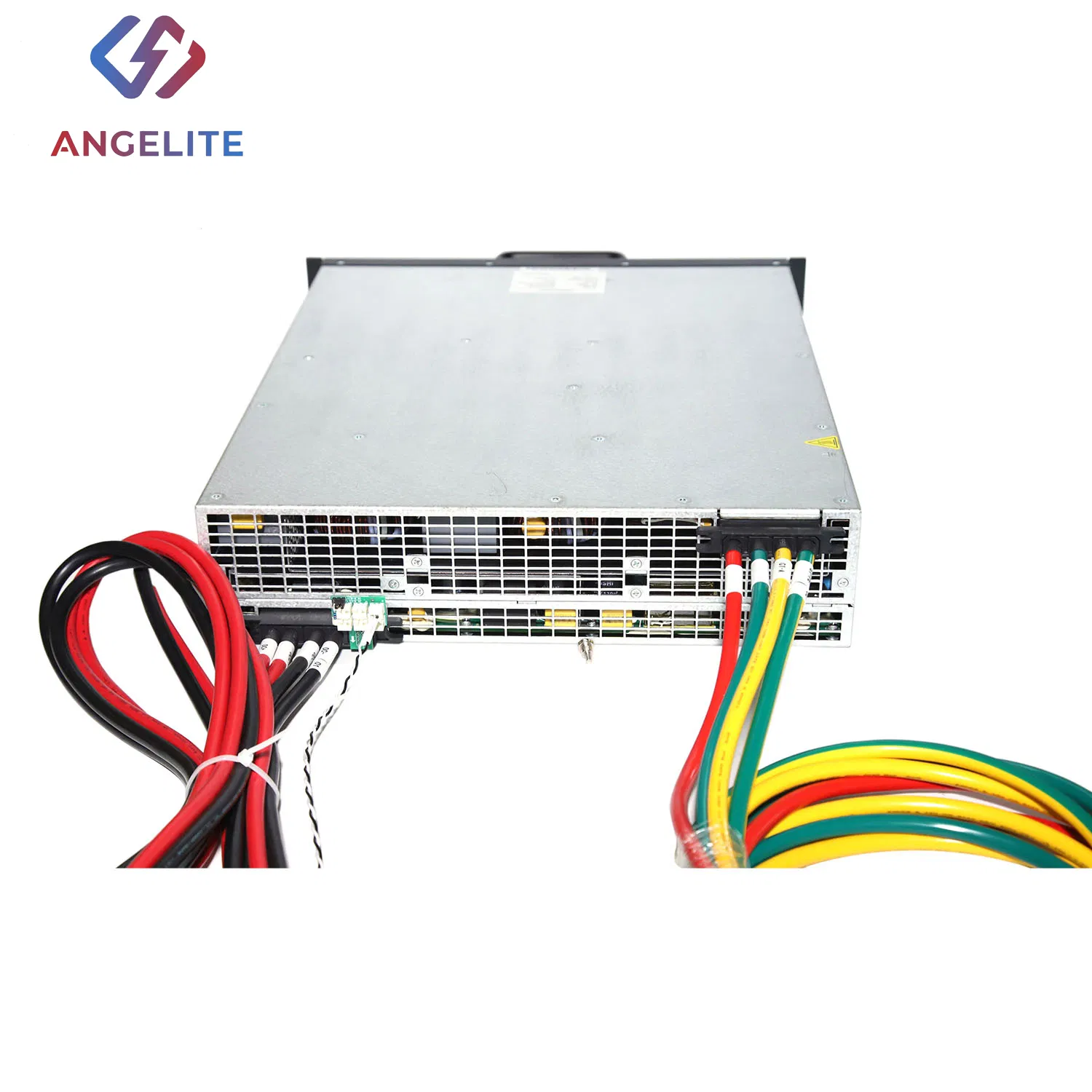

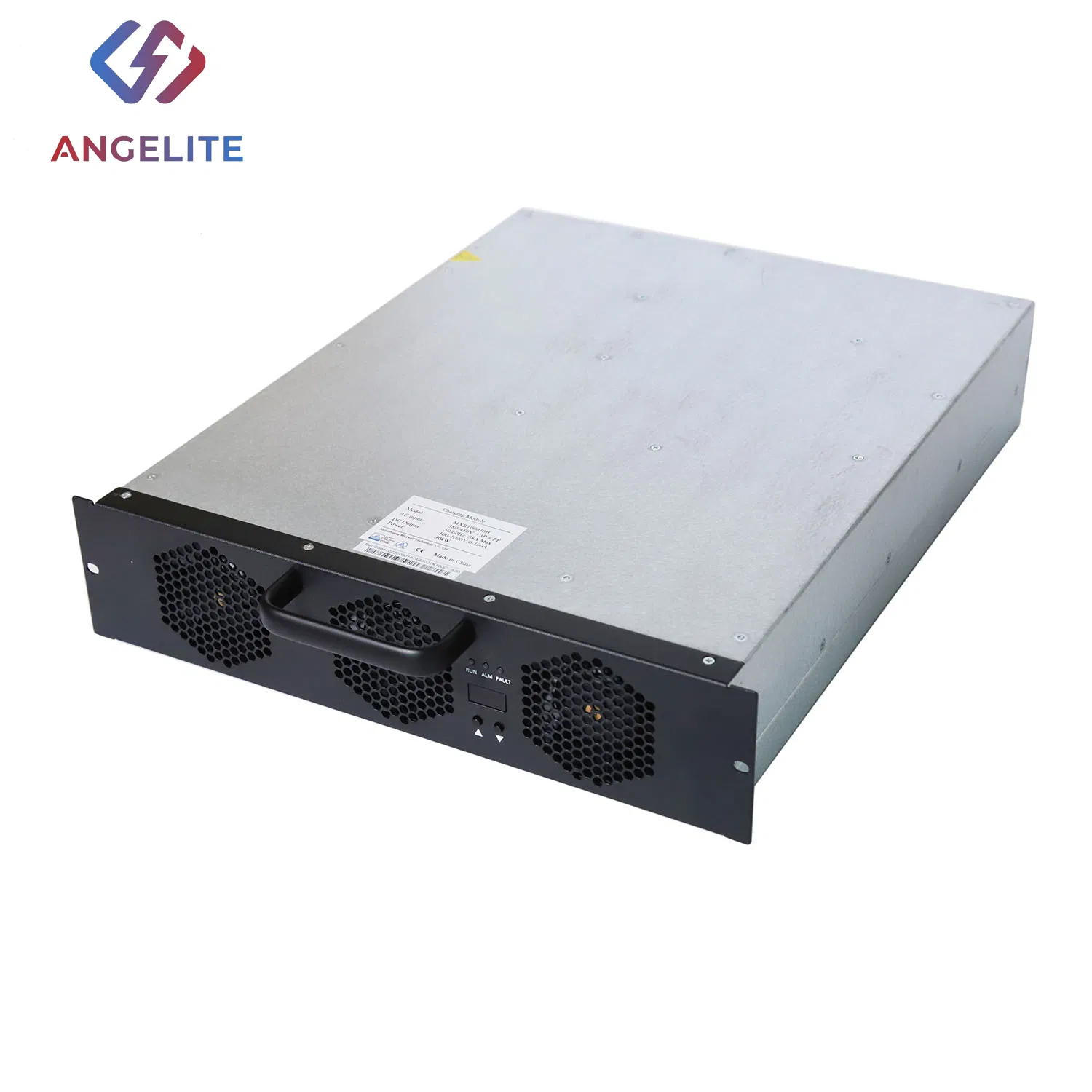

The MXR100030-DC is a high-performance charging power module specifically developed to address the needs of the charger industry. It excels in two critical areas: ultra-high full-load operating temperature and an ultra-wide constant power range. This module is characterized by its high reliability, exceptional efficiency, high power factor, and superior power density.
Ultra-high Full-load Operating Temperature (55ºC): The MXR100030-DC maintains full power output at 55ºC, ensuring consistent charging speeds even in high-temperature environments.

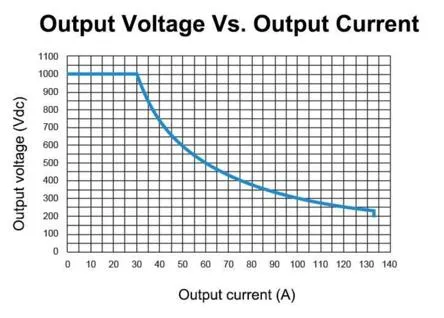

Ultra-wide Output Constant Power Range (100V-1000V): Its wide voltage range and high output power make it compatible with various electric vehicles, significantly improving charging efficiency.
| Item | Parameters |
|---|---|

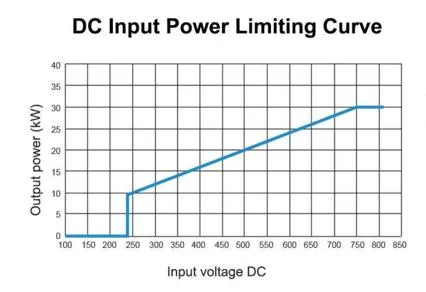

| Input Voltage | 240Vac-810Vac, DC+PE |
| Input Current | <80A |
| ITHD | ≤5% (20KW ≤ Output power ≤ 30KW) |
| Item | Parameters |
|---|---|
| Output Power | 30kW |
| Voltage Range | 100-1000Vdc |
| Rated Current | 40A |
| Current Range | 0-133.3A continuously regulated |
| Voltage Accuracy | ≤±5% |
| Current Accuracy | ≤±1% |
| Ripple Peak-to-Peak | ≤1% |
We focus on the research and development, production, and sales of power electronic products, positioning services for mid-to-high-end DC power supply system manufacturers. Based on owning independent intellectual property rights, we insist on independent research and development and technological innovation to provide customers with equipment supporting services that realize the growth of corporate and customer value together.
Our products are widely used in automotive, electric power, railway, metallurgy, communications, and other fields, with performance cases spread across various regions globally.
