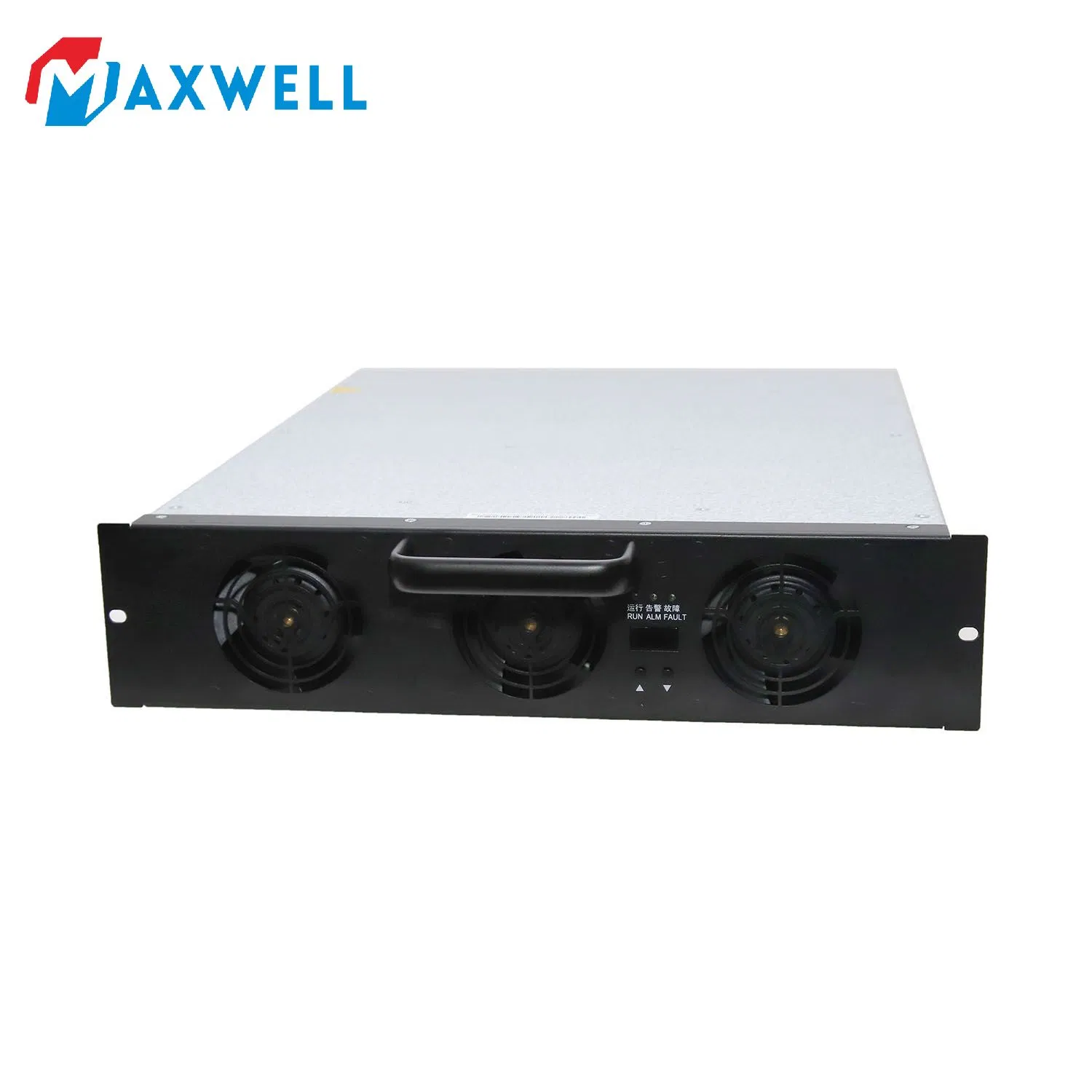

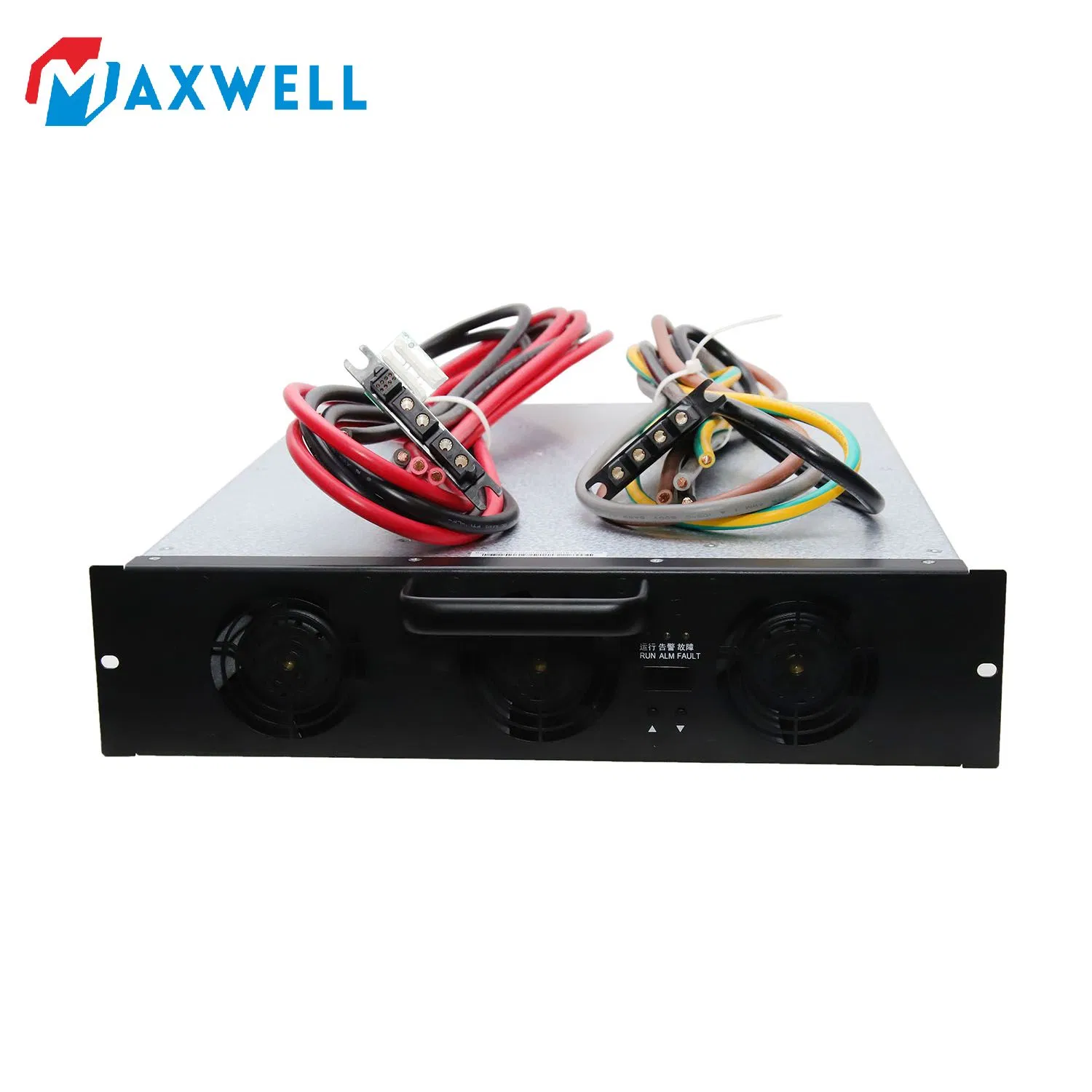

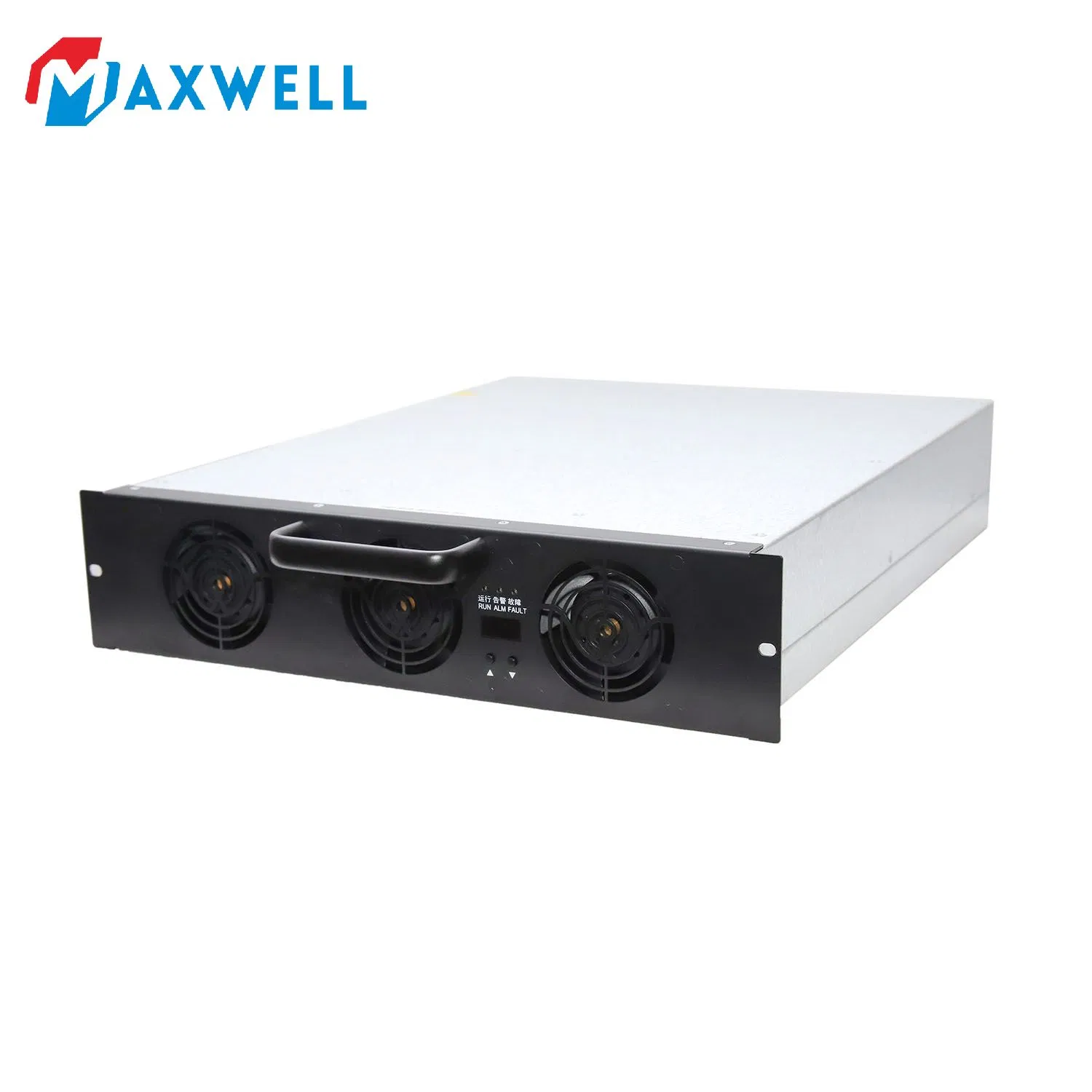

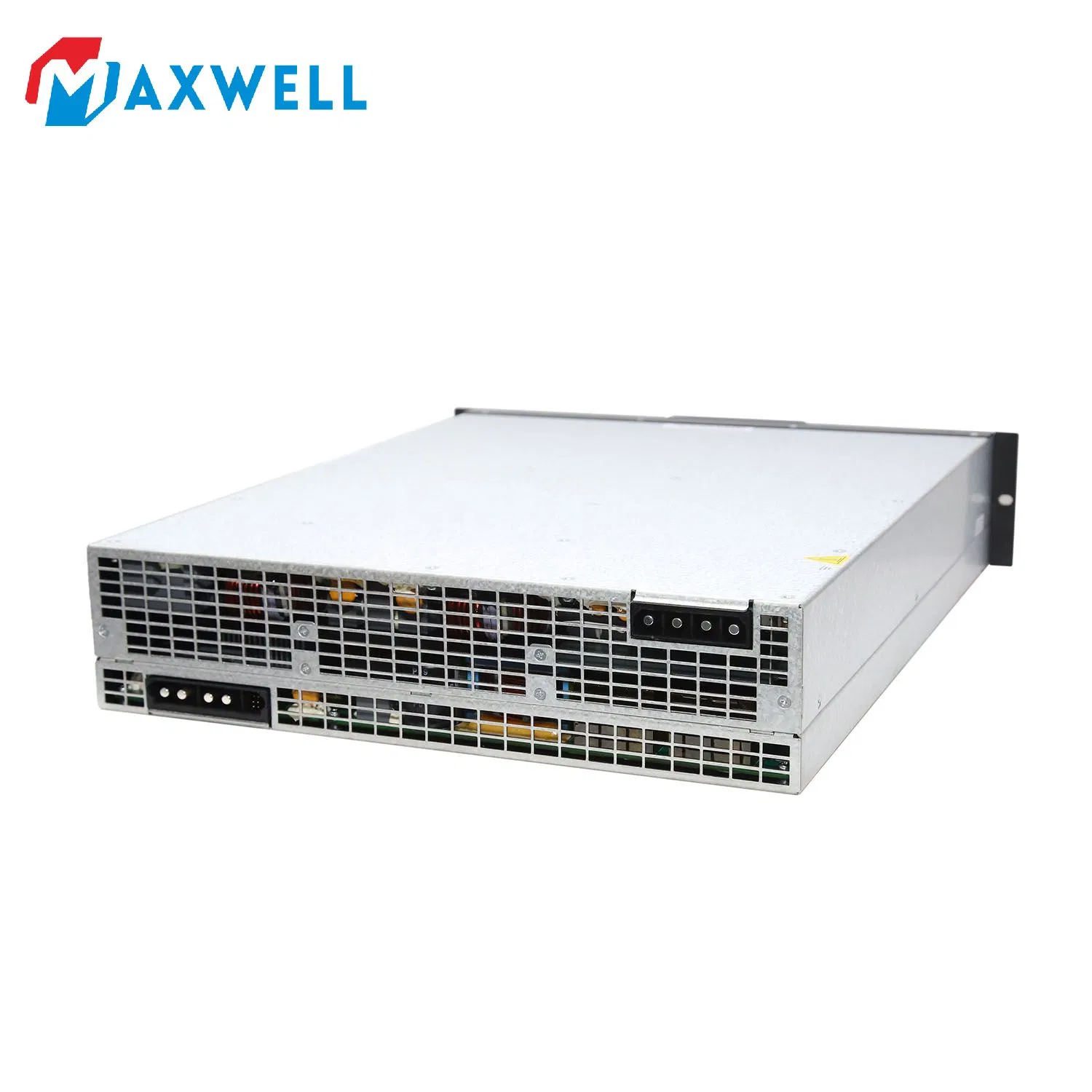

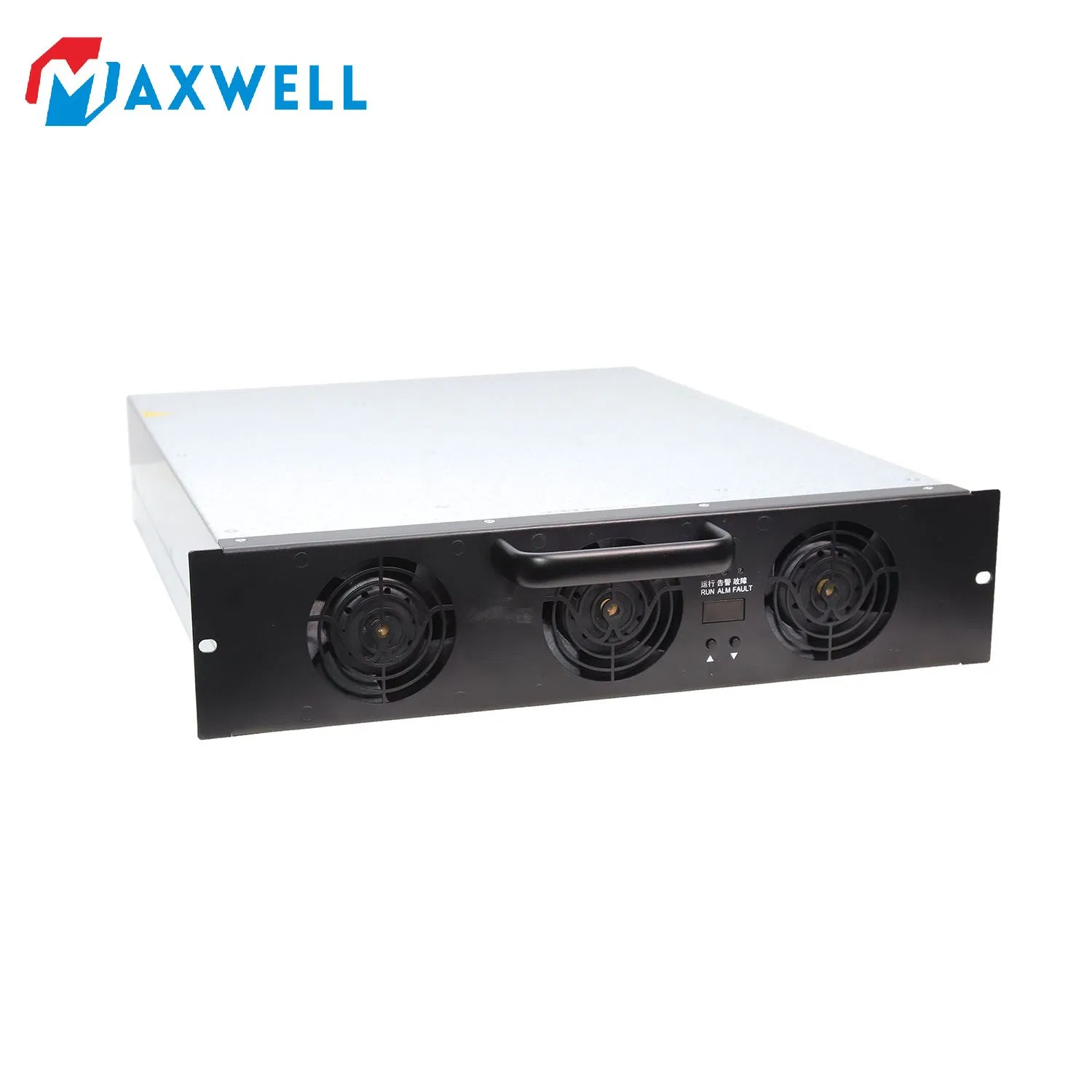

30kw Car Battery Charger Module for Car Charging Station Mxr100030b

Overview

Model NO.

MXR100030B

Type

Fast EV Charging Station

Output Power

30kW

Location

Public Use

Cooling Method

Fan Cooling

Efficiency

>95.5%

Certification

CE, ISO, TUV, RoHS

Voltage Range

100-1000Vdc

Product Description

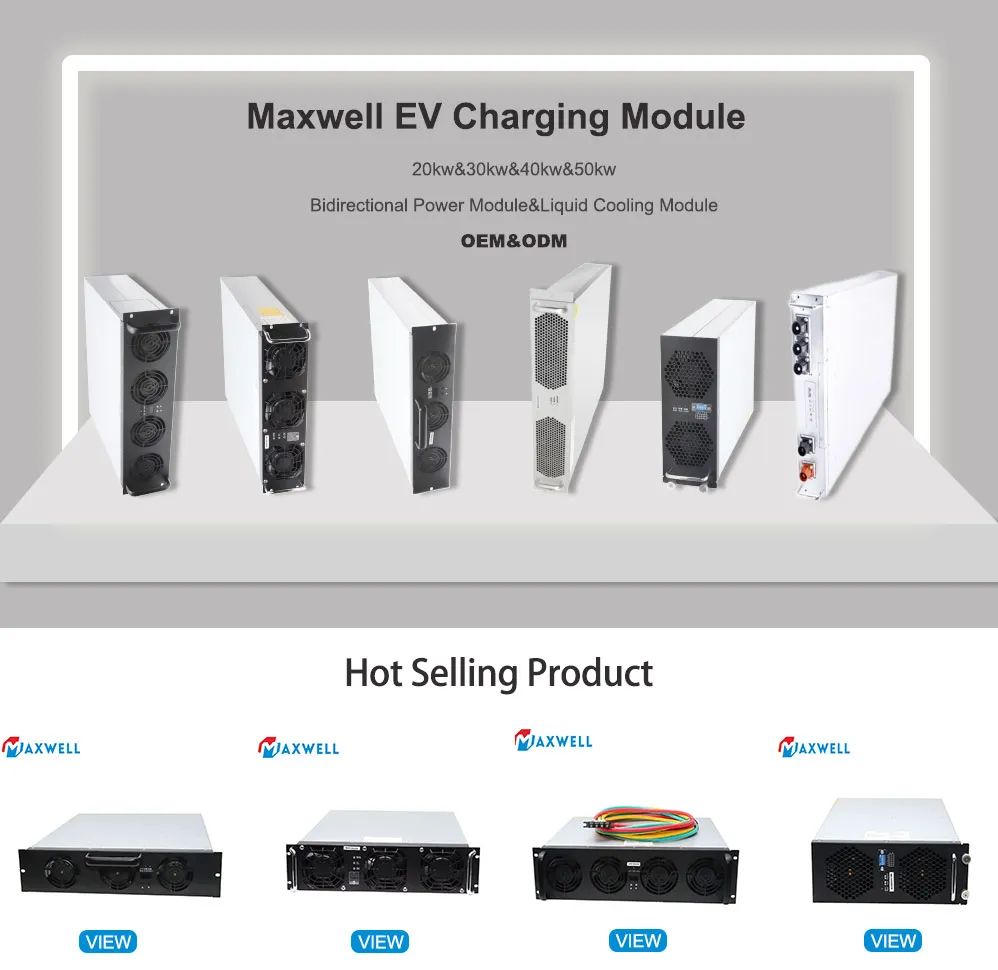

MXR100030B is a charging power module specifically developed for the charging pile industry. It features prominent advantages in ultra-high full-load operating temperatures and an ultra-wide constant power range. High reliability, high efficiency, and low standby power consumption are key characteristics of this module.

Excellent Advantages

Ultra-high Operating Temp: Full-load operation at 55ºC effectively ensures charging speed in high-temperature environments.
Ultra-wide Range: Output constant power range of 300V-1000V suitable for various electric vehicles.

Main Features

Ultra-wide output voltage range: 100~1000VDC.
30kW constant power output between 300V-1000V.
Operating temperature range: -40ºC to 55ºC.
Full load efficiency higher than 95.5%.
Ultra-low noise for an enhanced user experience.
Built-in residual pressure relief loop for improved system reliability.

Input Characteristics

Item	Parameters
Input Voltage	260Vac-530Vac, three-phase+PE
Input Current	<60A
Grid Frequency	45Hz-65Hz
Power Factor	≥0.98 (15kw - 30kw)
ITHD	≤5% (15kw - 30kw)

Output Characteristics

Item	Parameters
Output Power	30kW
Voltage Range	100-1000Vdc
Current Range	0-100A continuously regulated
Voltage Accuracy	≤±5%
Ripple Peak-to-Peak	≤1%

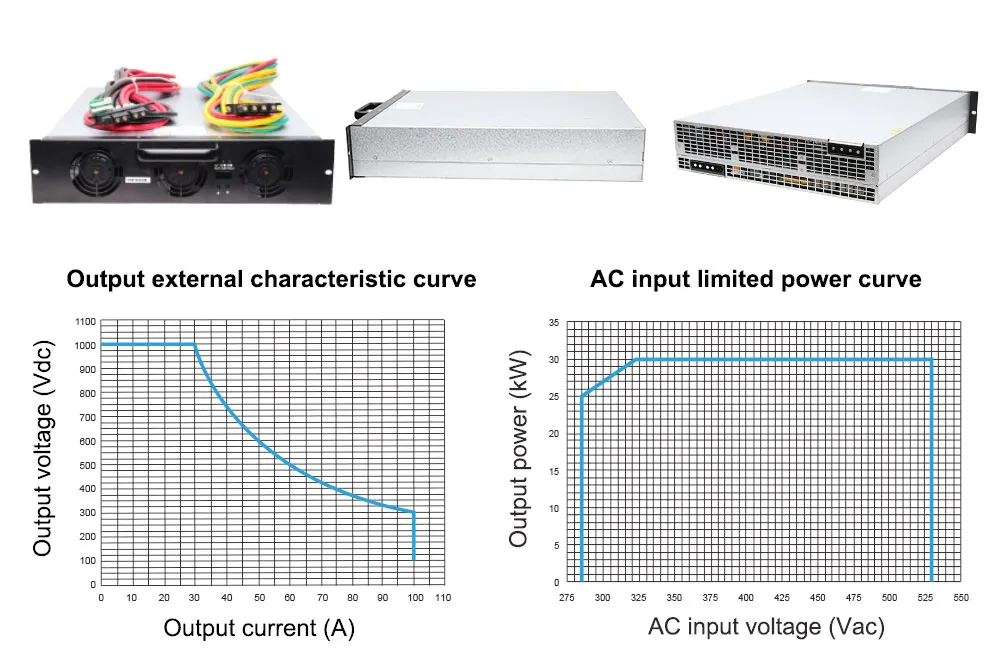

Product Applications

Packaging & Shipping

Generally, goods are packed in kraft cartons with pallets. Customized branded packaging is available upon authorization for registered patent holders.

Technical Profile

Frequently Asked Questions

Can you explain the differences between global DC fast charging standards?

Currently, there are five major DC fast charging standards: CCS-1, CCS-2, CHAdeMO, GB/T, and Tesla.

How is after-sales support provided for the EV charger module?

We provide comprehensive technical training through written materials and videos. In urgent cases, professional technicians can be deployed for on-site support and maintenance guidance.

What customized services are available?

We offer various OEM and ODM solutions tailored to specific customer requirements and technical specifications.

What are the terms of payment?

Terms typically include T/T in advance or Irrevocable L/C at sight.

What is the typical delivery time?

Standard delivery is usually made within 2-3 weeks after order confirmation.

Does the module support parallel operation?

Yes, the module supports parallel quantity of up to 60 pieces for large-scale charging requirements.
