| Type | Horizontal Metal Drawing Machine | Usage | Wire Drawing |
|---|---|---|---|
| Metal Material | Stainless Steel | Outlet Diameter | 0.6-1.2 mm |
| Max. Inlet Wire Dia. | 2.0-2.2 mm | Block Dia. | 367 mm |
| Max. Blocks | 13 | Condition | New |
| HS Code | 8463102000 | Production Capacity | 1000 Pieces/Year |

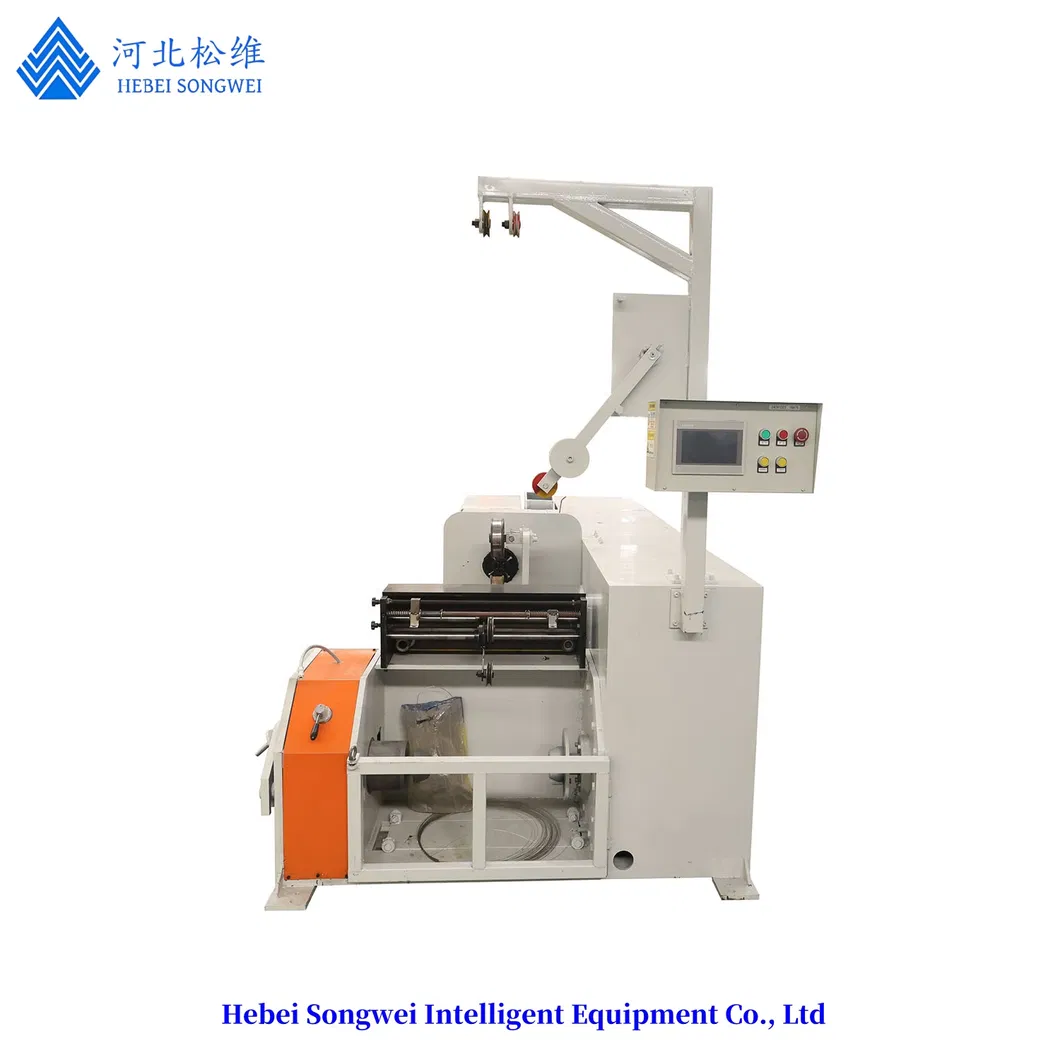

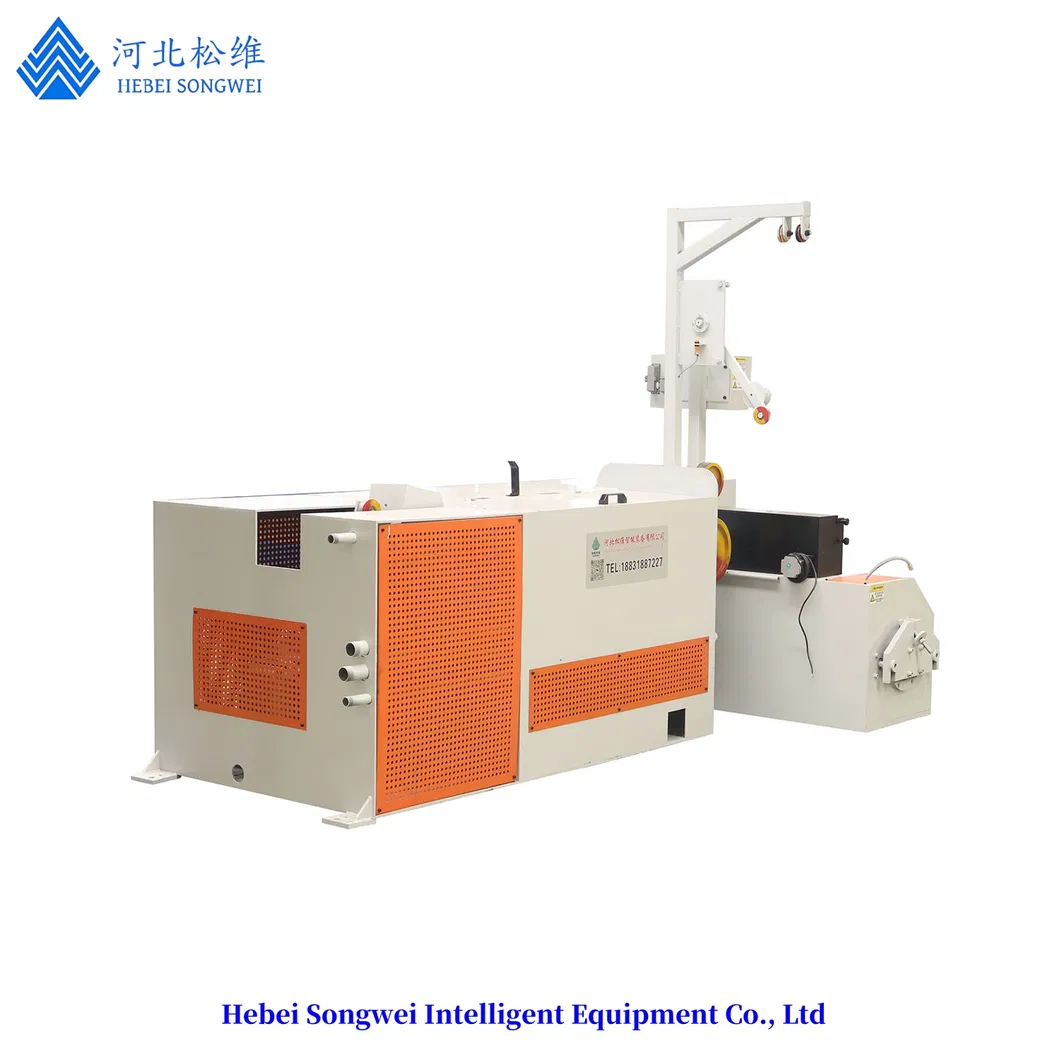

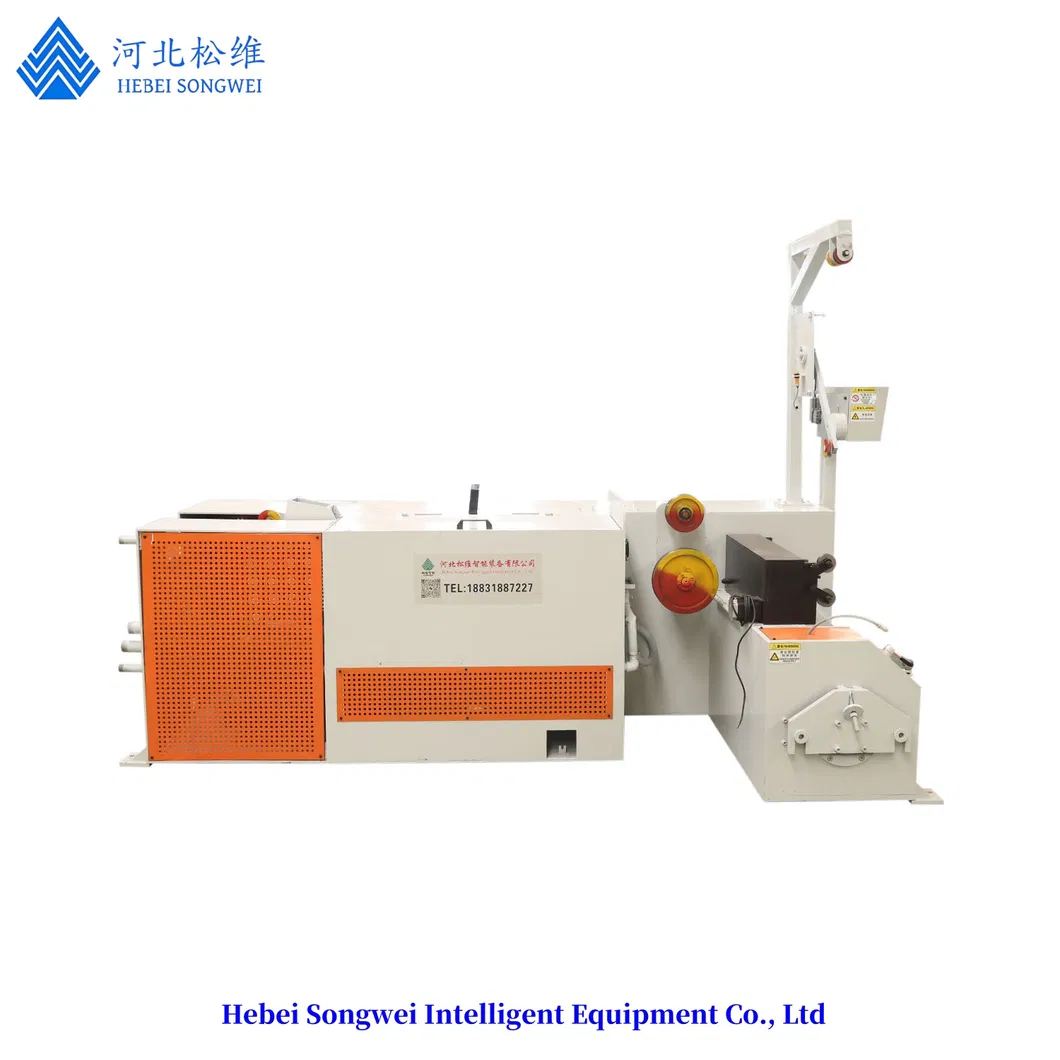

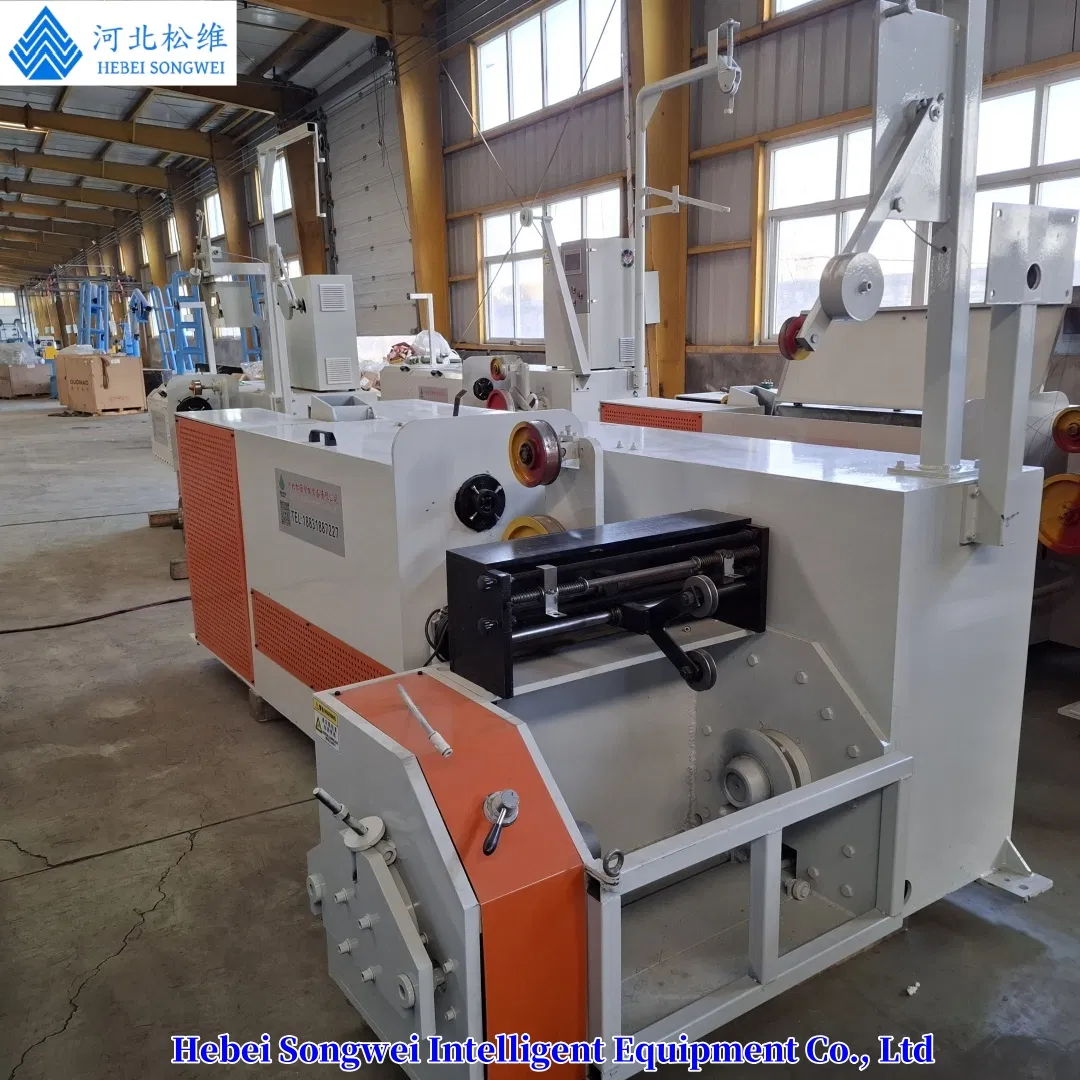

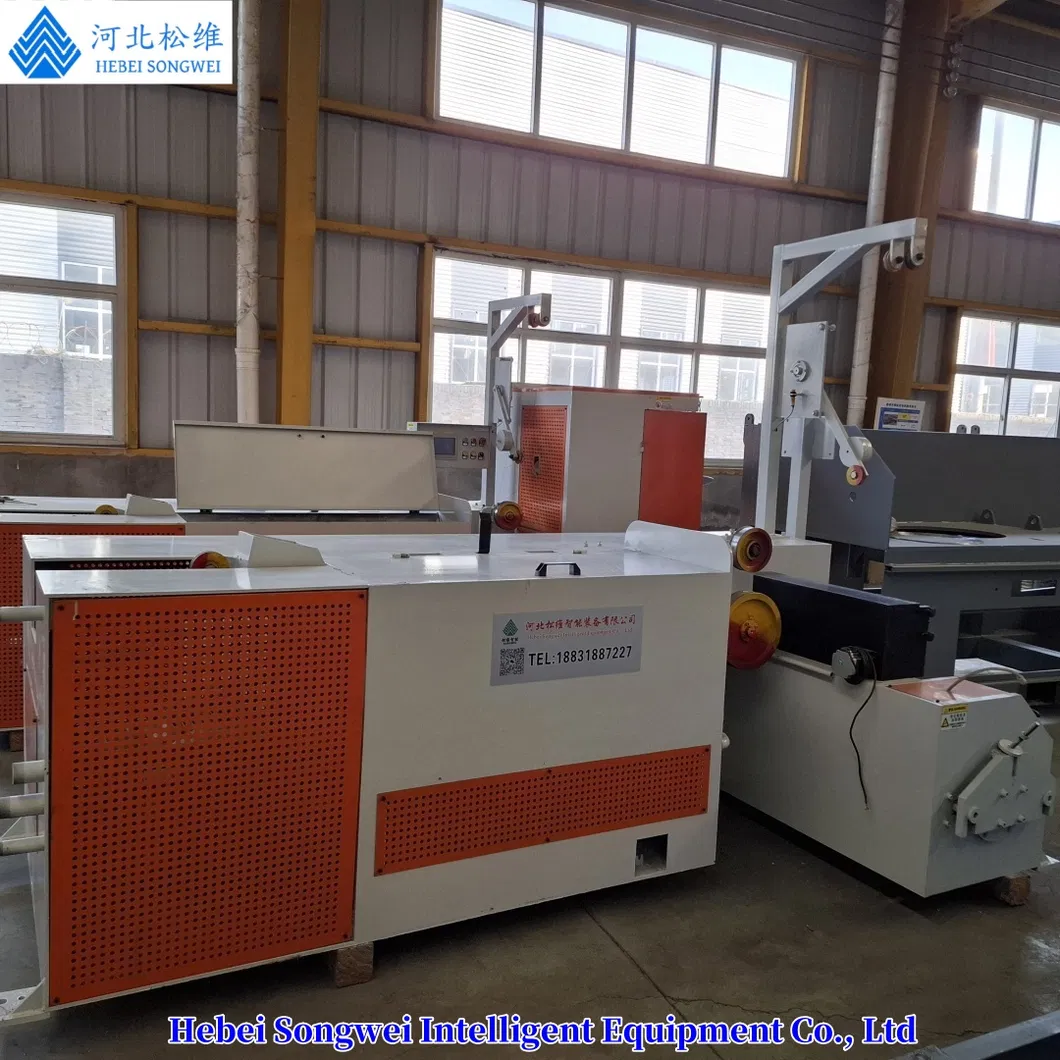

This wet-type drawing machine delivers exceptional performance with its advanced I-beam reel integrated coiling system. This technology ensures high precision and efficiency in wire rod processing, leveraging intelligent controls for real-time adjustments. The wet lubrication process minimizes friction, reducing energy consumption by up to 30% compared to traditional dry methods while extending tool life.
The modular design allows seamless integration with automation lines, enhancing productivity and flexibility for large-scale production. The robust I-beam reel structure ensures stable wire winding, minimizing downtime and maintenance costs.
| Parameter | Unit | Value |
|---|---|---|
| Drum Diameter | mm | 367 |
| Drawing Dies | Times | 13 |
| Inlet Wire Diameter | mm | 2.0-2.2 |
| Outlet Wire Diameter | mm | 0.6-1.2 |
| Drawing Speed | m/min | 720 |

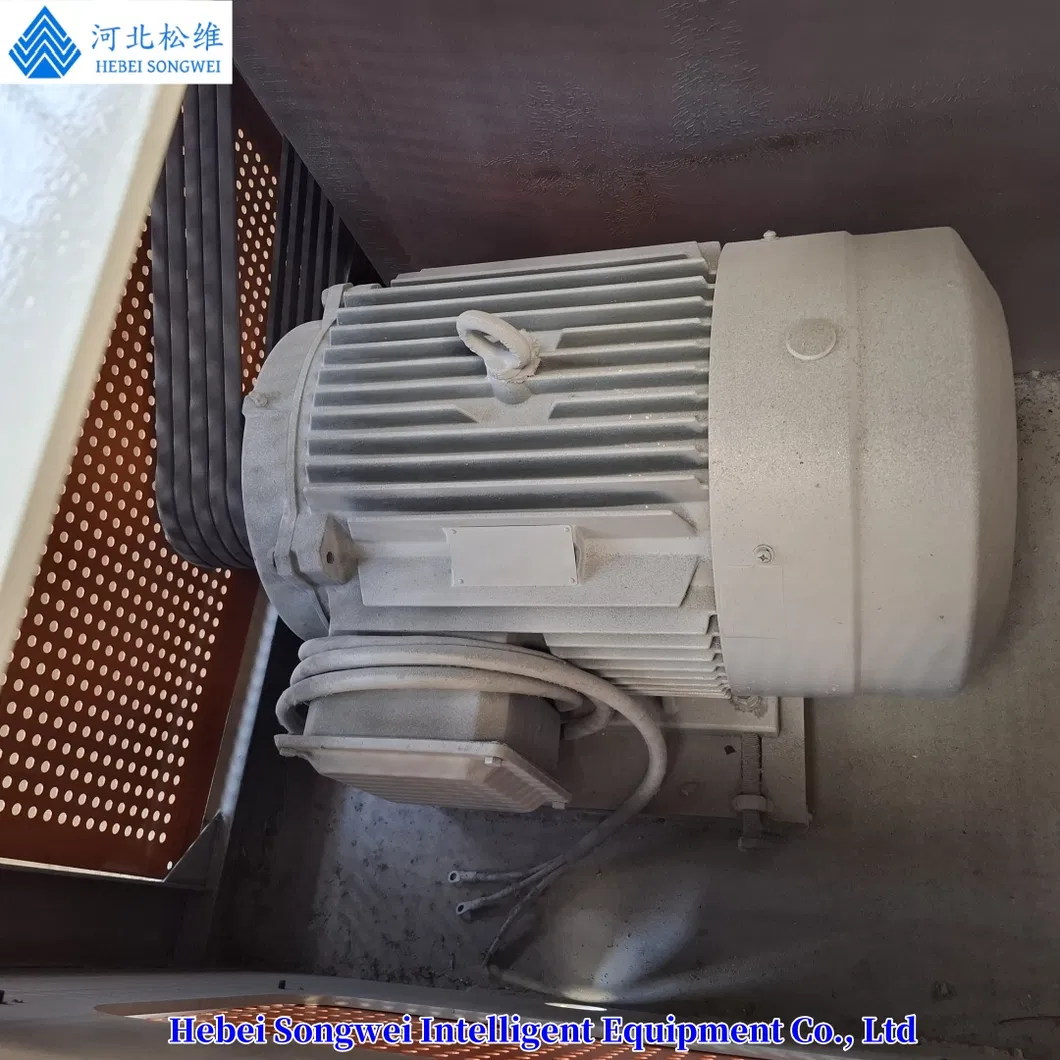

| Motor Power | kw | 30 |
| Inverter | kw | 30 |
| Input Material Strength | MPa | 700 |
1. Robust Machine Frame
Welded box structure ensuring flatness and verticality. All profiles undergo derusting and stress relief for high-speed stability.

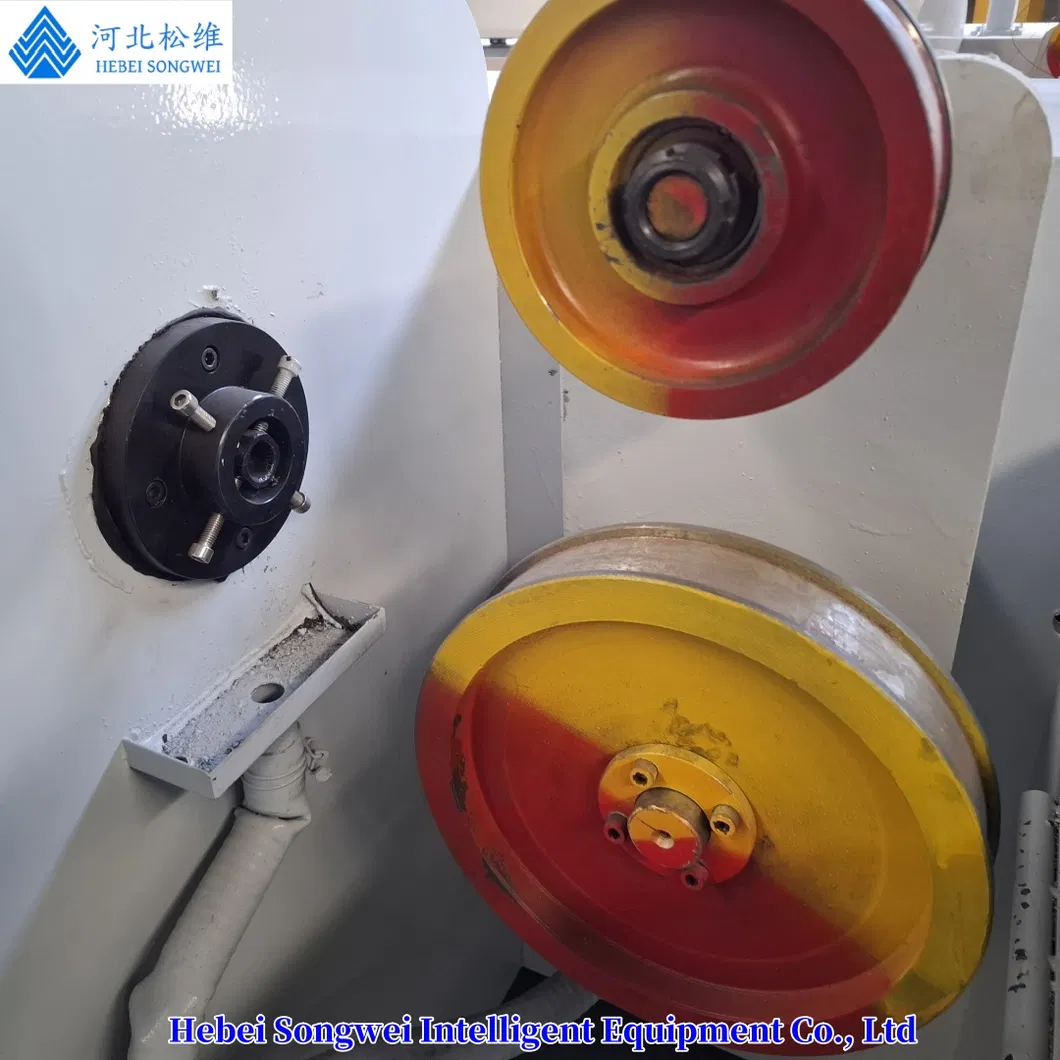

2. Precision Tower Wheel
Integrally cast with cemented carbide inlay (HRC 88-92) for extreme durability.

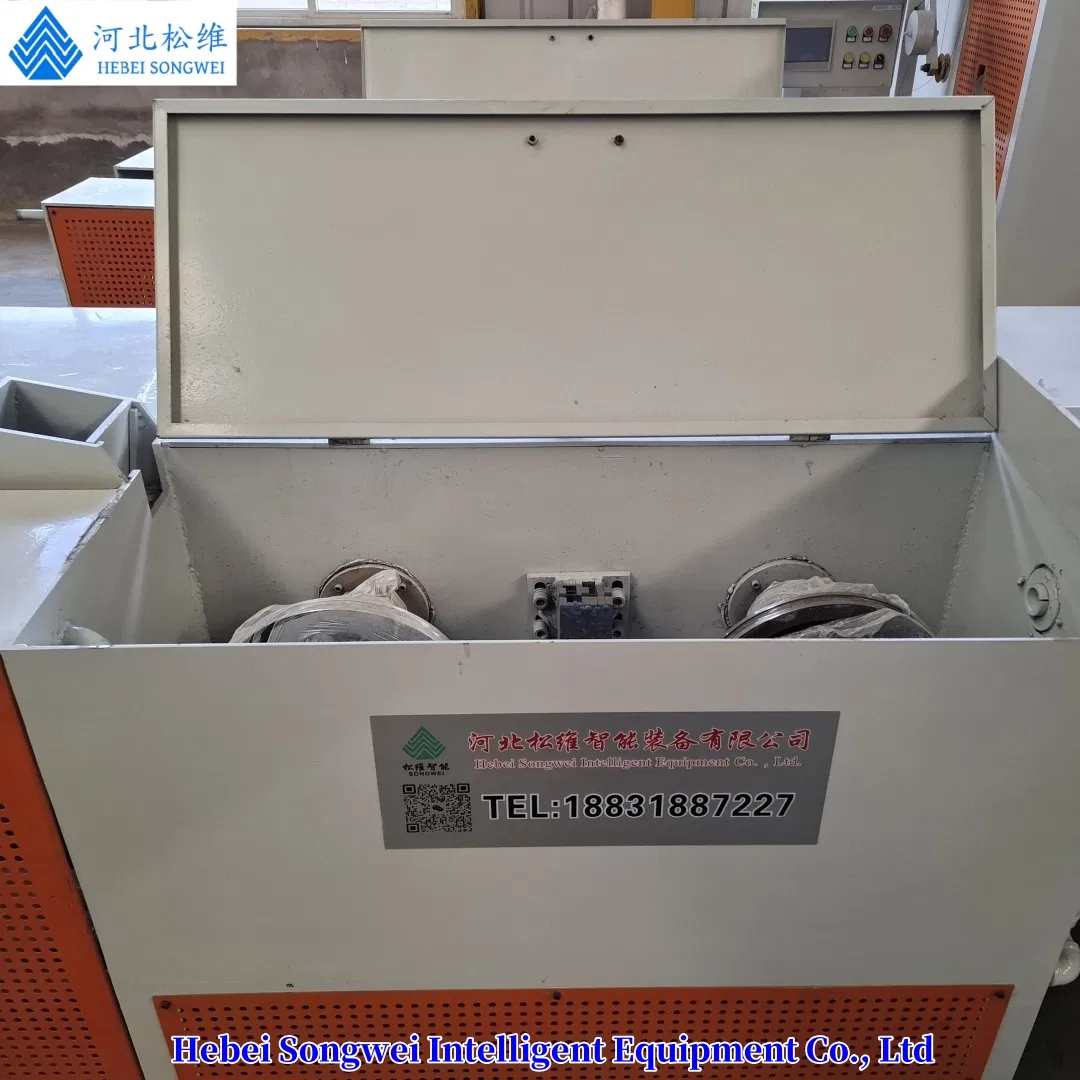

3. Triple Waterproof Design
Mechanical seals and skeleton seals prevent water ingress into transmission bearings.
4. Advanced Control
HMI interface for production parameter setup and real-time fault diagnostics.

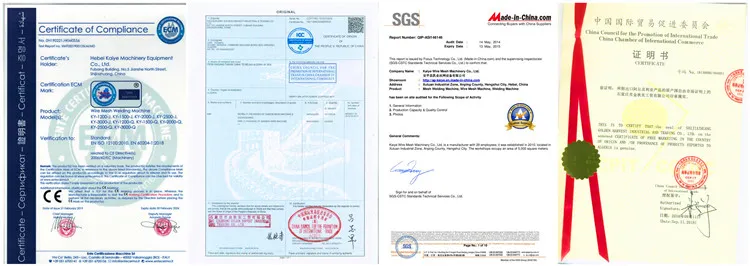

Full export documentation support including CE certificates, Form E, and Certificate of Origin.

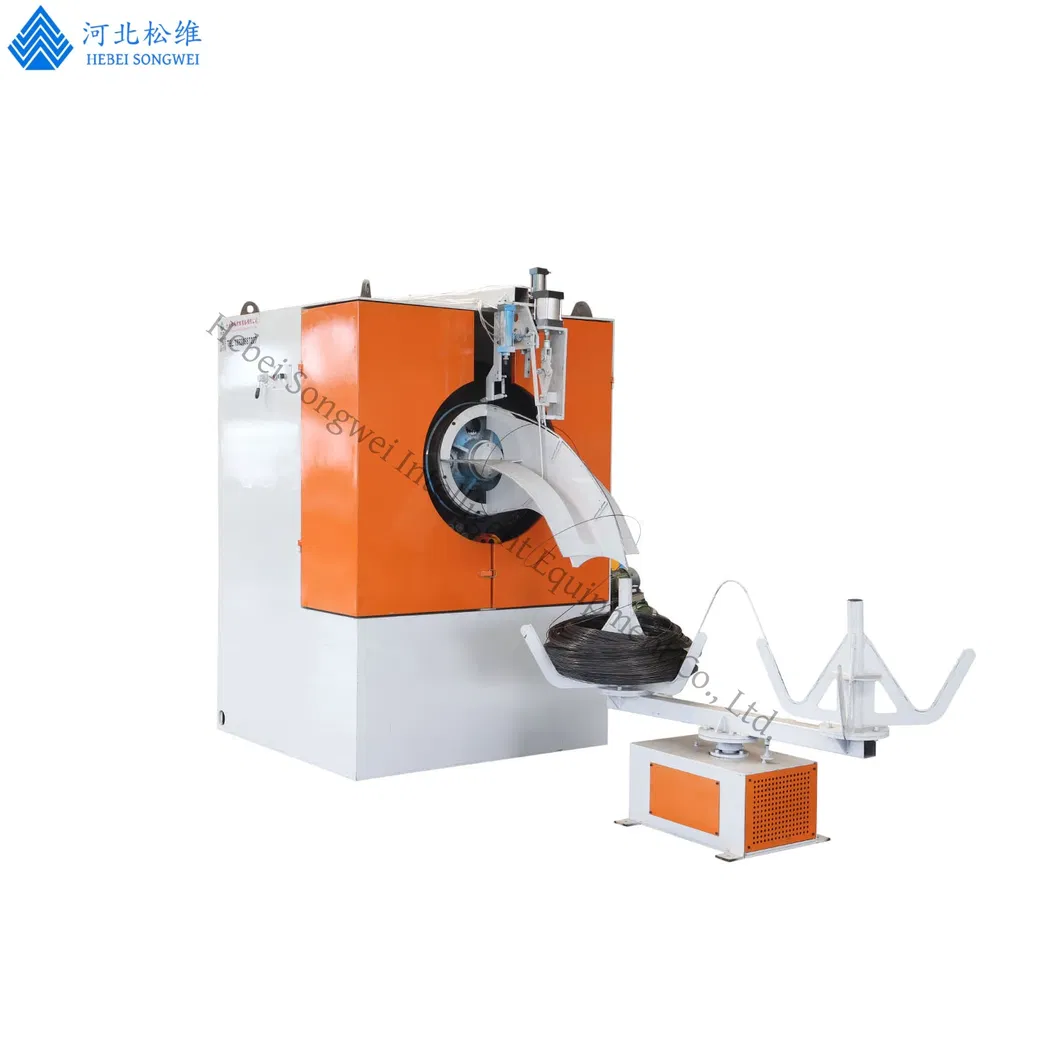

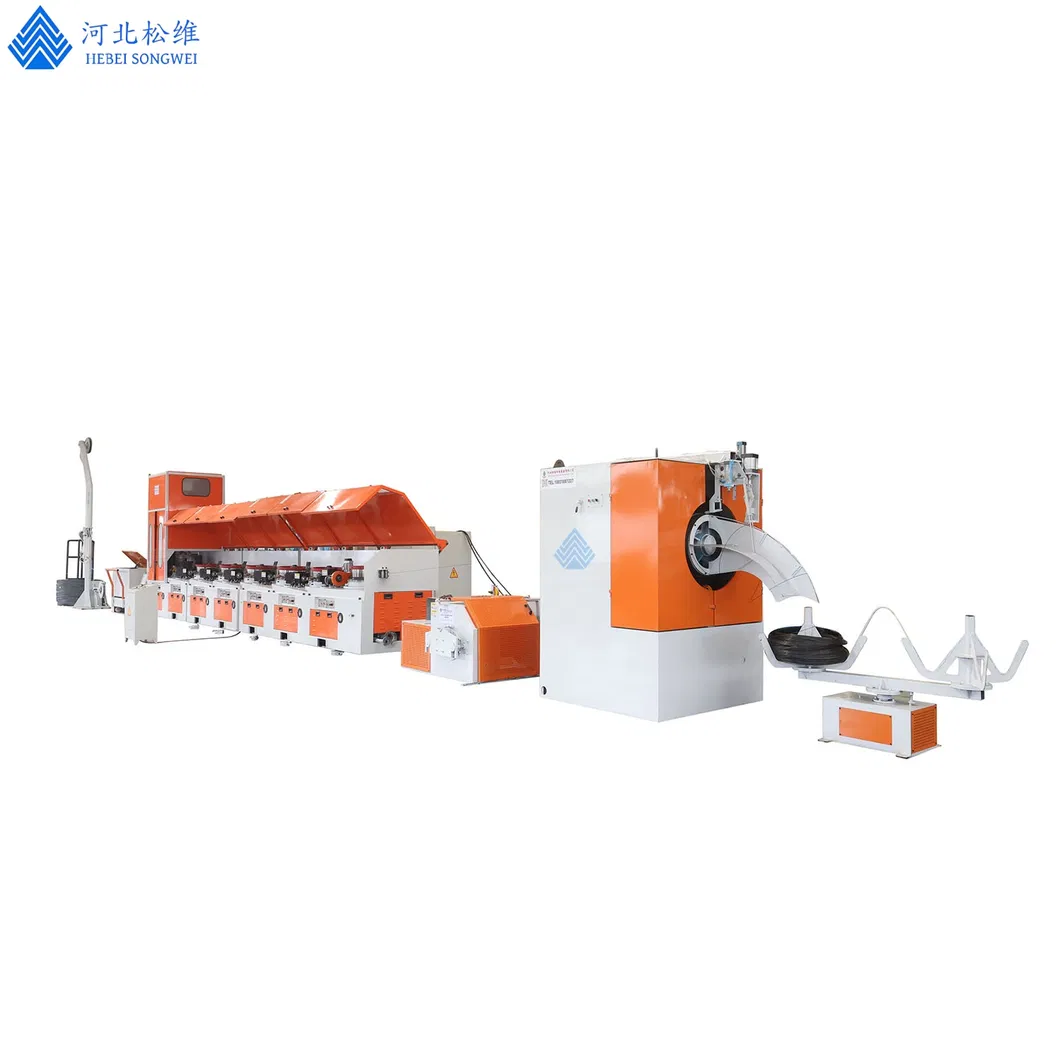

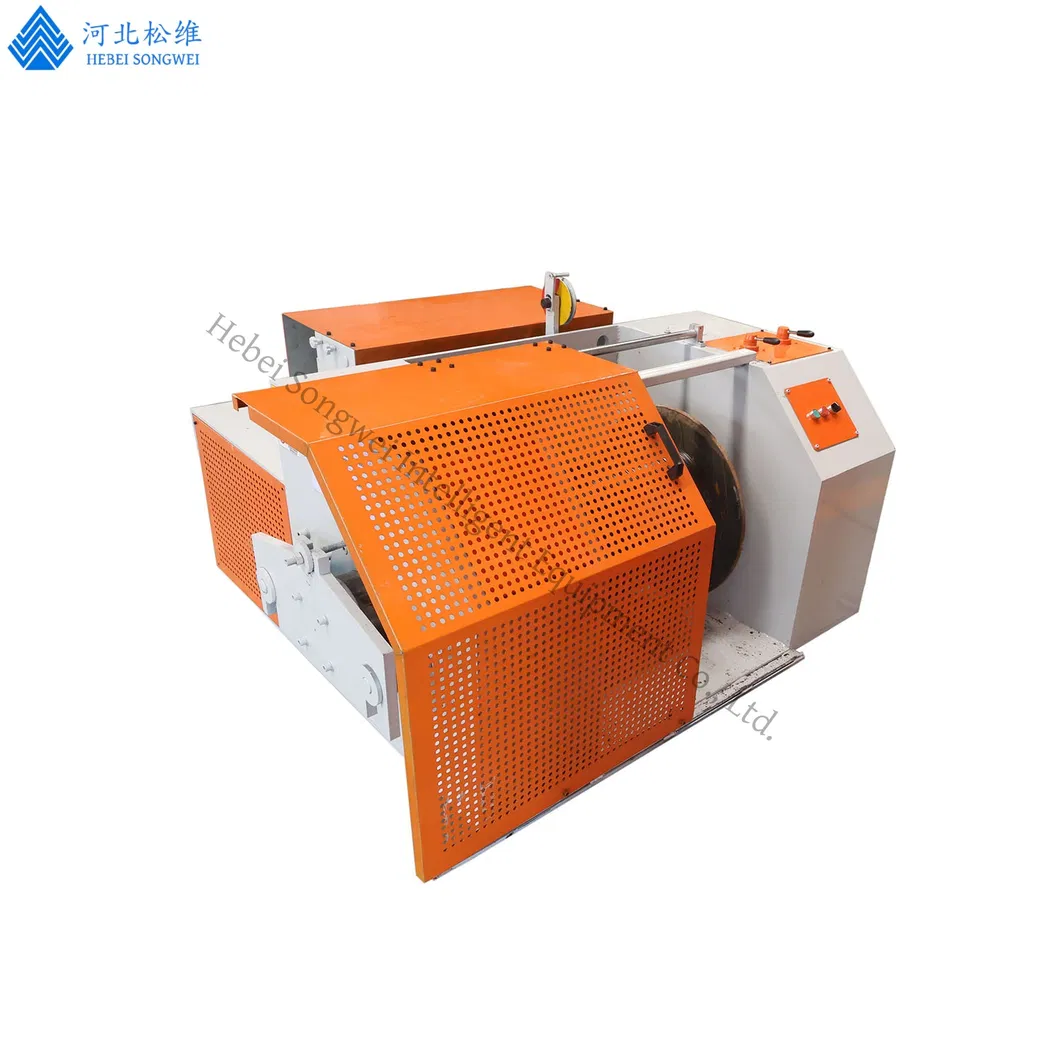

Straight line wire drawing machine and related auxiliary equipment.
Q1: What materials can the LSD-13D wet drawing machine process?
A1: This machine is ideal for processing metal wires such as stainless steel, aluminum, and copper, typically with an inlet diameter of 2.0-2.2 mm.
Q2: How much energy does the wet lubrication method save?
A2: The advanced wet lubrication process reduces friction significantly, saving up to 30% in energy consumption compared to traditional dry drawing methods.
Q3: What are the primary safety features of the coiler unit?
A3: The coiler unit features pneumatic clamping/lifting mechanisms with safety locks and electromagnetic braking to ensure stable stopping and emergency control.
Q4: How does the cooling system protect the machinery?
A4: It uses a triple waterproof design (mechanical seals, waterproof bearing covers, and skeleton seals) and a circulating water overflow system to protect transmission components while cooling the dies.
Q5: Is the drawing speed adjustable?
A5: Yes, the machine uses frequency conversion speed regulation (synchronized with the coiler) and can reach a maximum drawing speed of 720 m/min.
Q6: What certifications are available for international shipping?
A6: We provide comprehensive support for customs clearance, including CE certificates, Form E, and Certificates of Origin.
