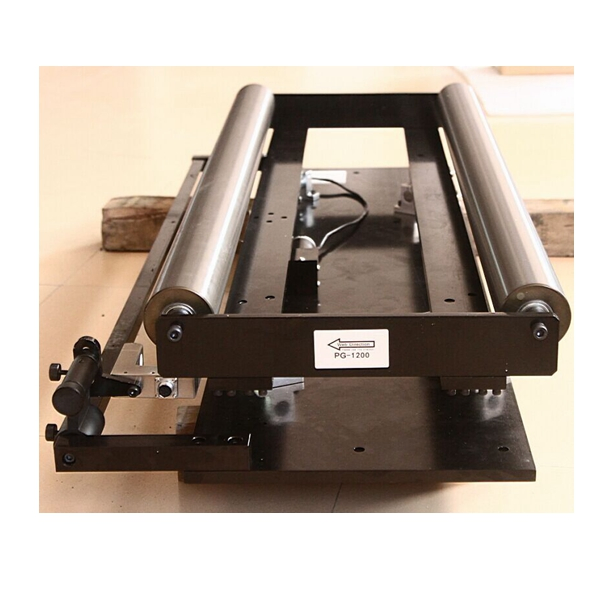

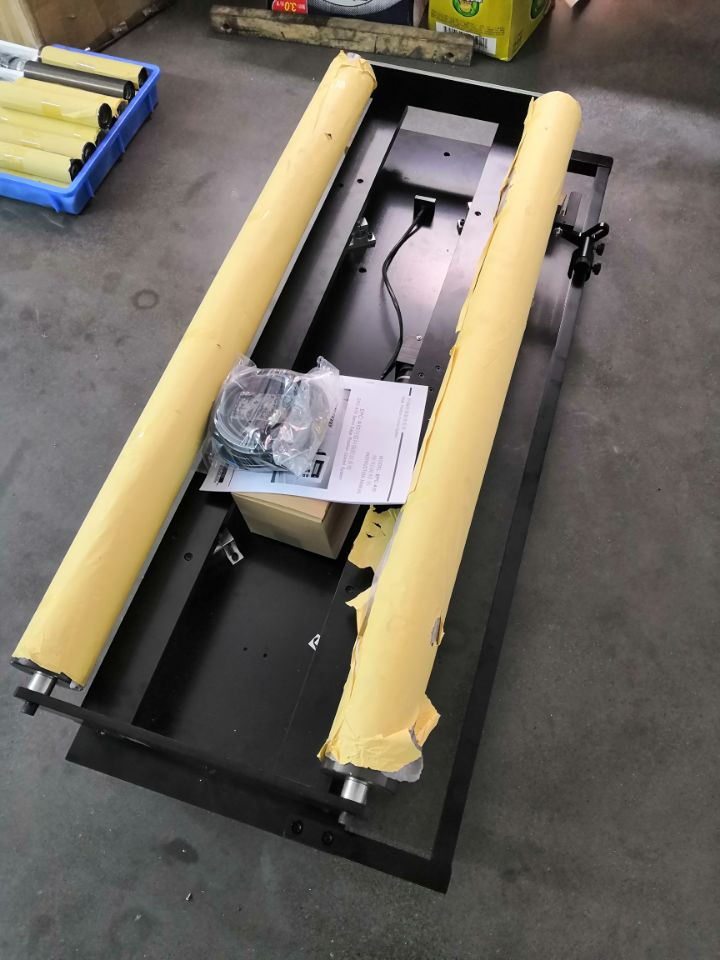

Stable Quality All-in-One Web Guide Control System with Roll Mechanism

1 / 3

Stable Quality All-in-One Web Guide Control System with Roll Mechanism

Customization:	Available
After-sales Service:	Online Operation Video, Replacement Parts
Warranty:	1 Years

Send Inquiry

Product Description

📋 Basic Information

Model NO.	PG-1200A
Working Method	Servo Deviation Rectification
Roller Length	1200mm (Different Models Available)
Web Width Range	200mm-1150mm
Maximum Tension	300n.M
Power Input	AC220V/80W
Maximum Drive Speed	40mm/S
Span Between 2 Rollers	390mm (Customizable)
Circumstance Temperature	-10~60℃, Below Rh90%
Delivery Time	8-15 Days
Transport Package	Carton Box / Wooden Box
Origin	China

⚙️ Product Description

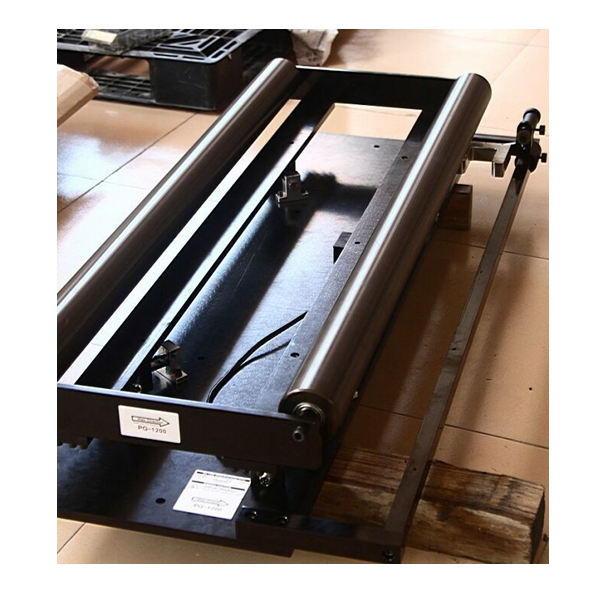

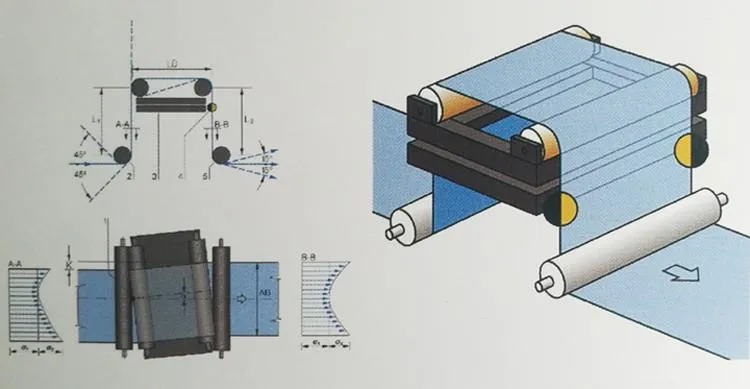

The Servo motor displacement PG-1200 is driven by a brushless DC servo motor and precision ball screw drive. It features a compact structure, excellent mechanical rigidity, low inertia, and high precision. It is ideally suited for high-speed and high-precision rectification during coil processing.

🚀 Key Product Features:

Brushless servo motor drive (maintenance-free)
High-precision ball screw mechanism
Large guiding stroke capacity
Customizable guide roller length and span
Optional roller surfaces: hard anodized, rubber layer, or wrap cork

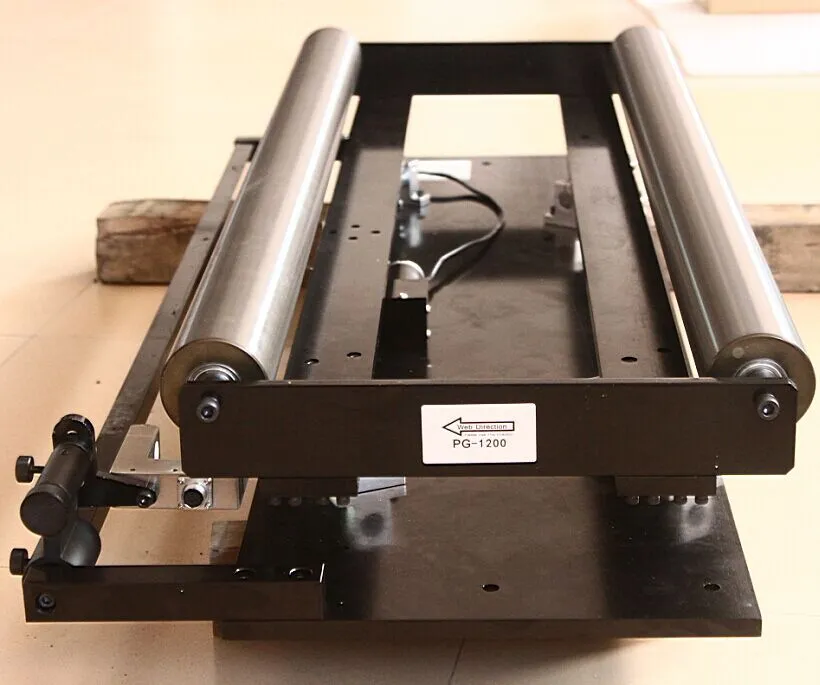

Technical Parameters

Model	1200mm Web Displacement Guide System
Roller Diameter	80mm (Customizable)
Roller Length	1200mm
Web Width Range	200mm-1150mm
Guide Angle	±15°
Power Input	AC220V/80W
Span Between Rollers	390mm
Maximum Drive Speed	40mm/s
Environment	-10~60ºC / Below RH90%

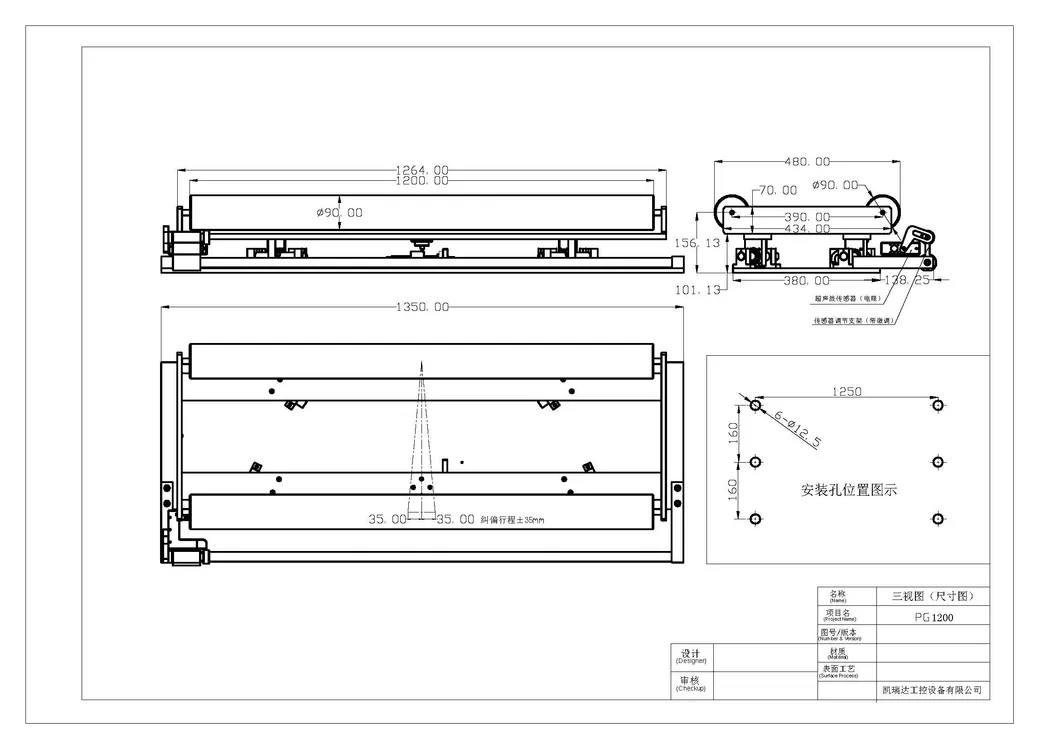

📐 Technical Drawings

⚠️ Installation & Maintenance

1. Installation Precautions

End-face Alignment: Tighten the gland only after the coupling is aligned. Use a feeler gauge to ensure errors are within 0.05 mm.

Clearance Check: Ensure concentricity between the gland and shaft diameter. Tolerance should not exceed 0.01 mm.

Spring Compression: Must follow regulations (2.00 mm error max). Incorrect pressure affects sealing and wear speed.

2. Disassembly Precautions

Use proper wire hooks for removal; avoid hammers or shovels that could damage sealing elements. If fouled, clean before removing. For mechanical seals already in operation, parts should be replaced if the gland becomes loose, rather than simply re-tightened, to ensure surface contact integrity.

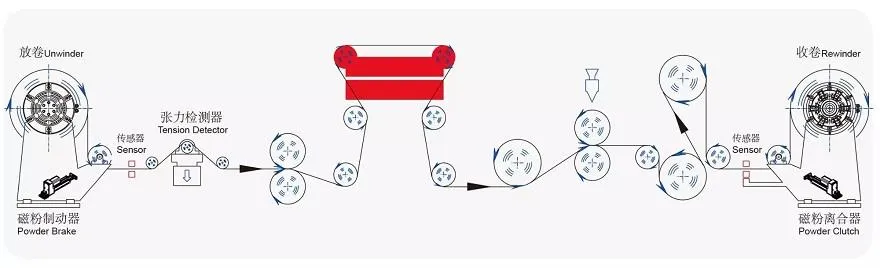

🏭 Applications

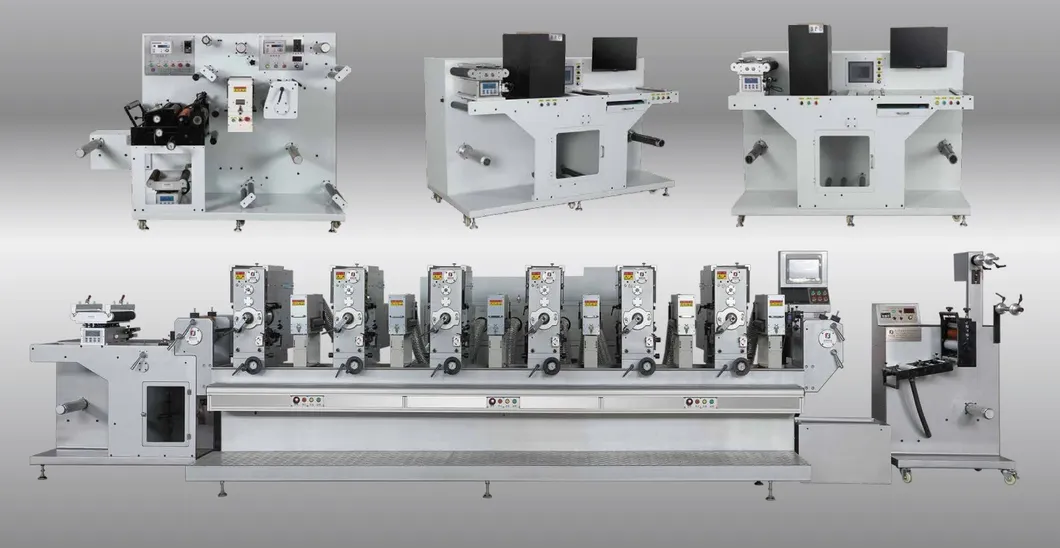

Widely used in packaging machinery, printing, wire and cable, paper, plastic, food, textile, and electronic battery industries.

📦 Packaging & Related Goods

Order Details

Item Name	PG-1200A Offset Pivot Guide
MOQ	1 pc
Lead Time	5-9 days after deposit
Packing Size	130cm * 60cm * 50cm
Package Type	Wooden Box
Price Term	EXW, FOB, CIF, etc.

❓ Frequently Asked Questions

Q1: What is the primary function of the PG-1200A web guide system? A: It is a servo-driven displacement system used for high-precision rectification of coils during high-speed processing.

Q2: Does the motor require regular maintenance? A: No, the system uses a brushless DC servo motor, which is designed to be maintenance-free.

Q3: Can the roller dimensions be customized for specific machines? A: Yes, both the guide roller length and the span between rollers can be customized to meet your equipment's requirements.

Q4: What materials can the guide rollers be coated with? A: Rollers can be equipped with a hard anodized layer, a rubber layer, or wrapped in cork depending on the application.

Q5: What is the typical lead time for an order? A: Generally, the lead time is between 5 to 15 days, depending on the specific dimensions and customization requirements.

Q6: What precautions should be taken during installation? A: Great care should be taken to avoid deviation; end-face alignment errors should be under 0.05mm, and spring compression must be strictly controlled.
