Product Description

Basic Specifications

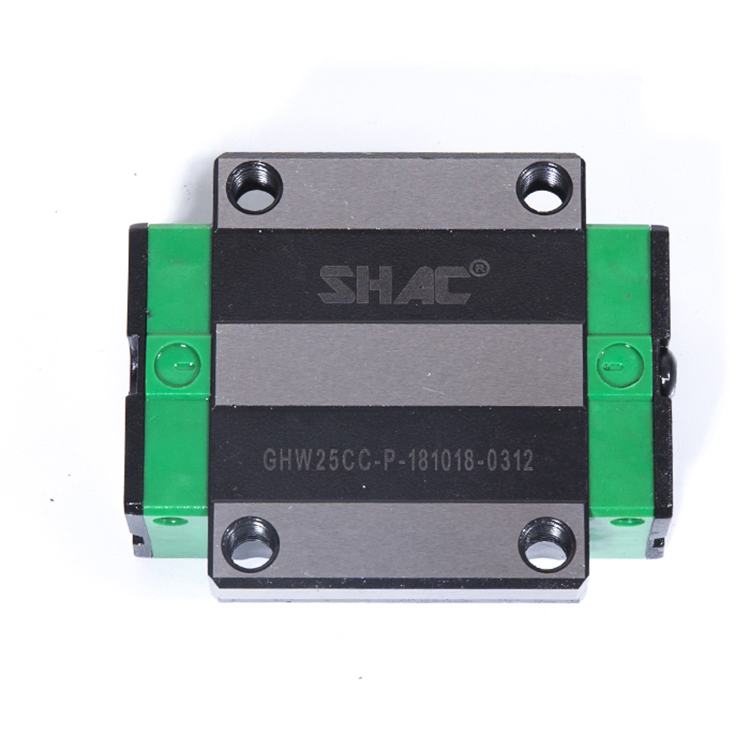

Model NO.

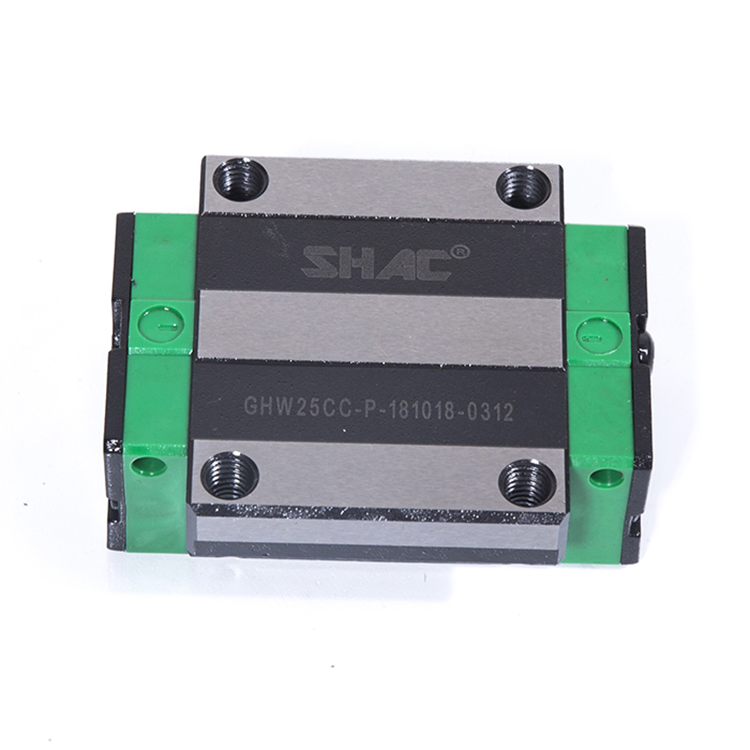

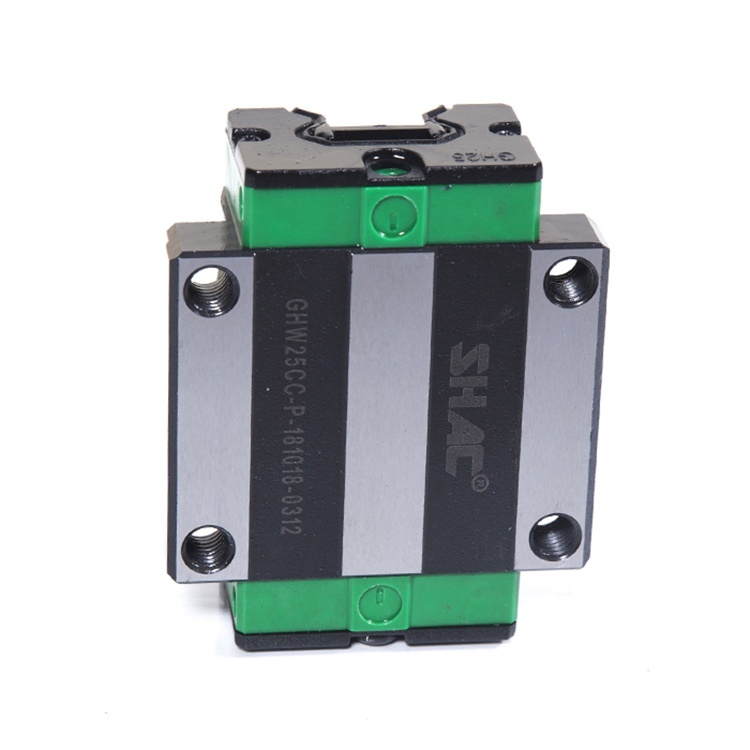

GHW30CA

Certification

ISO 9001:2008

Material

Carbon Steel

HS Code

8466939000

Corrosion

High Resistance

Capacity

14,000 pcs/Day

Product Overview

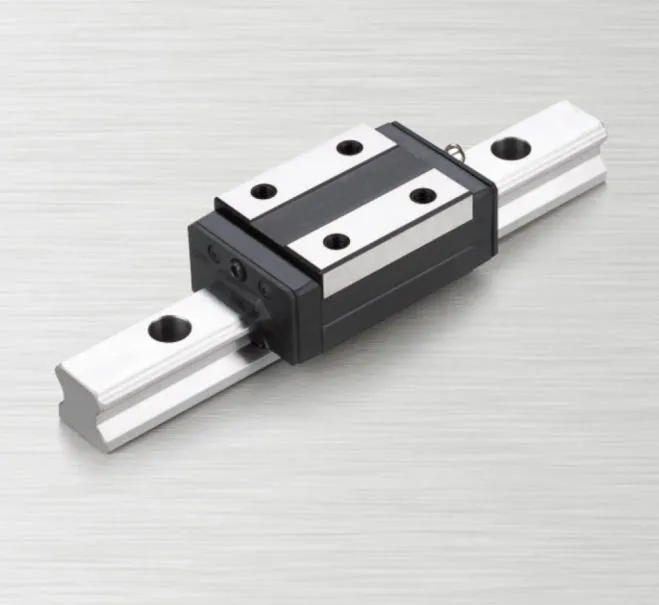

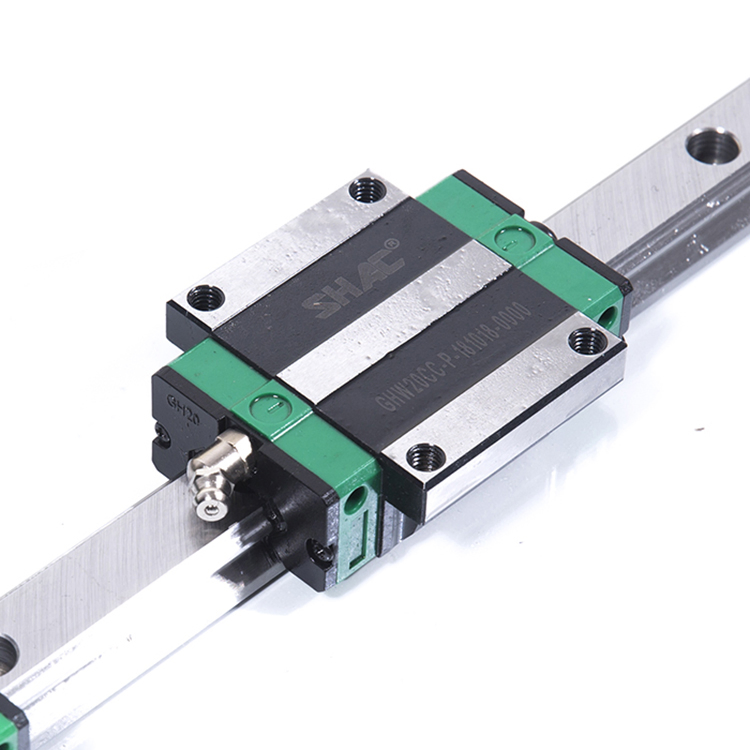

Linear Guideway is one of the important elements of the machine tool. Its main function is to make sure that the cutting tool or machine tool element moves along a predetermined path. LM Guide provides smooth and linear motion in machine tools, due to which higher accuracy and precision can be obtained.

Different series of ball type guides are designed to serve a diverse range of industries, from automatic machine manufacturing to CNC machine tools.

GH/GE Series Lathes, drilling machines, grinders, milling machines, boring machines, EDM, wire cutting, and woodworking machinery.

QH/QE Silent Series Automation machines, precision measuring instruments, laser engraving, and semiconductor equipment requiring low noise.

GR High Load Series CNC processing, medium cutting machines, large gantry machine tools, and injection molding machines.

GMN/GMW Miniature Electronic equipment, printers, robotic arms, and compact semiconductor equipment.

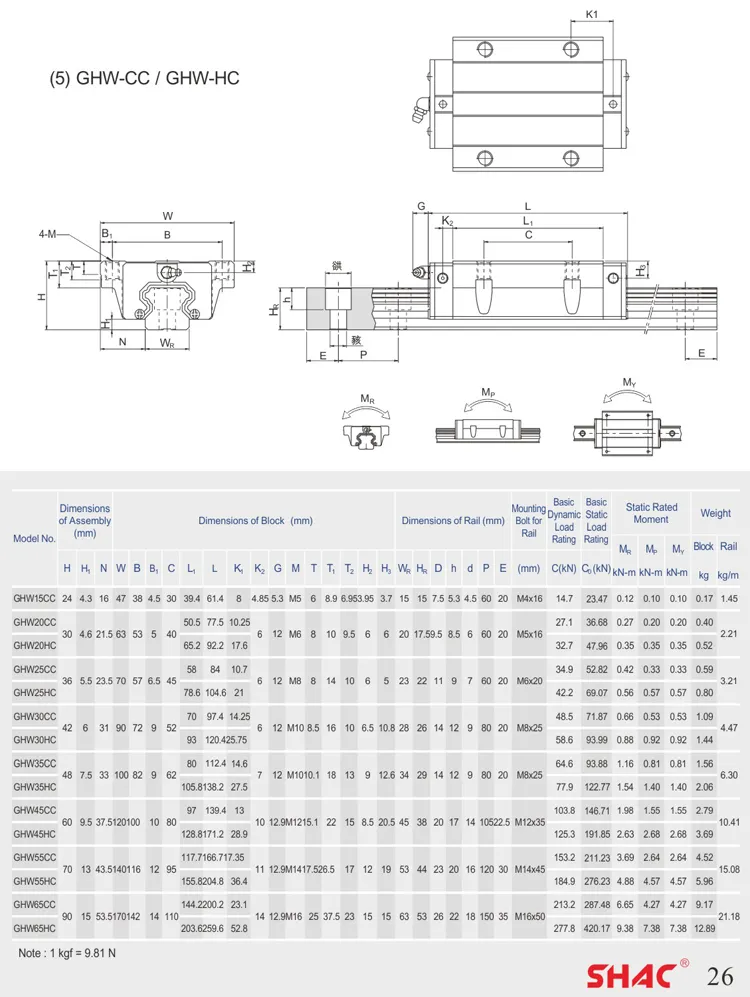

Technical Parameters

Specification	Details

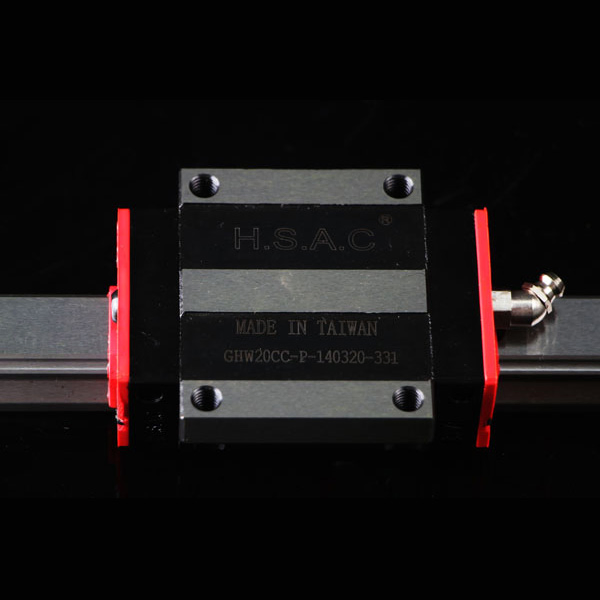

Model Number	GHH-CA/HA (15~65), GHW-CC/HC (15~65), GEH-SA/CA (15~30), GEW-SA/CA (15~30)
Rail Length	Original 4000MM/4500MM/6000MM, cut to requested length
Material	Block: SCM420H \| Rail: S55C
Preload	Z0: 0~0.02C \| ZA: 0.02~0.04C \| ZB: 0.04~0.08C \| ZC: 0.08~0.12C
Surface Treatment	Chromed, normal blackening, hard chromed blackening
Block Color	Green, Black, Red
Features	High accuracy, high-load in multiple directions, easy assembly

Core Advantages

High Rigidity The four-row arc groove and high-rigidity cross-section design provide excellent load capacity and improved rigidity via assembly preload.

Self-aligning A 45-degree contact angle makes it self-aligning, maintaining smooth and high-precision motion even with installation errors.

Interchangeable Advanced manufacturing ensures dimensions stay within stable tolerances, allowing sliders and rails to be replaced across brands.

Transport & Packing

Development Milestones

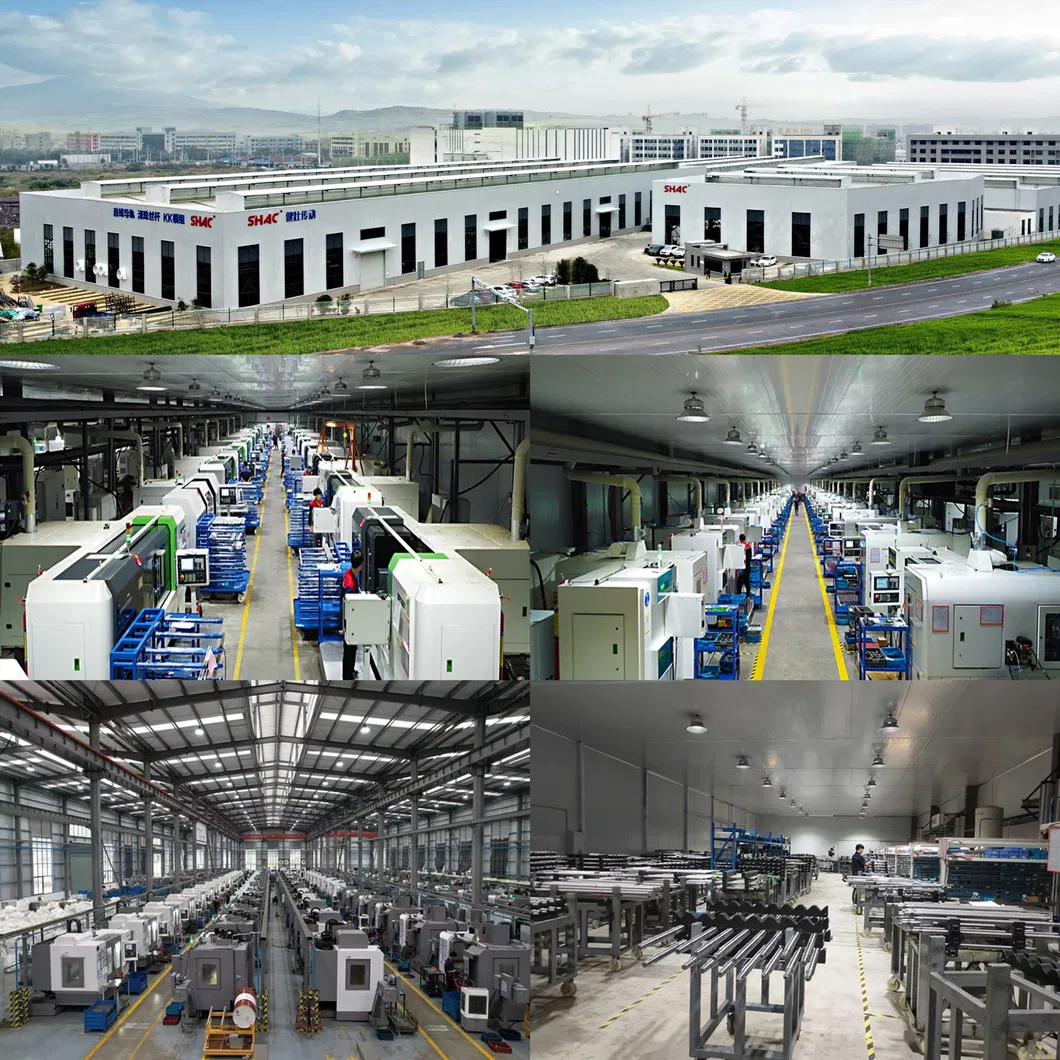

Founded in 2007, the enterprise specializes in R&D, manufacturing, and sales of linear transmission components. Over the years, significant investments were made to establish modern production lines for rolled and precision ground ball screws.

By 2016, the facility was recognized as a national high-tech enterprise, strictly adhering to ISO 9001 and ISO 14001 standards. In 2020, a second factory base spanning approximately 65,000 square meters commenced production to meet global demand across more than 50 countries.

Frequently Asked Questions

Q1: Do you accept small orders?

A: Yes, if the bearings are our standard size, we accept orders as small as 1 piece.

Q2: Can I get a free sample?

A: Yes, limited free samples are available, though freight costs must be covered by your side.

Q3: Are you a factory or a trading company?

A: We are a manufacturer with a joint venture technology team.

Q4: Can we mark our brand on the products and packing?

A: Yes, we support OEM branding. Please contact us to negotiate the details.

Q5: How long is the delivery time?

A: Small orders usually take 3–7 days. Large or non-standard orders typically take 20–35 days depending on the quantity.

Q6: What documents do you provide for quality guarantee?

A: We provide testing documents, certificates, and 2D/3D drawings for our components.
