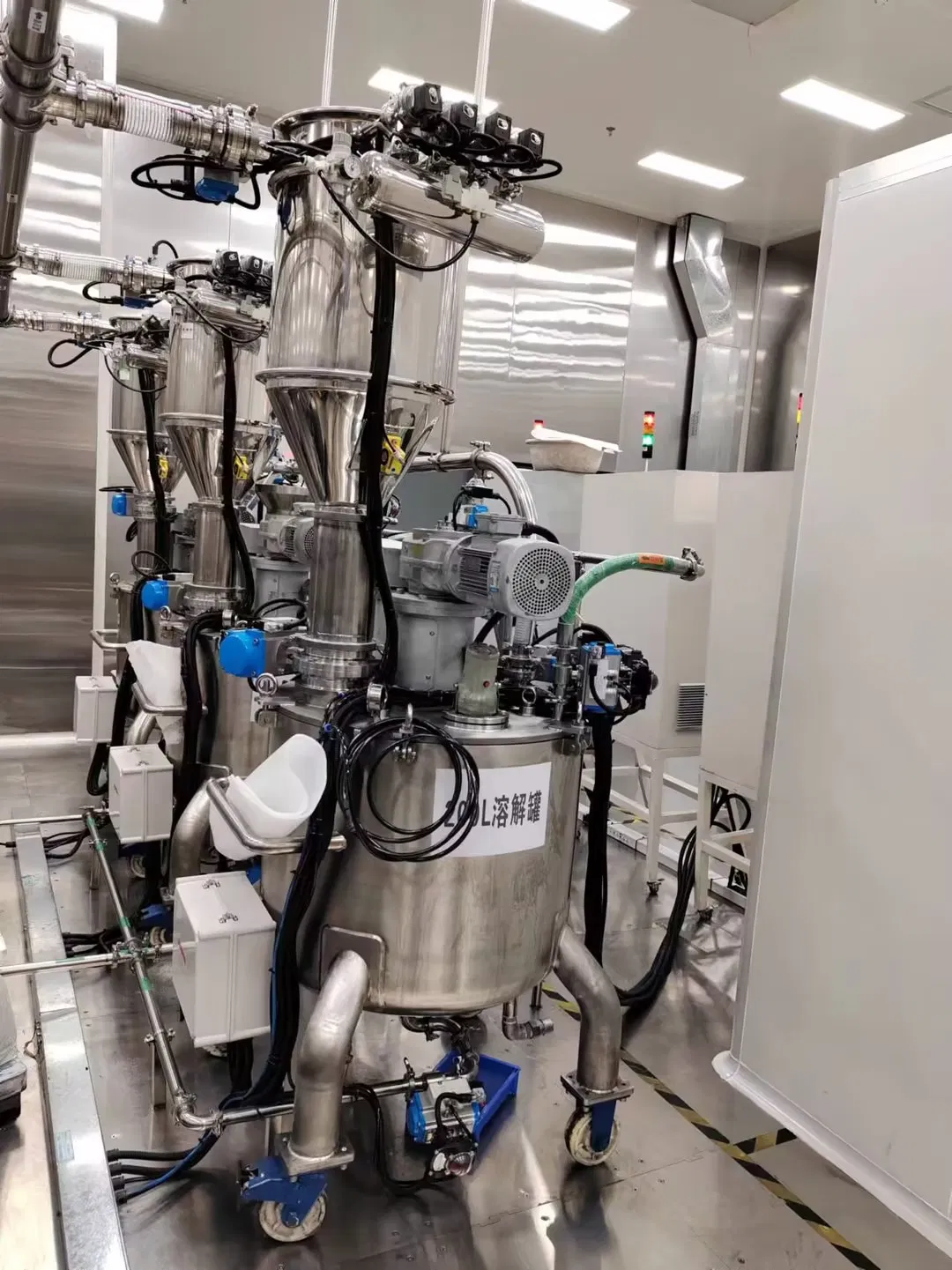

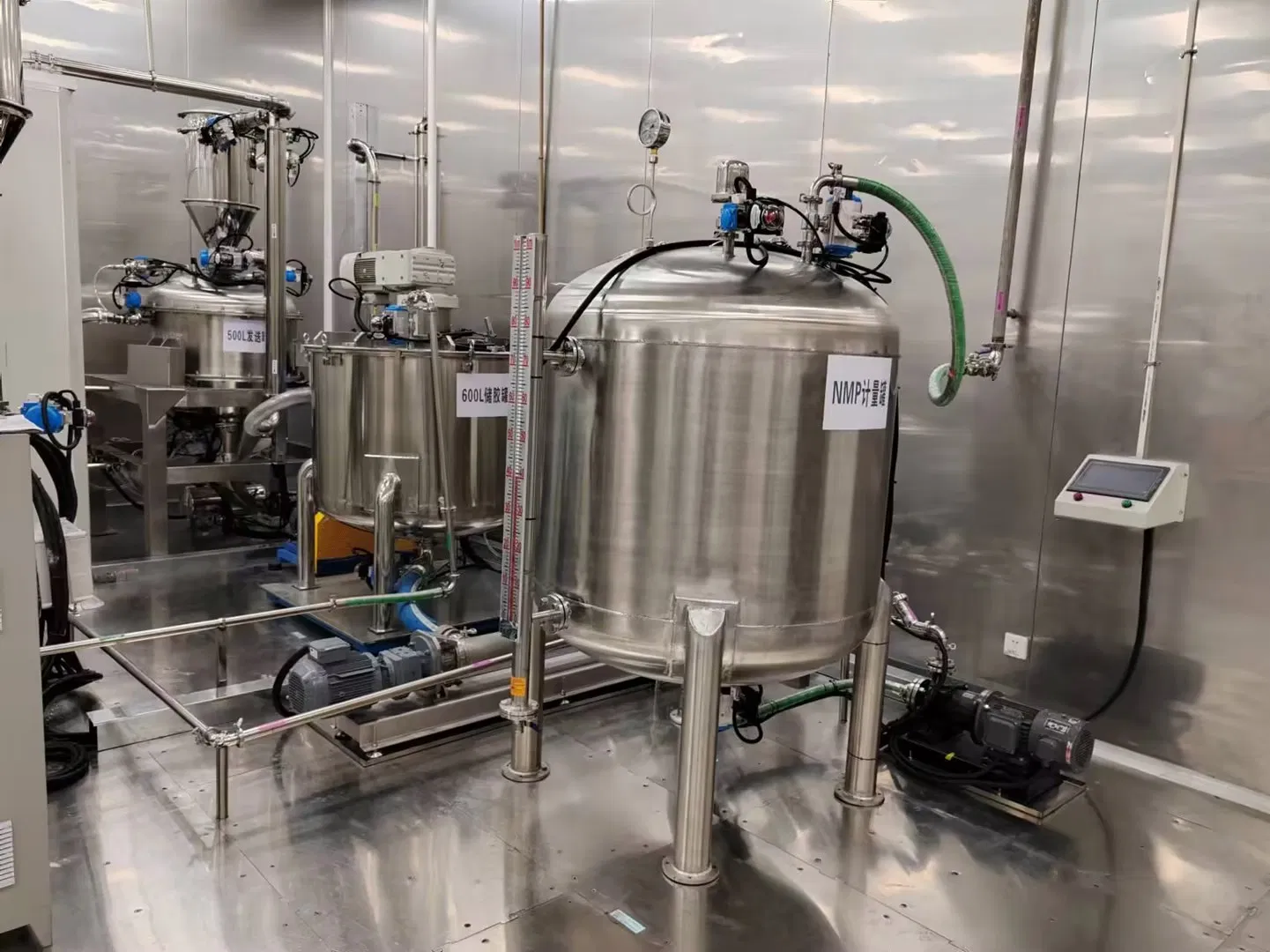

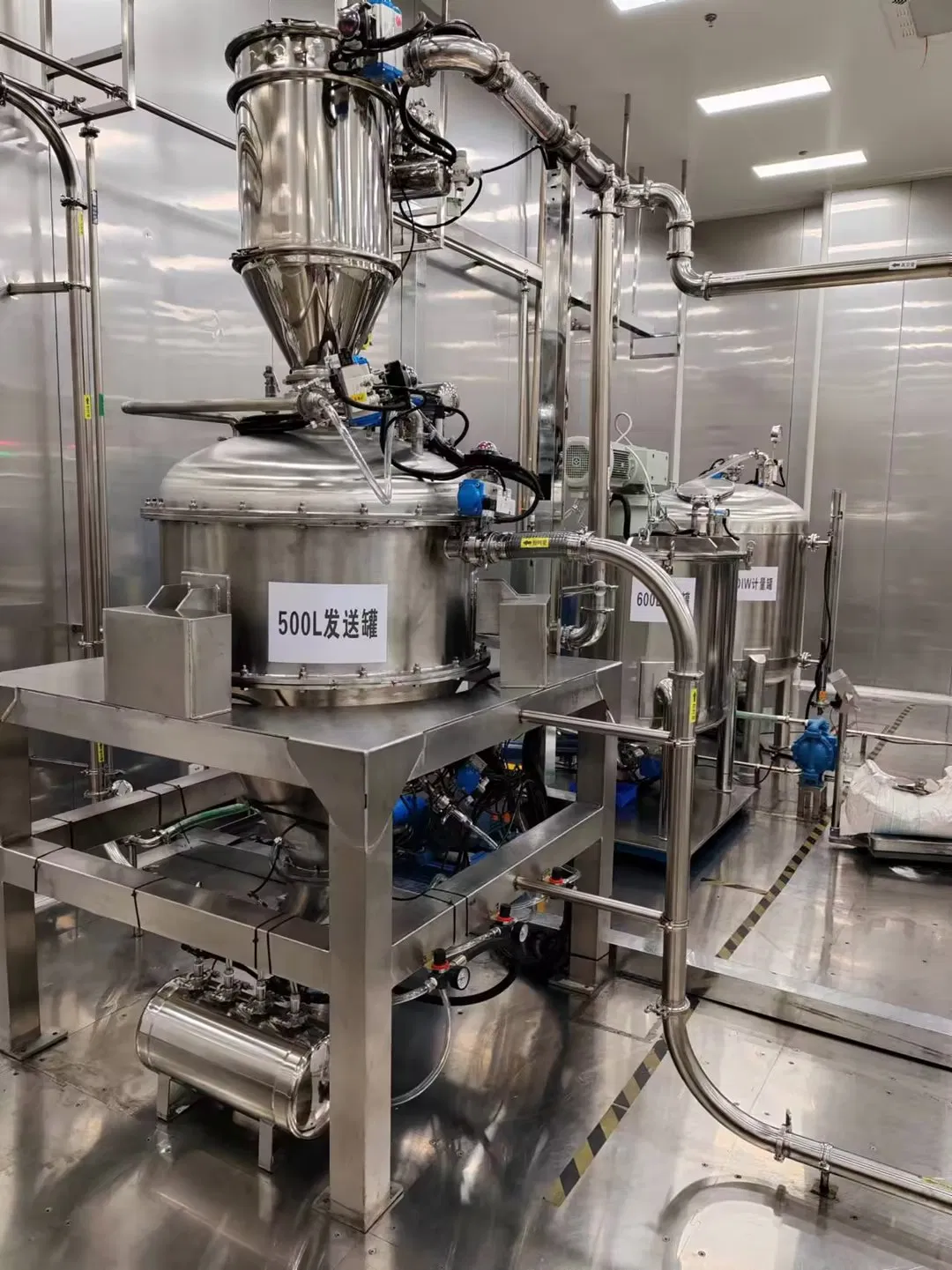

This automatic batching and conveying system is specially designed for the production of high-viscosity adhesives, sealants, and related chemical products. It integrates powder feeding, liquid metering, mixing, deaeration, and slurry conveying into one fully automated line. The system ensures precise ingredient control, consistent product quality, and efficient production.

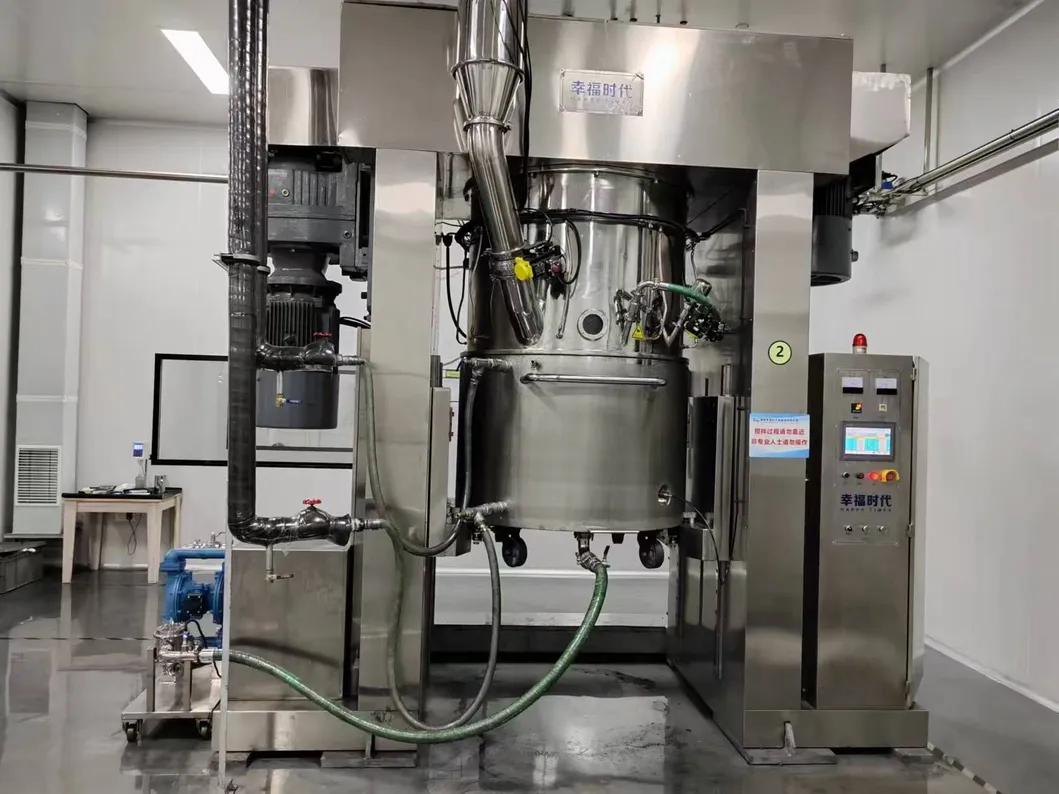

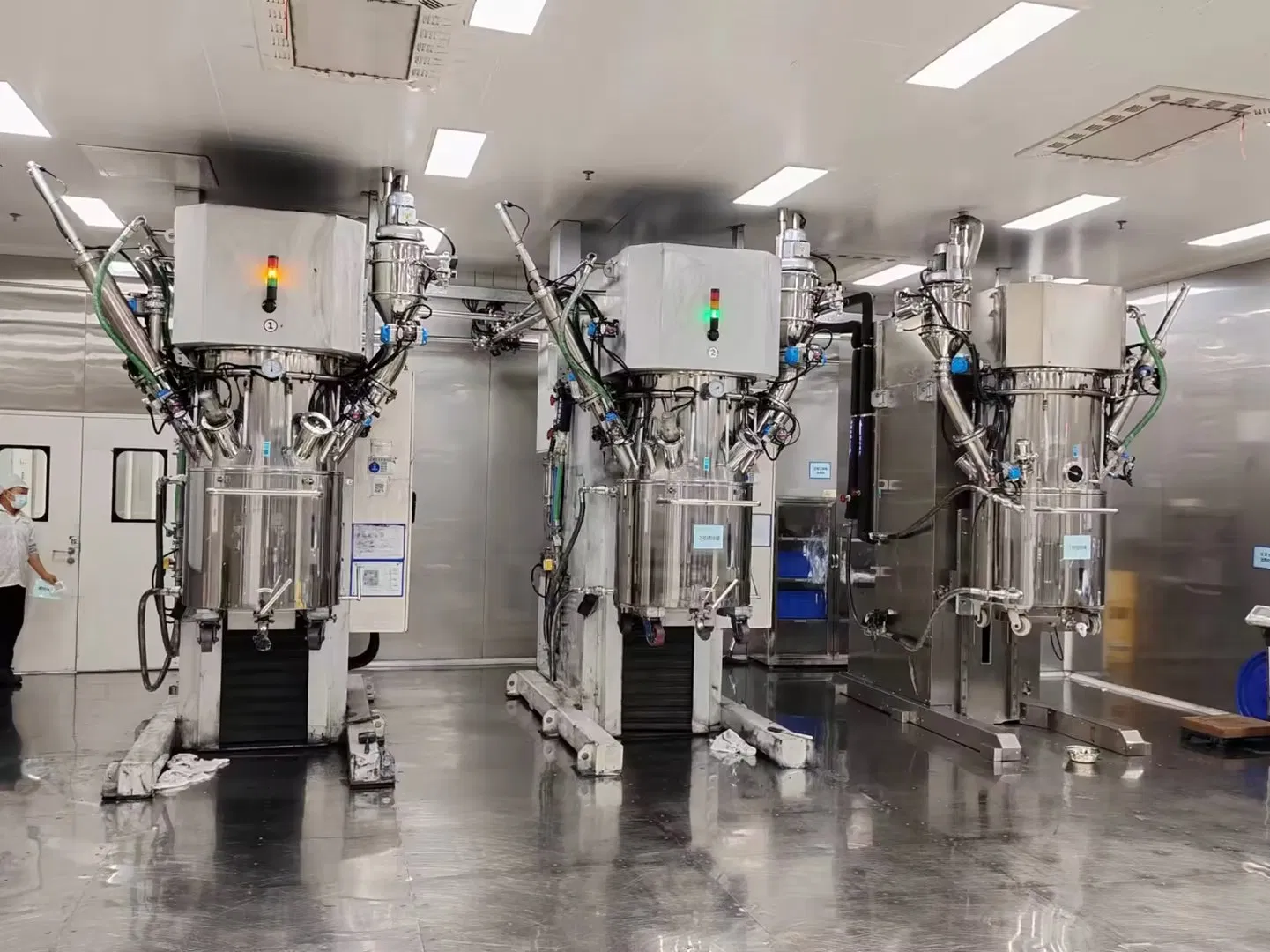

The core mixer adopts a dual planetary mixing mechanism with two spiral paddles and two high-speed dispersion discs, capable of handling viscosities up to 100,000 mPa·s. Vacuum operation removes bubbles, while the jacketed mixing barrel allows precise temperature control via circulating water.

• Integrated Automation - Centralized Siemens PLC control with touch screen HMI; one-key operation.
• High-Precision Metering - Load cells and mass flow meters ensure ±0.2% accuracy.
• Dual Planetary Mixing - Intensive shear and mixing for high-viscosity materials.
• Vacuum Deaeration - Removes air bubbles for bubble-free end products.
• Heating/Cooling Jacket - Stainless steel double-layer barrel for temperature control.
• Safety Interlocks - Emergency stop, overload protection, and lift position limits.

This system is widely used in the production of:

• Silicone Sealants (neutral, acetic, structural)
• Polyurethane Adhesives (PU)
• Epoxy Resins & Adhesives
• Acrylic Sealants & Adhesives
• Hot Melt Adhesives (with heating option)
• Conductive Adhesives, Pastes, and Inks

• Professional Experience - Over 10 years in mixing and batching systems.
• In-house R&D - Strict quality control and ISO9001 certified processes.
• Global References - Successful installations in adhesives and chemical plants worldwide.
• Customizable Solutions - Tailored to your specific process requirements.
• Technical Support - Prompt service and lifetime technical assistance.
