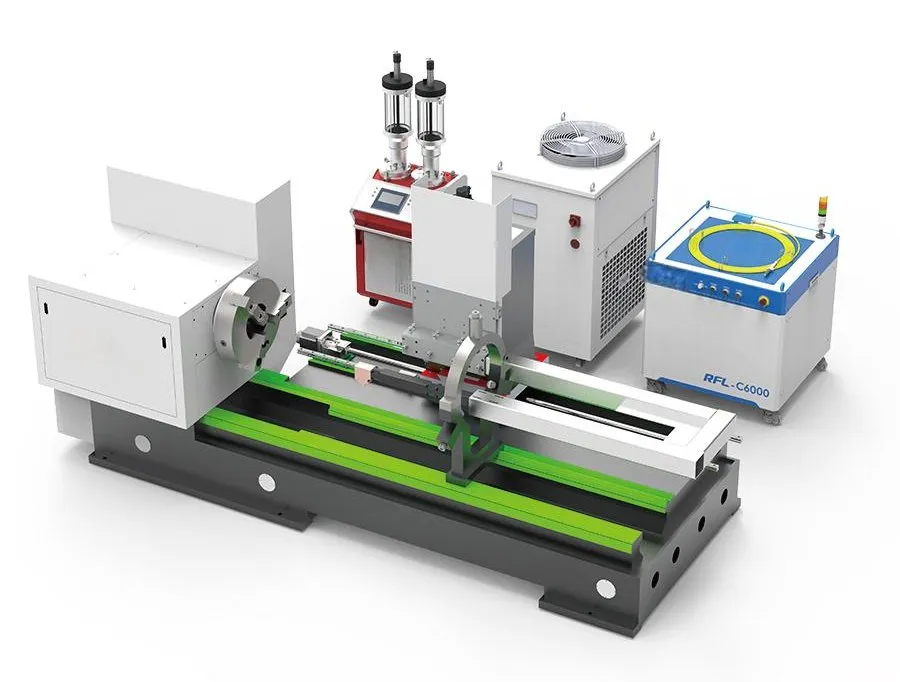

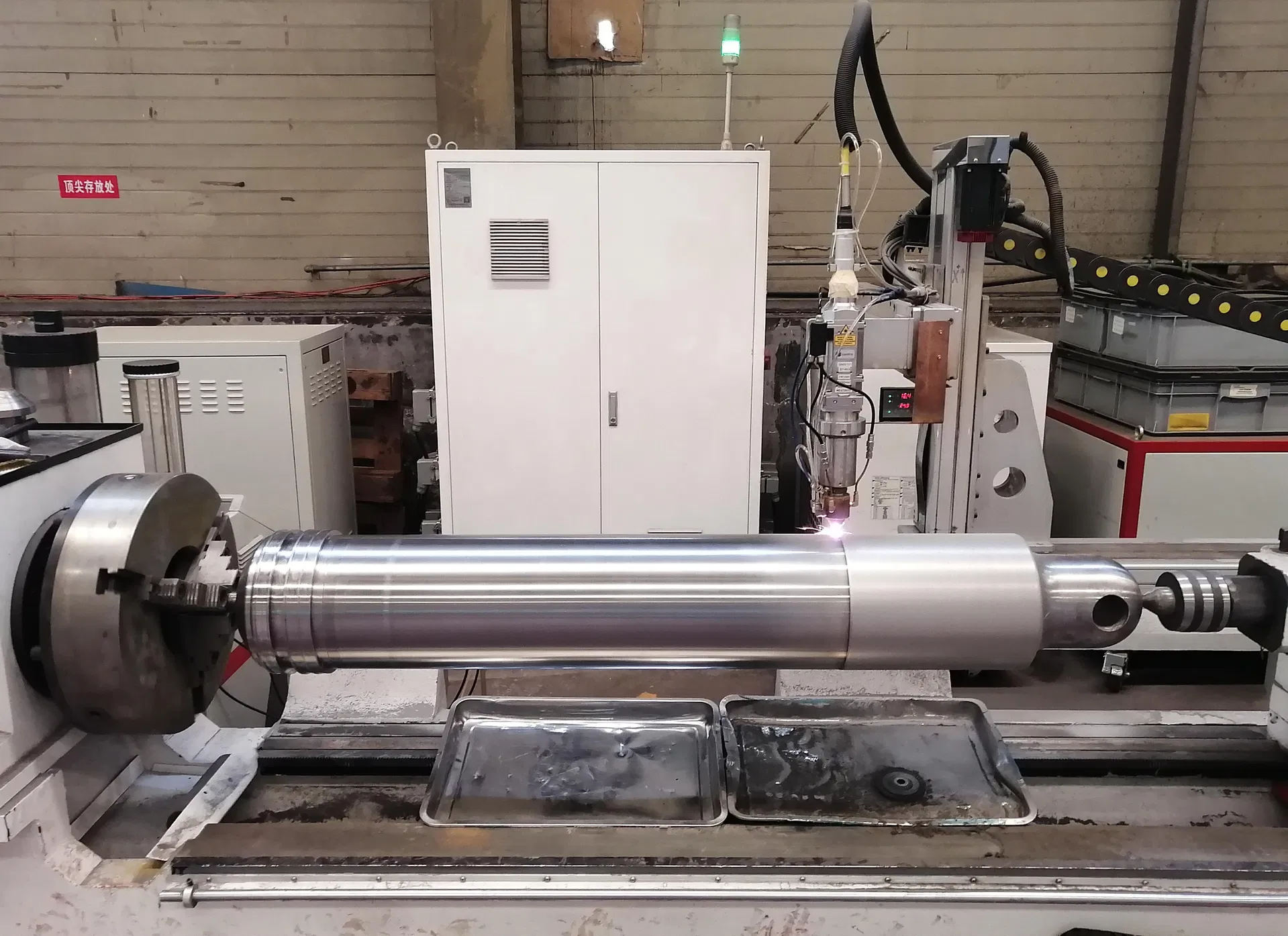

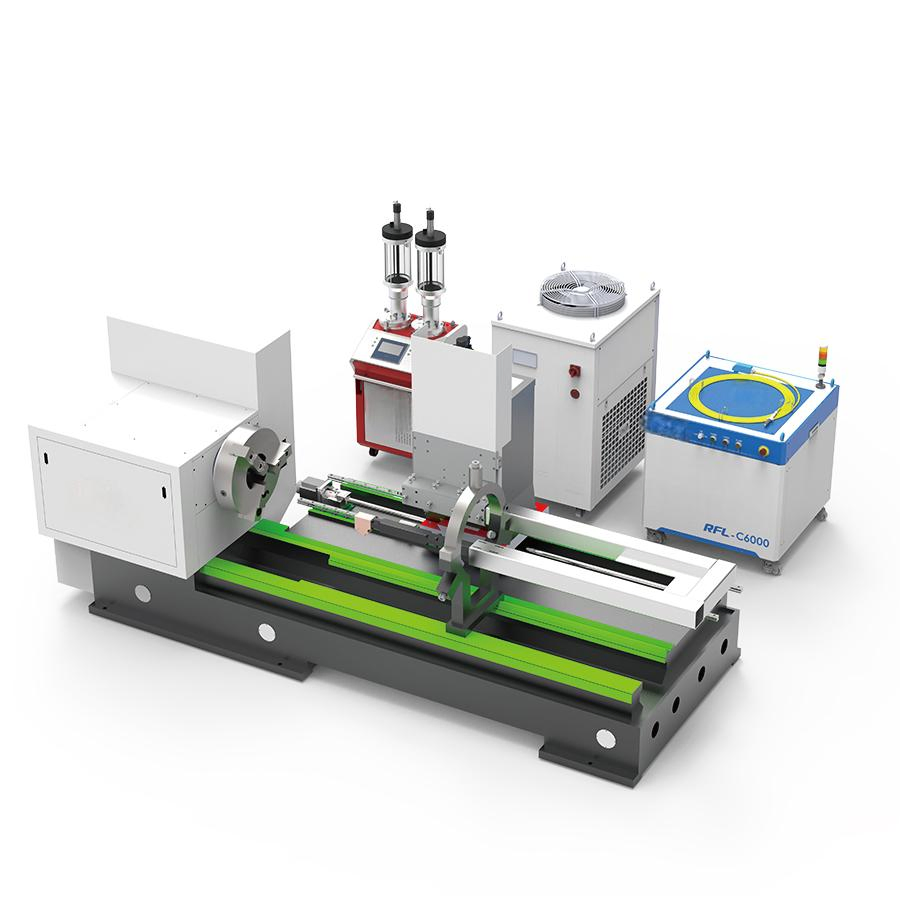

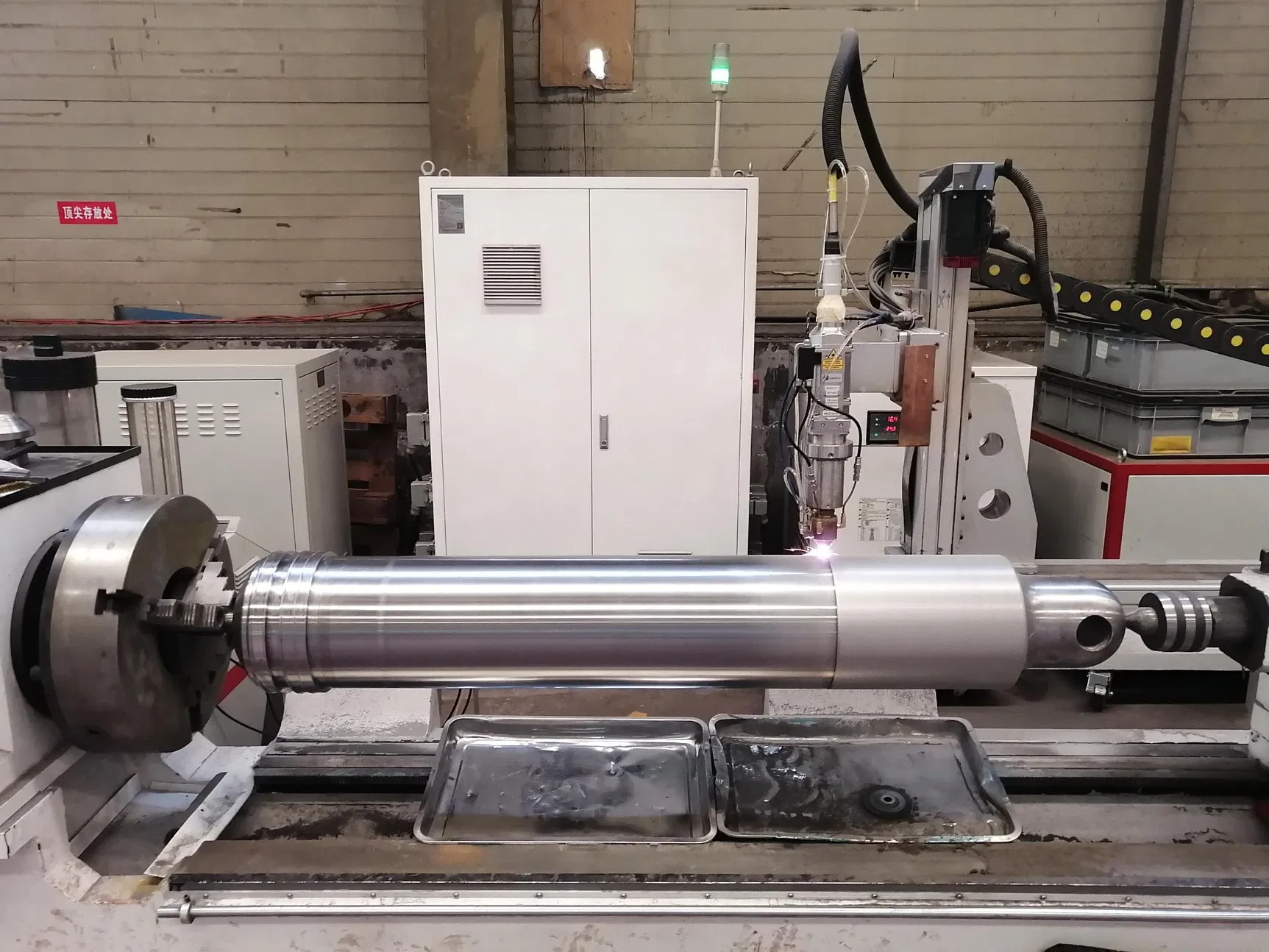

Specifically designed the Ultra-high-speed Laser Cladding System as an advanced composite machine. It perfectly integrates turning, cladding, and mirror processing into one platform. Operators can sequentially complete additive machining, deductive machining, and mirror finishing on shaft parts using just a single clamping setup.
| Specifications | Details |
|---|---|
| Laser Source | Fiber / Diode laser |
| Laser Power | ≤ 12 kW |
| Processing Length | 3 m |
| Maximum Rotation Diameter | 400 / 600 mm |
| Weight Capacity | 3 t |
| Motion Mechanism | 3+1 Axis |
| Spindle Speed | 1-150 / 1-200 rpm |
| Deposition Efficiency | ≤ 500 cm²/min |
| Layer Thickness | 50 - 1500 μm |
| Substrate Dilution Rate | < 1% |
| Repeat Position Accuracy | ± 0.05 mm |

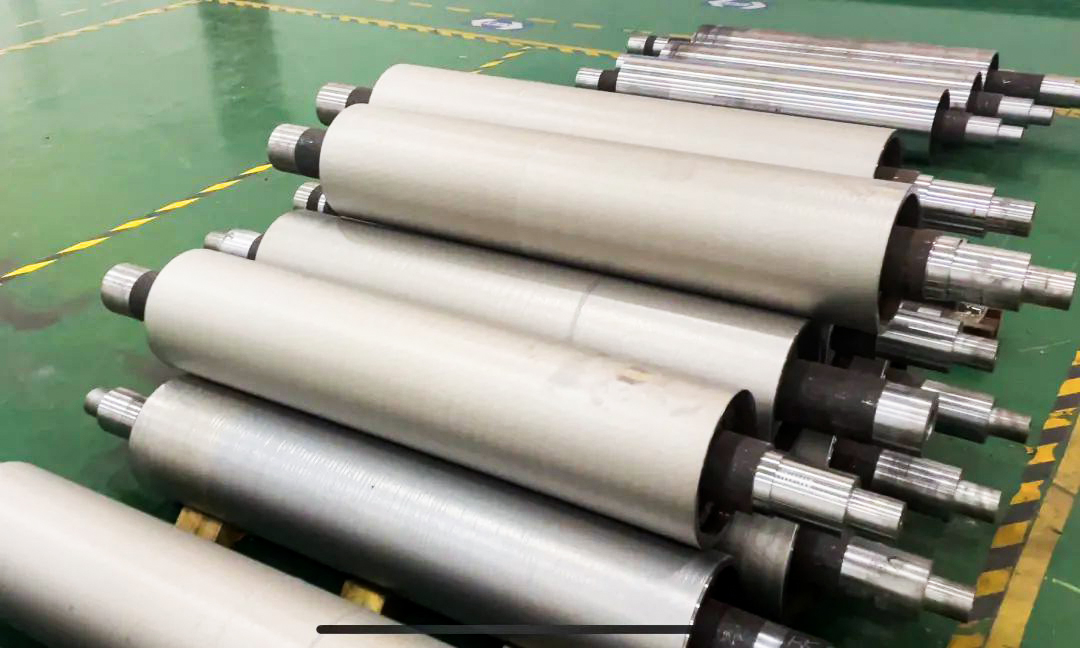

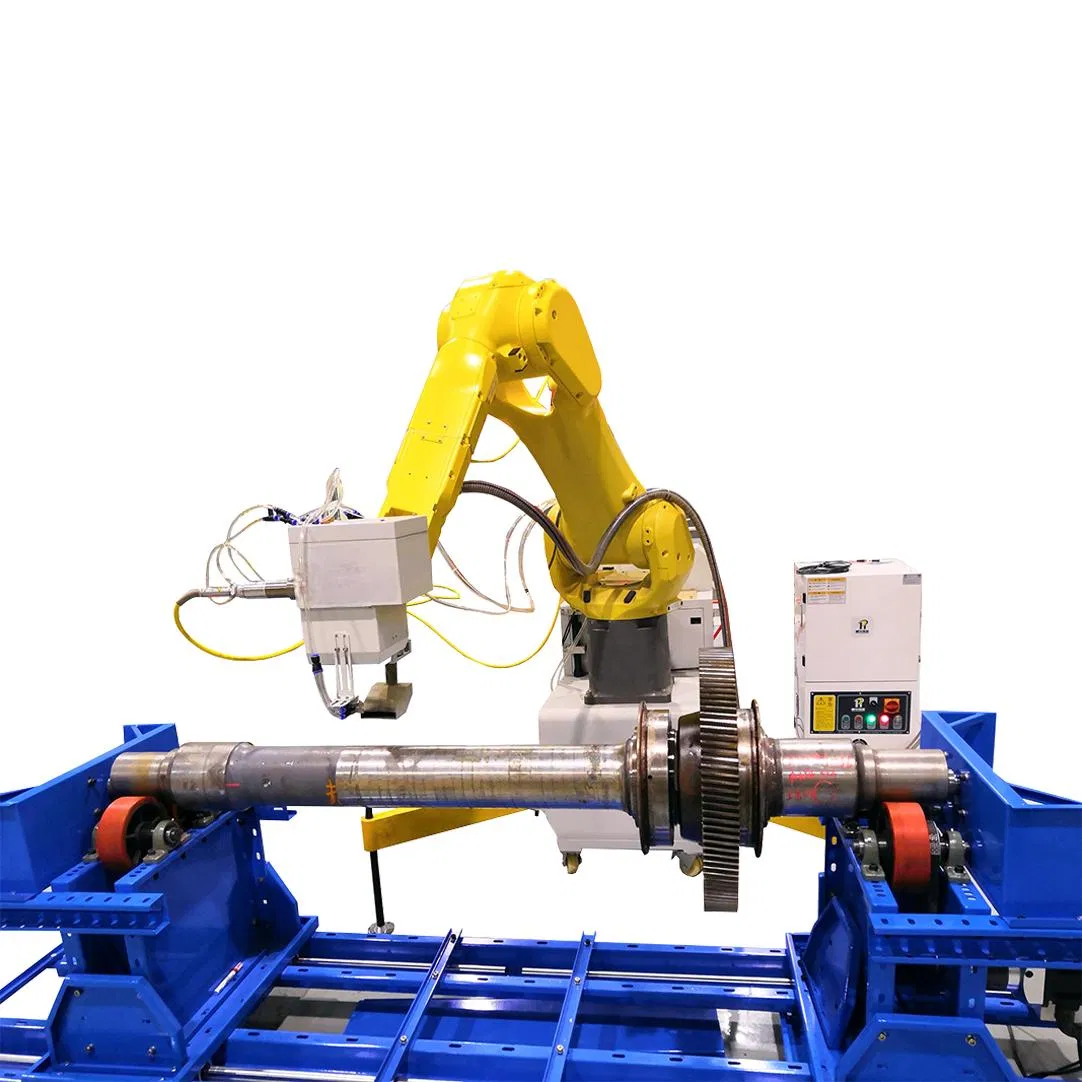

This equipment processes all types of industrial shafts and rolls perfectly. It serves as an essential manufacturing and repair tool for heavy-duty sectors, including:
Break Wear Limits with Smart Laser Cladding System
Restore factory precision. Our smart laser cladding system gives you industry-leading surface strengthening and repair solutions.
Precise Control: Minimal heat input ensures the base material never warps during processing.
Metallurgical Bond: The cladding layer fuses densely with the substrate. It resists peeling and withstands high-impact strikes.
Automated Operation: A smart closed-loop control system lowers the learning curve, making complex processing simple and efficient.
