Product Description

Product Overview
Model NO.
lv12
Application
Metal / Machinery
Control Method
Closed-Loop Control
Processing Precision
0.05~0.06(mm)
Certification
GS, CE, RoHS, ISO 9001
Quality Control
100% Inspected
Key Functions & Details
⚙️

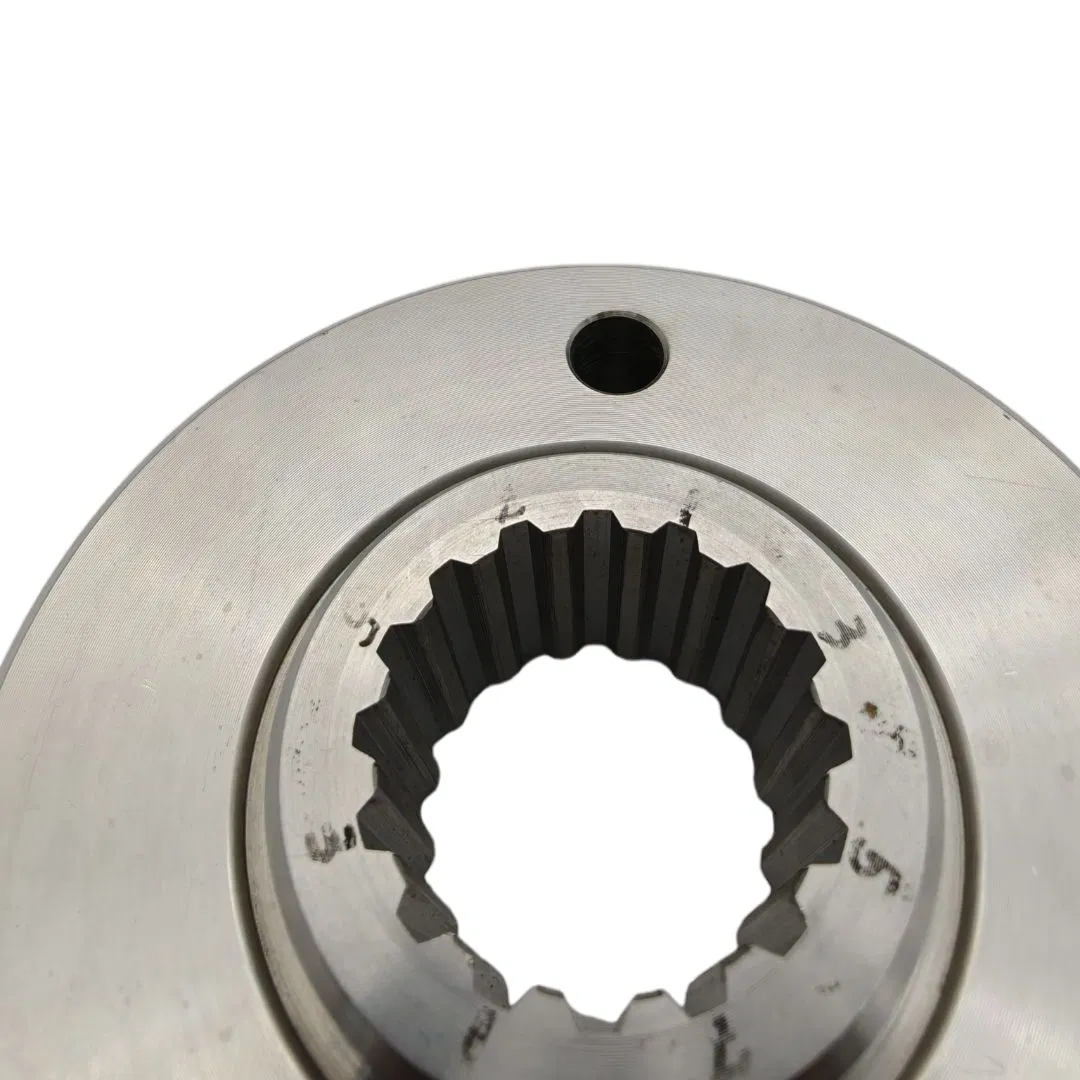

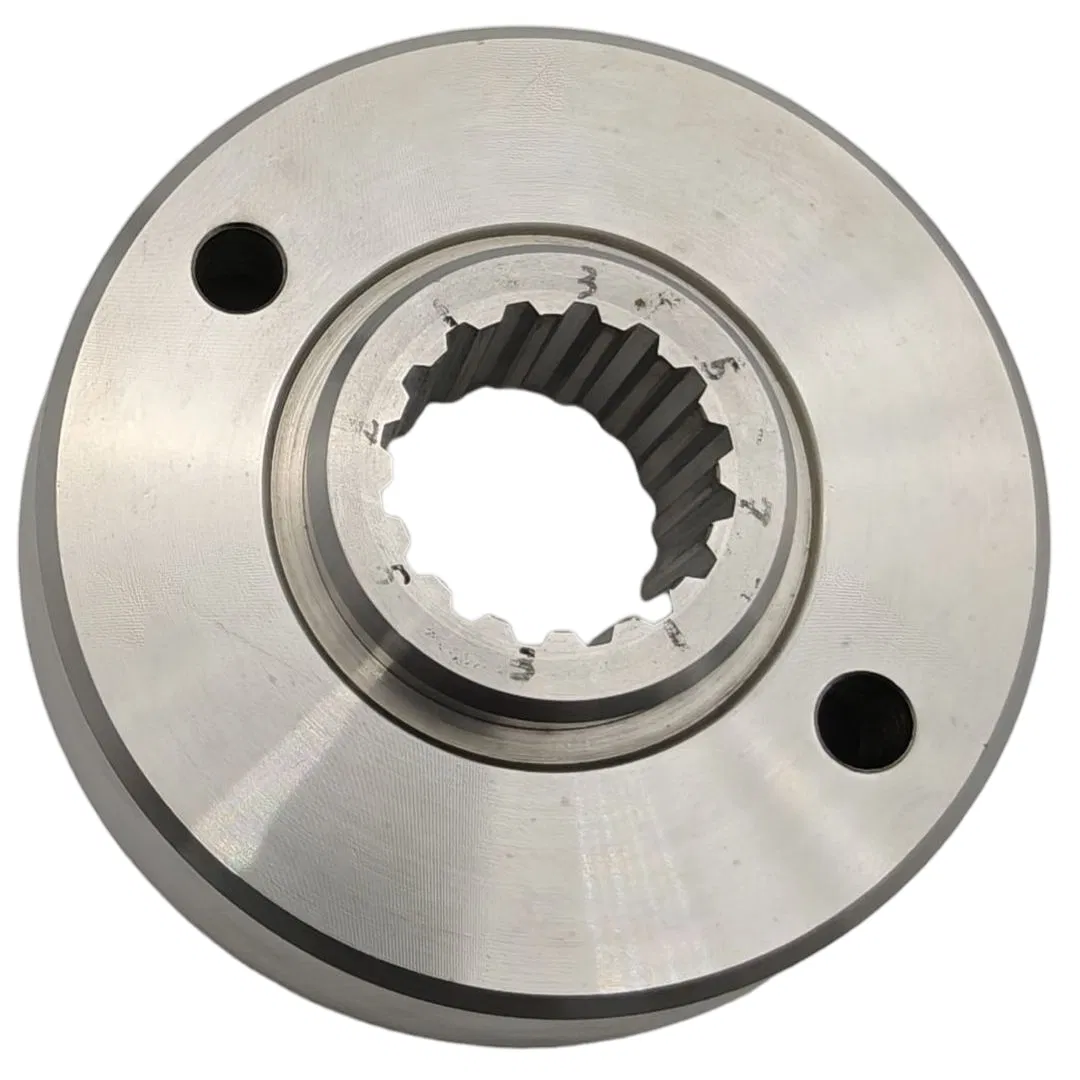

Torque Transfer with Axial Flexibility: Internal splines mesh with externally splined shafts for efficient torque transmission and controlled axial movement.
🎯
Precision Alignment: Dowel hole ensures perfect rotational alignment with gears and synchronizer rings, preventing mispositioning.
🛠️
Cast Features: Includes lubrication galleries for reduced wear, weight-saving pockets for efficiency, and hydraulic chambers for pressure-driven actuation.

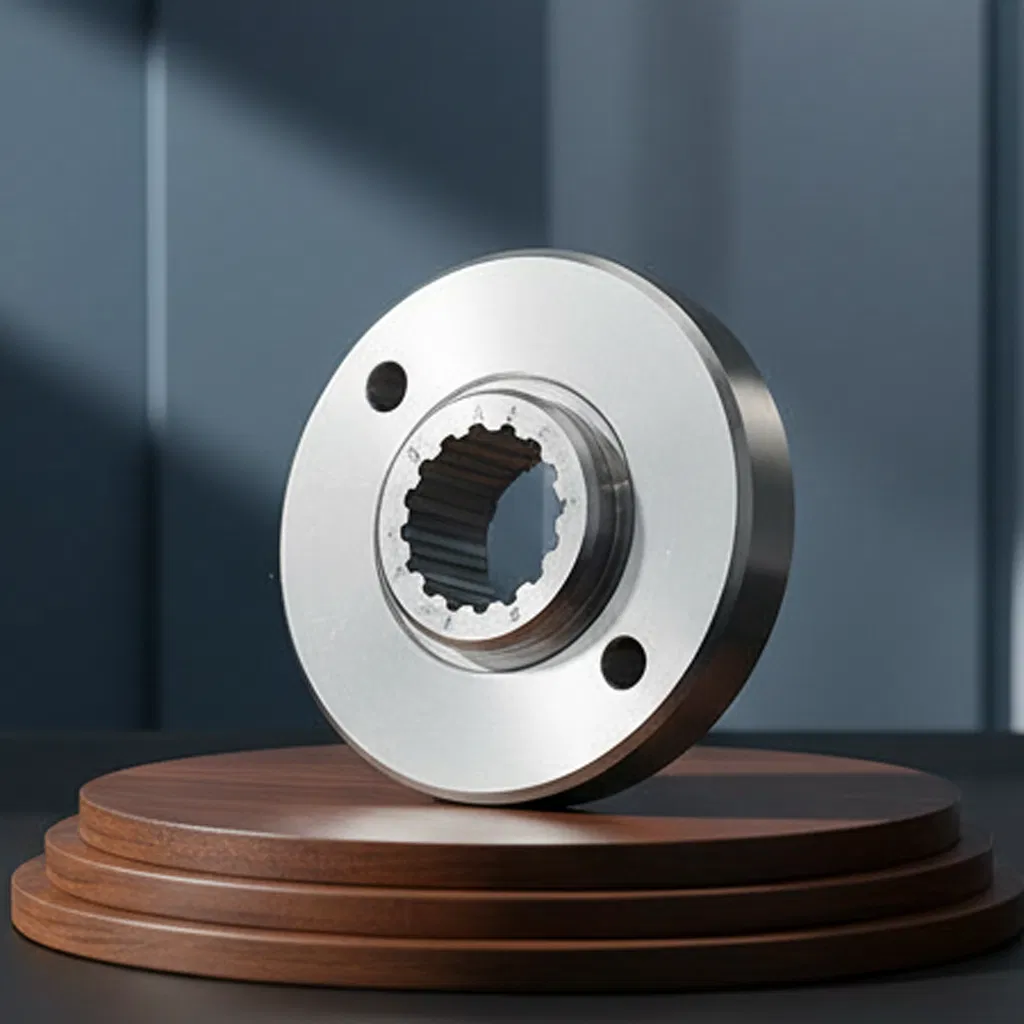

Heavy-Duty Engine Transmission Component Detail

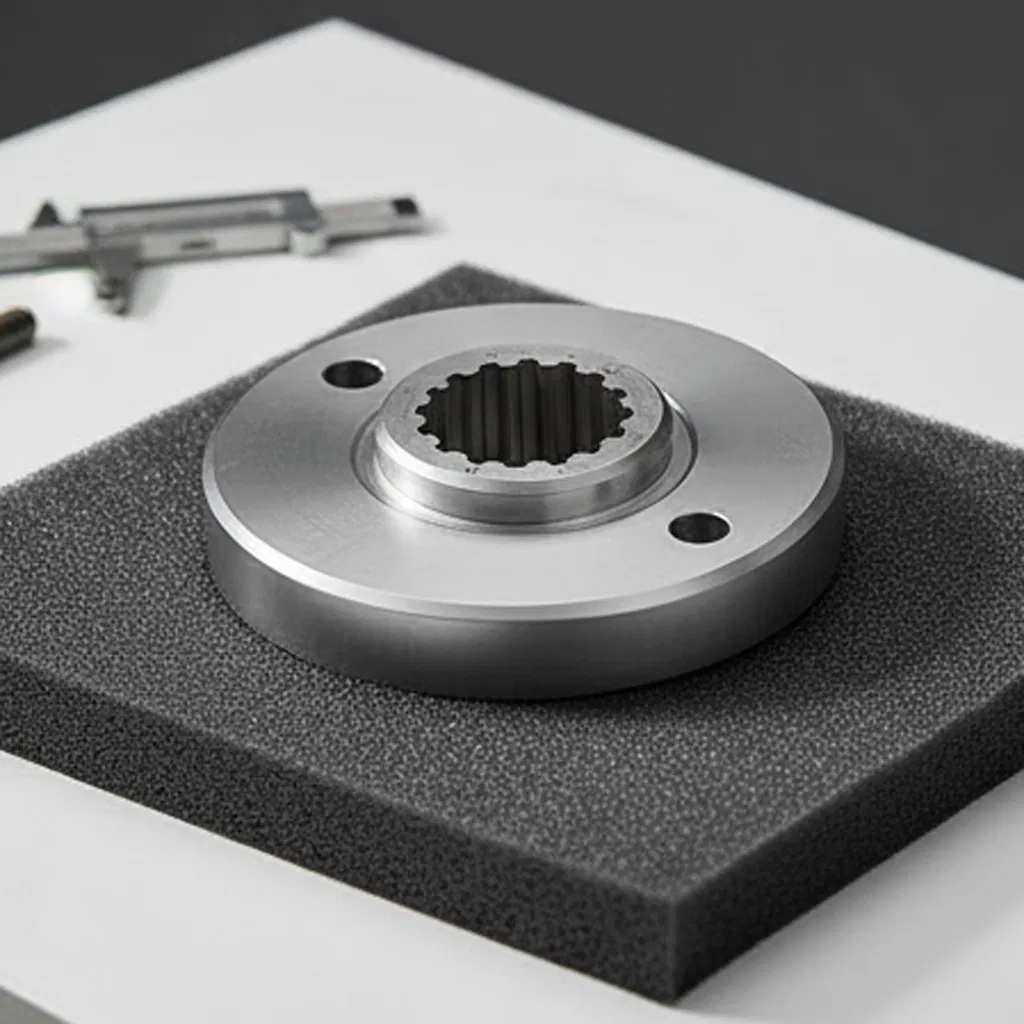

Precision Drive System Spline Component
Technical Specifications
Item Description
Design/SizeAccording to customer's drawing or sample
MaterialAluminum (6061, 7075, A380), Stainless Steel (304, 316L), Carbon Steel, Brass, Titanium (TC4), Plastics (POM, Peek)
ProcessCutting, Bending, Turning, Milling, Stamping, Lathing, Welding
Leadtime3-7 working days for samples; mass production based on quantity
Surface TreatmentAnodized, Passivating, Polishing, Chroming, Sandblasting, Zinc/Nickel plating, Heat treatment
Quality SystemISO 9001, IATF 16949, ISO14001
File FormatSolidworks, Pro/Engineer, CAD, PDF, DXF, IGS
Primary Applications
Automotive: Synchronizer hubs in manual or dual-clutch gearboxes for smooth engagement.
Heavy Machinery: Connecting shafts in excavators and tractors to handle high shock loads.
Automation: Robotics and CNC machines requiring precise torque and axial control.
Product Gallery
Transmission Component View 1
Transmission Component View 2
Transmission Component View 3

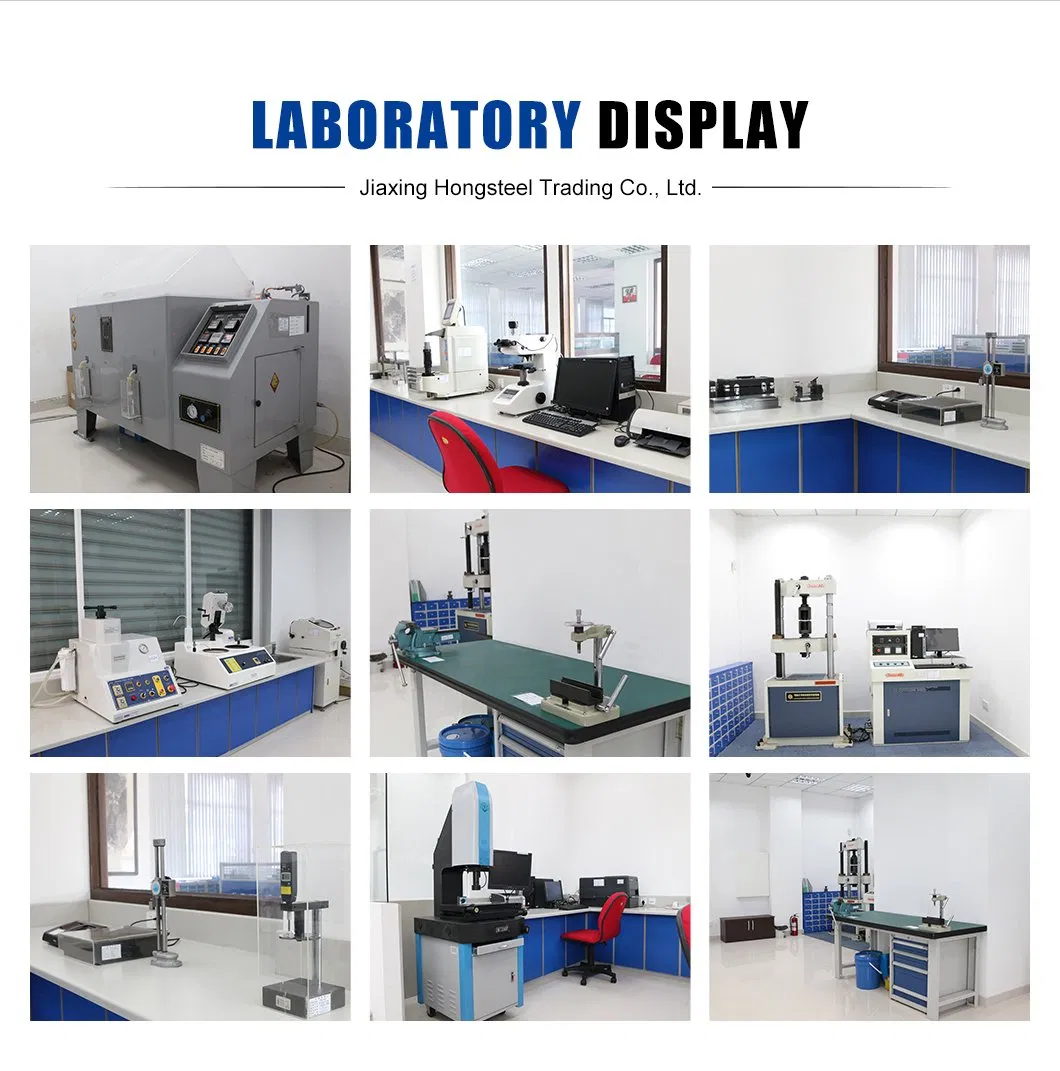

Production Process
Precision Measurement
Workshop Equipment
Quality Inspection Center
Final Product Packaging
Frequently Asked Questions
What materials can be used for these CNC components?
We work with a wide range of materials including Aluminum (6061, 7075), Stainless Steel (304, 316), Carbon Steel, Brass, Titanium, and various engineering plastics like POM and PEEK.
What is the typical lead time for samples?
Generally, samples are completed within 3-7 working days. Mass production timelines depend on the specific order quantity after sample approval.
Which industries use these transmission components?
These parts are widely deployed in automotive transmissions, heavy machinery (excavators, tractors), industrial automation, robotics, and medical equipment manufacturing.
Do you provide surface treatment for the parts?
Yes, we offer comprehensive surface treatments including clear/color anodizing, polishing, zinc/nickel/chrome plating, sandblasting, laser engraving, and heat treatment.
How is product quality ensured?
We are ISO 9001 and IATF 16949 certified. All parts undergo 100% inspection using advanced equipment such as CMM, 2D projectors, and hardness testers before delivery.
Can you produce parts based on custom drawings?
Absolutely. We manufacture strictly according to customer-provided drawings or samples, supporting file formats such as Solidworks, CAD, PDF, and IGS.
