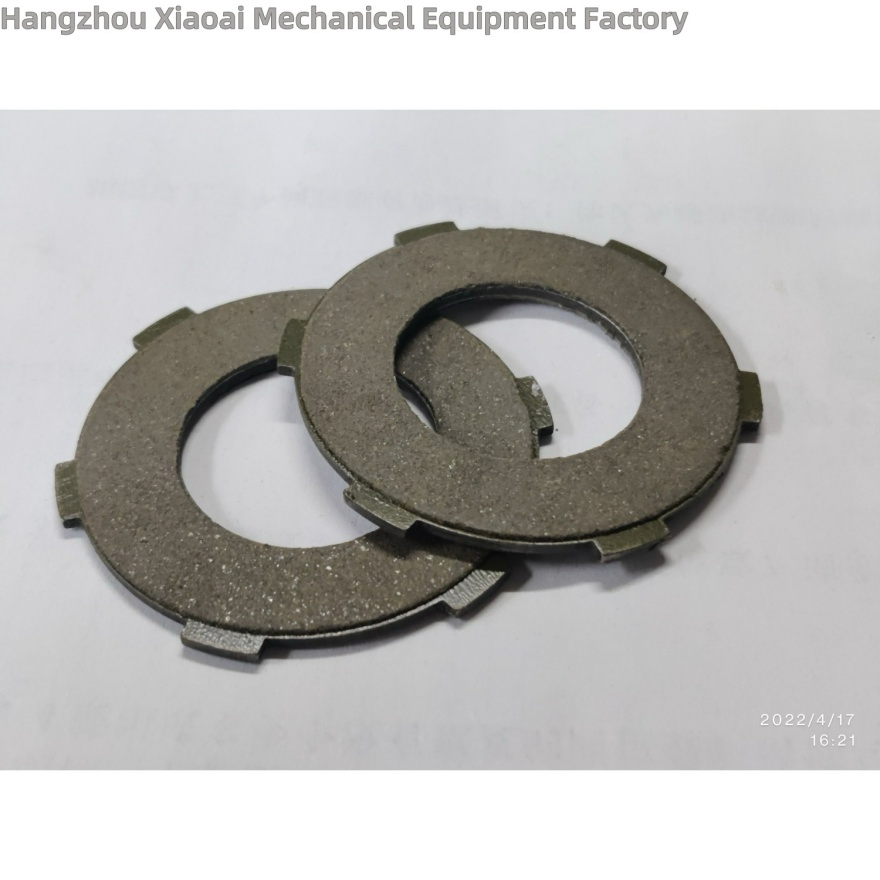

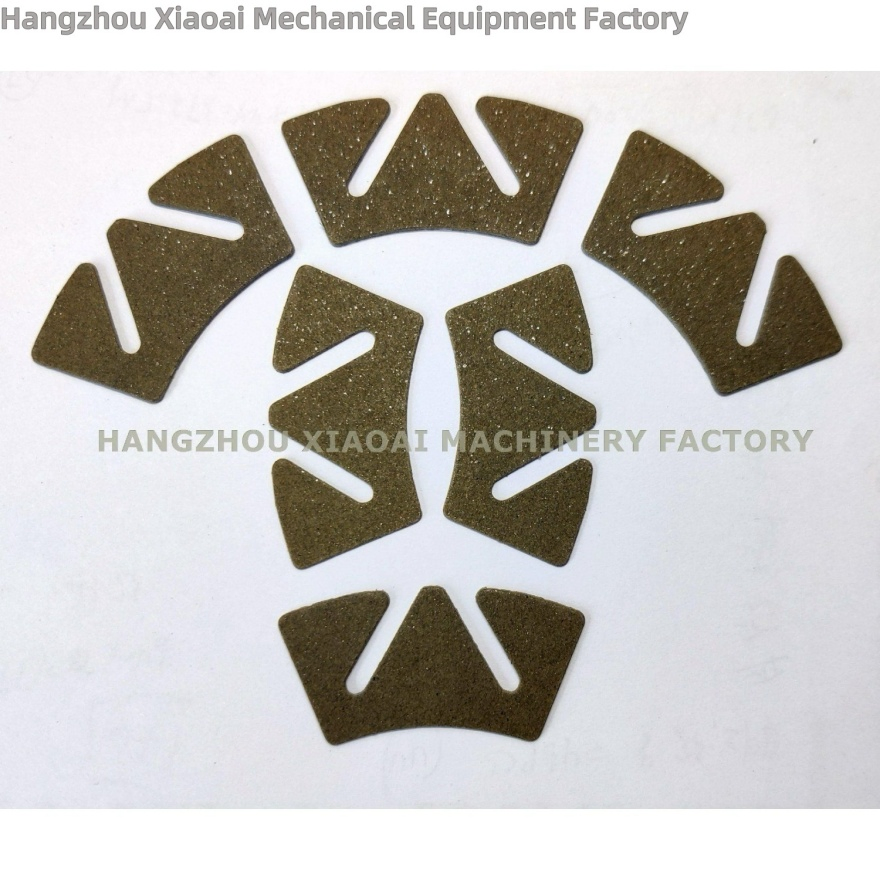

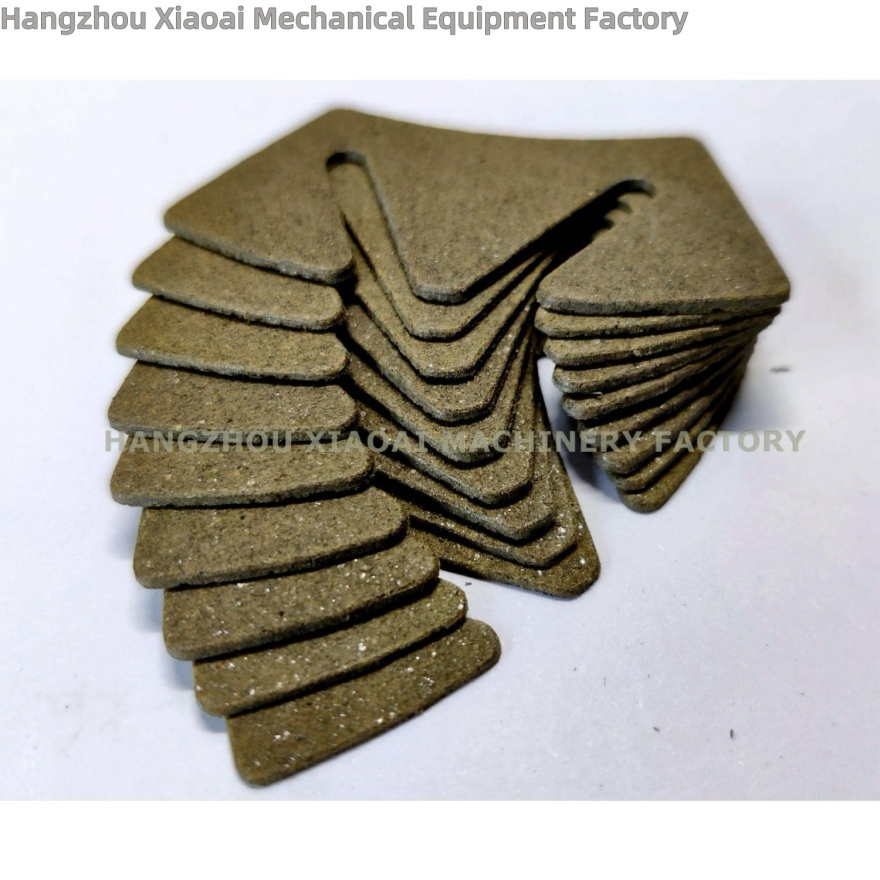

Xiaoai Hot Sale Paper Based Brake System for Wet Clutch

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.:DLZ
Part:Clutch Disc
Material:Carbon Fibre
Classification:Friction Clutch
Certification:CE, RoHS
Usage:Heavy Duty Trucks, Cars, Tractors
Electromagnetic Clutch:Wet Multi-Disc
HS Code:6813890000
Production Capacity:30,000 Kgs/Year
Origin:China
Product Description

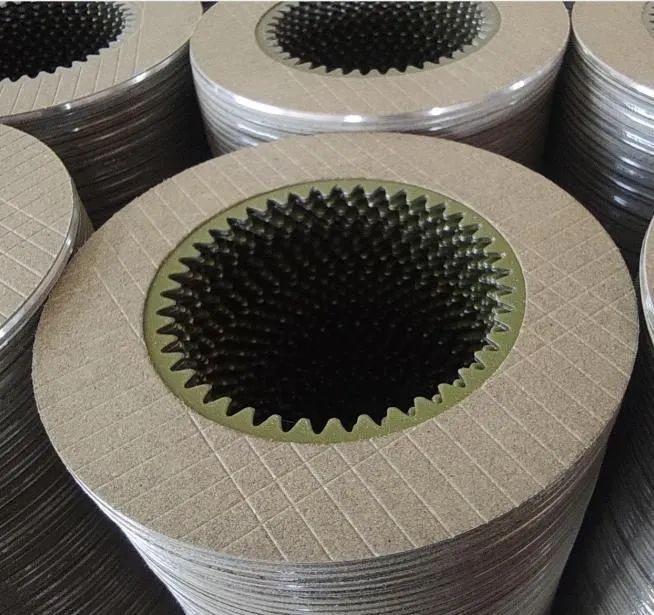

The paper-based friction pairs are widely used in the multidisc wet clutches in the transmission system of commercial and civil cars. Paper-based friction material has porous microstructure, enabling the lubricant to reach the contact interface and providing lubrication. As power shift and torque transfer devices, wet clutches frequently work under extremely poor working conditions, for instance, high initial relative sliding velocity, high surface pressure, and high temperature rise. It is essential to investigate the frictional performance of friction pairs to optimize the design of wet clutches and improve the performance of vehicle.
Installation Instructions
Installation Step 1
Installation Step 2
Installation Step 3
Installation Step 4
Installation Step 5
Product Parameters
Feature Specifications

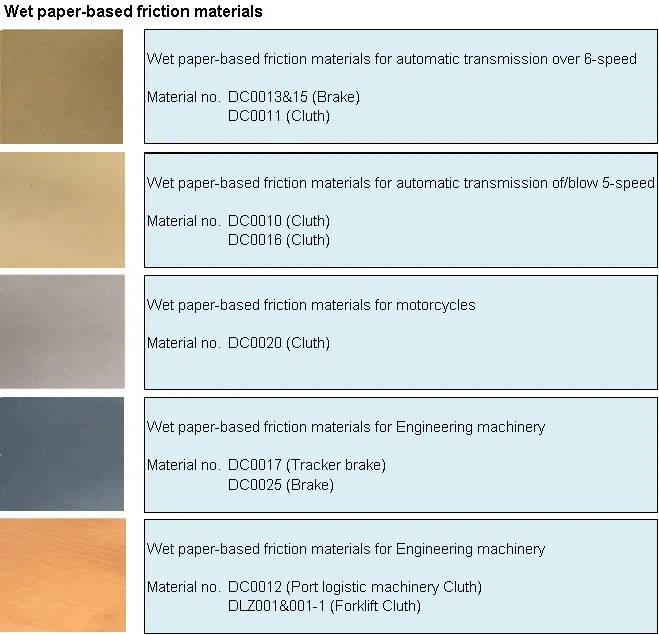

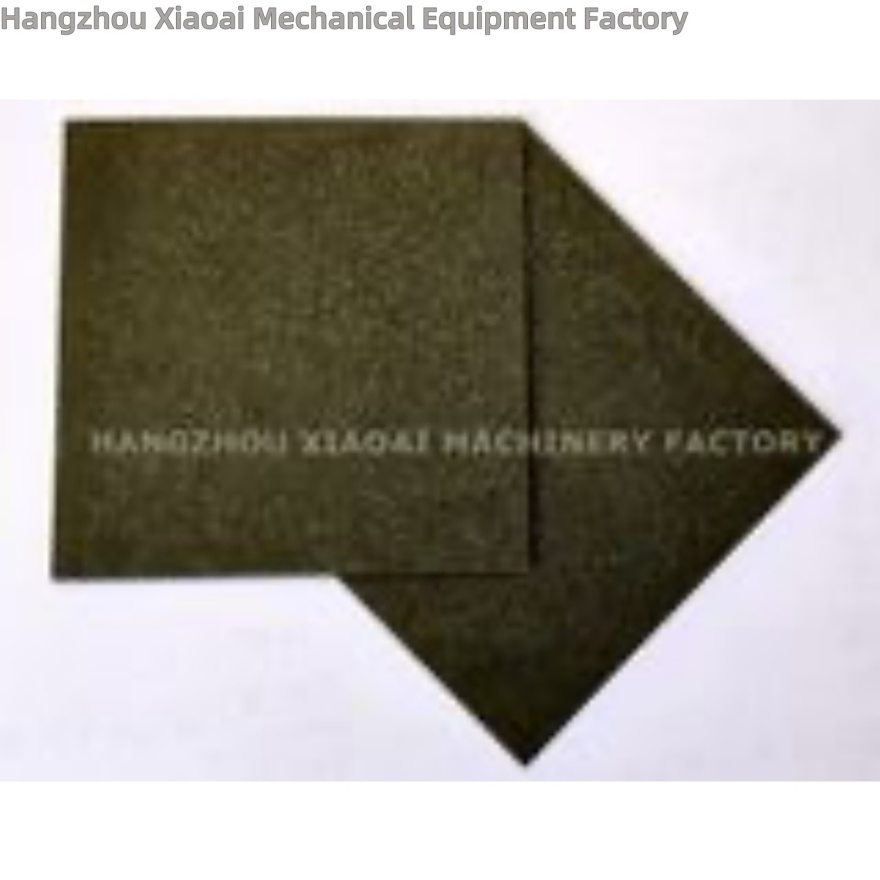

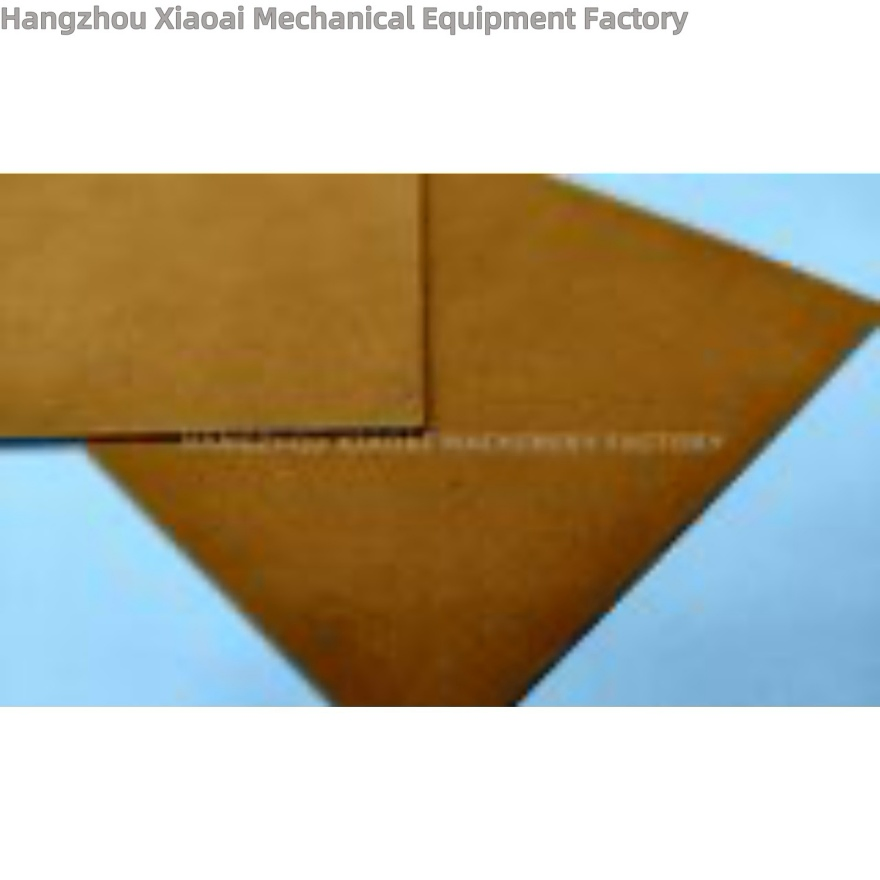

Material: Wet paper-based friction materials & Wet paper-based friction disc

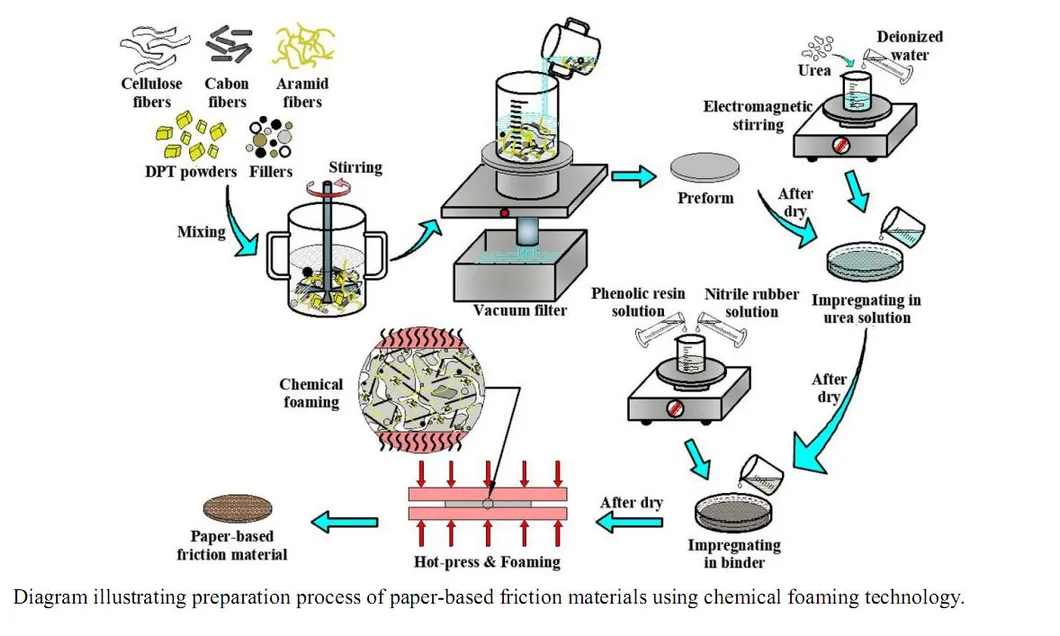

Raw Material (Component): 45-55% fibre (aramid, carbon, composite); 20% functional raw materials; remaining filling material (Aluminium oxide, silicone soil, etc). Glue content: 23-30%.
Size: Paper width: 600mm; Diameter range ≤ 600mm; Paper thickness: 0.6~2.5mm
Industrial Standards: GB/T 13826-2008, GB/T 21955-2008, GB/T 37208-2018, GB/T 15141-2009
Applications Range: Excavator, Loader, Bulldozer, Tractor, Harvester, Forklift, Reducer, Wet Clutch/Brake, Motorcycle clutch.
OEM Support: Available for all types of wet paper-based friction discs (e.g., JCB, MF).
Technical Specifications Chart

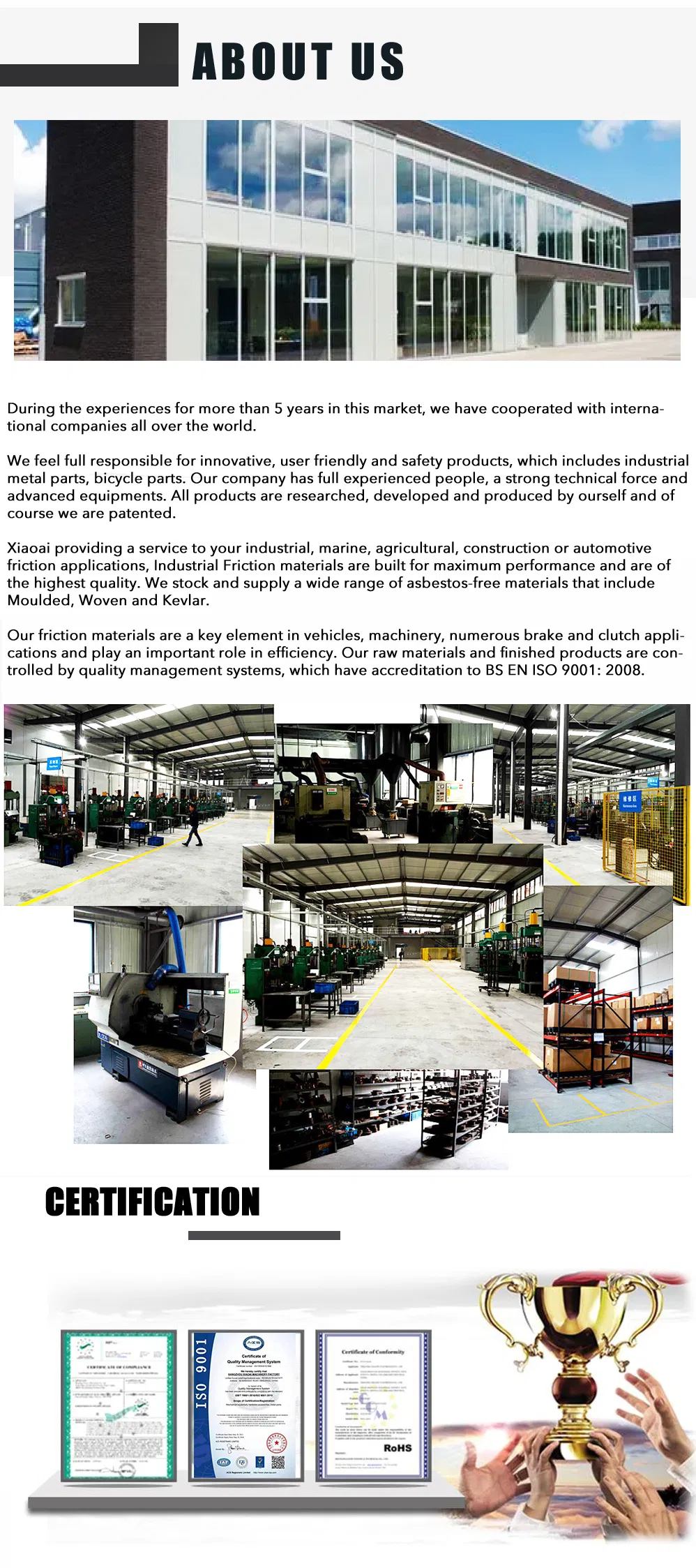

Production & Quality Control
Production also caters to OEM customers, ensuring high-standard manufacturing processes and quality stability.
Production Line
Packaging & Shipping
Logistics Information
Frequently Asked Questions
What are the main advantages of paper-based friction materials?
They offer a porous microstructure that allows for excellent lubricant flow, which provides better cooling and smoother engagement compared to traditional materials.
Can these friction discs be used in heavy-duty machinery?
Yes, they are specifically designed for high-pressure and high-temperature environments, making them ideal for excavators, bulldozers, and tractors.
Do you support custom sizes for specific applications?
We can manufacture discs up to a diameter of 600mm and paper thicknesses ranging from 0.6mm to 2.5mm based on your requirements.
What fibers are used in the production process?
Our materials typically contain 45-55% fibers, including high-performance aramid fiber, carbon fiber, and composite reinforced fibers.
Are these products compliant with international standards?
Yes, our products meet several GB/T industrial standards and are CE and RoHS certified.
Do you offer OEM services?
Yes, we provide OEM solutions for various brands and machinery types, including JCB and MF agricultural equipment.
