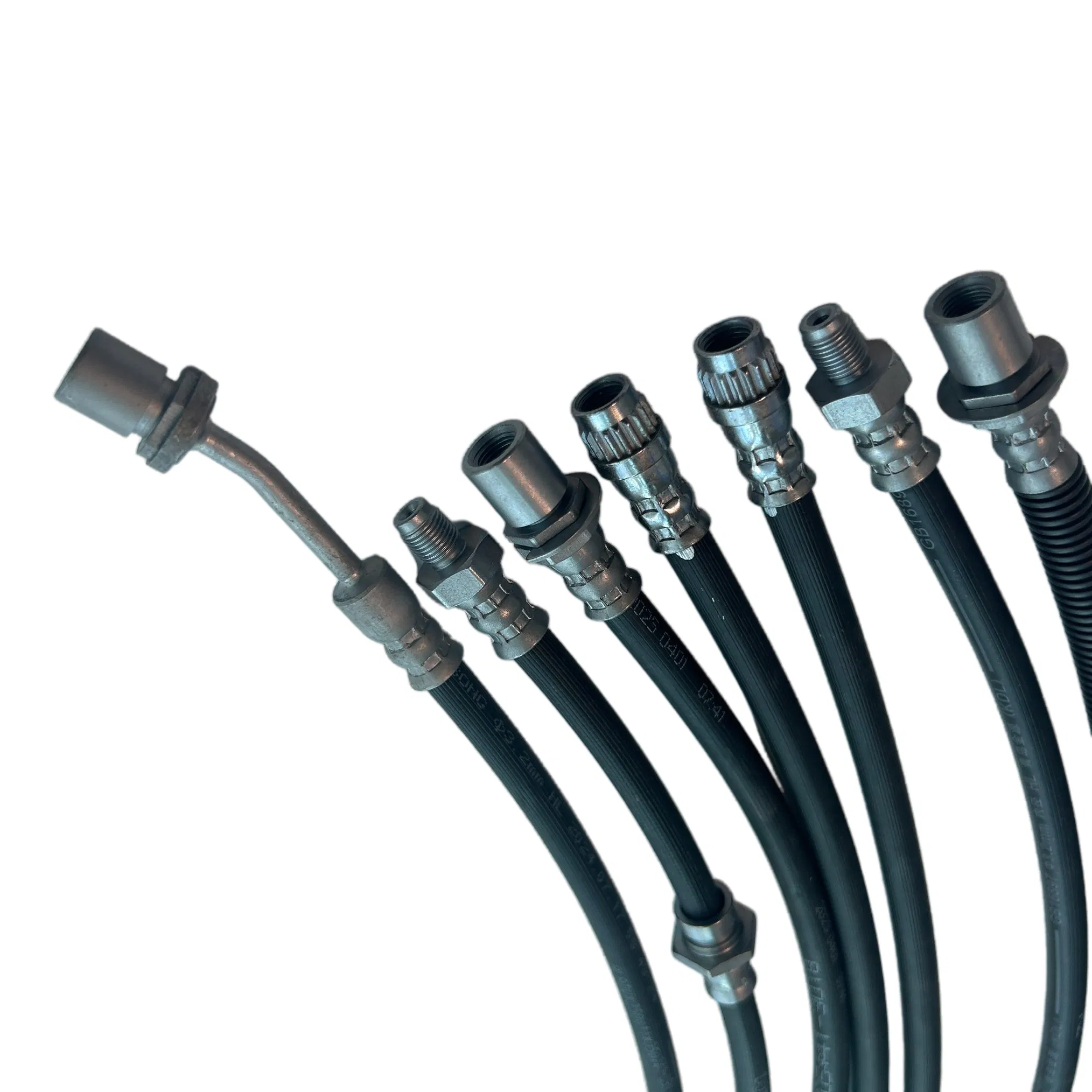

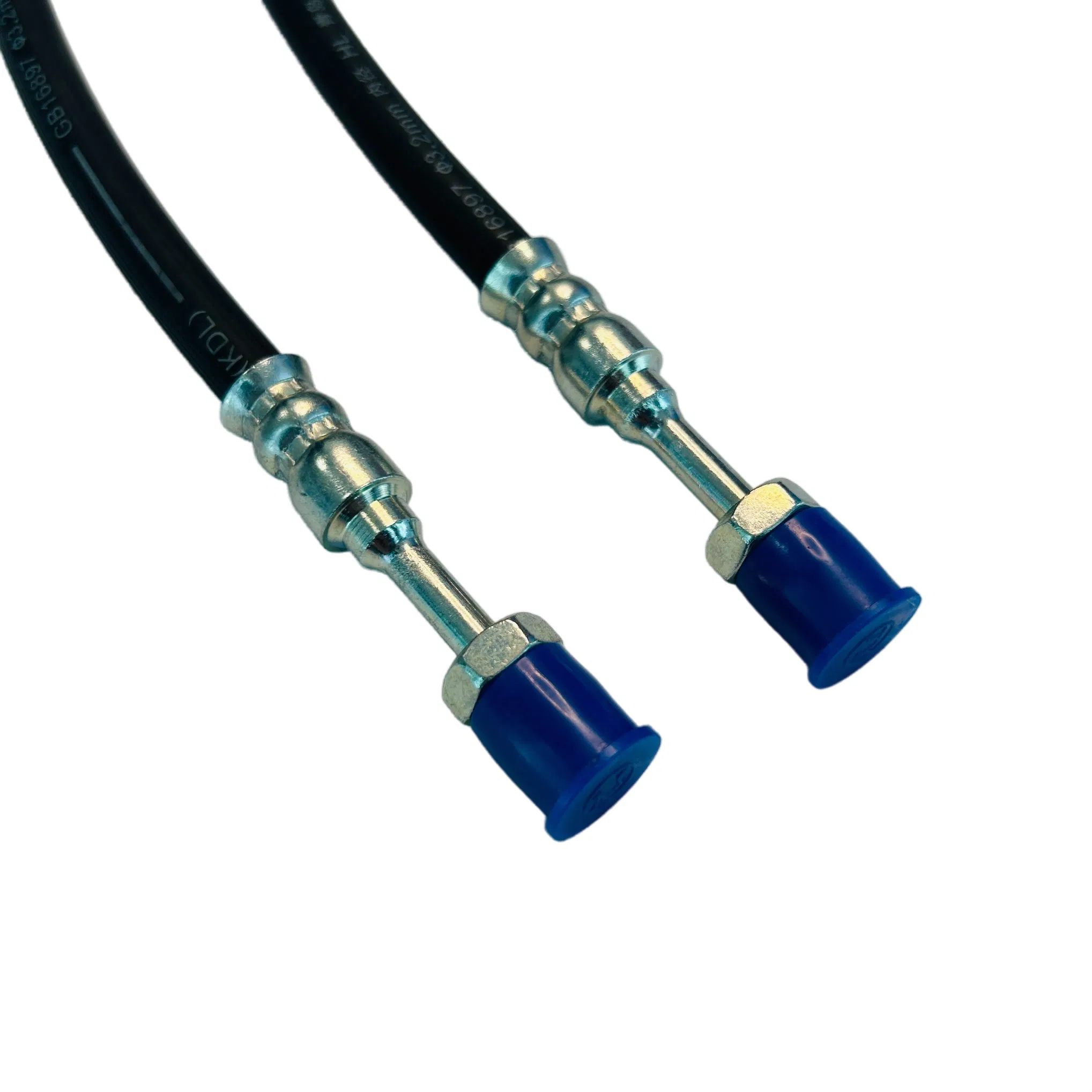

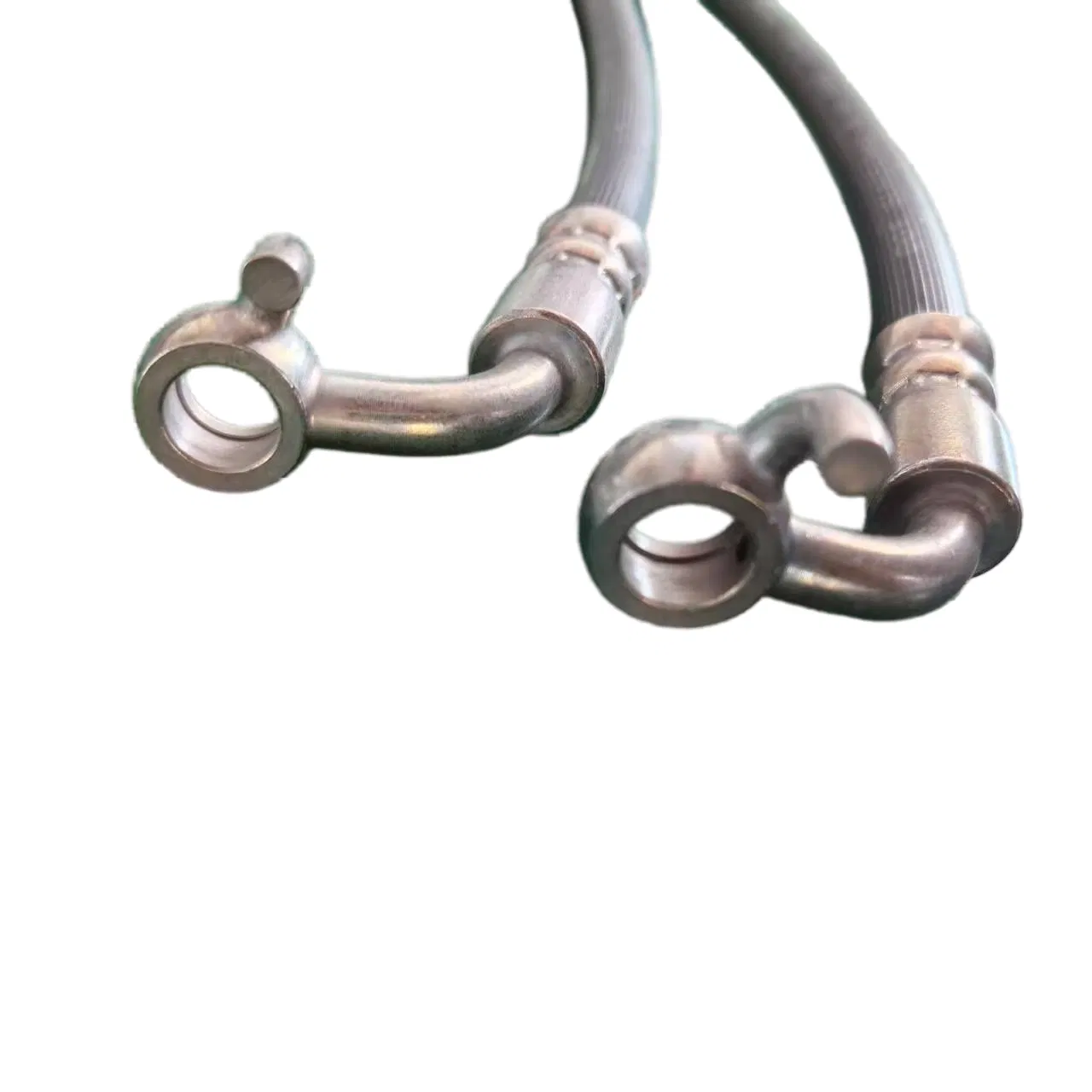

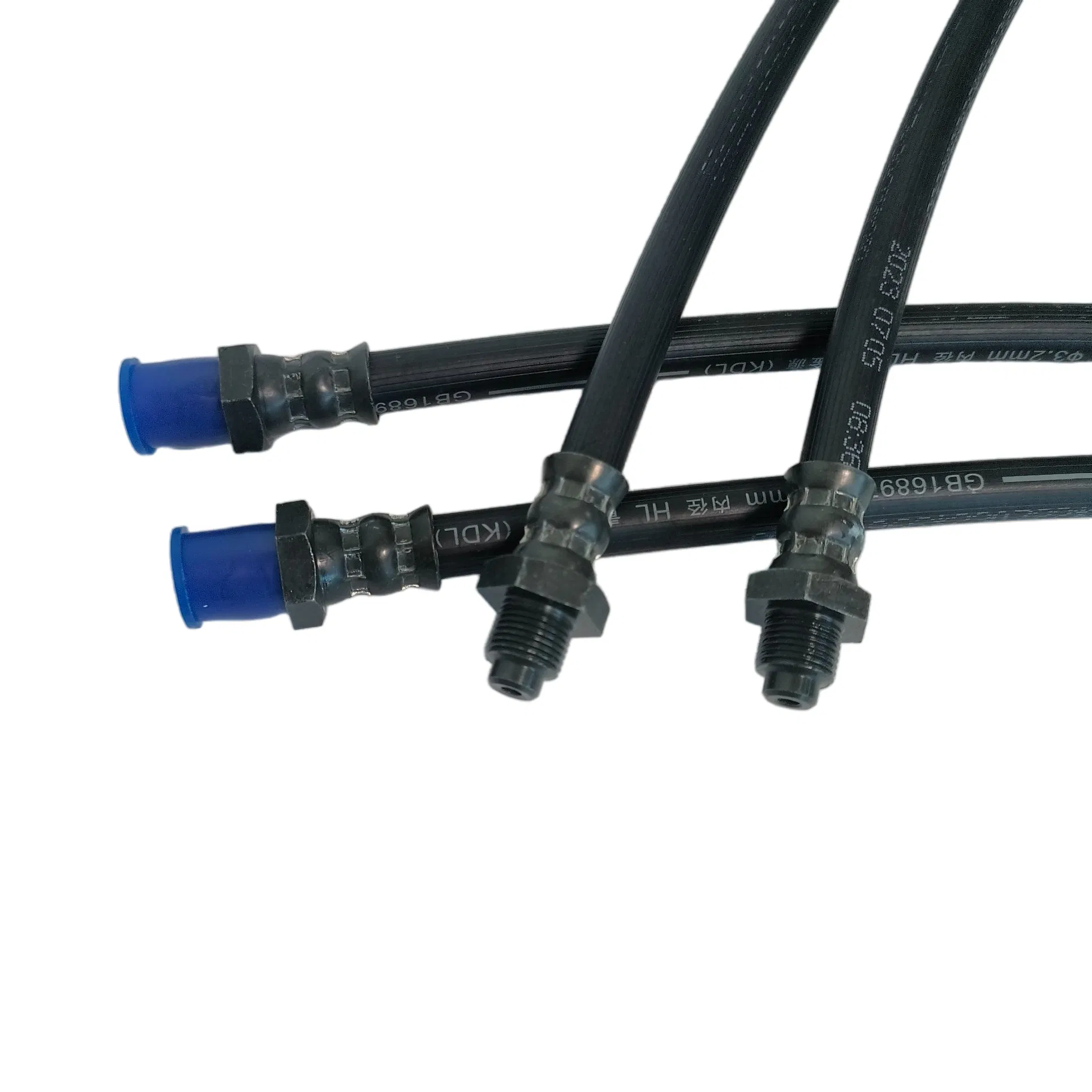

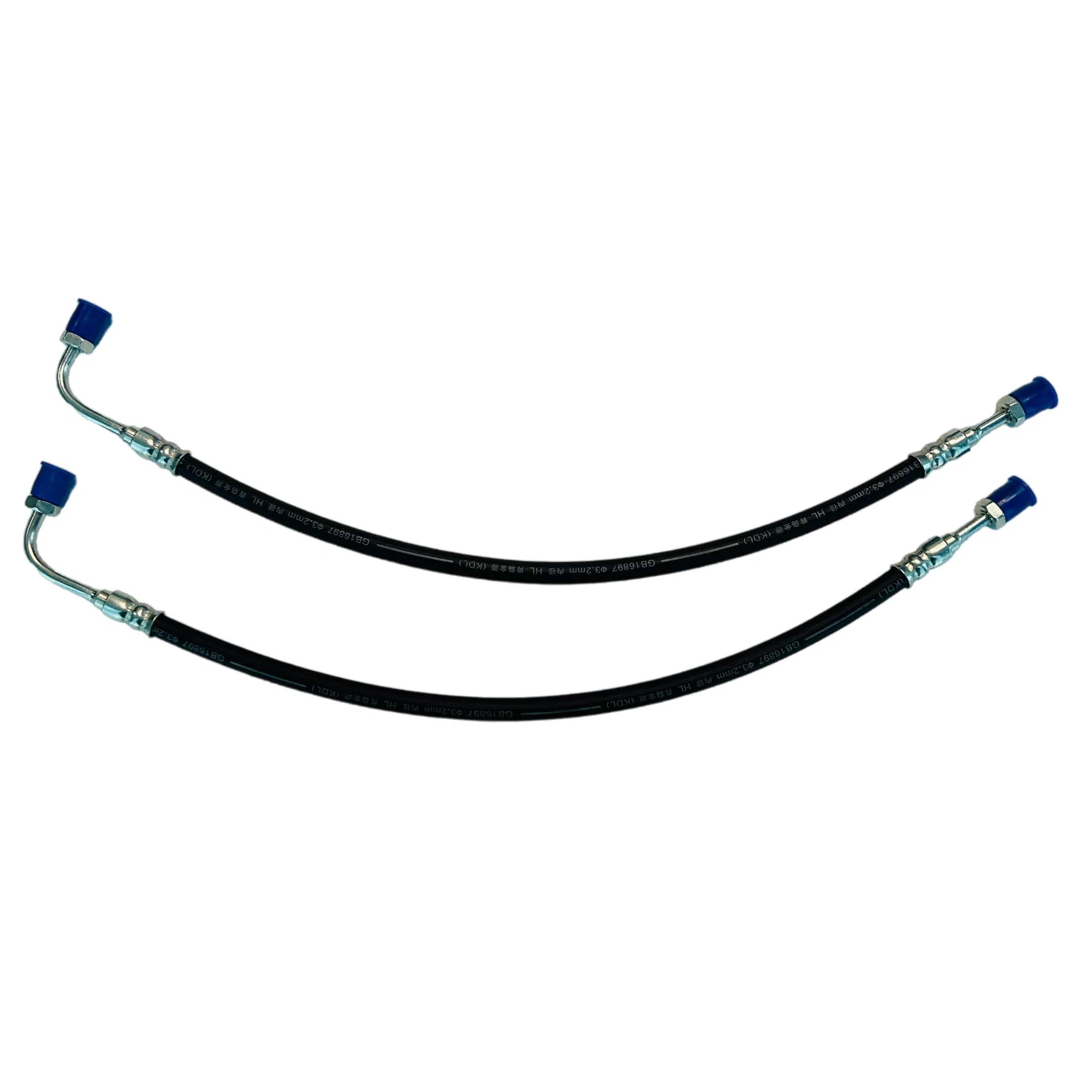

OEM Complies SAE J1401 DOT Fmvss 106 Standards Automotive Chassis Hydraulic EPDM Material 1/8-Inch Diameter Standard Automatic Braking System
OEM Complies SAE J1401 DOT Fmvss 106 Standards Automotive Chassis Hydraulic EPDM Material 1/8-Inch Diameter Standard Automatic Braking System
OEM Complies SAE J1401 DOT Fmvss 106 Standards Automotive Chassis Hydraulic EPDM Material 1/8-Inch Diameter Standard Automatic Braking System
OEM Complies SAE J1401 DOT Fmvss 106 Standards Automotive Chassis Hydraulic EPDM Material 1/8-Inch Diameter Standard Automatic Braking System
OEM Complies SAE J1401 DOT Fmvss 106 Standards Automotive Chassis Hydraulic EPDM Material 1/8-Inch Diameter Standard Automatic Braking System
1 / 5
OEM Complies SAE J1401 DOT Fmvss 106 Standards Automotive Chassis Hydraulic EPDM Material 1/8-Inch Diameter Standard Automatic Braking System
OEM Complies SAE J1401 DOT Fmvss 106 Standards Automotive Chassis Hydraulic EPDM Material 1/8-Inch Diameter Standard Automatic Braking System
OEM Complies SAE J1401 DOT Fmvss 106 Standards Automotive Chassis Hydraulic EPDM Material 1/8-Inch Diameter Standard Automatic Braking System
OEM Complies SAE J1401 DOT Fmvss 106 Standards Automotive Chassis Hydraulic EPDM Material 1/8-Inch Diameter Standard Automatic Braking System
OEM Complies SAE J1401 DOT Fmvss 106 Standards Automotive Chassis Hydraulic EPDM Material 1/8-Inch Diameter Standard Automatic Braking System

OEM Complies SAE J1401 DOT Fmvss 106 Standards Automotive Chassis Hydraulic EPDM Material 1/8-Inch Diameter Standard Automatic Braking System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview & Basic Info
Model NO.
Brake hose
Type
Brake System
Material
Steel
Position
Front
Certification
IATF-16949
Inner Material
EPDM
Cladding
EPDM Synthetic Rubber
Enhancement
Fibre Weaving
Inside Diameter
1/8 Inch
Capacity
100,000 Sets/Year
Product Description

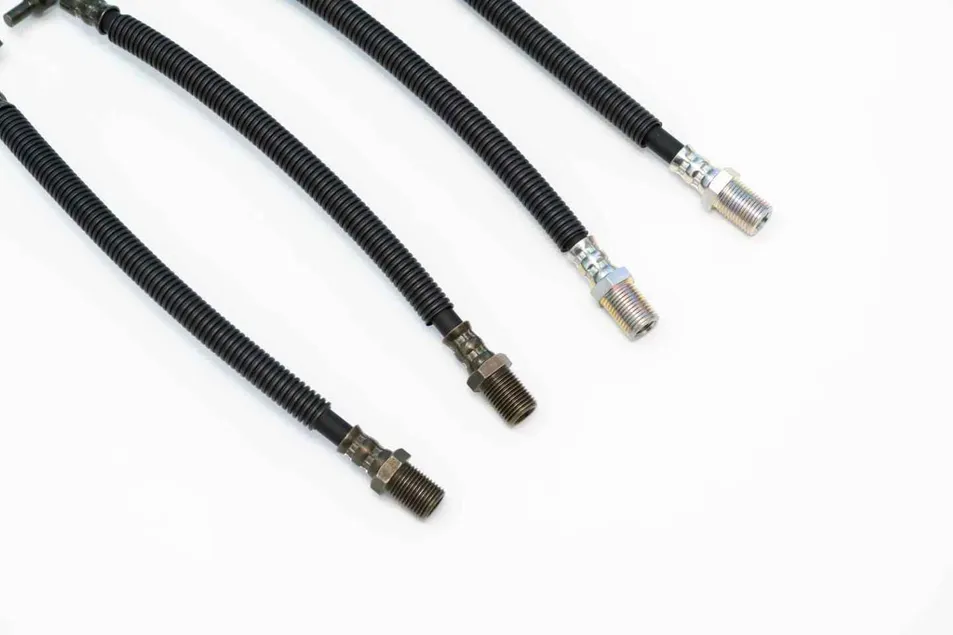

Brake Line System
Brake Line Specialists
We specialize in the manufacturing of high-performance brake tubing systems, offering a complete range of products to meet the diverse needs of the global automotive industry.
Our commitment to precision engineering, stringent quality control, and exceptional durability ensures optimal safety and reliability for every vehicle. We excel in providing customized production services to tailor each solution to your specific technical requirements and application standards.
Product Technical Specifications
Category Type Material & Construction End Fittings Dimensions Pressure Rating Customization
Brake Hose Hydraulic Brake Hose ECE R90 synthetic rubber, Textile/steel wire reinforcement M10×1.0, M12×1.0, 3/8-24 UNF; Zinc/Stainless steel ID: 3/16"; Length: 12-60" 2,500 PSI Any length, fitting combo
PTFE Stainless Braided PTFE inner liner, 304/316 stainless braid, PVC/Nylon cover AN Fittings: -3AN, -4AN; Metric: M10, M12; Banjo ID: 0.19-0.25"; Custom length 4,000+ PSI Braid density, covers
Air Brake Hose Oil-resistant rubber, Textile reinforcement 1/4" NPT, 3/8" NPT, M22×1.5; Push-to-connect ID: 1/4", 3/8"; Custom length 150 PSI Special lengths
Metal Brake Line Steel Brake Line Double-wall galvanized steel, SAE J1047, Zinc plating 45° inverted (SAE), bubble (ISO); M10×1.0 OD: 3/16", 1/4"; Wall: 0.028" 3,000 PSI Pre-made with bends
Copper-Nickel Line CuNiFe alloy (Kunifer), Corrosion resistant 45° inverted, bubble; Various adapters OD: 3/16", 1/4"; Wall: 0.028" 3,000 PSI Complex bend patterns
Stainless Steel Line 304/304L stainless steel, High strength AN Fittings: -3AN, -4AN; Metric/SAE Flare OD: 3/16", 1/4"; Wall: 0.028" 4,000+ PSI Medical-grade polish
Customization Capabilities
We provide highly flexible custom brake tubing solutions designed to meet your exact specifications. Our capabilities cover a wide range of materials including rubber, PTFE, stainless steel, and copper-nickel, available in both metric and imperial sizes.

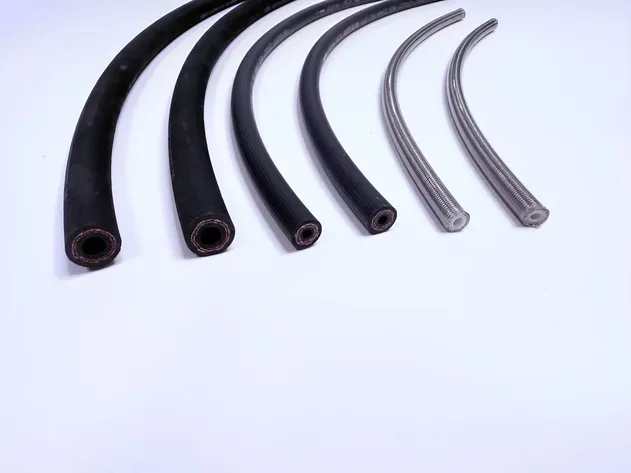

Hose Customization

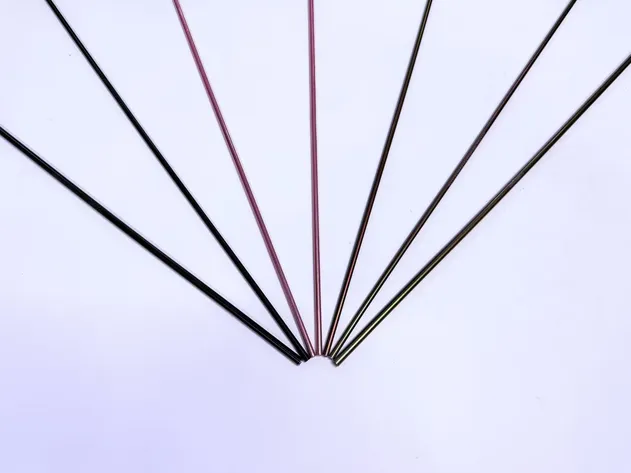

Metal Pipe Customization

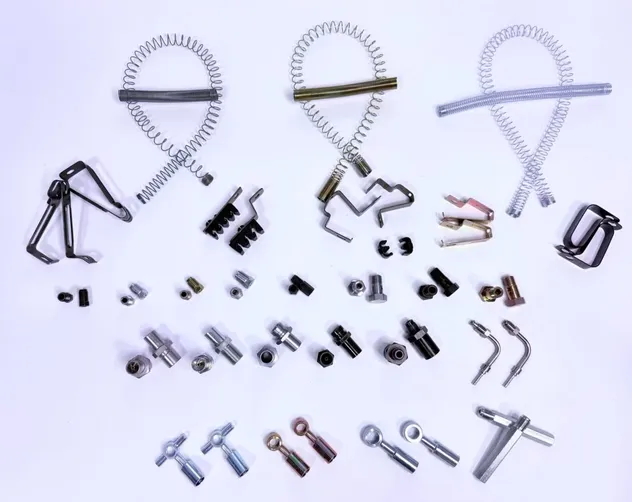

Metal Components
Key Custom Options: Multiple thread options (UNF, NPT, Metric), various angles (Straight, 45°, 90°, Banjo), and protective components (Spiral guards, convoluted conduits).
Brake Lines & Hose Types

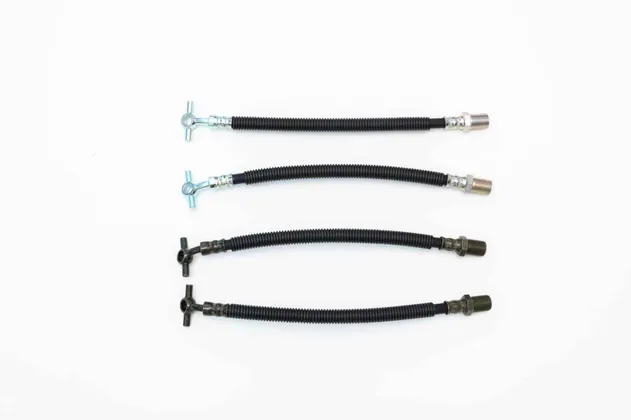

Rubber Brake Hose

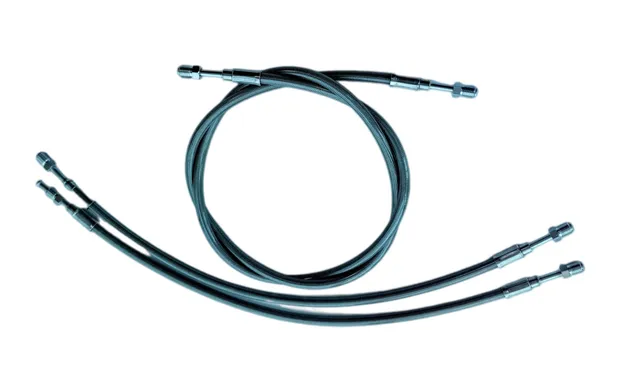

PTFE Brake Hose

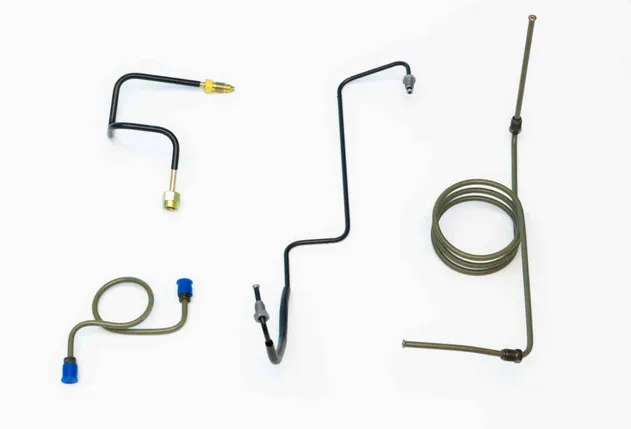

Metal Brake Line
Production & Testing Capabilities
As a trusted manufacturer of automotive fluid systems, excellence is ensured through advanced in-house testing and a quality system certified to IATF 16949:2016. Our Quality Assurance Center utilizes state-of-the-art equipment to rigorously validate every product in line with ISO, DIN, DOT, and CE requirements.

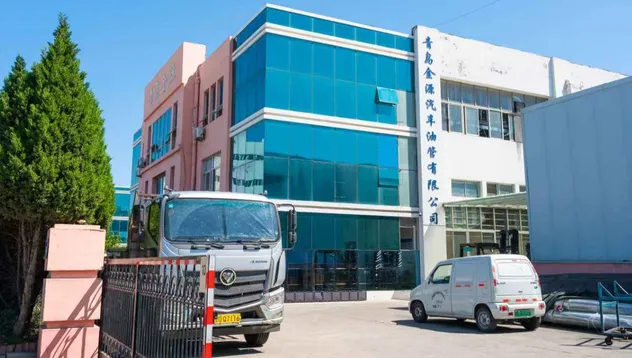

Workplace 1

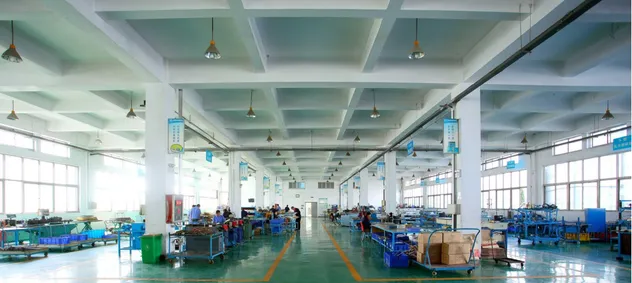

Workplace 2

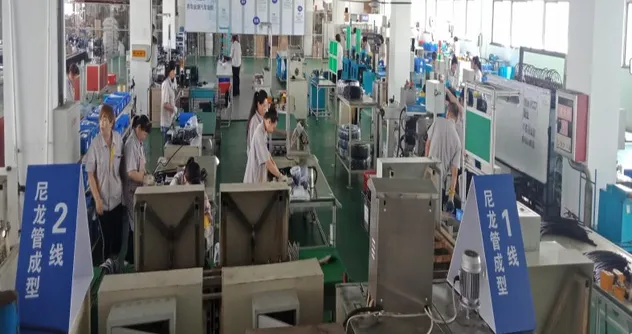

Workplace 3
Testing Equipment

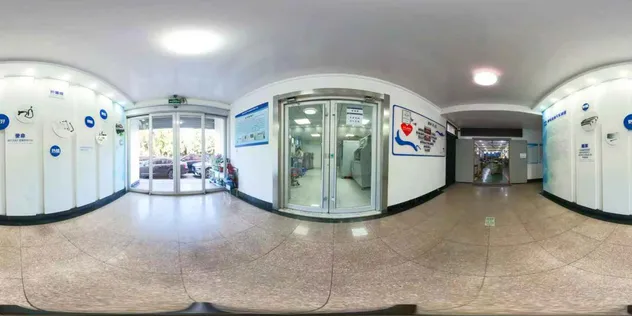

Testing 1

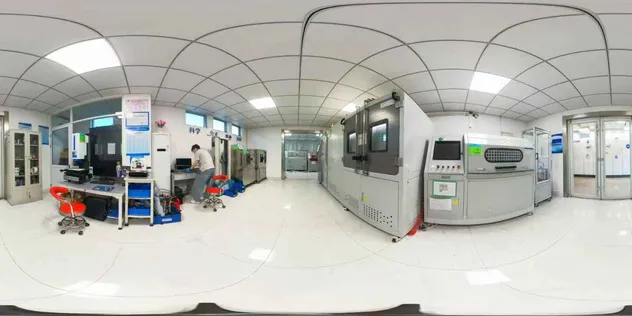

Testing 2

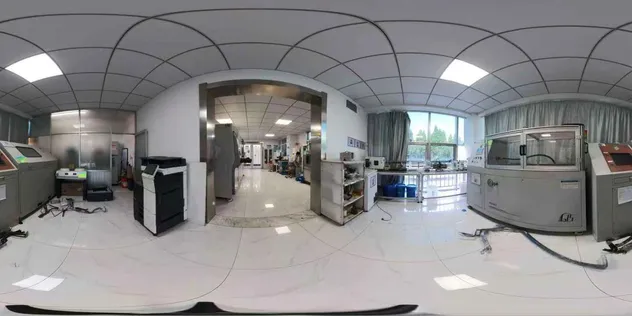

Testing 3
Cooperation Channels
🚗
OEM & Tier 1
Support for 2D/3D CAD drawings and technical material standards (SAE / ISO / ECE R90).
🛠️
Aftermarket Distributors
Production based on OE part numbers or physical samples.
🏁
Modification / Motorsport
High-performance data requirements (pressure/temp) and custom appearance styles.
Frequently Asked Questions
What quality standards do your brake hoses meet?
Our products are manufactured to meet or exceed international standards including SAE J1401, DOT, IATF-16949, and ECE R90, ensuring safety and global compliance.
Can you provide customized brake line lengths and fittings?
Yes, we offer fully customizable solutions including specific lengths, specialized end fittings (Metric, UNF, NPT), and various angles (45°, 90°, Banjo) to fit your application.
What materials are used for high-performance brake lines?
We offer PTFE inner liners with 304/316 stainless steel braiding for high-pressure performance, as well as EPDM rubber and corrosion-resistant Copper-Nickel (Kunifer) alloys.
How do you ensure the durability of your products?
Every product undergoes rigorous in-house testing, including burst pressure tests, pulse test rigs, and environmental chamber validation to guarantee performance under demanding conditions.
What is your production capacity for automotive tubing?
Our current production capacity is approximately 100,000 sets per year, supporting both large-scale OEM orders and specialized aftermarket distributions.
