LED PCB Board Advantages

LED PCBs, also known as Light-Emitting Diode Printed Circuit Boards, are indispensable components in LED lighting systems, providing essential functions such as electrical connections, structural support, and efficient heat dissipation. We specialize in designing and manufacturing high-quality LED PCBs tailored to specific needs.

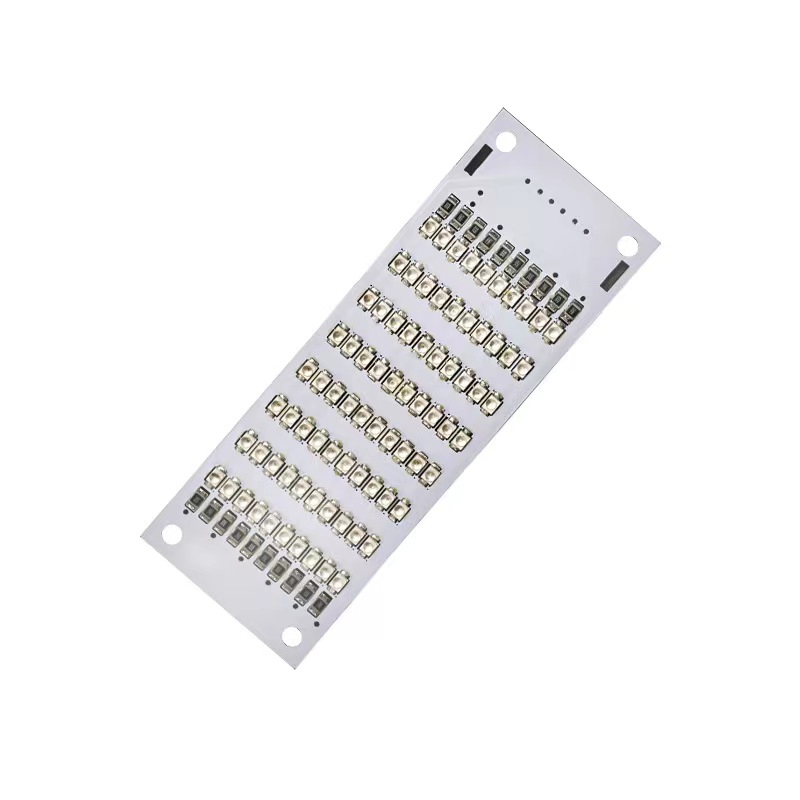

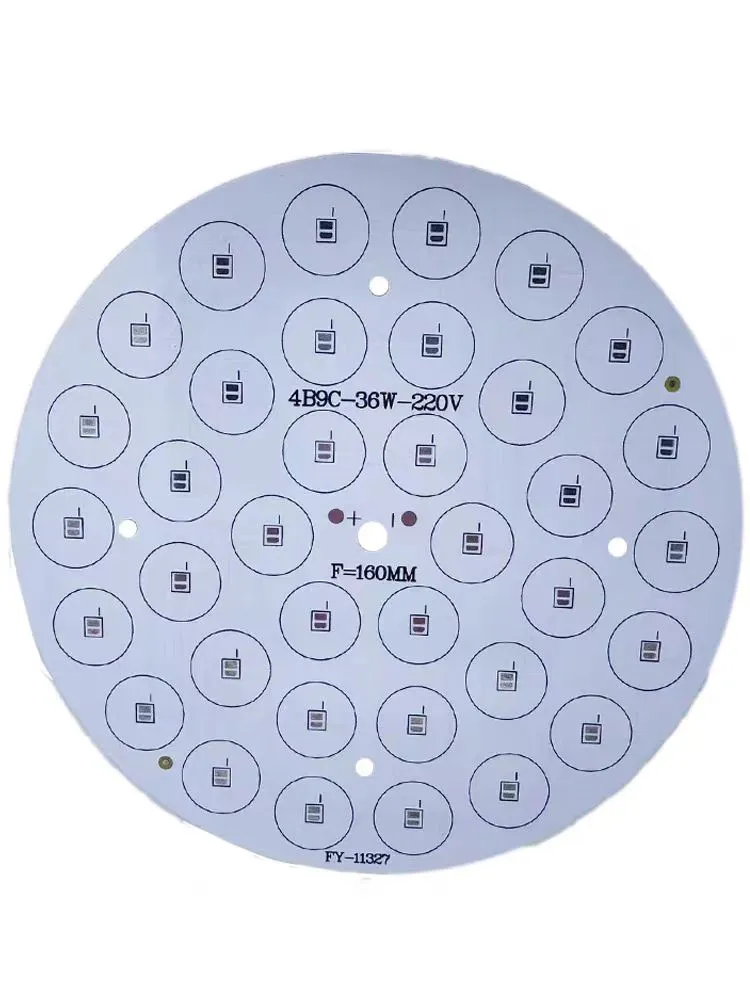

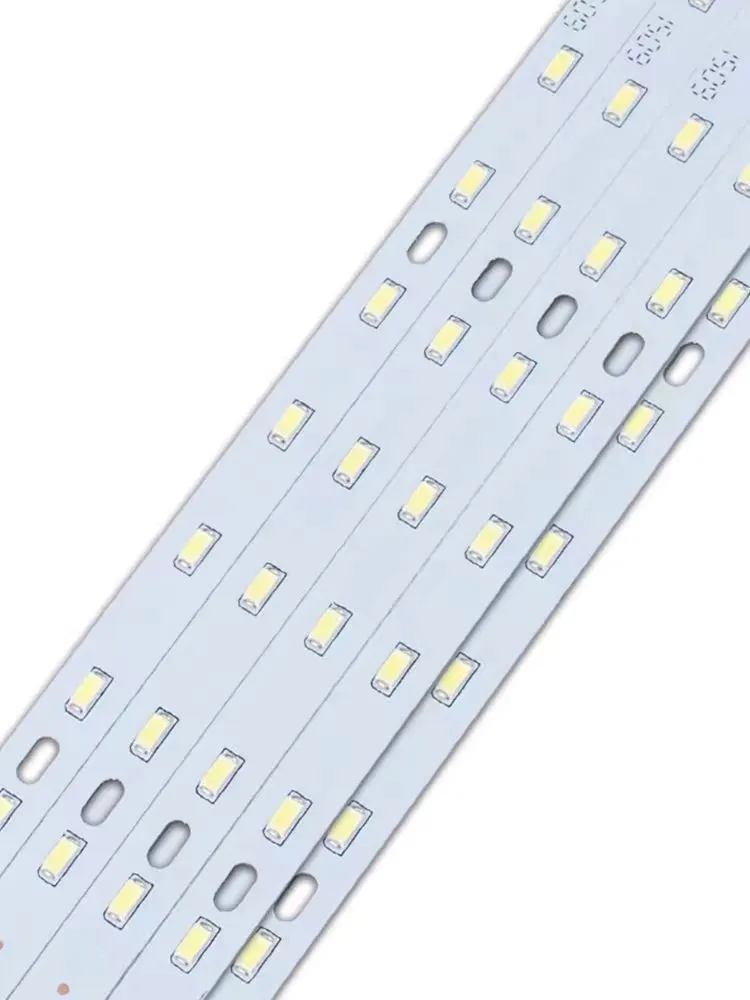

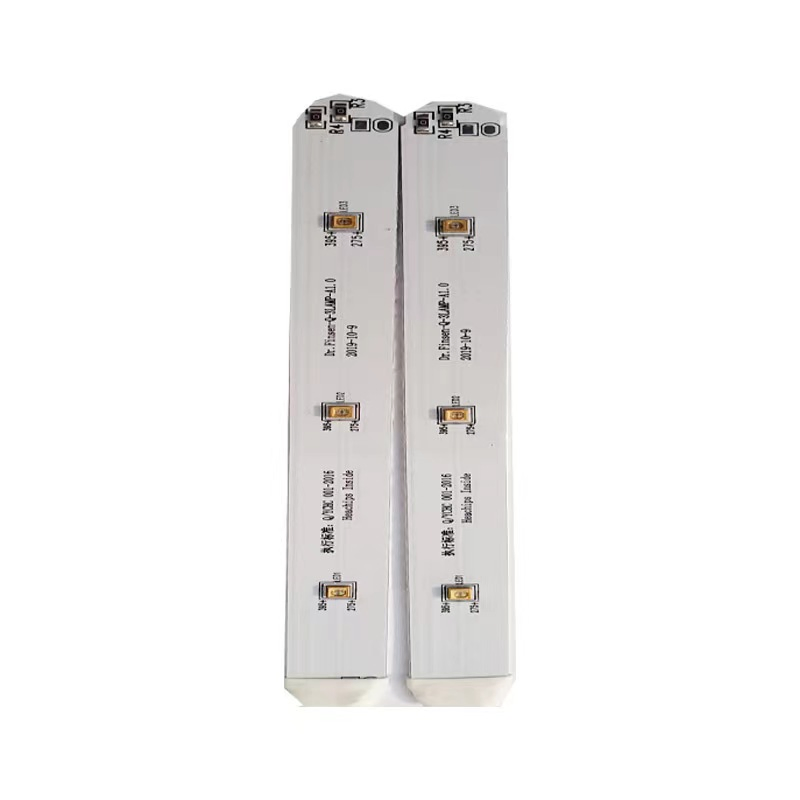

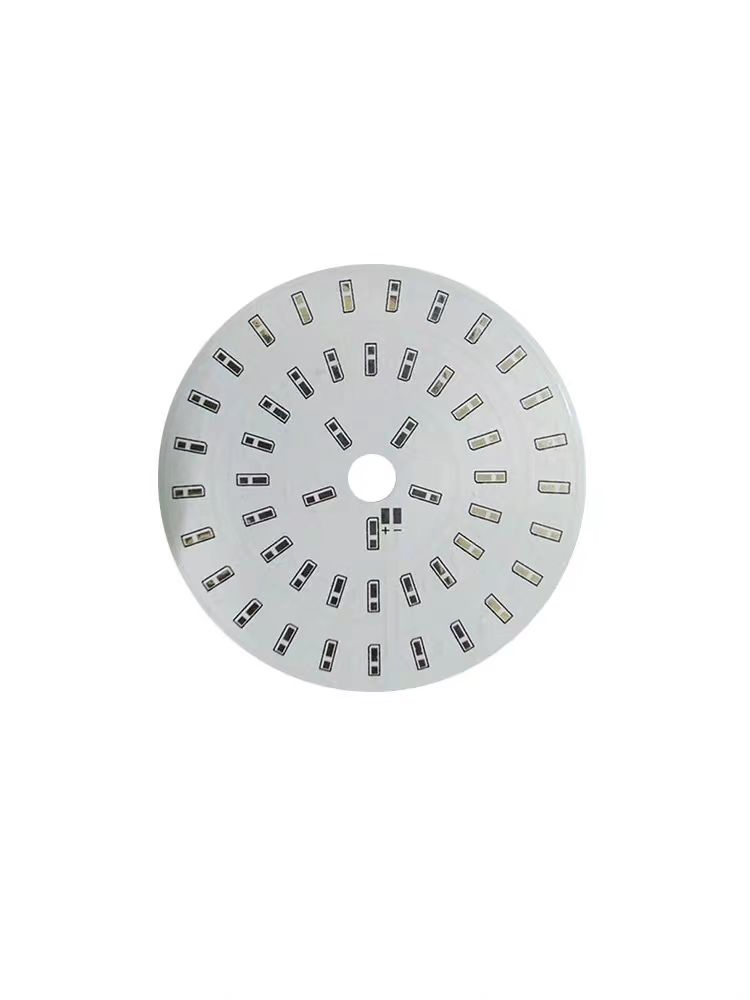

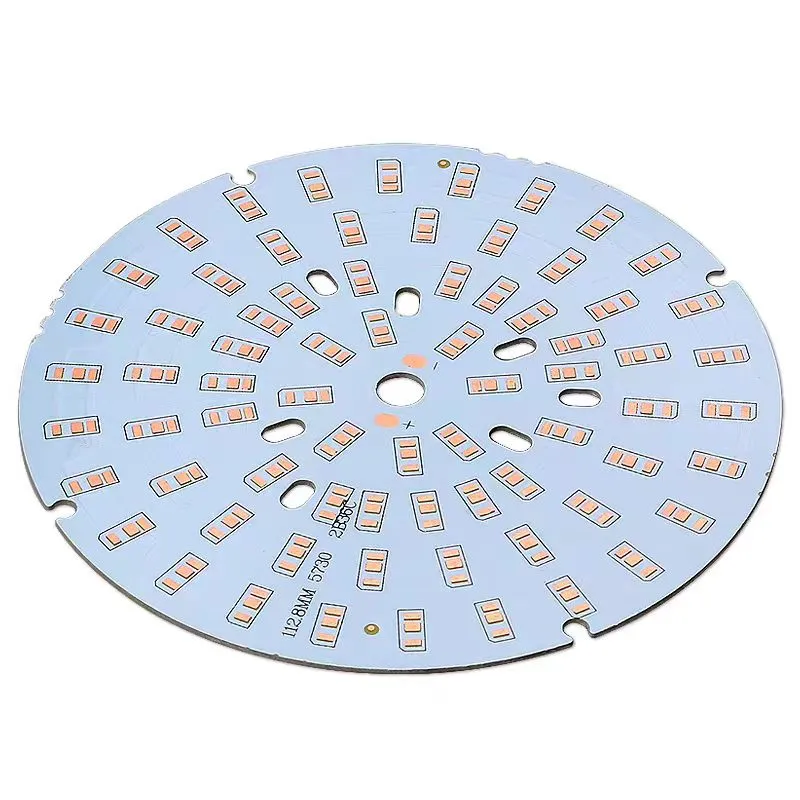

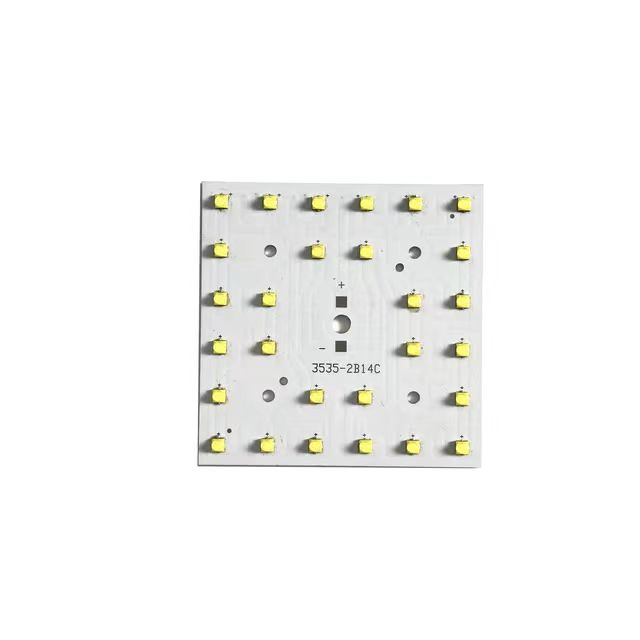

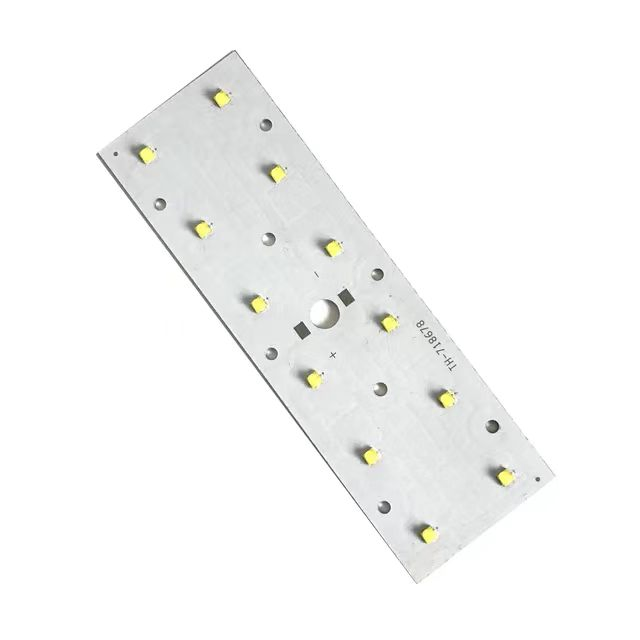

Aluminum LED PCB

Aluminum alloy instead of glass fiber is used to make the base of PCB. The alloy usually contains aluminum, magnesium, and silumin. The structure includes:

• Aluminum alloy sheet constitutes the basic base, providing maximum electrical insulation and thermal conductivity.
• Insulation layer composed of ceramic polymer to protect against thermal or mechanical damage.
• Circuit layer containing the copper foil required for PCB function.

Our Technical Advantages:

• Max Single side copper thickness: 8.0mm / 228oz
• Max Double side copper thickness: 3.0mm / 85oz

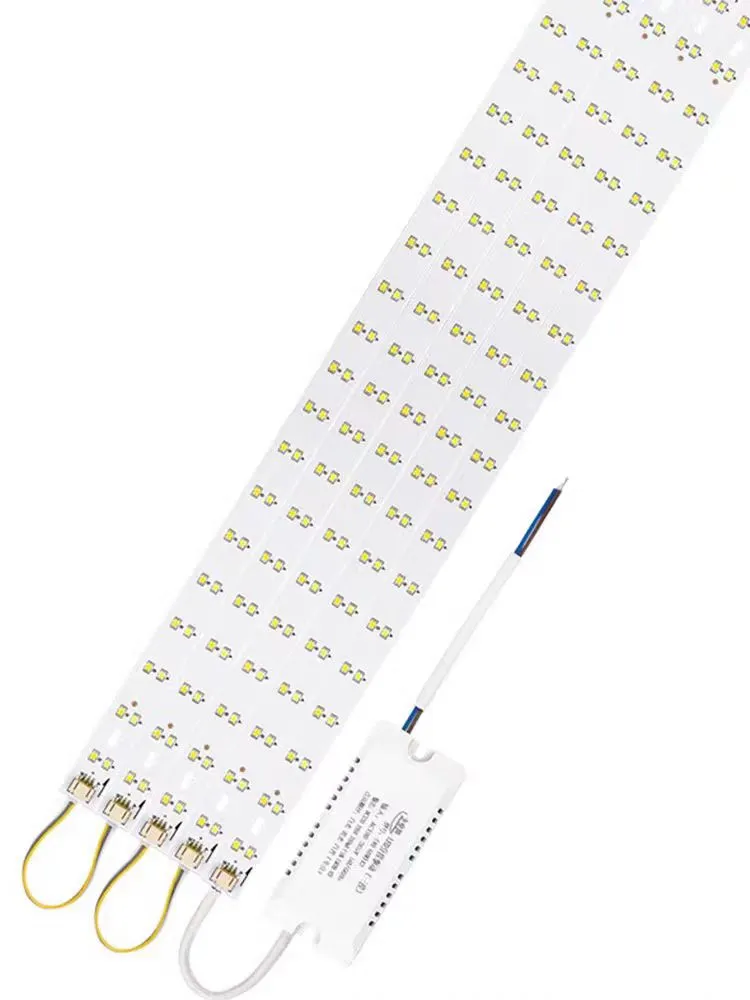

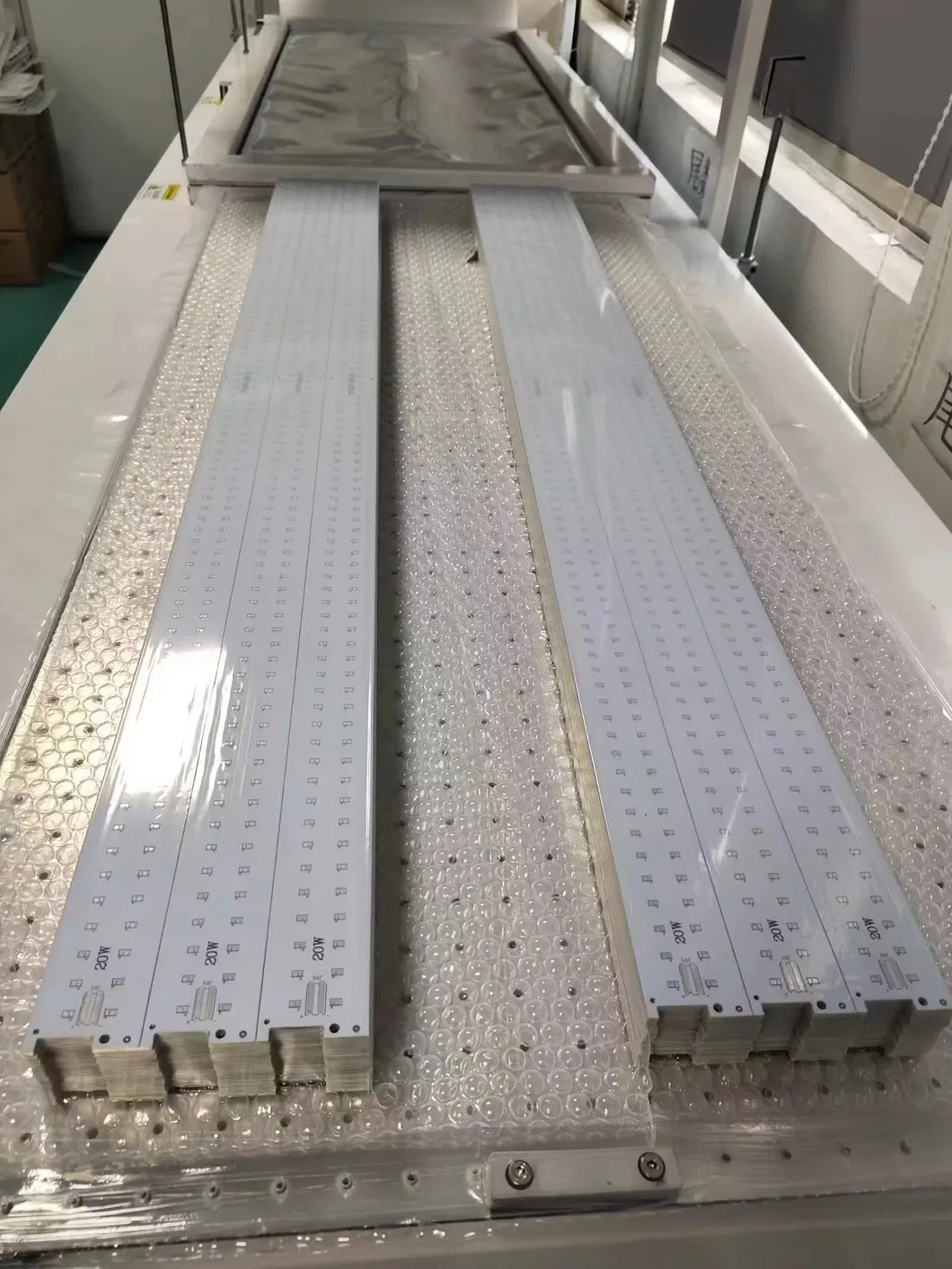

• Long LED lighting PCB: Up to 1500mm
• SMT DIP OEM/ODM assembly service

We provide comprehensive electronic services including:

• PCB Production: FR-4, Aluminum, FPC, Rogers, HDI Flex-rigid
• Thick Copper PCB (Up to 100OZ)

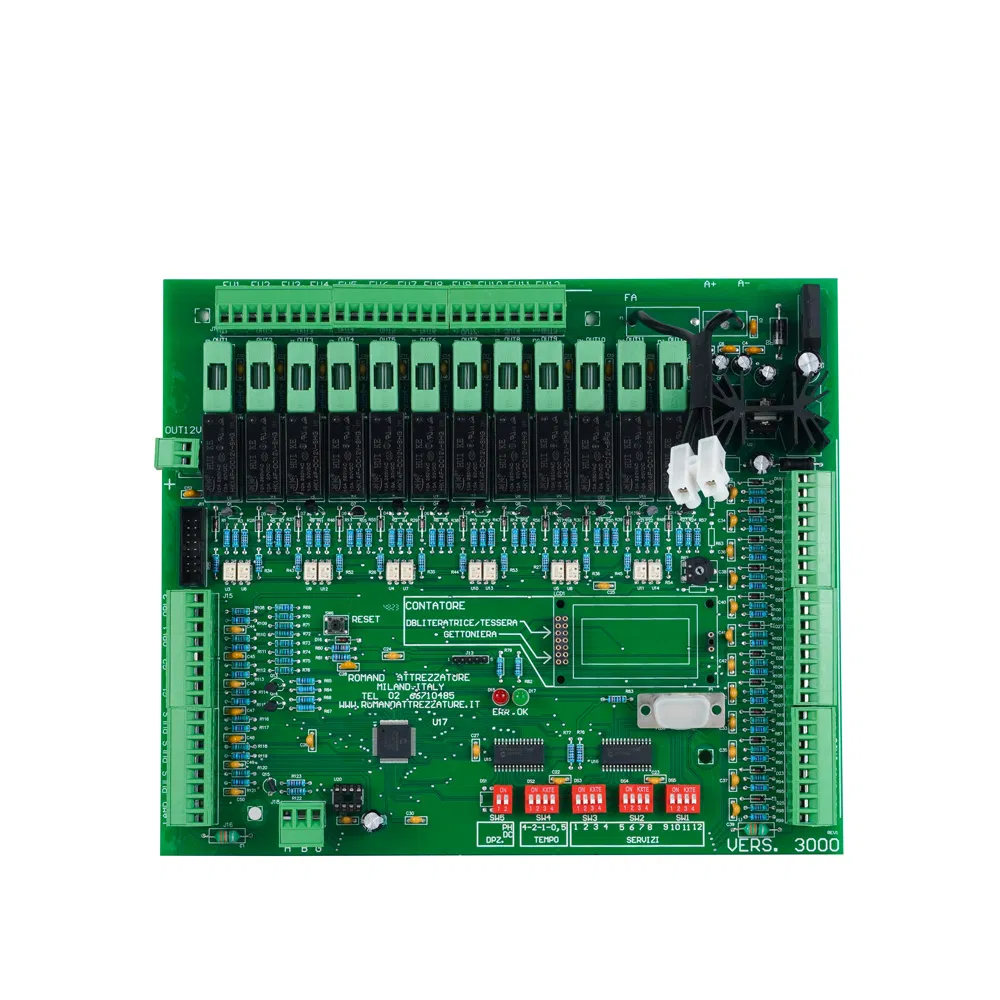

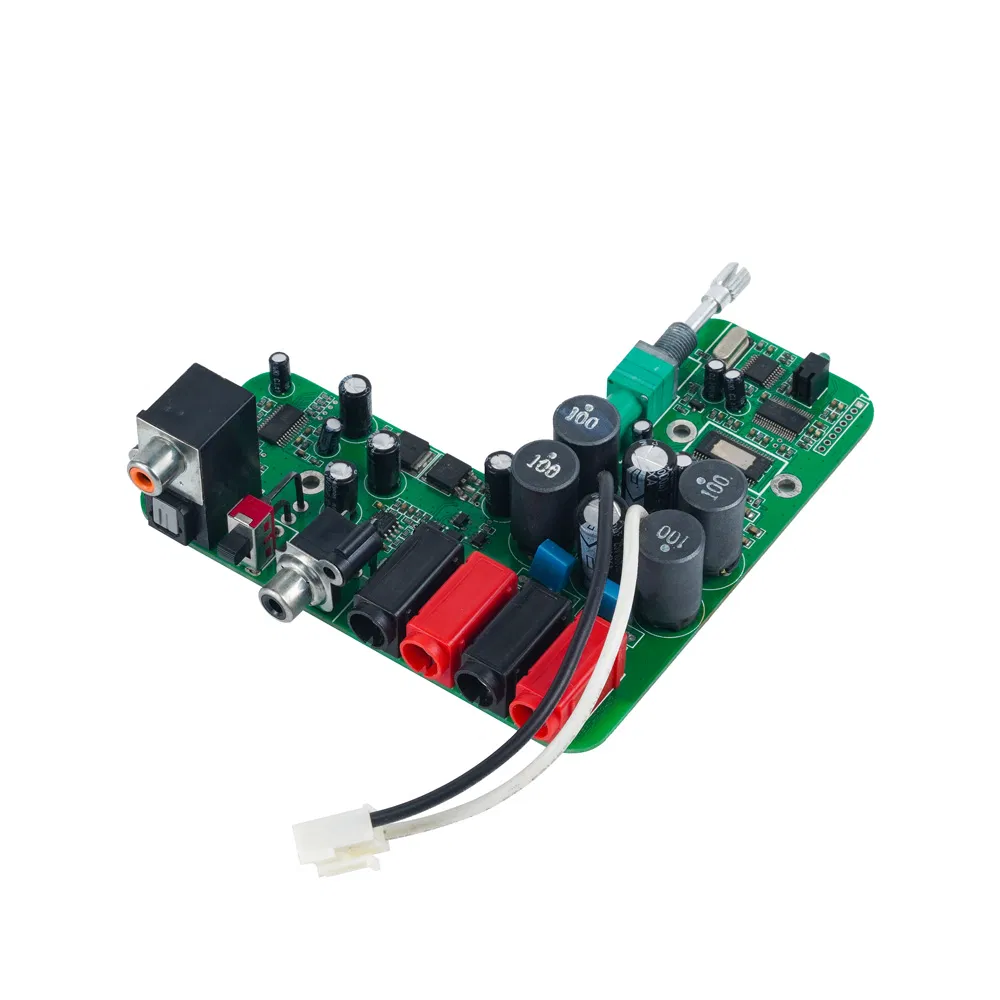

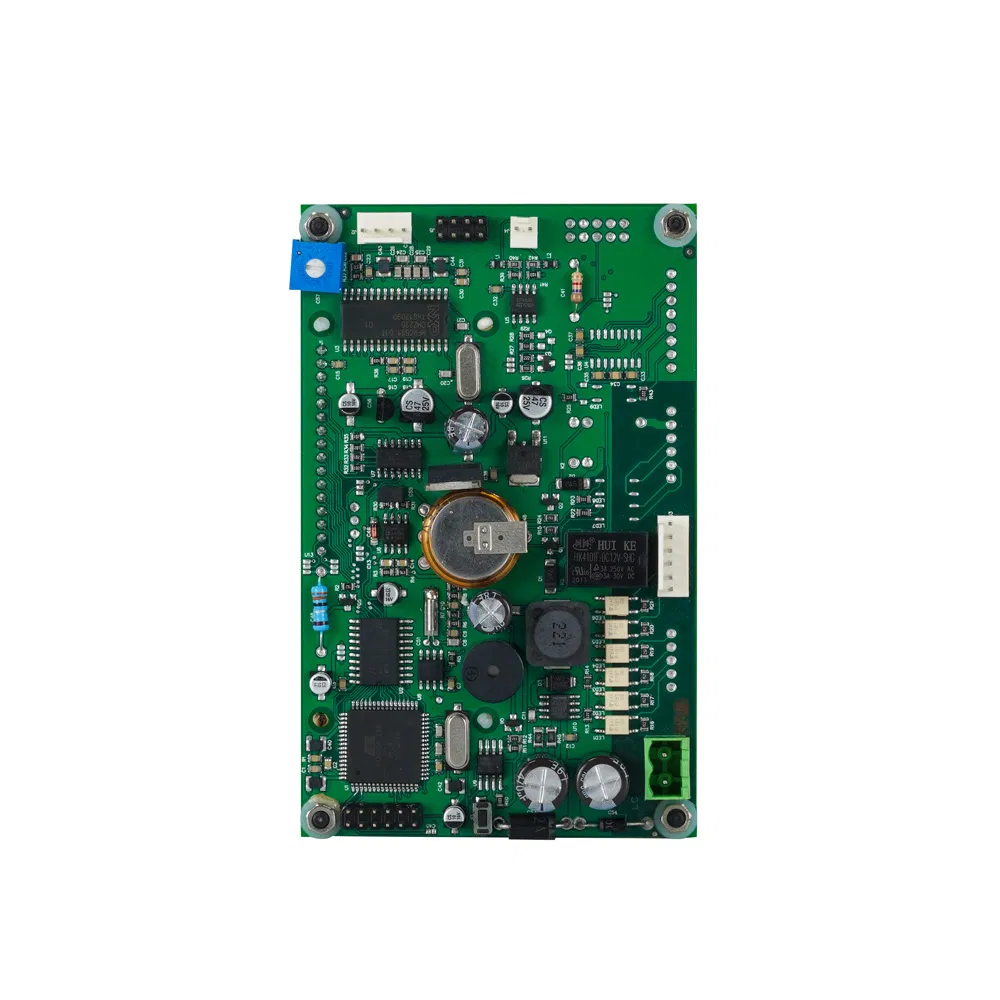

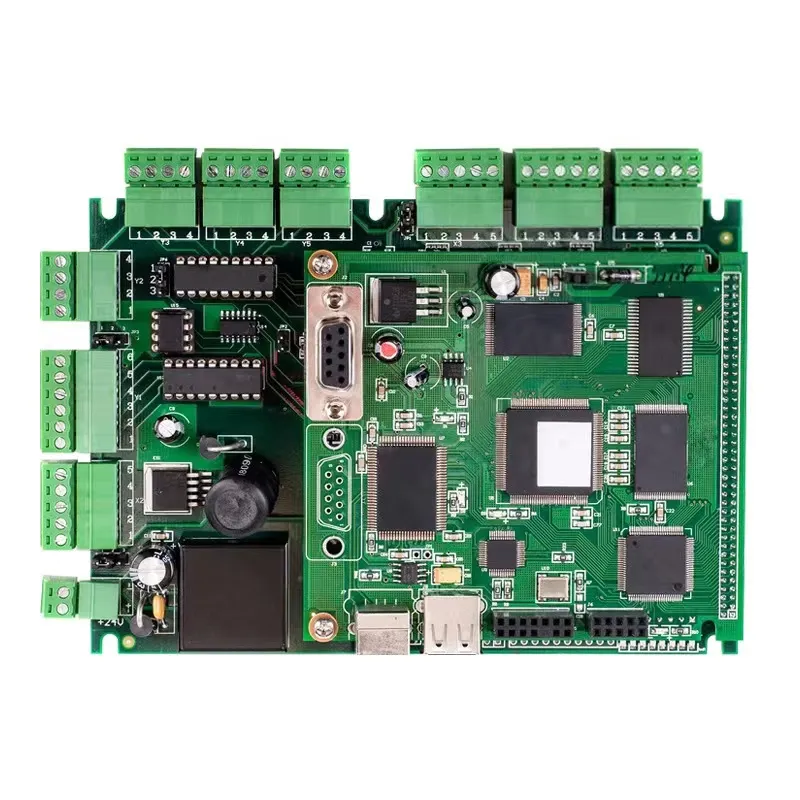

• PCB Assembly: SMT, BGA, DIP
• Electronic Components & BOM List Purchasing
• Functional Testing and Housing Assembly

Our facility operates multiple SMT and DIP lines for high-efficiency assembly. With professional manufacturing processes, we ensure high-volume production capacity and stable quality control for all circuit board types.
