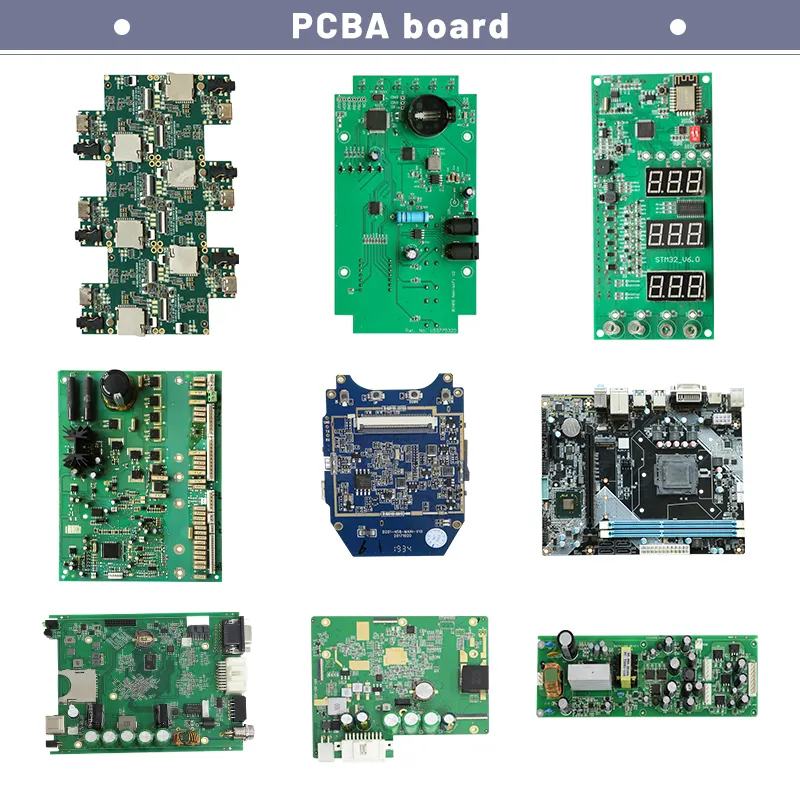

Introducing our superior Printed Circuit Board Assembly (PCBA) services, showcasing the high-performance Rogers RO4350B. Our tailored solutions cater to air conditioners, mobile phone motherboards, solar inverters, and bespoke PCB boards for home appliances. As a premier PCB and PCBA manufacturer, we are committed to solving the distinct challenges our customers encounter by delivering high-quality, bespoke solutions that precisely address their needs.

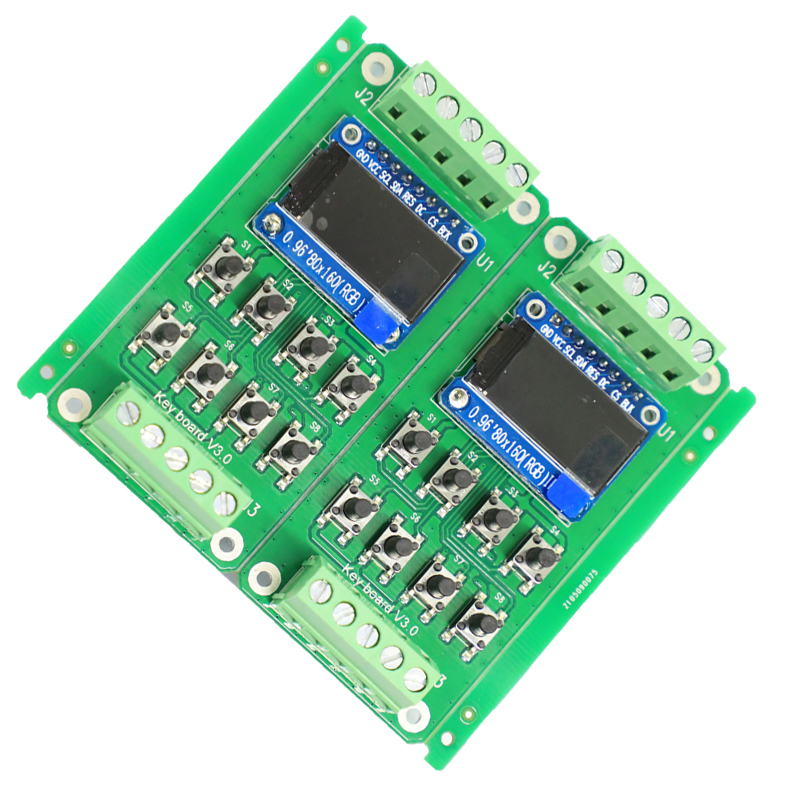

Customized Rogers RO4350B PCB Solutions
Our Rogers RO4350B PCB solutions are meticulously crafted for unmatched performance in high-frequency applications. Renowned for its superior dielectric properties and minimal signal loss, Rogers RO4350B is perfect for RF and microwave circuits.
Advanced Material & Mixed Technology
The choice of Rogers RO4350b for our PCBs underscores our commitment to quality and performance. Known for its superior dielectric properties, thermal stability, and low signal loss, it is the ideal material for power supplies and audio equipment. Our PCBs combine Surface Mount Device (SMD) technology with through-hole components, providing the best of both worlds: compactness and efficiency alongside robust mechanical connections.
Optimized Performance
Power supplies are the backbone of any electronic system, and our PCBs are engineered to enhance their efficiency and reliability. The combination of Rogers RO4350b material and 2oz copper ensures excellent thermal performance and electrical conductivity. In audio applications, our design minimizes signal interference and loss, ensuring sound clarity and fidelity.

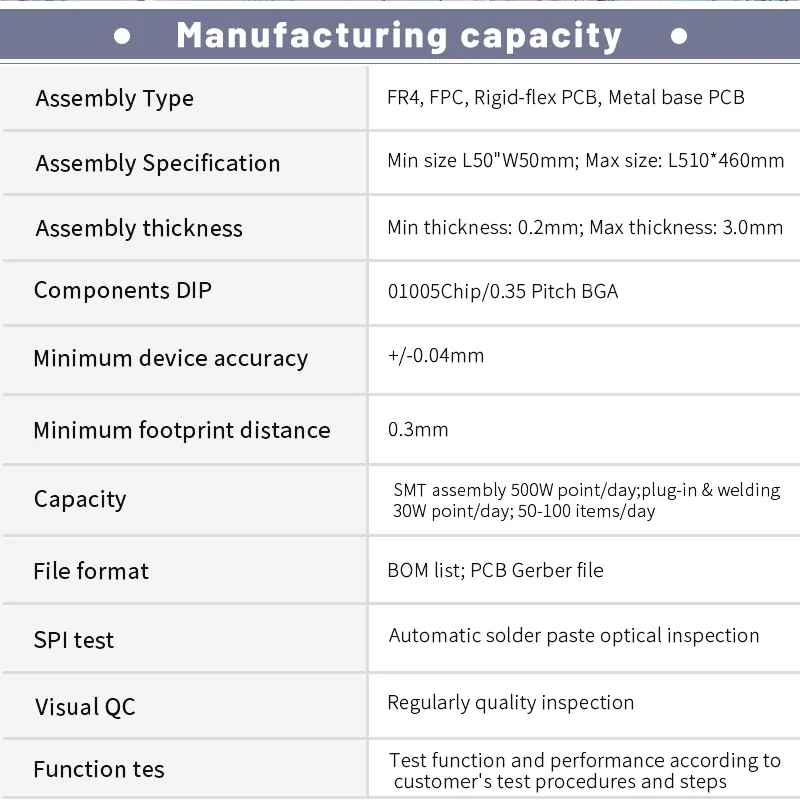

| Feature | Specification |
|---|---|
| Assembly Type | FR4, FPC, Rigid-flex PCB, Metal base PCB |
| Max Board Size | L510 * W460mm |
| Board Thickness | 0.2mm - 3.0mm |
| Components DIP | 01005 Chip / 0.35 Pitch BGA |
| Device Accuracy | +/- 0.04mm |
| Test Services | IQC, IPQC, SPI, AOI, X-Ray, Function Test |
| Quick Turn Delivery | Fastest 12 hours for prototypes |
| SMT Capacity | 5 million points/day |
| PCB Layers | 1-24 layers |
| Surface Finished | HASL Lead-free, ENIG, OSP, Gold finger, Immersion Silver |
| Min Hole Size | 0.20mm |
| Min Line Width/Space | 3/3 mil |
