Custom LED PCB Design for Automotive Lighting Applications

1 / 5

Custom LED PCB Design for Automotive Lighting Applications

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Material

Fiberglass Epoxy

Application

Consumer Electronics

Flame Retardant

Mechanical Rigid

Rigid

Technology

Immersion Gold

Base Material

Fr4

Insulation

Epoxy Resin

Copper Thickness

3oz - 105oz

Surface Finish

Gold Finger

Special Teck

Metal Edging

Vias

Blind & Buried Vias

Flex-Rigid

Supported

Origin

China

Capacity

50,000 Units

Product Description

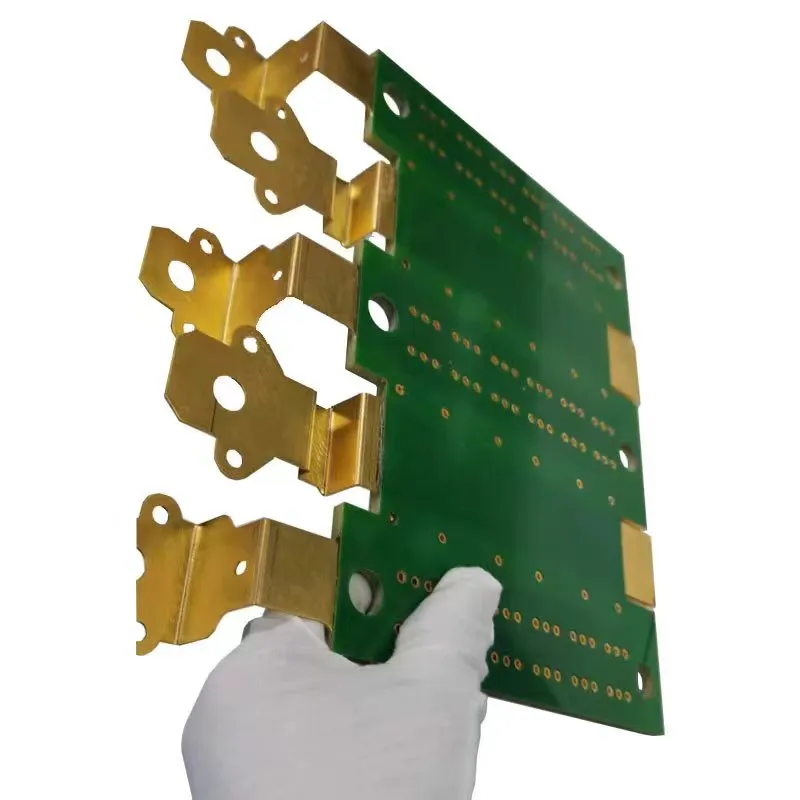

Heavy copper PCBs are essential for power electronics, automotive, aerospace, and industrial equipment. They provide superior thermal management and current-carrying capacity for high-power LED lighting and battery systems.

Our specialized manufacturing uses advanced plating and etching to achieve extreme copper thicknesses.

PCB Thickness: 6mm

Metal Edging Copper: 8oz

Max Single Side Thickness: 8.0mm (228oz)

Max Double Side Thickness: 3.0mm (85oz)

Multilayer Capabilities

We specialize in complex 26-layer PCBs with 10mm thickness. Both in-layer and outside copper can reach 6oz.

Double side to 36-layer Multilayer PCB

HDI high-density interconnects

Materials: TG135, TG158, TG180, Rogers, Arlon, Isola

Fast Quote: Within 1-4 hours

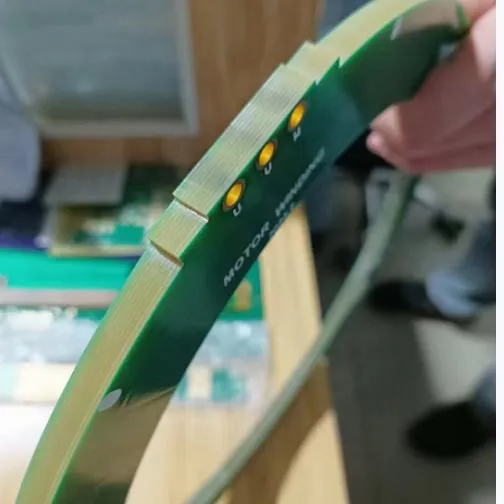

Detailed Photos

Assembly & OEM Services

SMT / DIP / OEM / ODM Assembly

Sample Lead Time: 7-10 Days

Production Lead Time: 10-15 Days

Thick Copper PCB (Max 100oz)

IC Programming & Final Functional Testing

BOM List Purchasing Services

Cable Assembly & Enclosure Housing

Production Capacity

Founded in 2001, our high-tech facility produces up to 35,000 PCBs monthly. We operate 5 SMT lines and 2 DIP lines for full-scale assembly.

Daily Output: 22-25 Assembly sample orders and 5,000,000 SMT points.

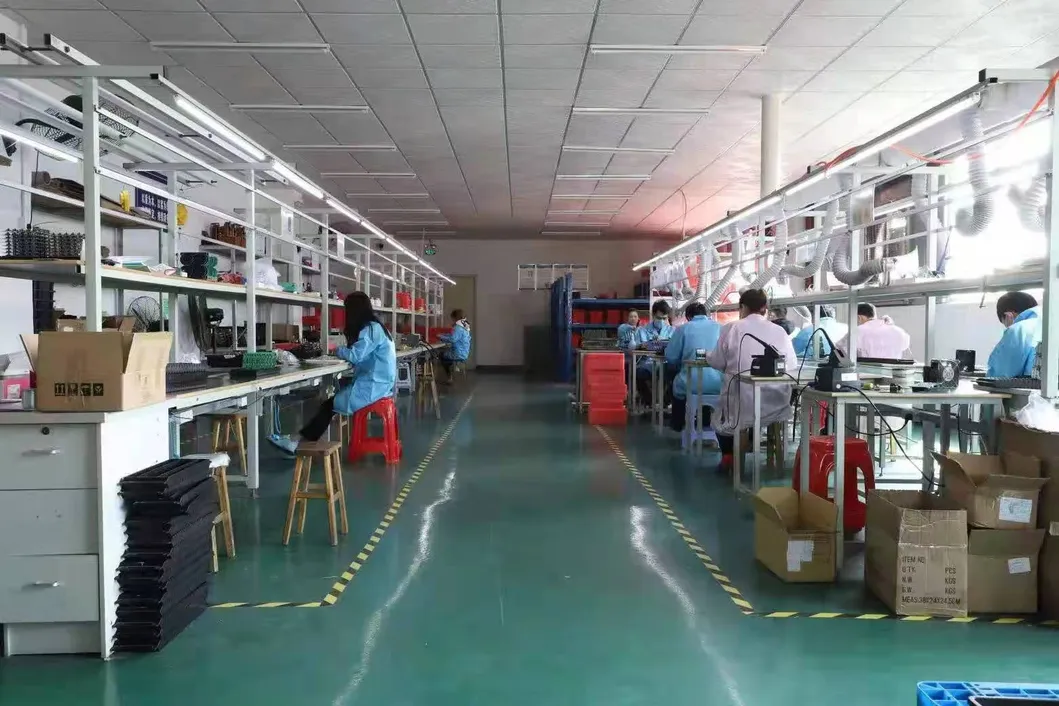

Production Line & Certifications

Frequently Asked Questions

What is required for a PCB/PCBA quotation?

For PCB: Quantity, Gerber file, and technical requirements (material, finish, thickness). For PCBA: PCB specs, BOM list, and testing documents.

Are my design files secure?

Yes, we protect all intellectual property. Files are held securely and never shared with third parties. We are willing to sign NDAs under local law.

Do you have a Minimum Order Quantity (MOQ)?

There is no MOQ; we can produce as few as 1 piece and scale up to large volume production with flexibility.

What core services do you provide?

We focus on PCB manufacturing, Assembly, and Component sourcing. We also offer functional testing, cable assembly, and enclosure services.

How do you control product quality?

We use flying probe testing for samples and fixtures for larger volumes. Inspections are performed after every production step for transparency and accuracy.

Can you produce a PCB from a physical sample?

Yes, we can clone a PCB by reverse-engineering your physical sample to create Gerber files and a BOM for production.
