Product Description

📋 Basic Information
Model NO.
HFT
Layout
Coaxial
Hardness
Hardened Tooth Surface
Installation
Vertical Type
Step
Single-Step
Type
Planetary Gear Box
Warranty
18 Months
Output Torque
Higher Output Torque
Design
Robust and Modular Design
Casting
Integrated Casting Shell
Bearing
Taper Roller Bearing
HS Code
8483402090
🚀 Product Description

Pump Drive is a transfer gearbox used for the connection of Diesel Engine and Hydraulic Pumps. We are making a wide variety of gear ratios, including speed-increasing and speed-reducing options. Modular design options include a flexible coupling, rubber block drive, or clutch to match your SAE engine flywheel dimensions. Independent mounting is an option, direct or with a clutch. We are also making standard and specialized SAE and DIN adaptor kits for special needs.

High Strength Aluminum Alloy housing
Hardened Shaved gears
Premium Ball bearings
Case hardened shafts
Viton seals on input shaft
Standard Gear ratios identical on all outputs
📊 Technical Specifications
Model Parameter HFT190-2N HFT400-2N HFT530-2N HFT280-3N HFT700-3N HFT700-4N
Max. Input power (KW) 190 400 530 280 700 700
Max. Output per pad (KW) 110 210 270 150 360 360
Max. Output torque (Nm) 500 1050 1500 900 1900 1900
Max. Input speed (RPM) 4000 3500 3500 3800 3000 3000
Transmission ratio 0.512 - 1.486
Housing material High Quality Cast Iron
📷 Detailed Photos

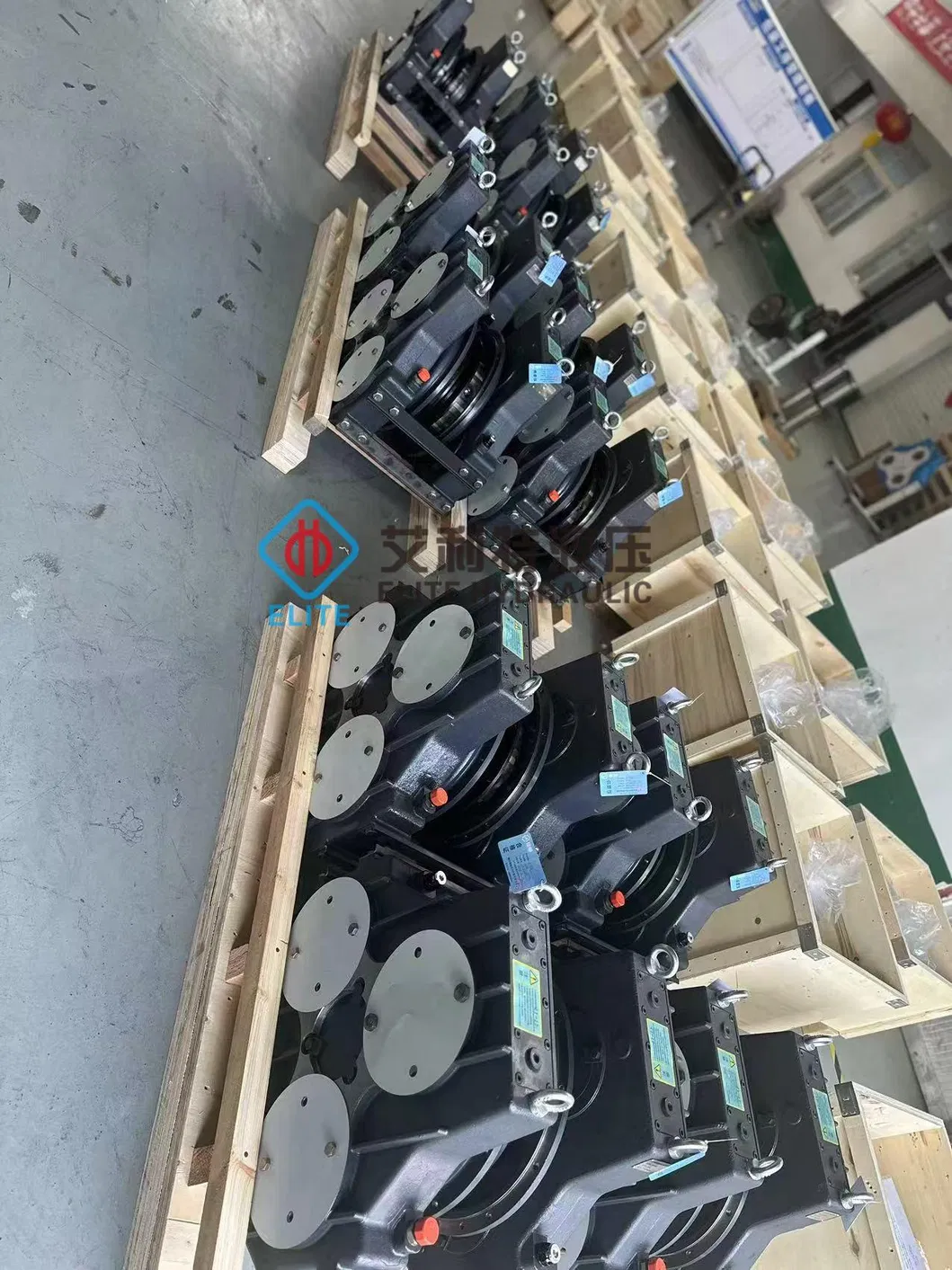

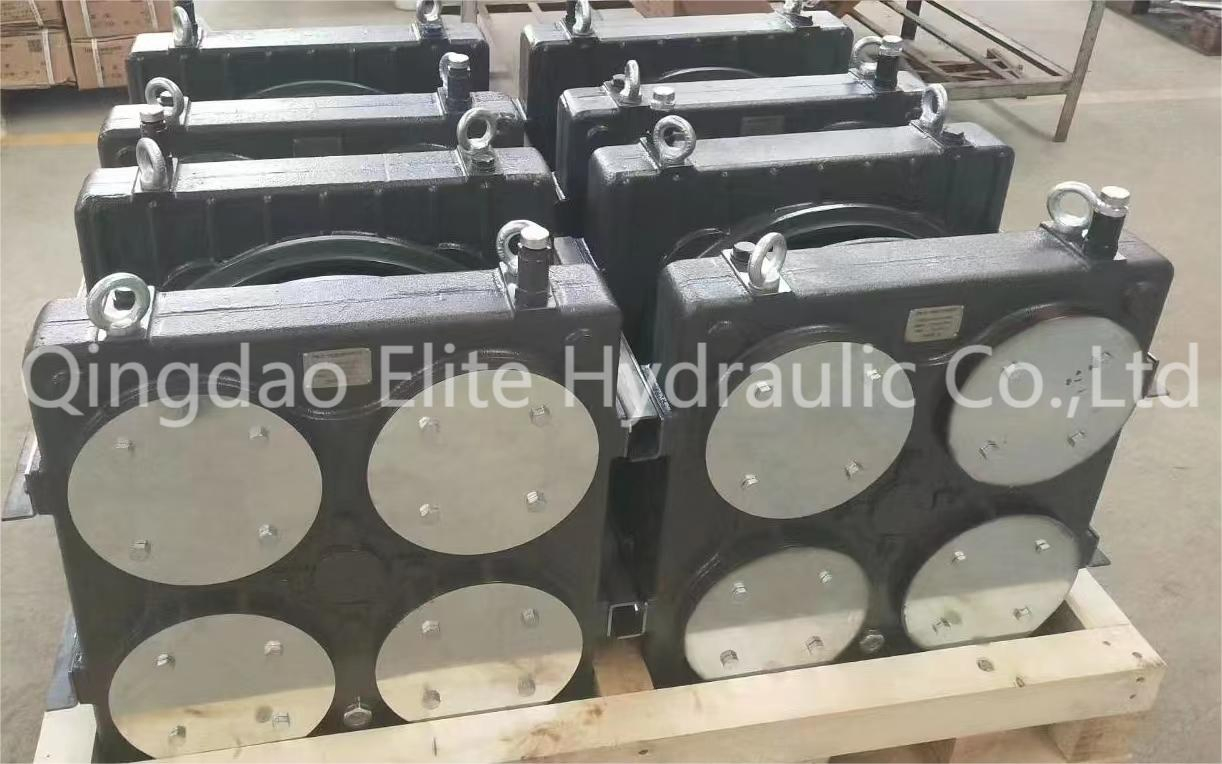

Hydraulic Pump Drive 1

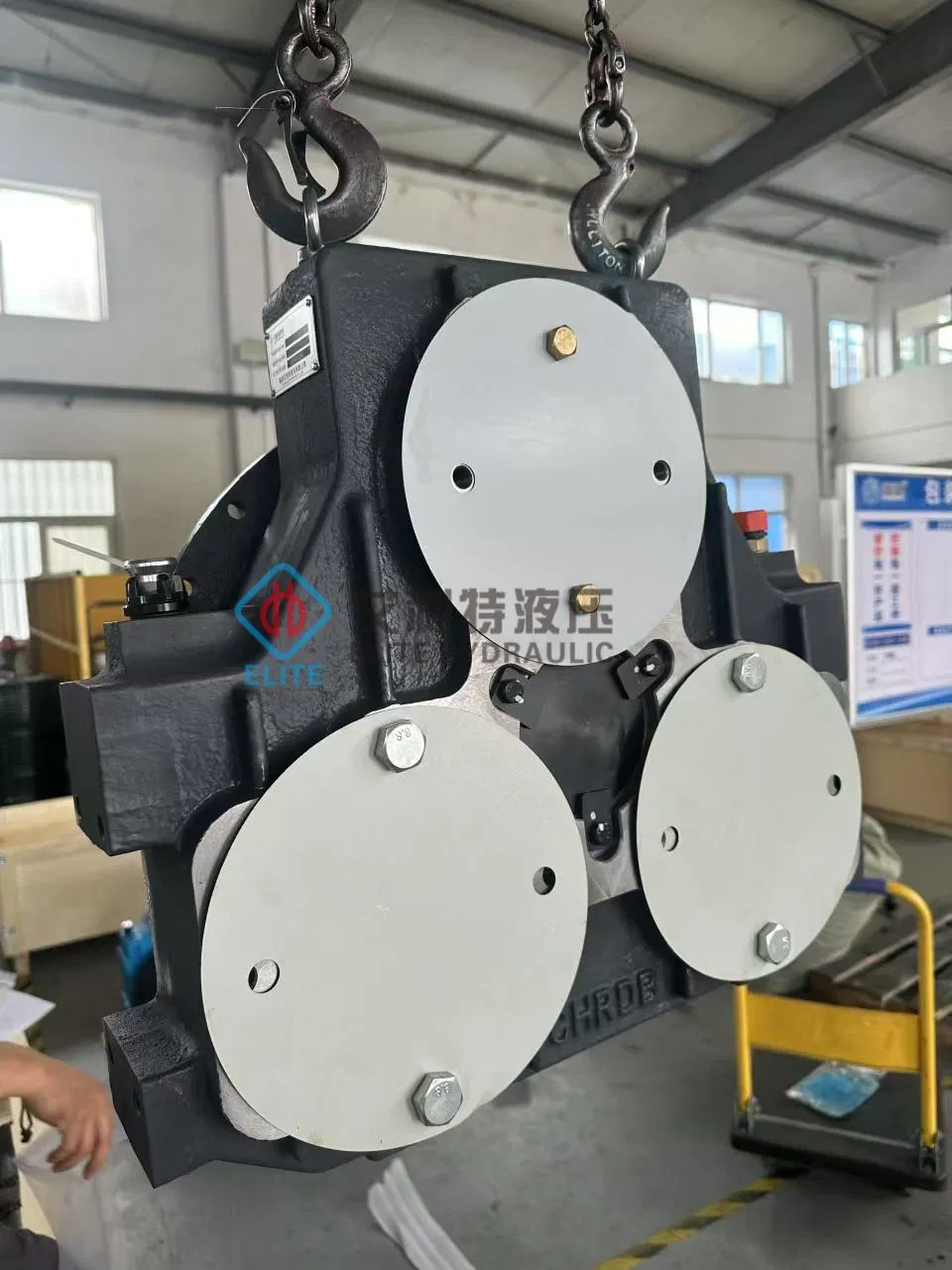

Hydraulic Pump Drive 2

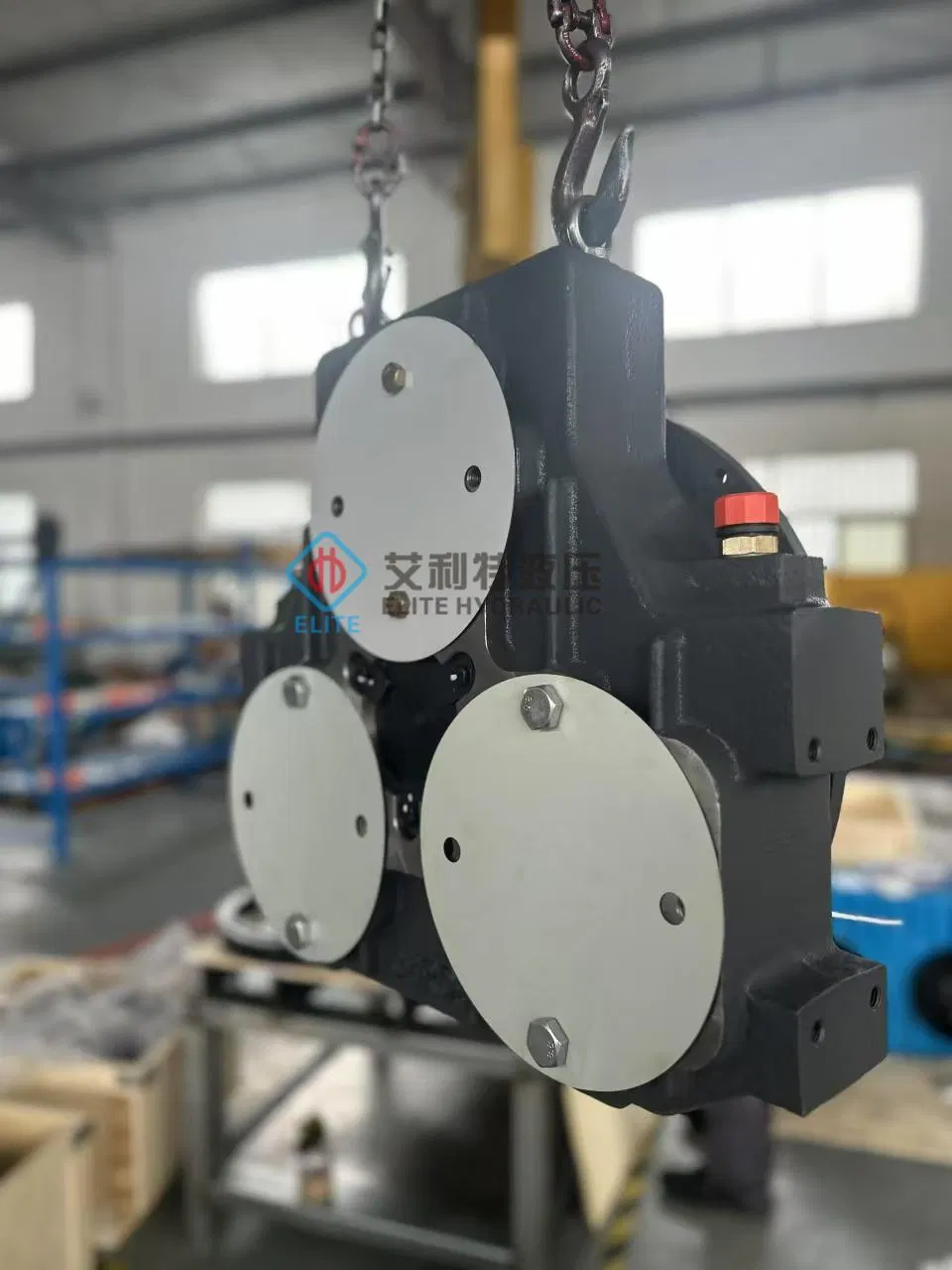

Hydraulic Pump Drive 3
🏭 Professional Manufacturing
Manufacturing Process
Technical Workshop 1
Technical Workshop 2
Quality Control
Assembly Line
Product Testing

In conclusion, our hydraulic transmission solutions offer quality, value, and professional power transmission solutions that cater to a wide variety of industries. With expertise, experience, and commitment to customer satisfaction, you can be sure that you're in safe hands. Whether you need travel gearbox, electrical drive, travel drive, slew gearbox, winche gearbox, cutter gearbox, truck mixer gearbox, twin shaft mixer or other hydraulic transmission solutions, we provide the best possible solutions for your power transmission needs.

Frequently Asked Questions
1. What is the primary function of a Pump Drive gearbox?
It serves as a transfer gearbox to connect diesel engines directly with multiple hydraulic pumps, allowing for efficient power distribution.
2. Are the gear ratios customizable?
Yes, we provide a wide variety of gear ratios, including both speed-increasing and speed-reducing options to suit specific application needs.
3. What mounting options are available?
We offer modular design options including flexible couplings, rubber block drives, or clutches compatible with standard SAE engine flywheel dimensions.
4. What materials are used for the housing and gears?
We utilize high-strength aluminum alloy or premium cast iron for housings, and all gears are case-hardened and shaved for maximum durability.
5. What is the standard warranty period for these units?
All our HFT series pump drives come with an 18-month warranty against manufacturing defects.
6. Do the output shafts rotate in the same direction as the input?
Standard units are designed so that the output rotation is in the opposite direction of the input rotation.
