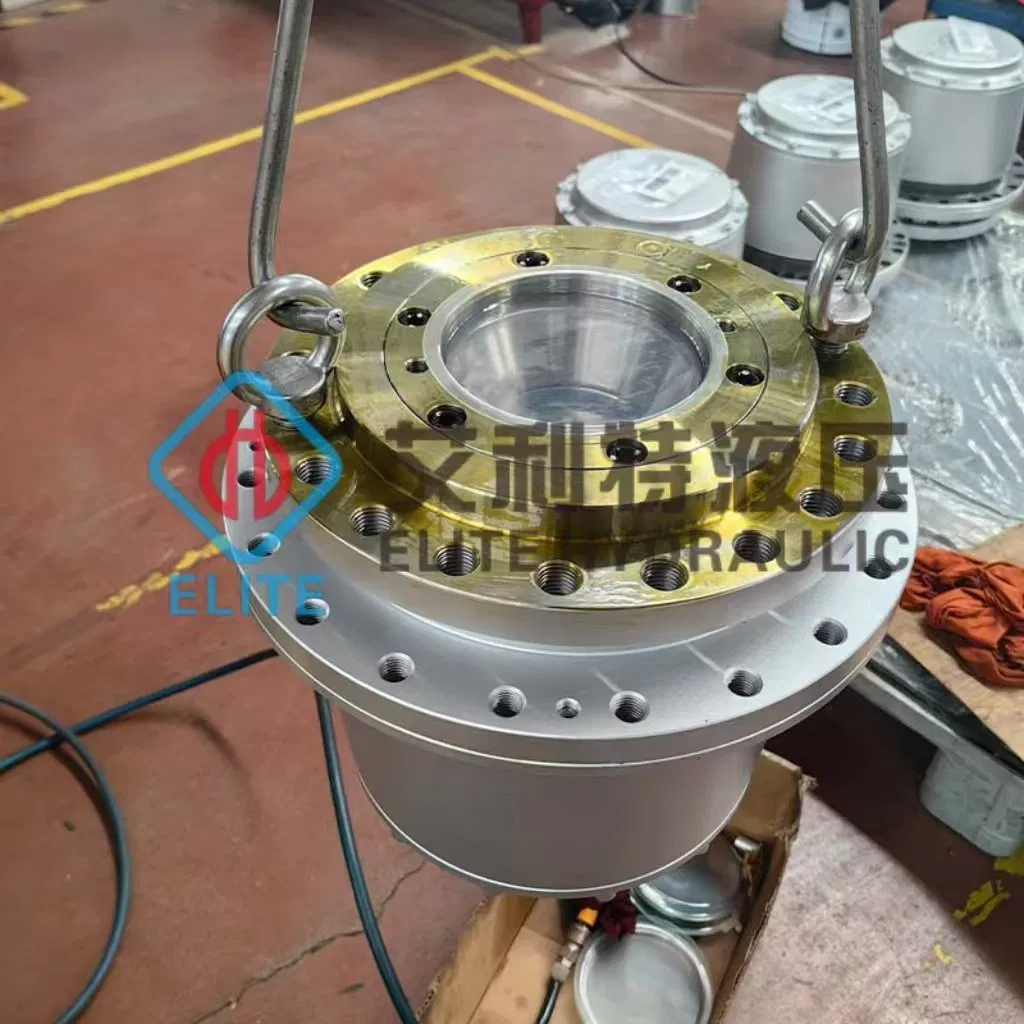

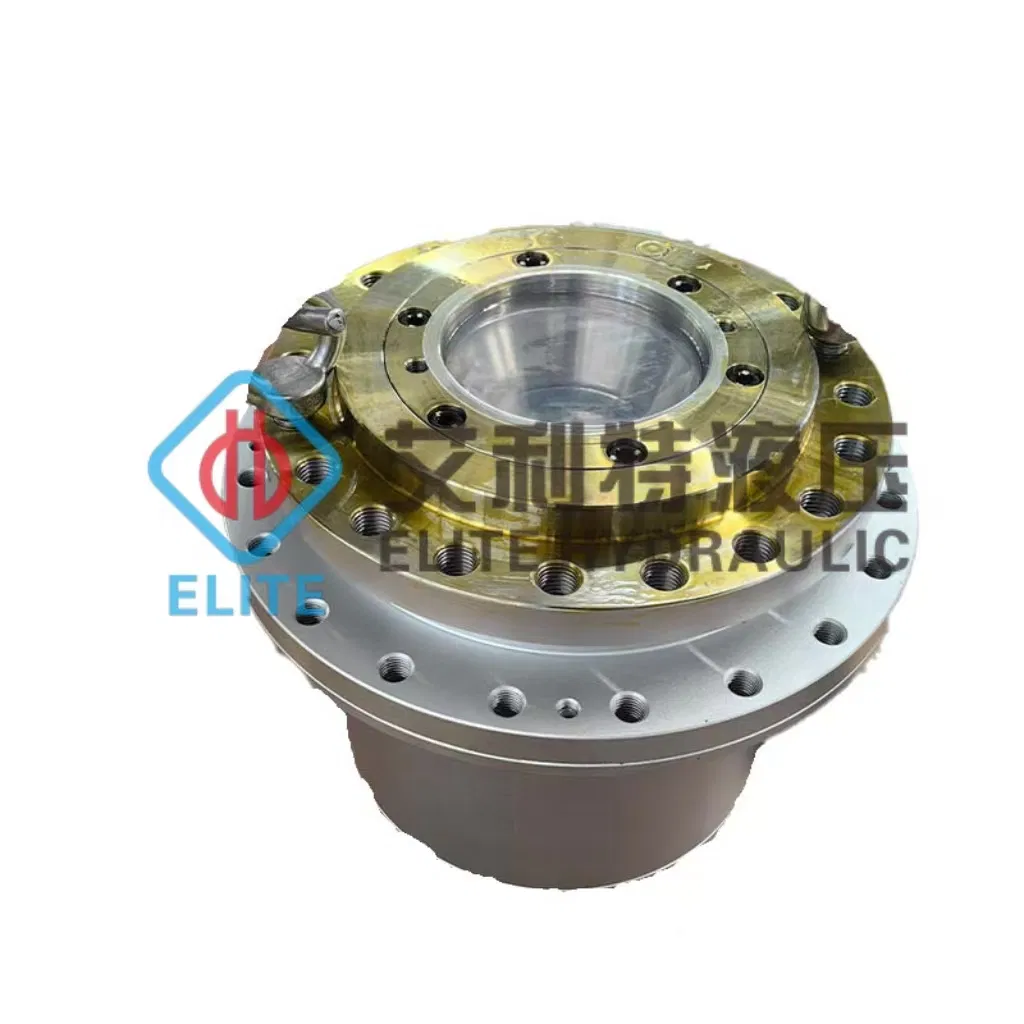

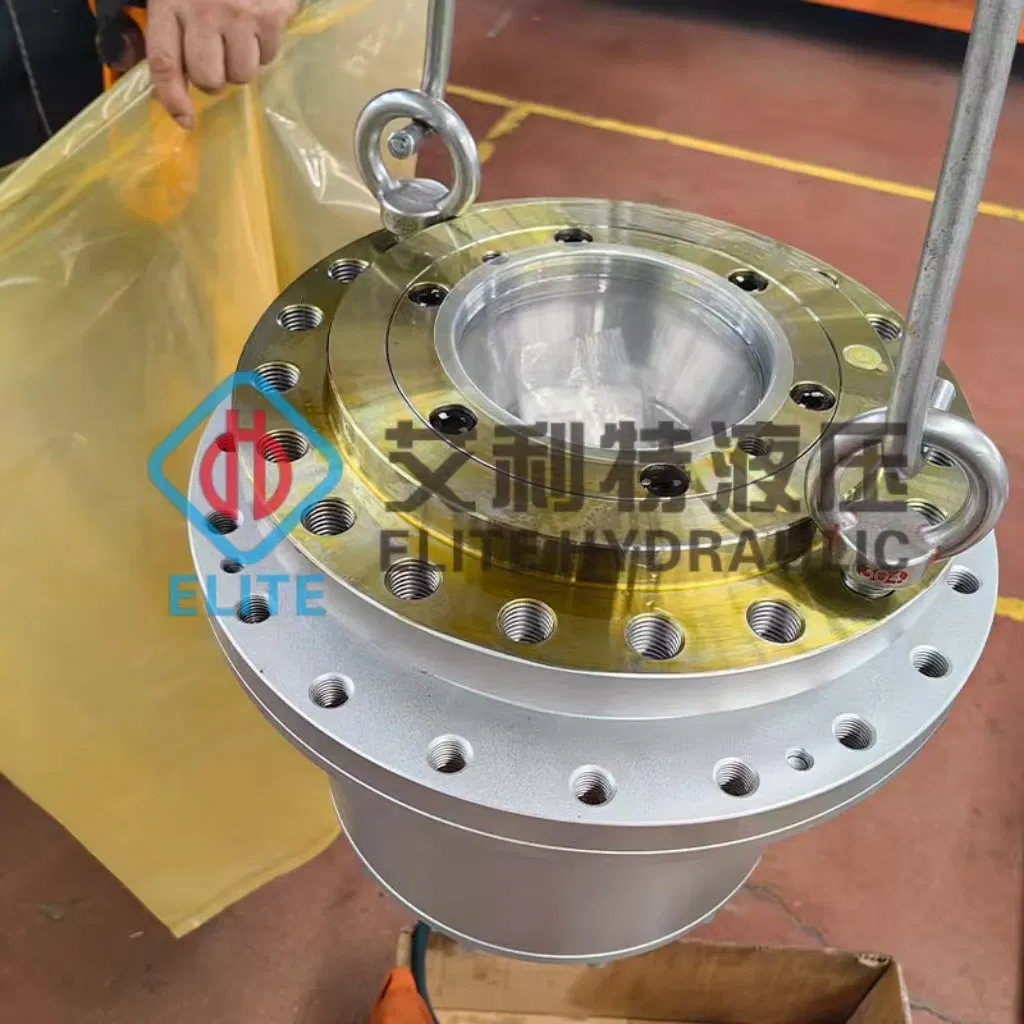

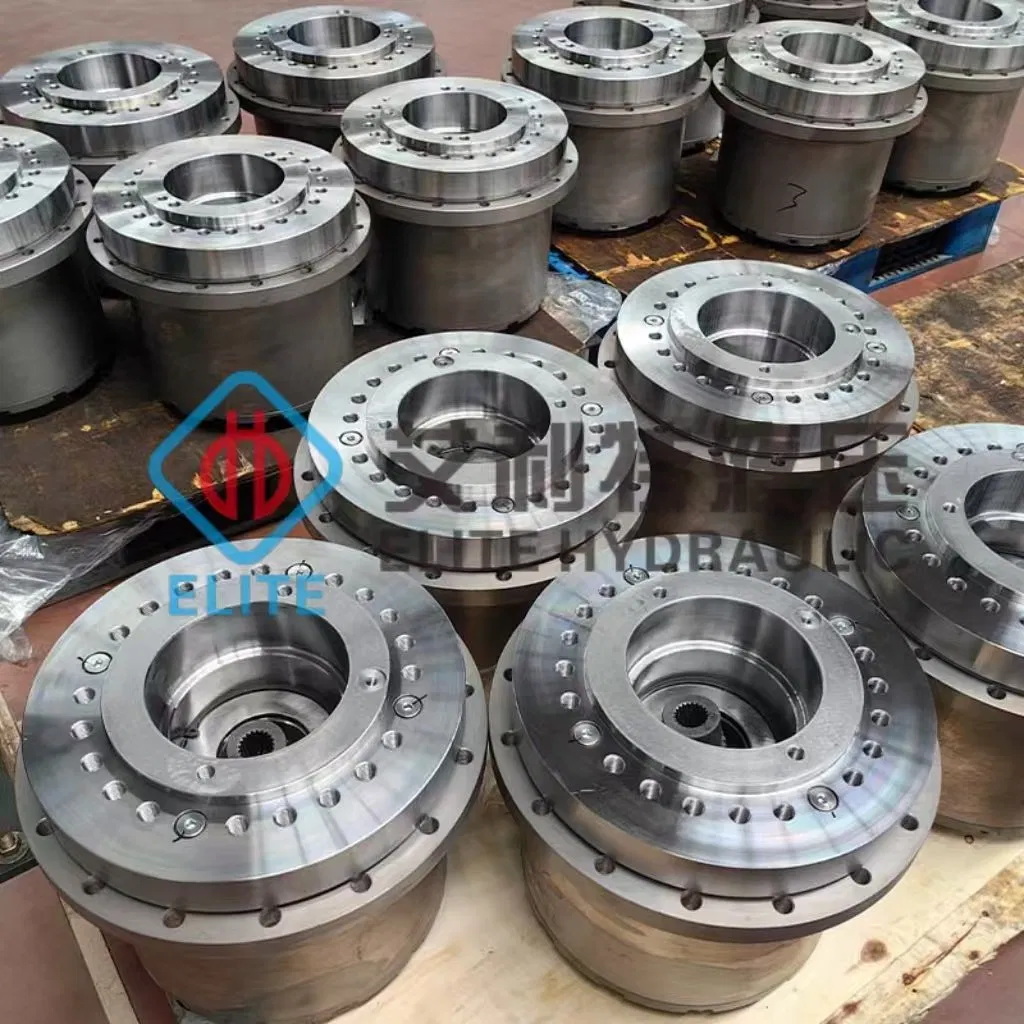

High Speed Track Drive Systems for Undercarriages of Machines
High Speed Track Drive Systems for Undercarriages of Machines
High Speed Track Drive Systems for Undercarriages of Machines
High Speed Track Drive Systems for Undercarriages of Machines
High Speed Track Drive Systems for Undercarriages of Machines
1 / 5
High Speed Track Drive Systems for Undercarriages of Machines
High Speed Track Drive Systems for Undercarriages of Machines
High Speed Track Drive Systems for Undercarriages of Machines
High Speed Track Drive Systems for Undercarriages of Machines
High Speed Track Drive Systems for Undercarriages of Machines

High Speed Track Drive Systems for Undercarriages of Machines

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

⚙️ Basic Information & Overview
Model NO.
HFT-T
Layout
Coaxial
Hardness
Hardened Tooth Surface
Installation
Horizontal Type
Output Torque
Higher Output Torque
Warranty
18 Months
Load Capacity
Higher Load Capacity
Origin
China
📦 Product Description
These Travel Drives are unsurpassed by any crawler or milling machines. Thanks to compact, rugged design, high torque and load capabilities, and optional mechanical lifetime seals, these solutions are the best possible option for the machine. All units are available with a fail-safe parking brake and most have the option of cartridge type fixed or variable systems.

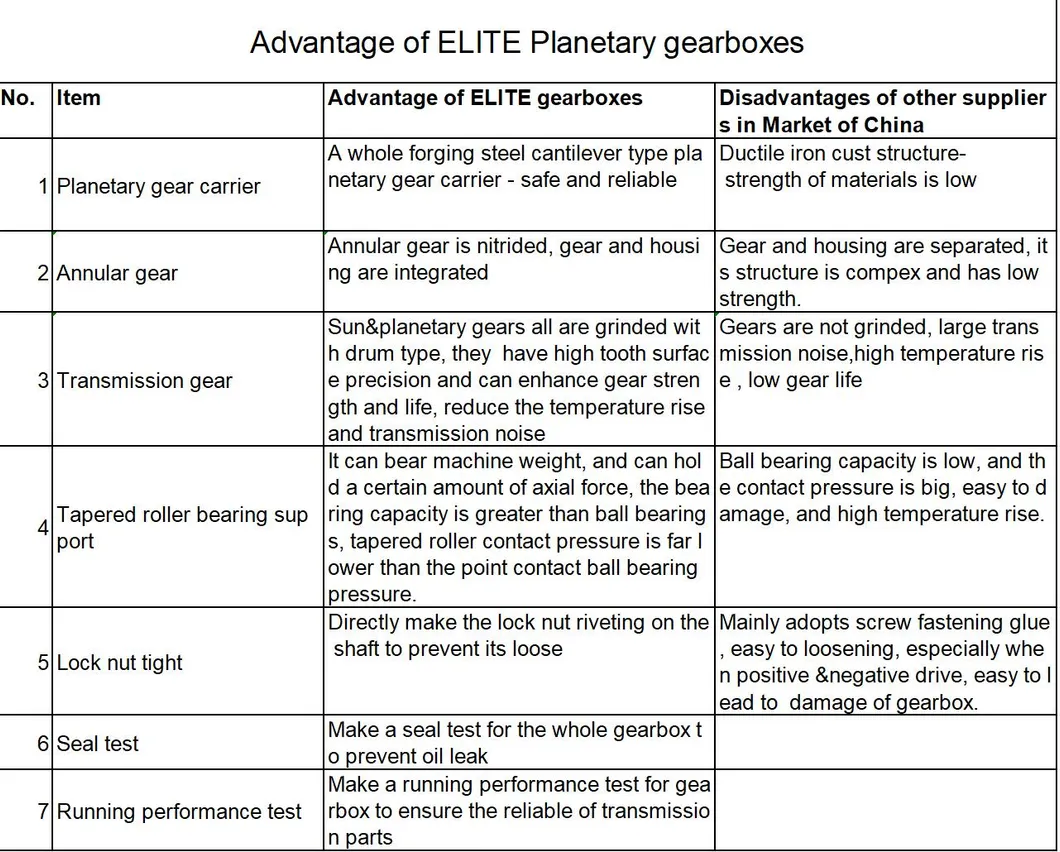

Travel Drive Systems
⭐ Key Features & Advantages
  • Compact structure and space-saving design
  • Robust main bearing system
  • High torque and load capacity
  • Integrated static multiple disk parking brake
  • Optional Disconnect device for towing
  • Simple mounting and easy oil change
  • Low-noise running operation
  • Top-quality case hardened materials
📊 Product Parameters

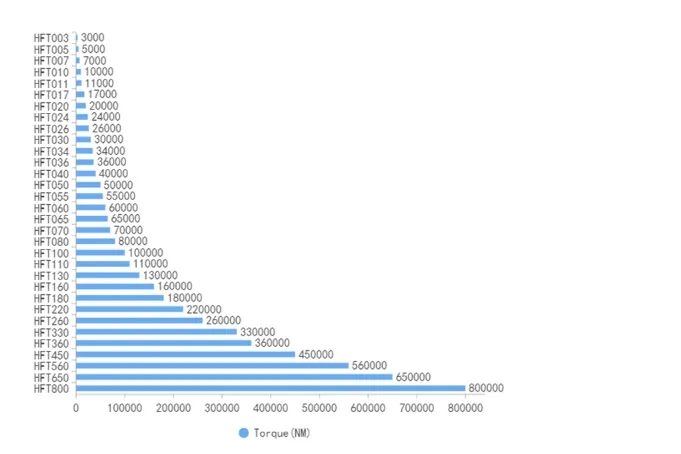

Technical Specifications
ModelHFT024T
Max. Output Torque24,000 N.m
Input SpeedUp to 4,000 rpm
Ratios (2-stage)17, 20, 22, 27, 32, 38, 46, 50, 54
Ratios (High stage)78, 88, 90, 102, 120, 140, 153, 170, 227
Brake OptionsHydraulically released parking brake on request
Dynamic Loading140 KN
Static Loading290 KN
Applicable MotorsAxial piston hydraulic motors (Cartridge/Flanged), Orbit motors, Electrical motors
📷 Detailed Photos

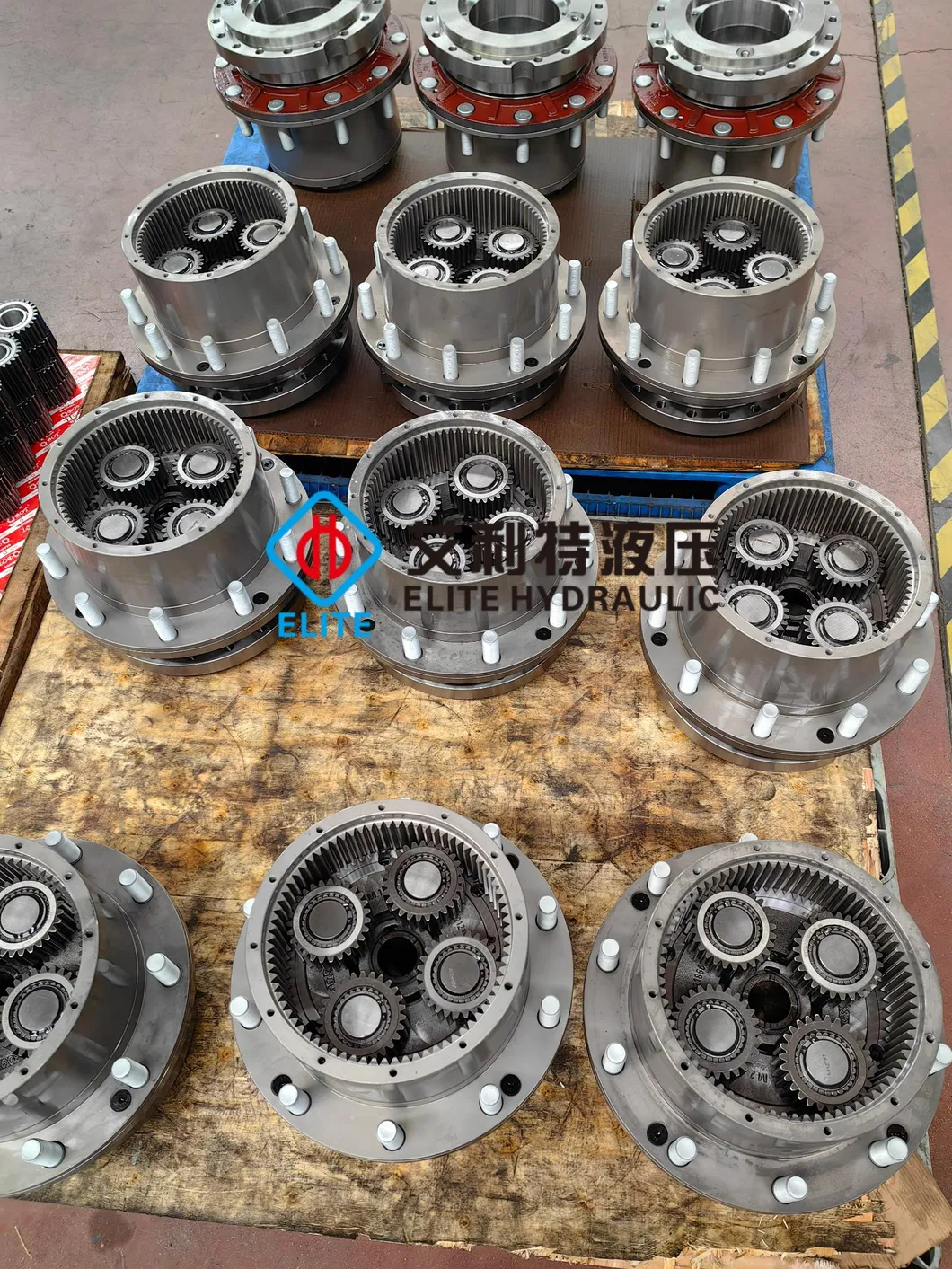

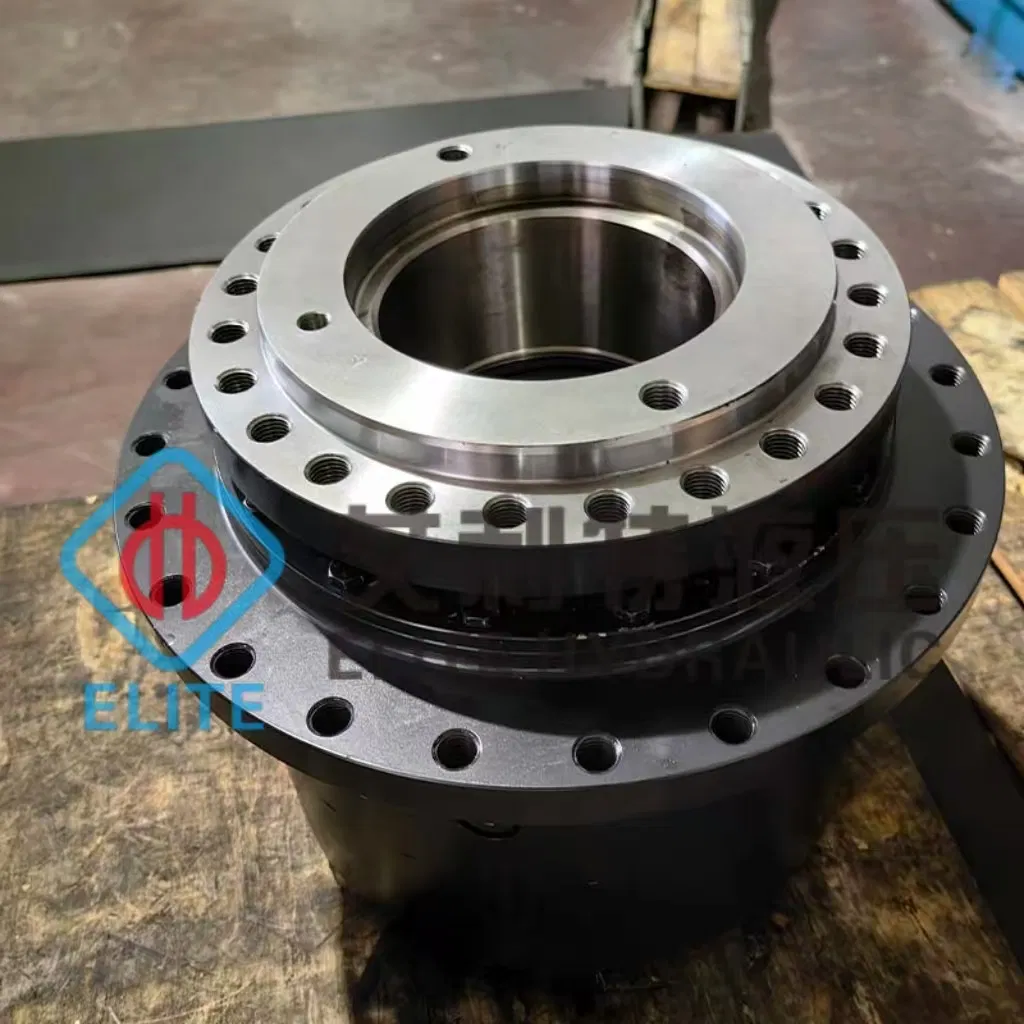

Product Detail 1

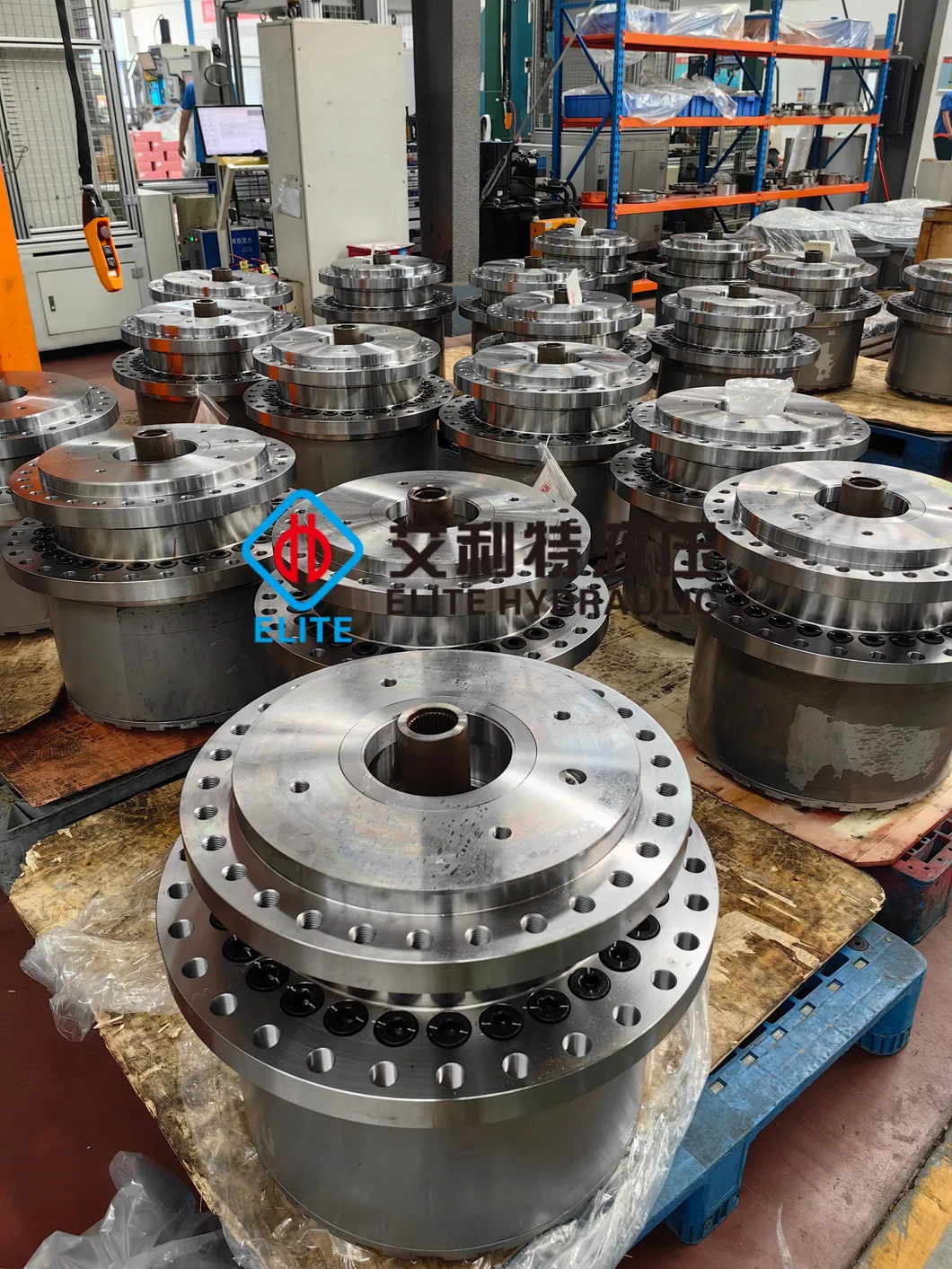

Product Detail 2

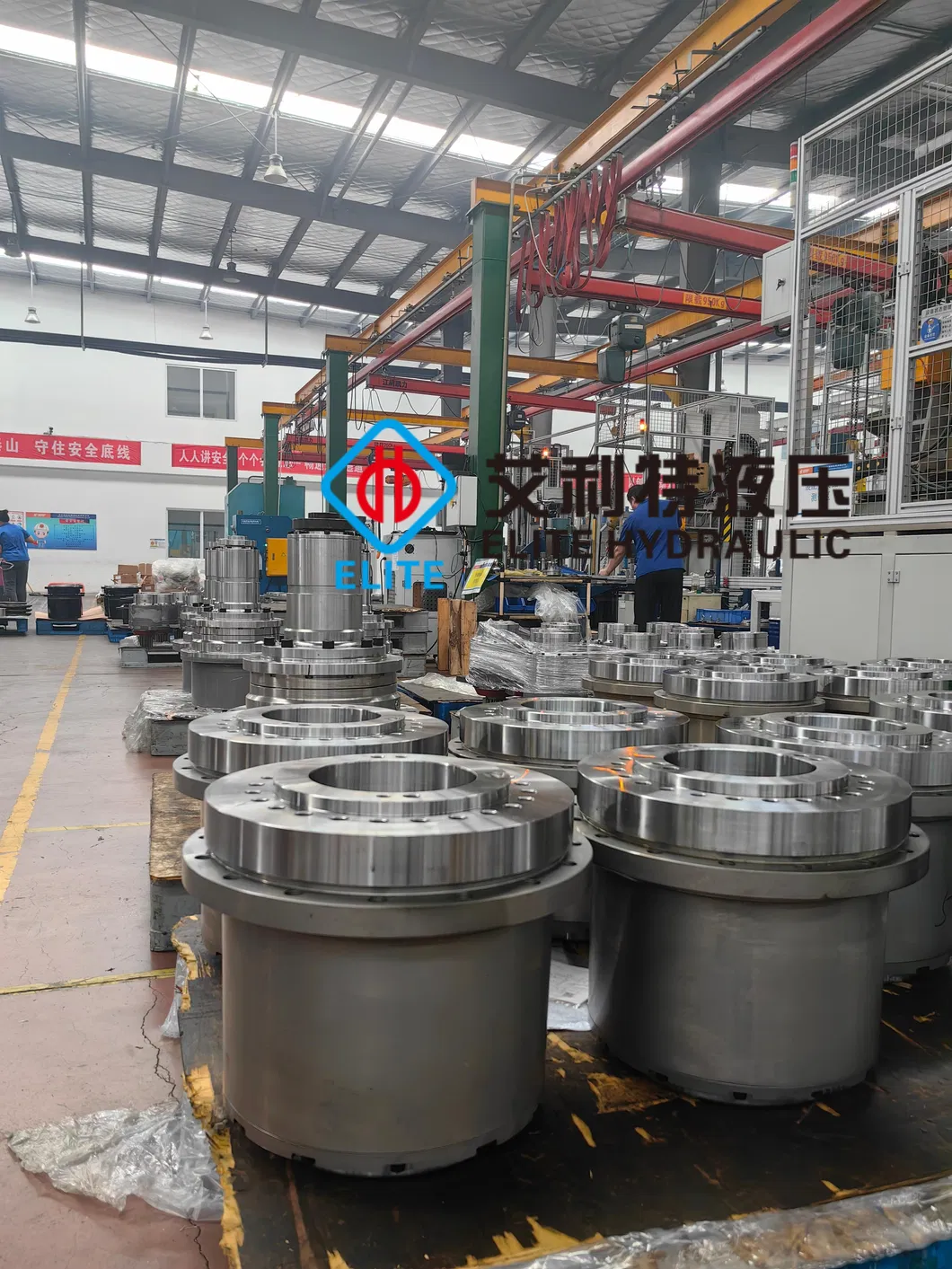

Product Detail 3

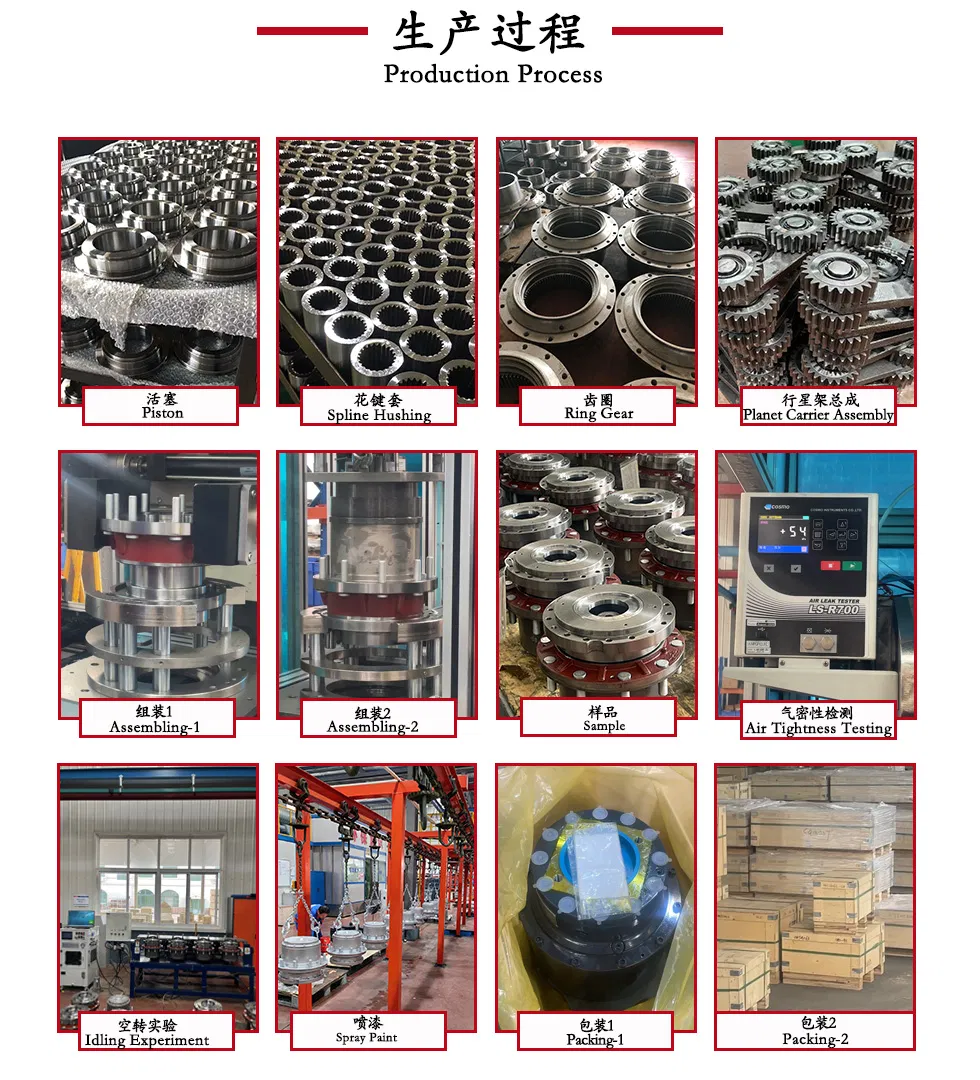

🏭 Manufacturing & Quality Control

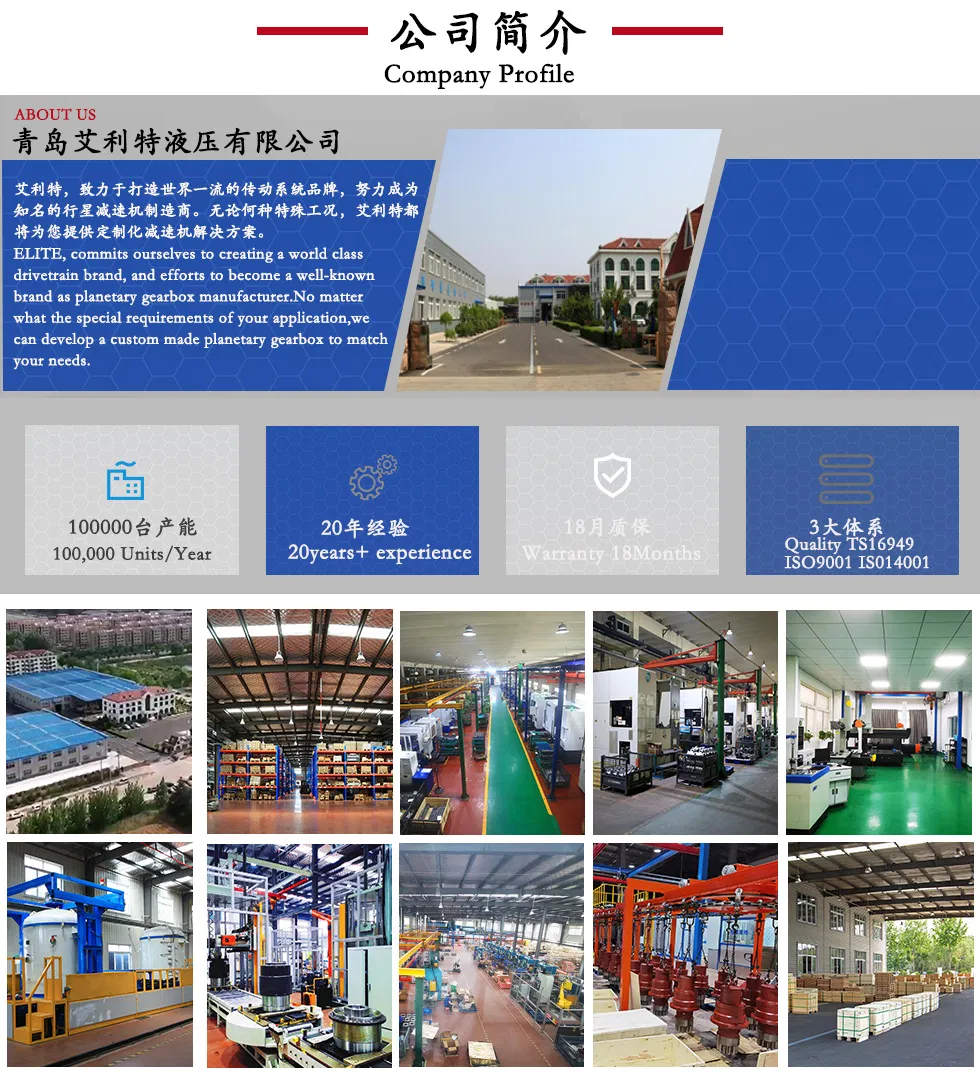

Production Facility
Workshop 1
Workshop 2

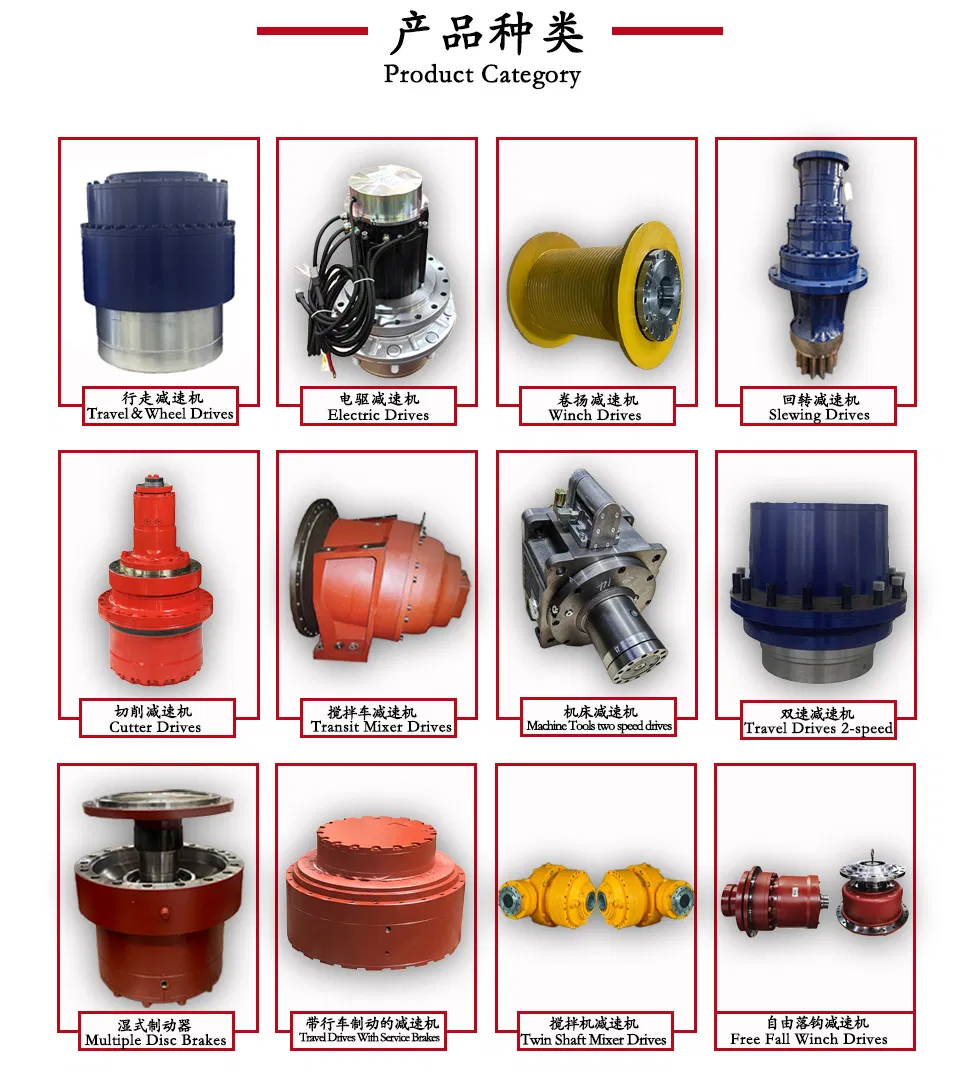

Equipment 1
Equipment 2
Equipment 3
Testing 1
Testing 2
Quality, value, and professional power transmission solutions catering to a wide variety of industries including travel gearboxes, electrical drives, slew gearboxes, and hydraulic transmission solutions.
❓ Frequently Asked Questions
What machines are these travel drives compatible with?
They are specifically designed for track, chain, and wheel driving machines, commonly used in crawlers and milling equipment.
What is the maximum output torque capacity?
The HFT024T model provides a high maximum output torque of up to 24,000 N.m.
Does the system include a braking mechanism?
Yes, it features an integrated static multiple-disk parking brake. A hydraulically released version is also available on request.
Can these drives handle high load capacities?
Yes, they are built with a robust bearing system supporting a dynamic load of 140KN and a static load of 290KN.
What is the warranty period for this product?
We offer an 18-month warranty period to ensure the reliability and performance of our transmission solutions.
What types of motors can be used with these drives?
They are compatible with cartridge or flanged axial piston hydraulic motors, hydraulic orbit motors, and electrical motors.
