Advanced PCB Manufacturing for Automotive LED Lighting Systems with Aluminum Mc PCB

Basic Information

Base Material	Aluminum LED
Insulation Materials	Metal Composite Materials
Processing Technology	HASL Lead Free
Application	Consumer Electronics
Mechanical Rigid	Rigid
Material	Aluminum
Copper Thickness	3oz - 105oz
Surface Finish	Gold Finger
Special Technology	Metal Edging
Production Capacity	50,000

LED PCB Board Overview

LED PCBs (Light-Emitting Diode Printed Circuit Boards) are indispensable components in LED lighting systems, providing essential functions such as electrical connections, structural support, and efficient heat dissipation for LEDs. We specialize in designing and manufacturing high-quality LED PCBs tailored to meet specific requirements.

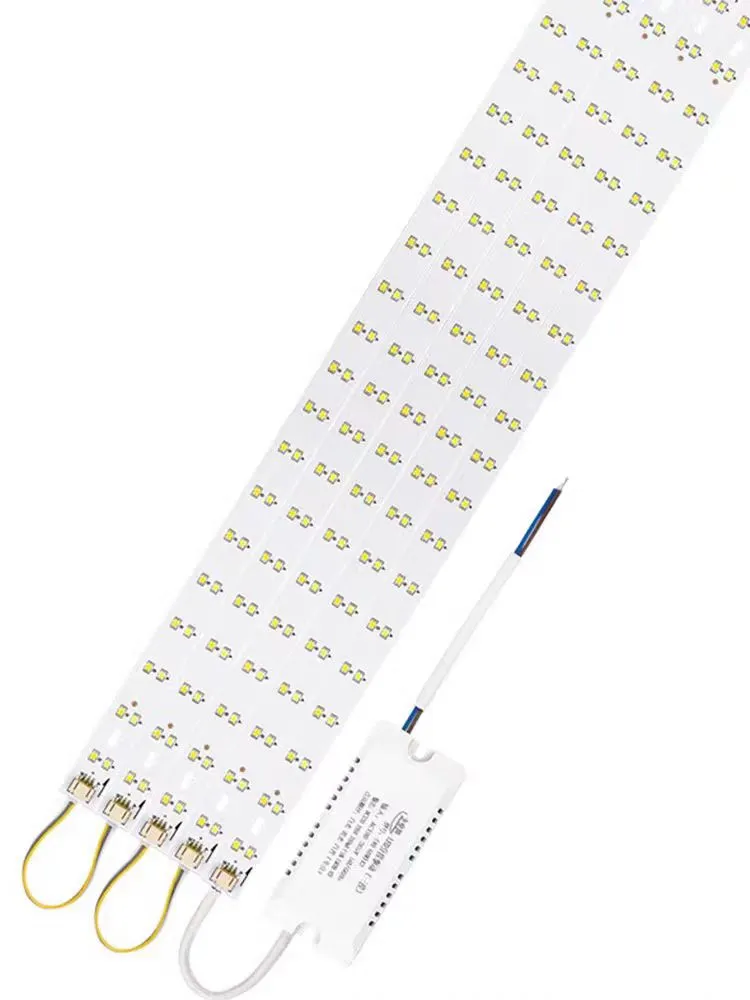

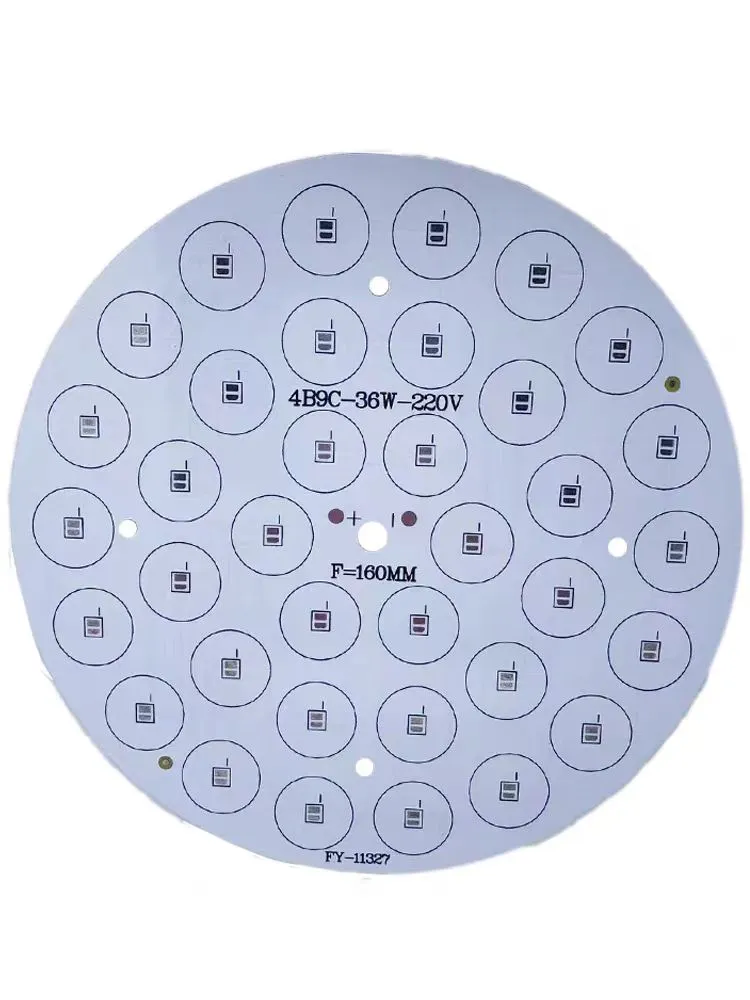

Aluminum LED PCB Composition

Aluminum alloy is used for the base instead of glass fiber, typically containing aluminum, magnesium, and silumin. The structure includes:

Basic Sheet: Aluminum alloy sheet providing maximum electrical insulation and thermal conductivity.
Insulation Layer: Composed of ceramic polymer, providing viscoelastic and thermal resistance to protect against damage.
Circuit Layer: Contains the copper foil circuit required for the board's functionality.

Technical Advantages

Thick Copper PCB Max single side: 8.0mm (228oz)
Max double side: 3.0mm (85oz)
Standard production: 3mm thickness / 105oz

Long LED PCB Capable of producing AL PCBs in lengths of 1200mm and 1500mm for specialized lighting applications.

Assembly Services Full SMT, DIP, OEM, and ODM PCB assembly services.
Sample lead time: 7-10 days.
Quantity order: 10-15 days.

Production Capabilities

A professional high-tech manufacturer founded in 2001, producing 35,000 PCBs monthly ranging from 2 to 36 layers. Capabilities include:

Microwave high-frequency circuit boards
HDI circuit boards and Aluminum-based boards
Blind and buried vias technology

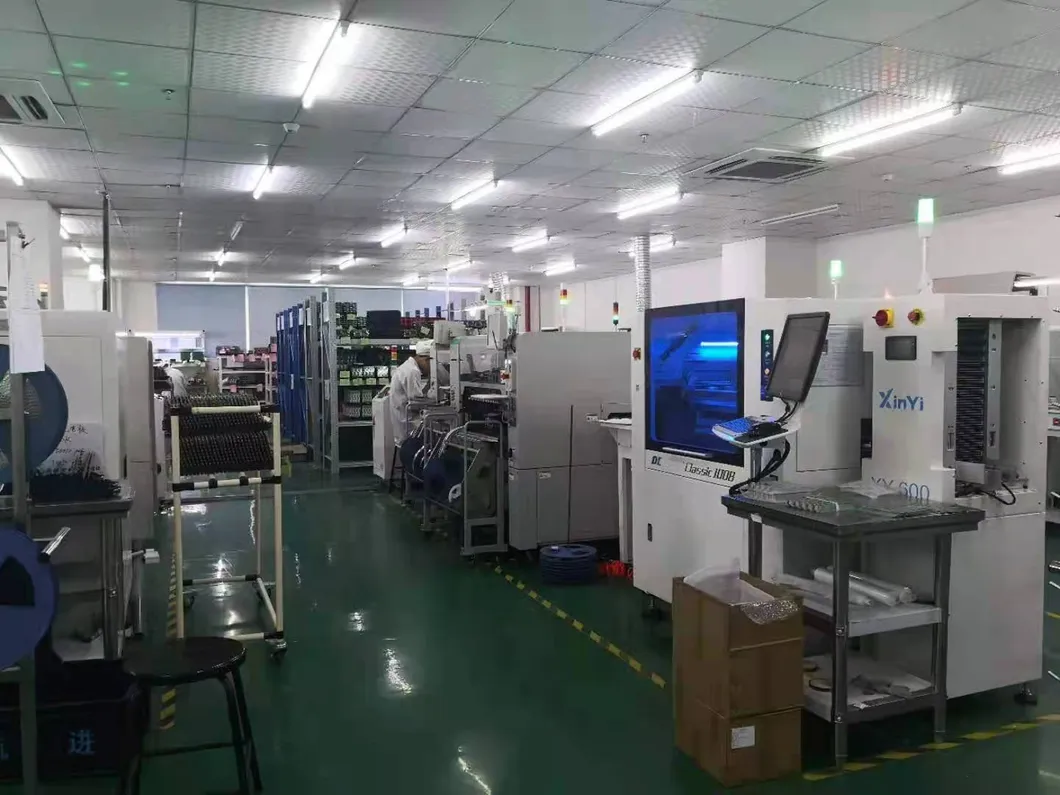

5 SMT lines and 2 DIP lines for assembly
SMT production capacity: 5,000,000 points/day

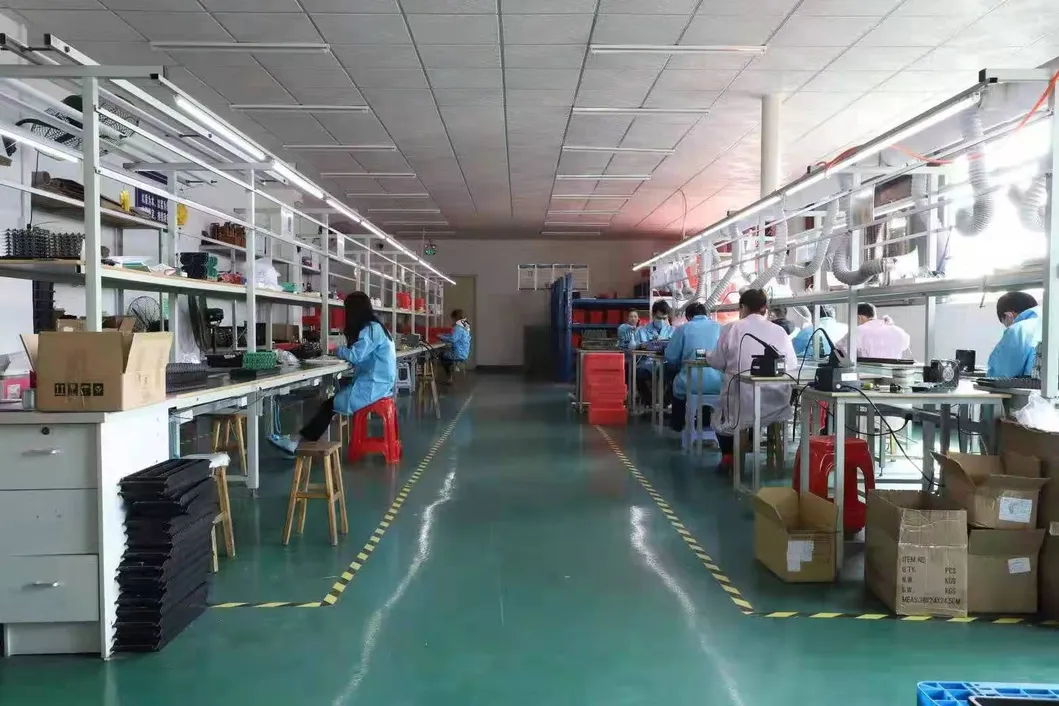

Professional Team & Production Line

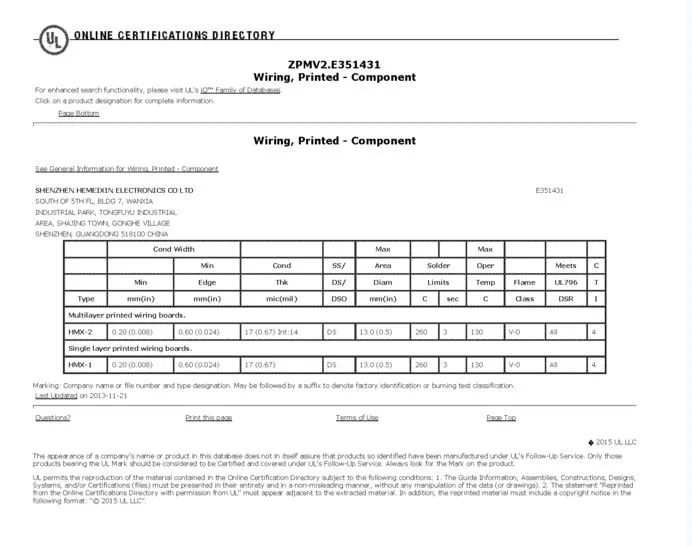

Certifications

Frequently Asked Questions

What is required for a PCB/PCBA quotation?

For PCB, we need quantity, Gerber files, and special requirements (material, finish, copper/board thickness). For PCBA, we require PCB specifications, a BOM list, and testing documents.

Are my design files safe?

Yes, we protect all intellectual property. Files are held in complete safety and security and are never shared with third parties. We are willing to sign an NDA.

What is your Minimum Order Quantity (MOQ)?

There is no MOQ; 1 piece is acceptable. We handle both small and large volume production with flexibility.

How do you control product quality?

Samples are tested by flying probe. For volume production, we use fixtures. We perform inspections after every step of the production process.

Can you produce PCBs from a sample without Gerber files?

Yes, we can help clone the PCB. Send us the sample, and we will design it, create the Gerber files, and generate the BOM list for production.

What payment methods do you accept?

We accept Wire Transfer (T/T), Western Union, Letter of Credit (L/C), PayPal, and Credit Cards. Net 30-day payments can be considered after established cooperation.
