Advanced Two-Wheeled Electric Vehicle Brake Caliper Casting System

Customization:	Available
After-sales Service:	on Line or Customer's Factory Aftersales Service
Warranty:	One Year

Send Inquiry

Product Description

Basic Info

Model NO.

JJ-CM32

Control Type

PLC

Condition

New

Automatic Grade

Both Manual and Automatic

Certification

Type

Gravity Die Casting

Tilt Angle

0-90 degree

Power

AC 380V 50/60Hz

Control System

PLC

Application

Metal Parts Manufacturing

Company Profile

We are a professional automatic equipment and production line manufacturer in China, specializing in metal and foam products. Our range includes aluminum and brass gravity casting lines, PU foam production systems, and high-pressure machines. All production lines feature robot pouring, SIEMENS PLC programming, and online tracking systems. With over 6 years of experience and dedicated software copyrights, we provide high-quality solutions for medium and large-scale enterprises.

Product Description

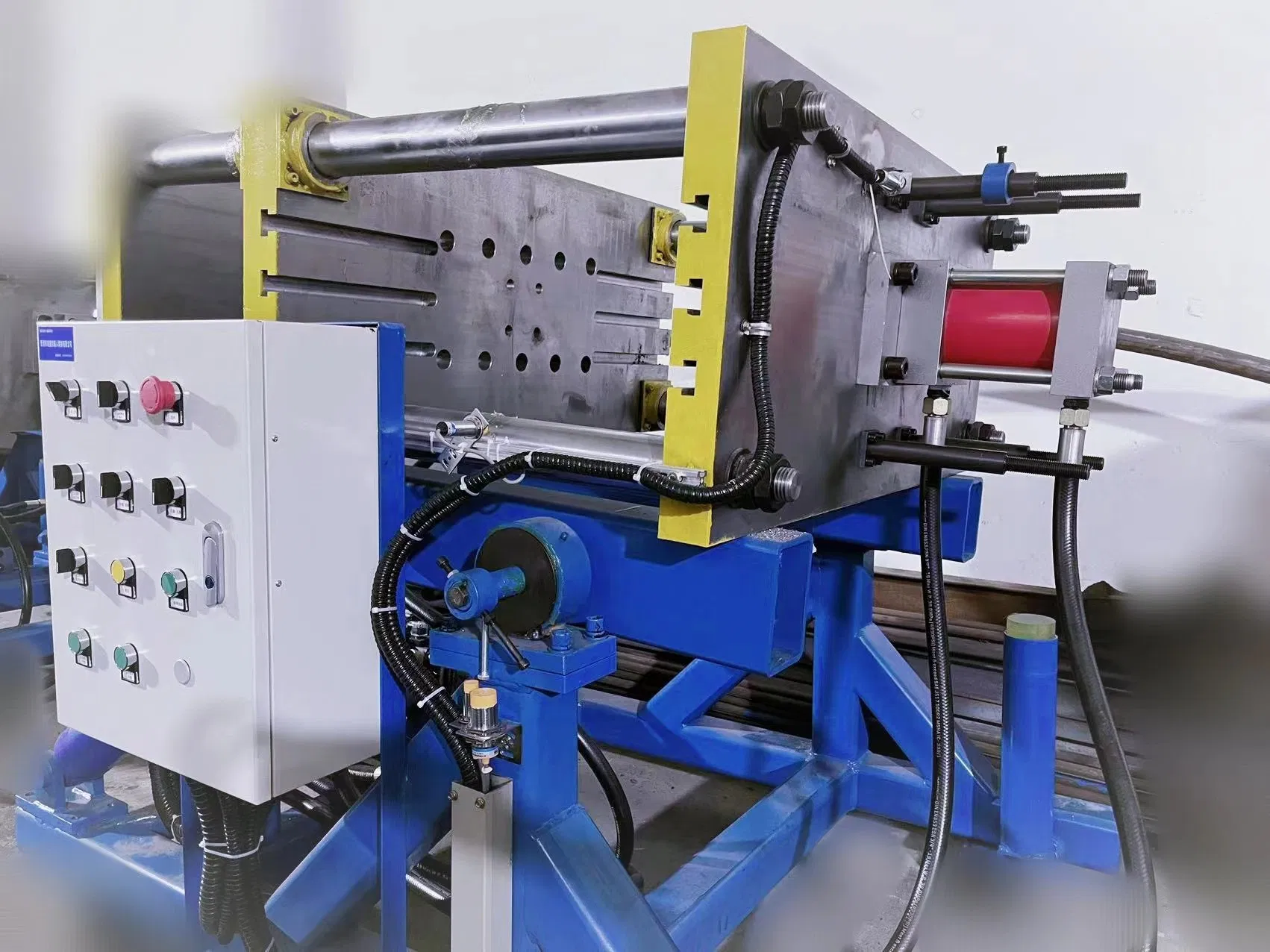

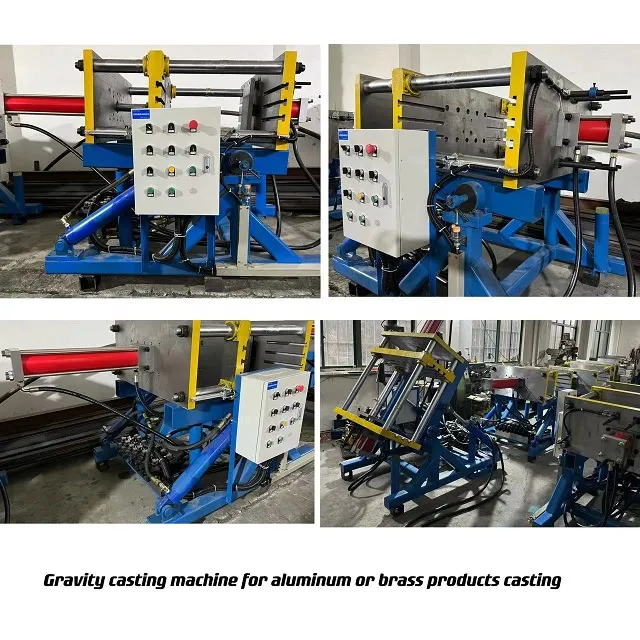

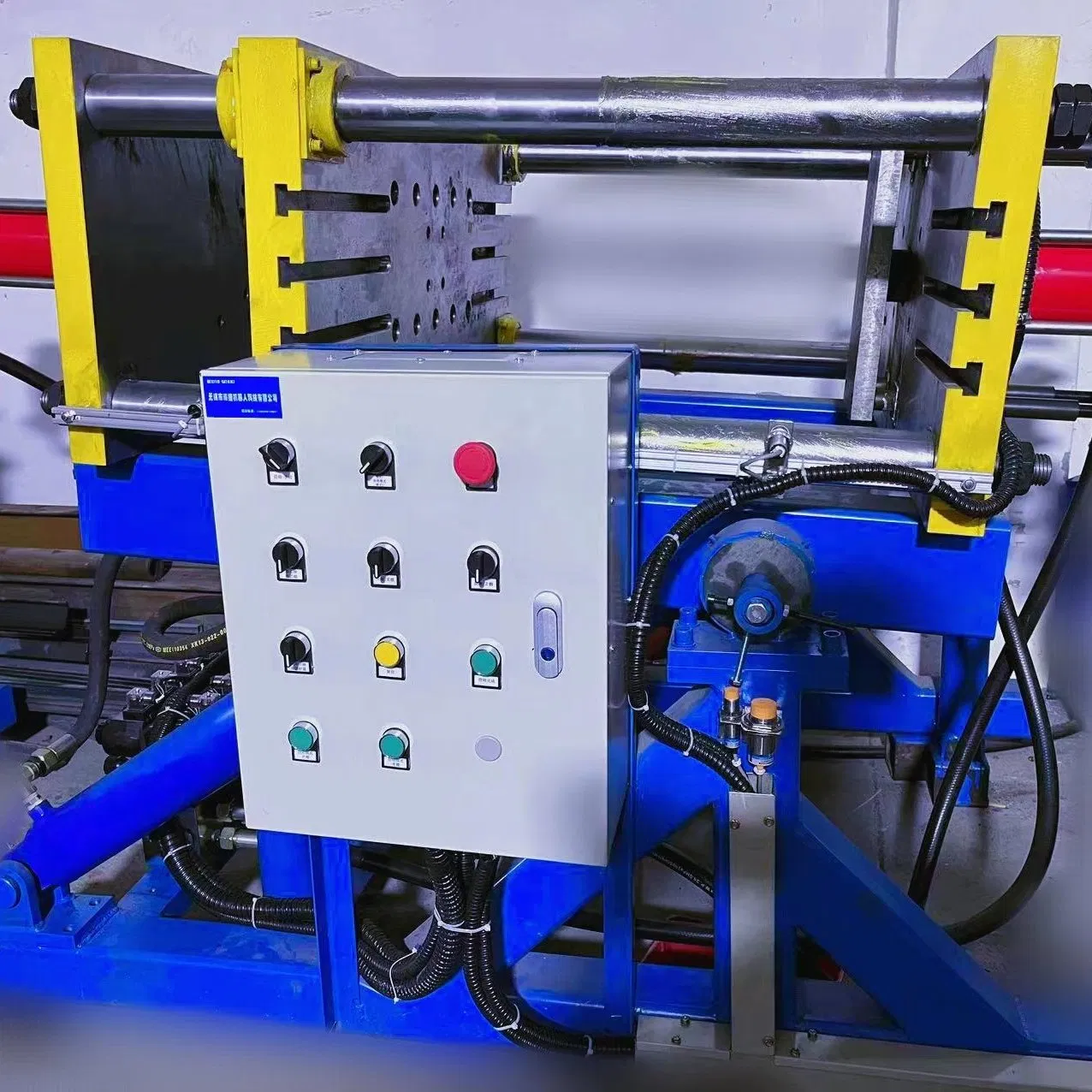

Our 0-90° tilting gravity casting machine is designed for pouring aluminum, copper, or brass products, specifically for automotive parts and metal foundries. We utilize YUKEN brand solenoid valves and customized large-brand oil cylinders to ensure peak performance and longevity.

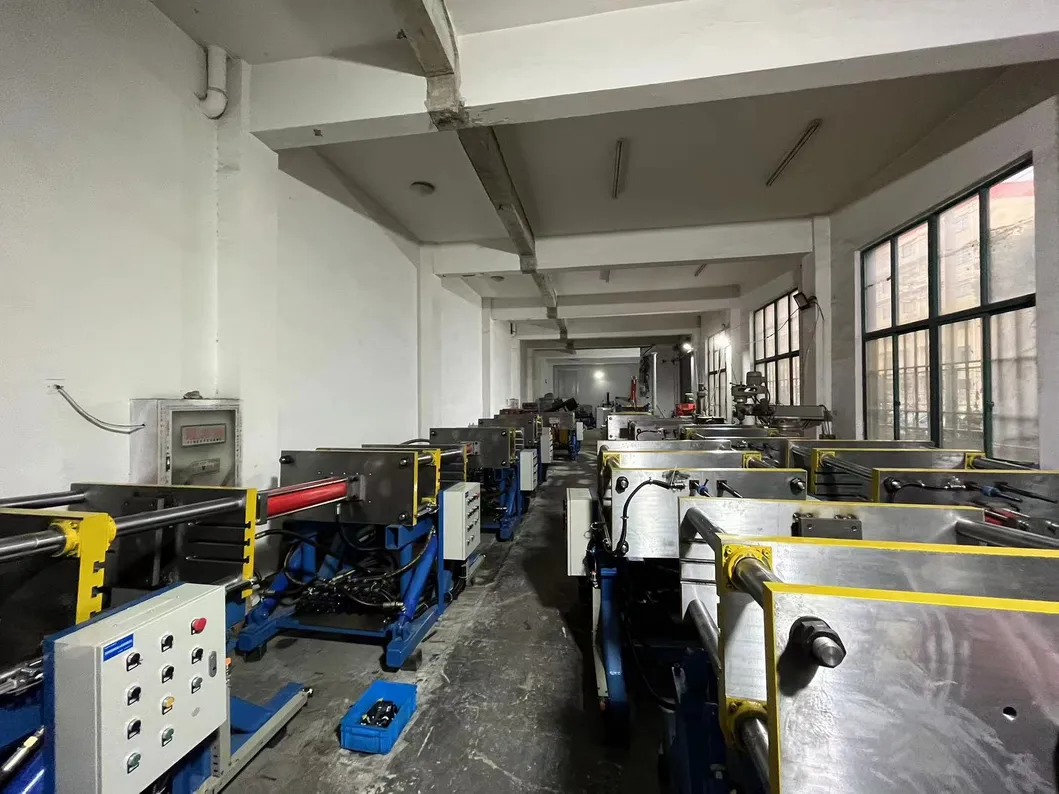

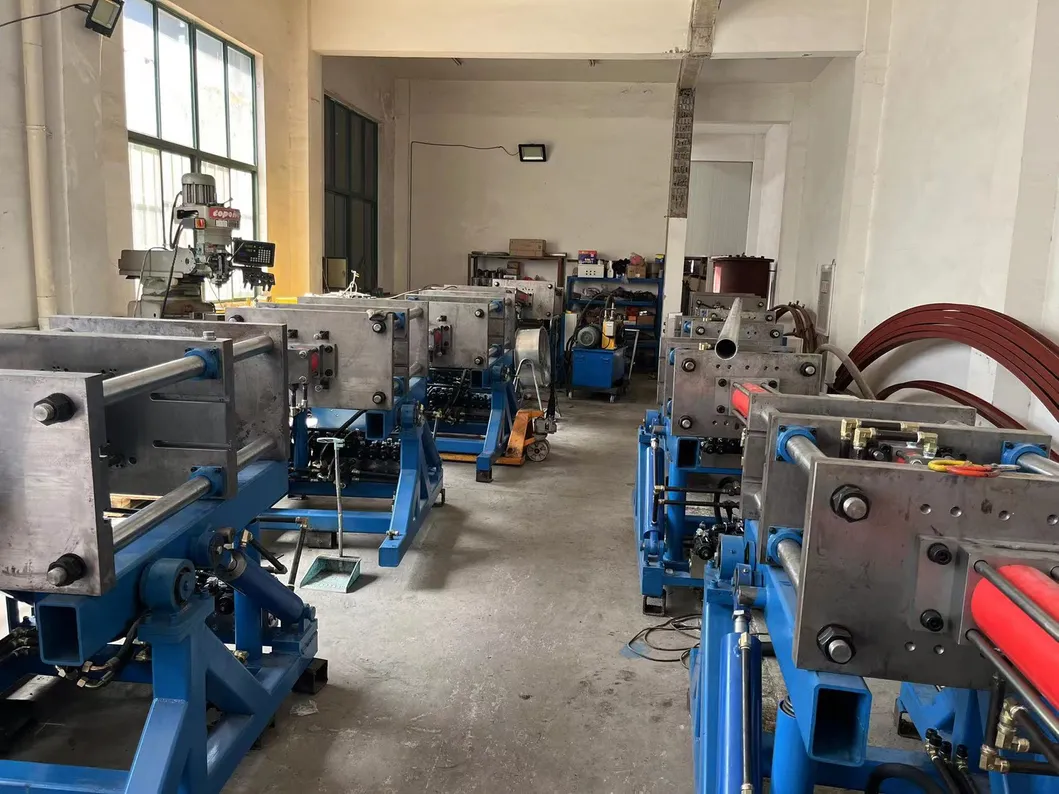

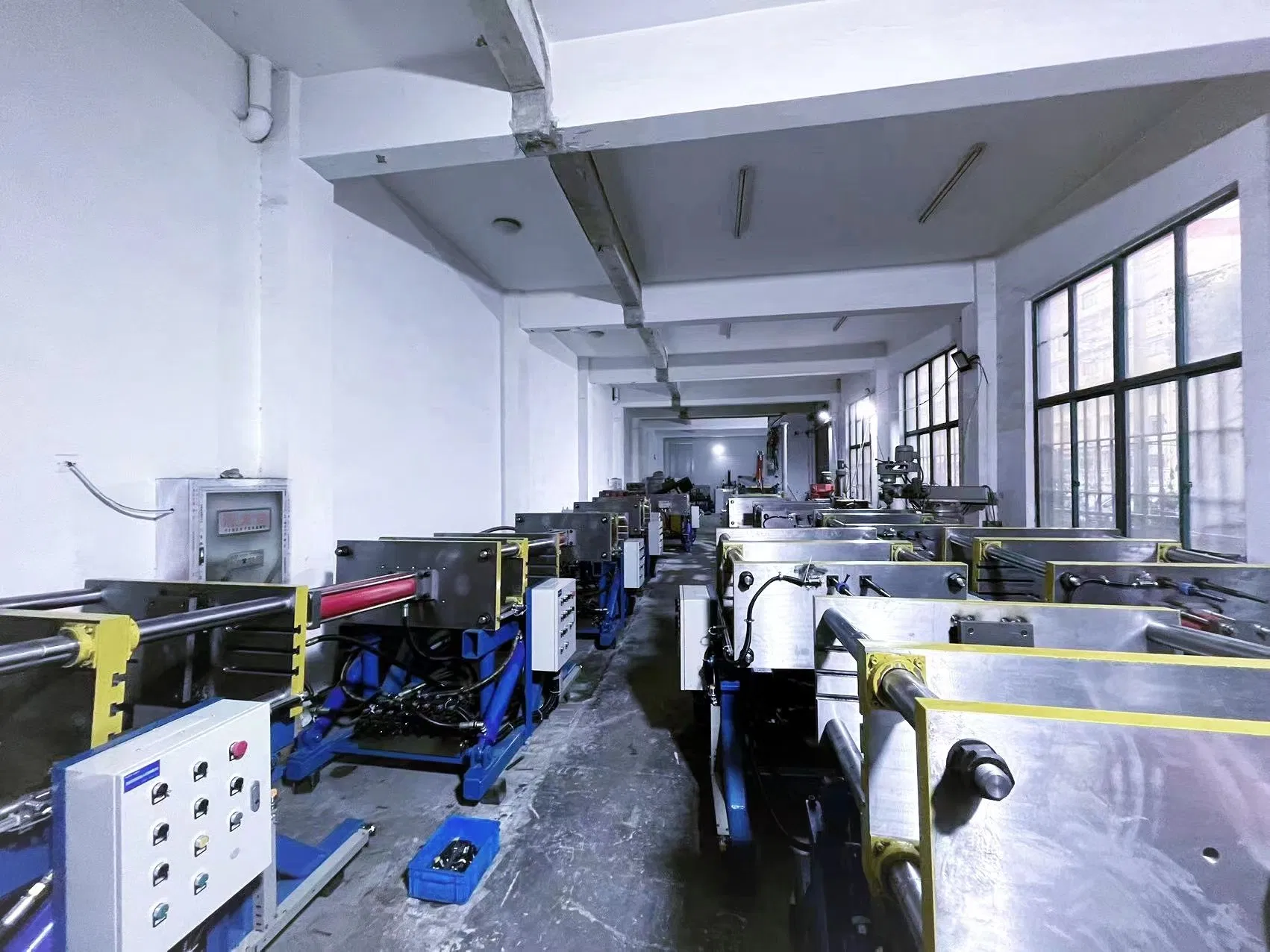

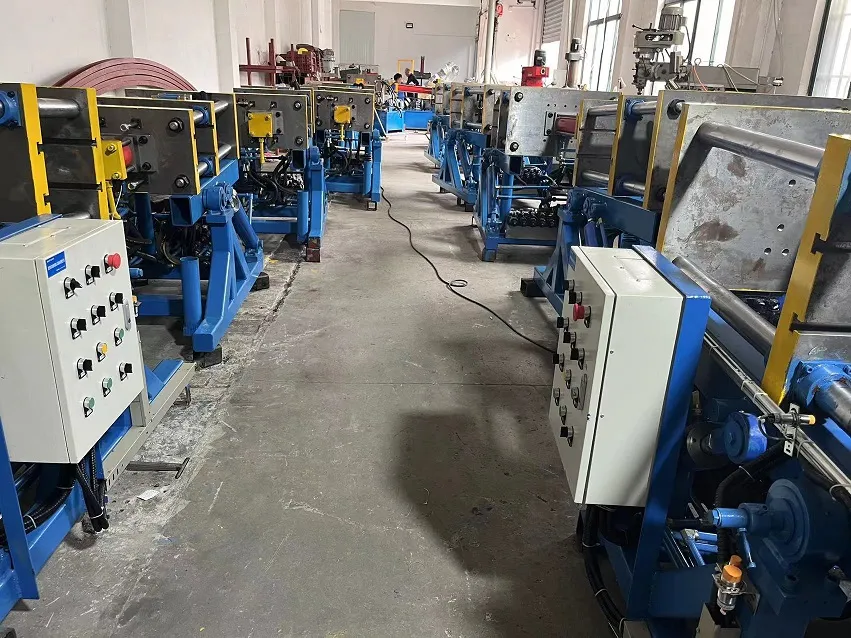

Factory Gravity Casting Machines:

Product Parameters

Parameter / Model	JJ-5040	JJ-6050	JJ-8060	JJ-1080	JJ-1210
Mold plate Max.size	700*500mm	800*600mm	1100*700mm	1300*900mm	1500*1000mm
Mold Max.installation size	510*400mm	610*500mm	810*600mm	910*800mm	1200*800mm
Main cylinder dia/stroke	Φ80*700mm	Φ80*700mm	Φ80*600mm	Φ100*700mm	Φ125*900mm
Tilt angle	0-90°	0-90°	0-90°	0-90°	0-90°
Hydraulic power	5.5KW	5.5KW	7.5KW	11KW	15KW

Our machines support both manual and automatic functions and are fully customizable to meet specific factory requirements for aluminum and copper casting.

Our Advantages

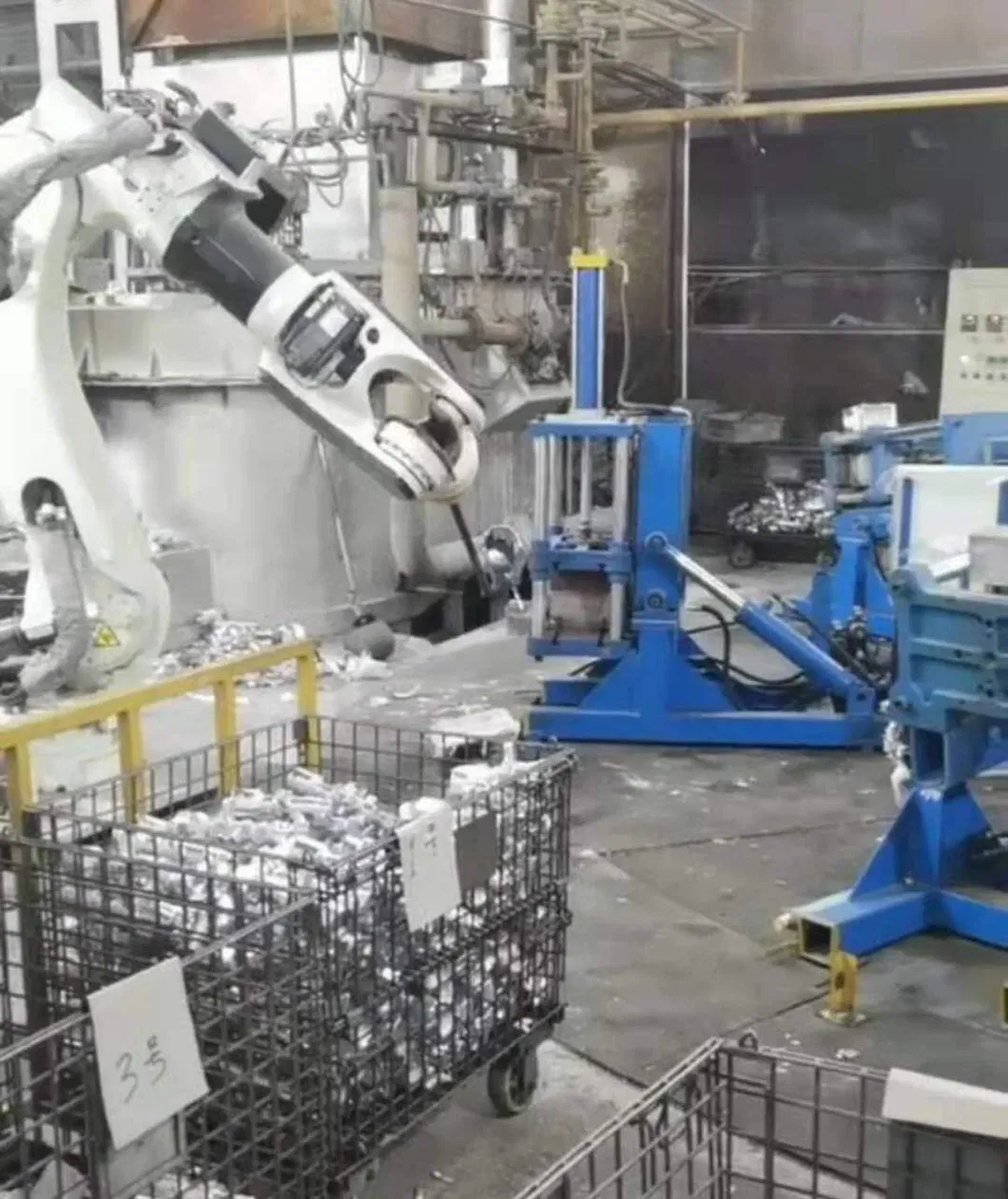

1. Gravity Casting Automatic Production Line

Supports up to 14 sets of casting machines for large-scale production.
Robot pouring ensures continuous 24-hour operation.
Power-saving 11KW hydraulic station for the entire line.
Requires only 1-2 workers, significantly saving labor costs.

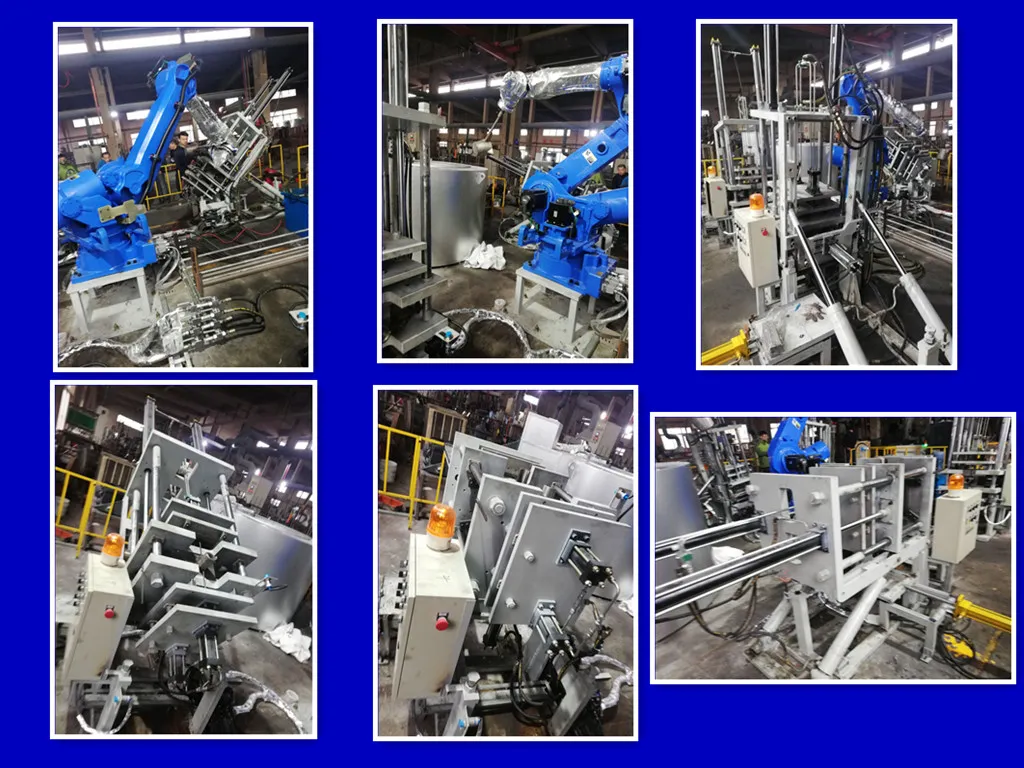

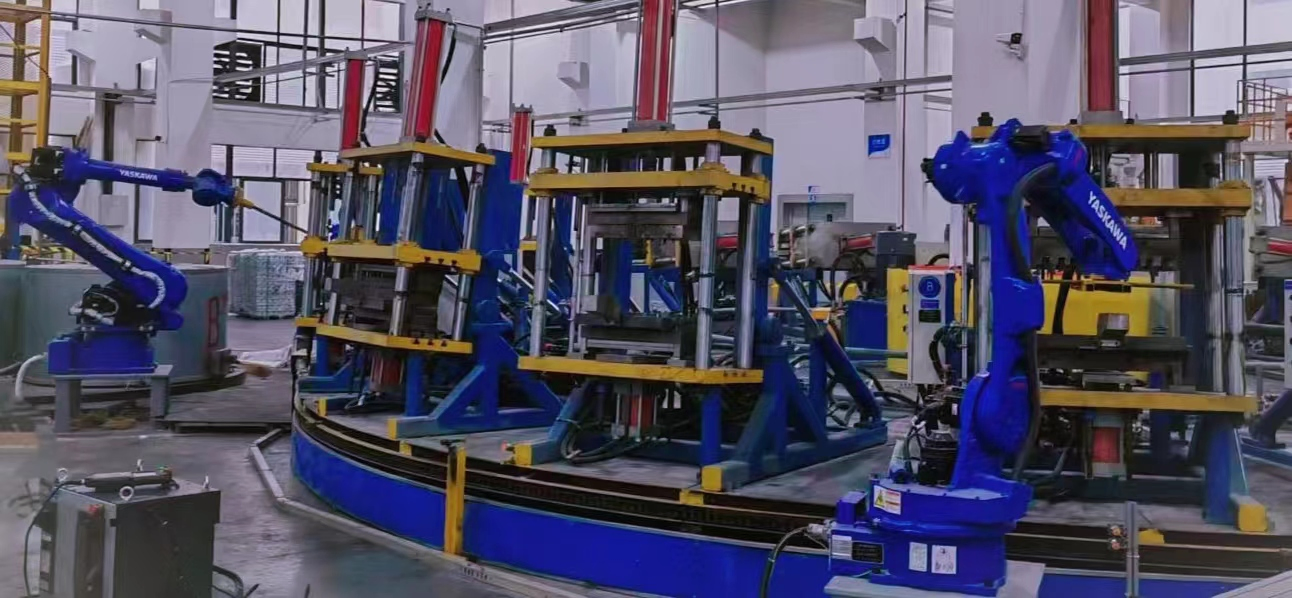

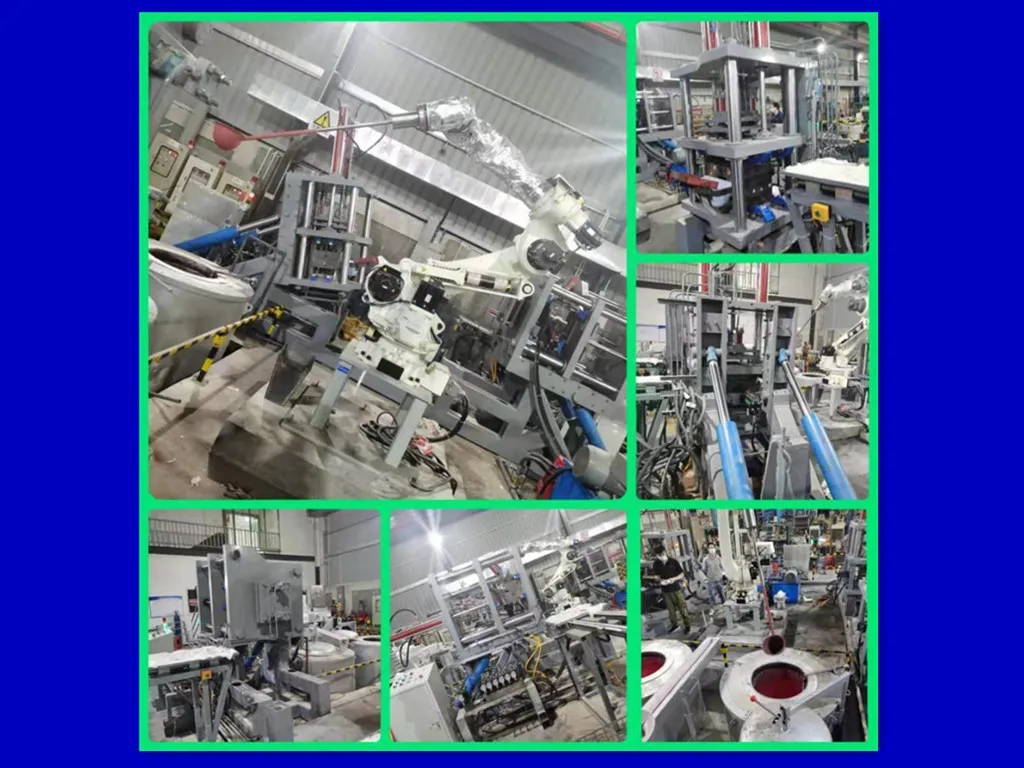

2. Robotic Gravity Casting Unit

Four to six casting machines per unit for efficient workflow.
One circle pouring every 5 minutes (adjustable based on cooling).
Integrated robot tracking system with patented software.
Compatible with sand core products.

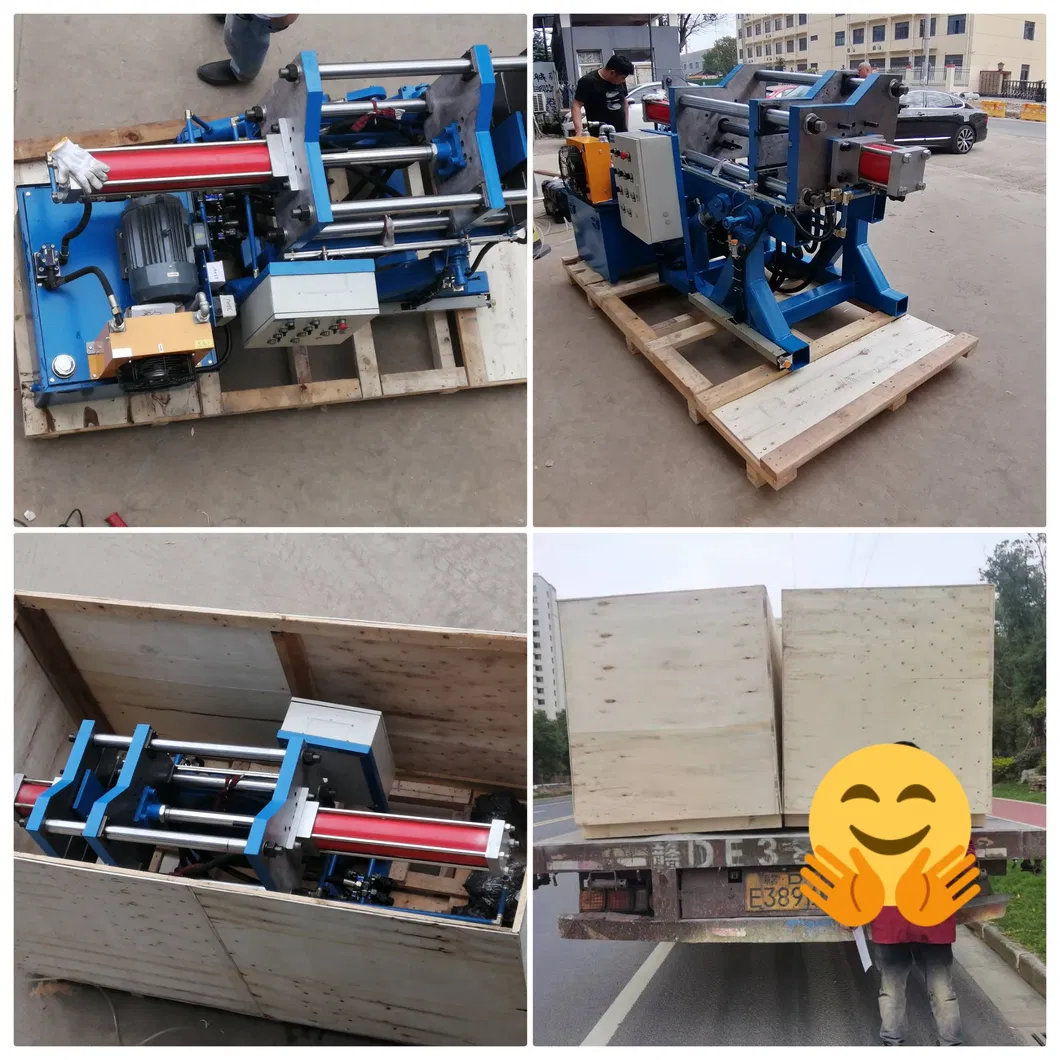

Certifications & Packaging

Service & Support

After Sales: We offer a one-year warranty and provide online, video, or on-site factory services.

Installation: For full production lines, we arrange technicians for on-site installation, testing, and training. Single machines can be installed via video or phone guidance.

Lead Time: 15-30 days for single machines; 90 days for full production lines.

Payment: 50% deposit via T/T, 50% balance before delivery.

Frequently Asked Questions

Q1: What materials are suitable for these gravity casting machines? A: Our machines are primarily designed for pouring aluminum, copper, and brass products, commonly used in automotive and motorcycle accessories.

Q2: Can the casting machine be operated manually? A: Yes, our gravity casting machines feature both manual and automatic functions, providing flexibility for different production needs.

Q3: What is the maximum tilting angle of the machine? A: The machine offers a tilting range from 0 to 90 degrees, which can be manually adjusted for the pouring speed.

Q4: How does the robot pouring system benefit my production? A: Robot pouring allows for continuous 24-hour operation, ensures high precision tracking, saves labor costs (only 1-2 workers needed), and increases overall safety.

Q5: What is the standard lead time for a full production line? A: While a single machine typically takes 15-30 days, a full automatic production line requires approximately 90 days for manufacturing and configuration.

Q6: Do you provide on-site installation and training? A: Yes, for production lines, we arrange for workers to visit the customer's factory for installation, testing, and comprehensive staff training.
