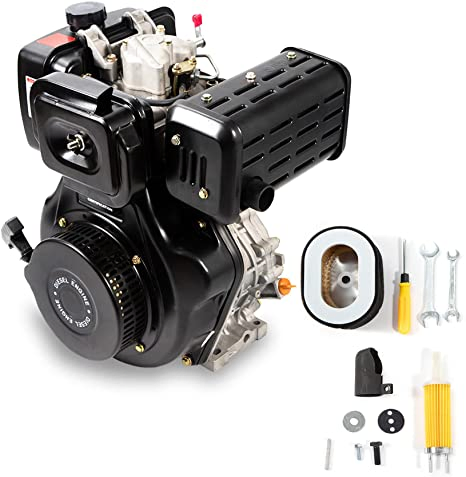

5HP Air Cooled Diesel Engine 3600rpm 300rpm Keyshaft Mdh170f

Customization:	Available
Body Material:	Aluminium
Cold Style:	Air-Cooled

Send Inquiry

Product Description

Basic Info.

Displacement

<2.0 L

Emission Standard

Euro3

Engine Type

Inline Engine

Number of Cylinders

Single Cylinder

Start

Electric Start

Transport Package

Carton

Specification

5HP

Origin

China

Production Capacity

50000sets/Year

Product Description

Low fuel consumption

With new tip-clearance fuel pump and bottom inertia injection technology, combine new type combustor and high burning rate, its fuel economy is much lower than gasoline engines.

Low noise

Well-designed gear transmission structure, make the vibration decreased and noise lowed, patented air cleaner, lower the noise of air inlet and outlet.

Safe and reliable

Excellent production process, strict QC system to make sure the products safe and reliable.

Technical Specifications

Model	MDH170F/FE
Power Type	Single cylinder, four-stroke, air-cooled, vertical
Combustion System	Direct Injection
Cylinder diameter*stroke (mm)	70*55
Displacement (L)	0.211
Compression ratio	20 : 1
Rated speed (rpm)	3000 / 3600
Rated power (kW)	2.5 / 2.8
Rated power (hp)	3.4 / 3.8
Start the system	F: Manual start / FE: Electric start
Fuel tank capacity (L)	2.5
Oil capacity (L)	0.75
Fuel consumption (g/kwh)	275 / 280
Fuel brand	Diesel: 0# (summer), -10# (winter)
Engine oil brand	SAE10W30 (CD grade and above)
Dimensions (mm)	332376415
Net weight (kg)	Manual start: 27 / Electric start: 31
Steering (from flywheel)	Clockwise

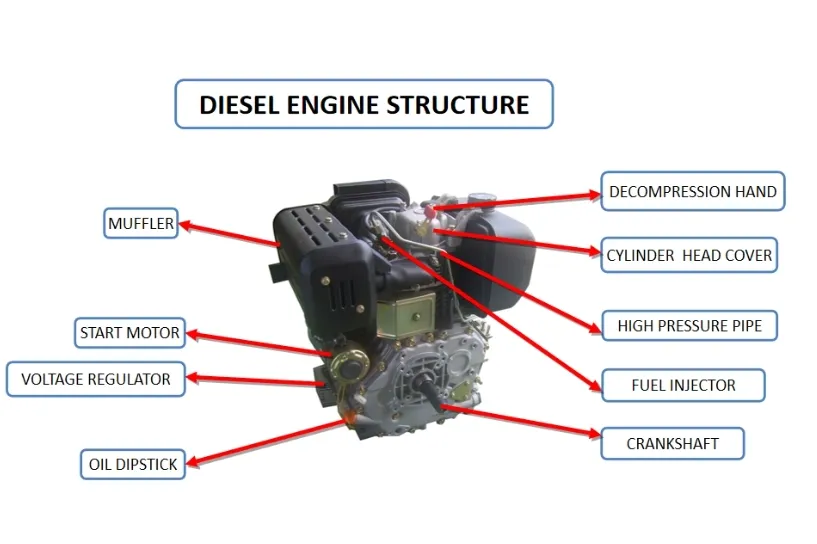

Application & Structure

Frequently Asked Questions

Q1: What makes the MDH170F engine fuel-efficient? It uses a new tip-clearance fuel pump and bottom inertia injection technology combined with a high-burning rate combustor to achieve lower fuel consumption than gasoline engines.

Q2: What starting systems are available for this 5HP diesel engine? The engine comes in two versions: the F model features manual start, while the FE model is equipped with an electric start system.

Q3: How is the noise level controlled in this engine? Noise is minimized through a well-designed gear transmission structure that reduces vibration and a patented air cleaner that lowers inlet and outlet noise.

Q4: What are the cooling and combustion specifications? This is a single-cylinder, four-stroke, air-cooled vertical engine utilizing a direct injection combustion system.

Q5: What type of fuel and oil should be used? It uses 0# diesel in summer and -10# in winter. The recommended engine oil is SAE10W30 (CD grade and above).

Q6: What is the rated power output of this model? The engine provides a rated power of 2.5 to 2.8 kW (3.4 to 3.8 HP) at speeds between 3000 and 3600 rpm.
