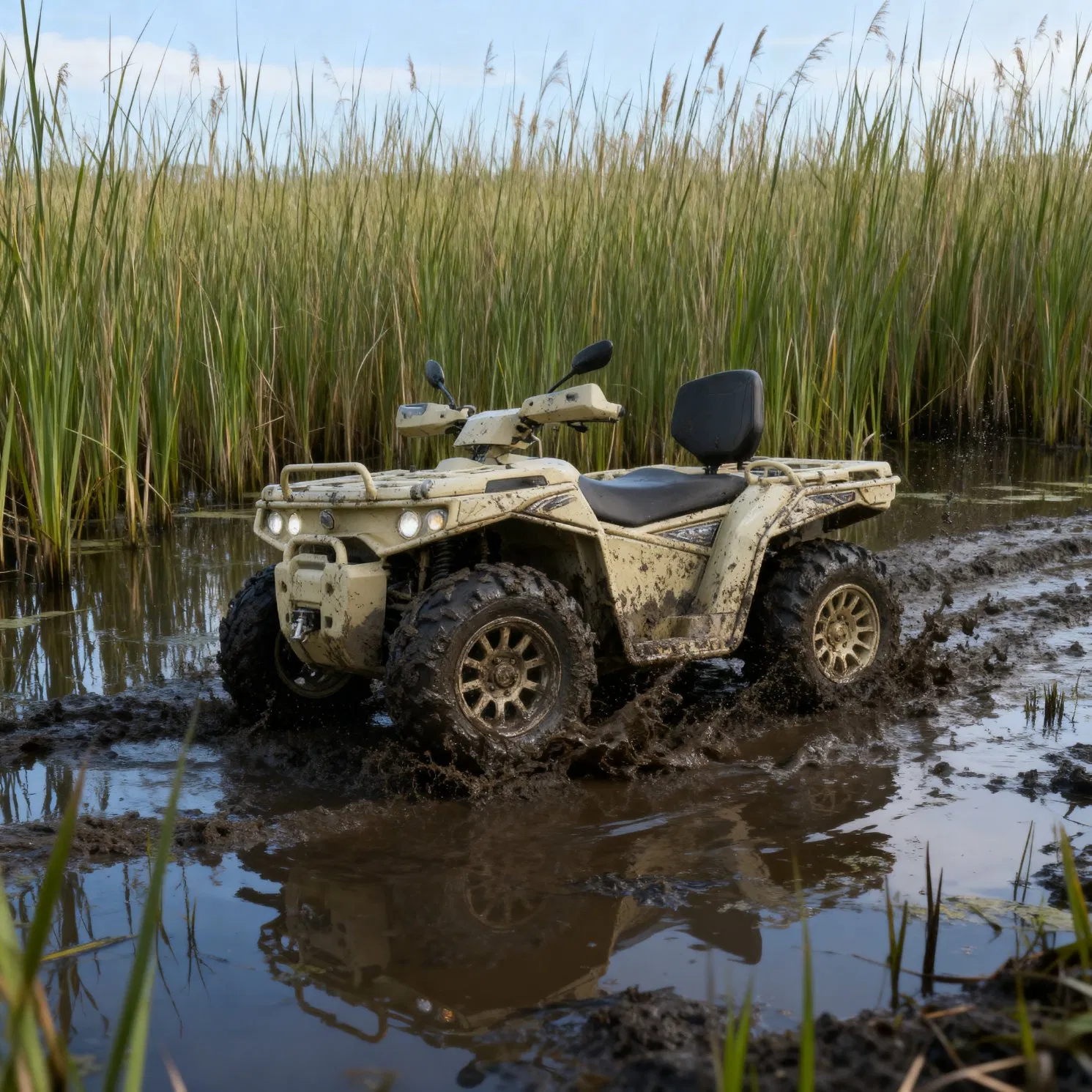

4X4 Patrol Vehicle for Public Safety Operations
4X4 Patrol Vehicle for Public Safety Operations
4X4 Patrol Vehicle for Public Safety Operations
4X4 Patrol Vehicle for Public Safety Operations
4X4 Patrol Vehicle for Public Safety Operations
1 / 5
4X4 Patrol Vehicle for Public Safety Operations
4X4 Patrol Vehicle for Public Safety Operations
4X4 Patrol Vehicle for Public Safety Operations
4X4 Patrol Vehicle for Public Safety Operations
4X4 Patrol Vehicle for Public Safety Operations

4X4 Patrol Vehicle for Public Safety Operations

Customization: Available
Brake Type: Disc Brake
Displacement: Electrical
Send Inquiry

Product Description

i

Basic Info.

Engine Type
Battery
Fuel
Electric
Maximum Speed
50-75 km/h
Structure
Without Door
Transmission System
Electrical Motor
Transmission Type
Automatic
Max. Wheel Torque
1923n·M
Ground Clearance
300 mm
Wheelbase
1460 mm
Climbing Capacity
40°
Drive System Type
2WD/4WD
Towing Capacity
680kg
Rated Power
12kw
Max. Torque
136n·M
Dimensions
2350x1278x1400 mm
P

Product Description

4X4 Patrol Vehicle
4X4 Patrol Vehicle Overview
4X4 Patrol Vehicle Detail
Type Rock 12 Pro Rock 12 Rock 12 i
DIMENSIONS
Overall Size (L x W x H)2350x1278x1400 mm2350x1278x1400 mm2350x1278x1400 mm
Wheelbase1460 mm1460 mm1460 mm
Ground Clearance300 mm300 mm300 mm
Person Capacity222
Max. Power22.8HP (17kw)22.8HP (17kw)22.8HP (17kw)
Max. Speed70km/h70km/h70km/h
Max. Wheel Torque1923N·m1923N·m1923N·m
Towing Capacity1500lb (680kg)1500lb (680kg)1500lb (680kg)
CHASSIS
SteeringEPSEPSEPS
BrakesHydraulic Disc BrakeHydraulic Disc BrakeHydraulic Disc Brake
SuspensionDual A-Arm IndependentDual A-Arm IndependentDual A-Arm Independent
Wheels14 in. Aluminum14 in. Aluminum14 in. Aluminum
BATTERY PACK
Battery CoreTernary LithiumTernary LithiumLFP
Battery Capacity110Ah70Ah72Ah
Estimated Range120km80km80km
Charging Time (20%-80%)1.65h1h1.1h

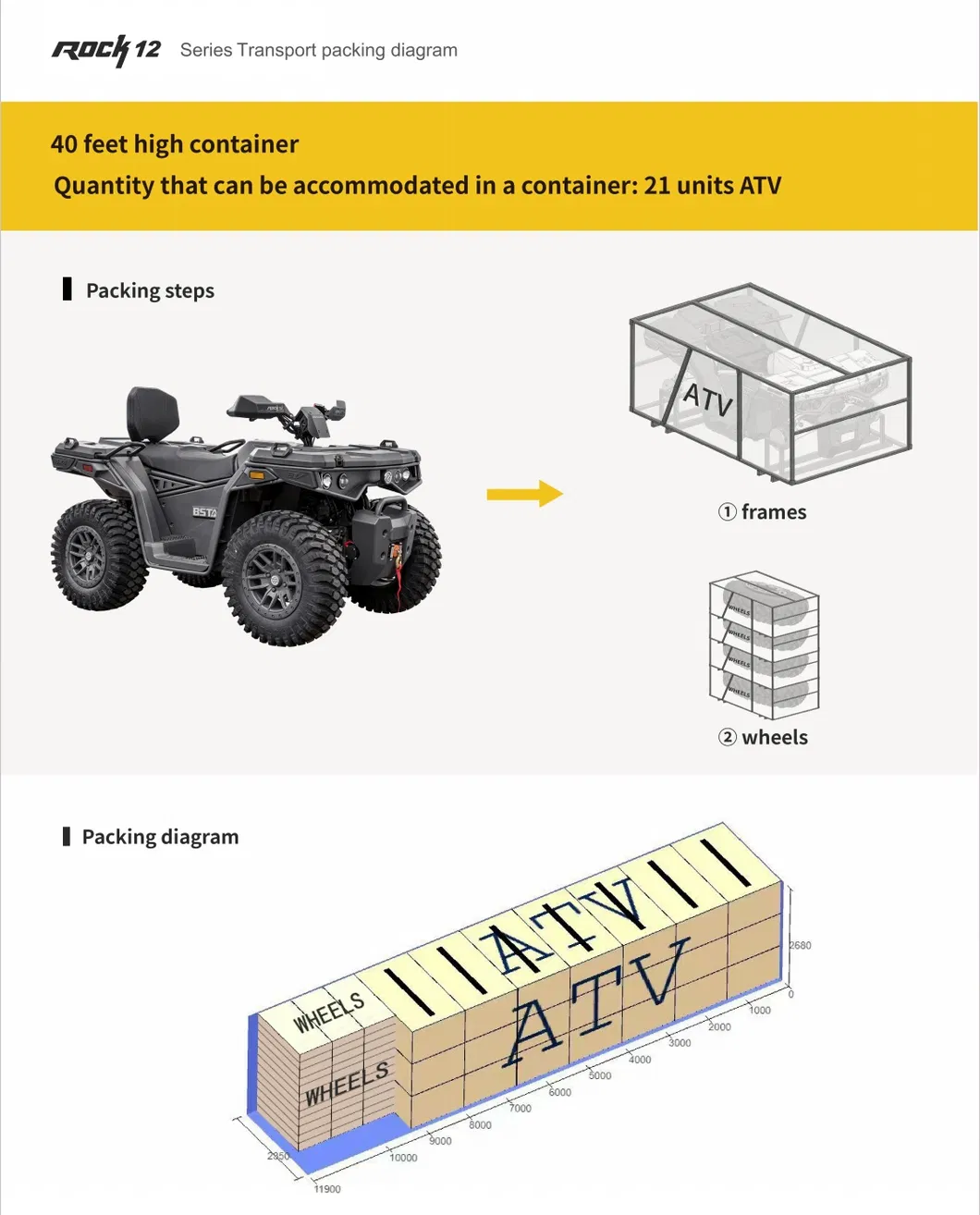

Vehicle Performance

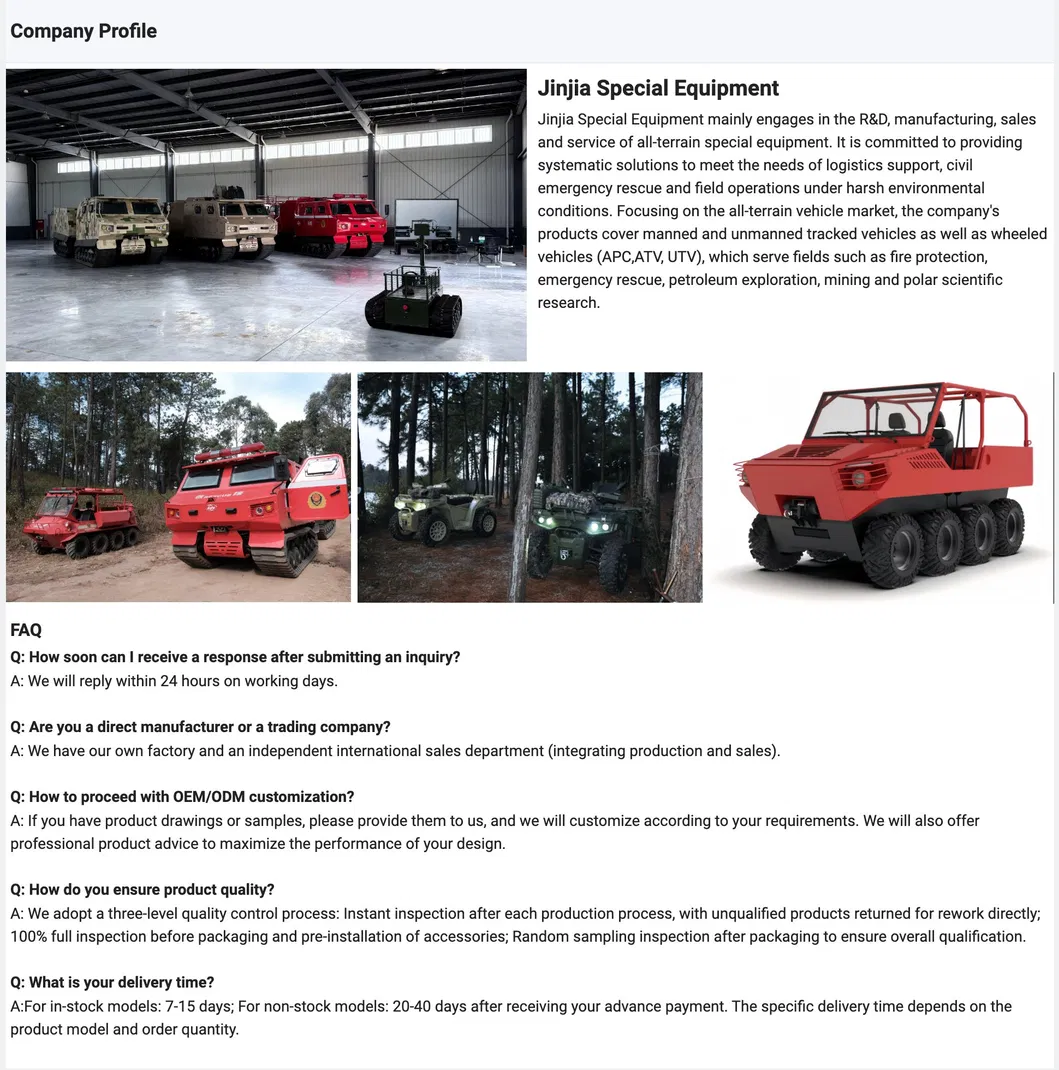

Vehicle Structure
?

Frequently Asked Questions

What is the maximum speed and climbing capacity?
The vehicle can reach a maximum speed of 70km/h and has a strong climbing capacity of up to 40°.
What are the different battery options available?
We offer Ternary Lithium batteries (70Ah and 110Ah) for the Rock 12 and Pro models, and LFP batteries (72Ah) for the Rock 12 i model.
How long does it take to charge the battery?
Fast charging allows the battery to go from 20% to 80% in approximately 1 to 1.65 hours depending on the specific model.
Is the vehicle equipped with four-wheel drive?
Yes, the vehicle features a selectable 2WD/4WD drive system type to suit various terrain requirements.
What is the towing and payload capacity?
The vehicle is designed for heavy-duty tasks with a towing capacity of 1500lb (680kg) and a payload capacity of 540lb (245kg).
What kind of steering and braking system is used?
The vehicle utilizes Electronic Power Steering (EPS) and a reliable Hydraulic Disc Brake system for maximum control and safety.
