Keylink Advanced Plasma Etching System for Truck Semitrailer Surface Refinement

1 / 5

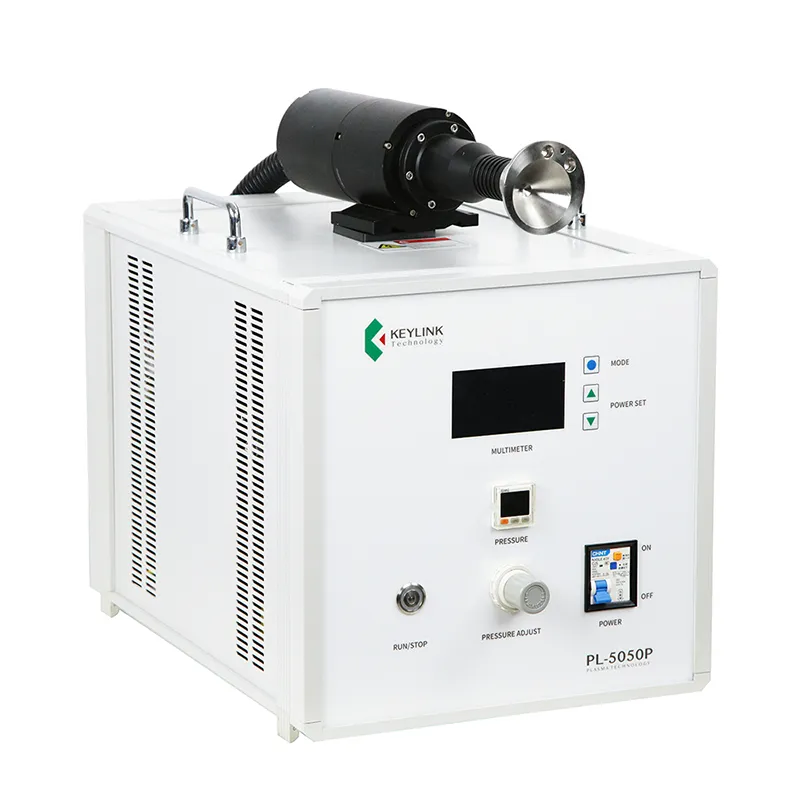

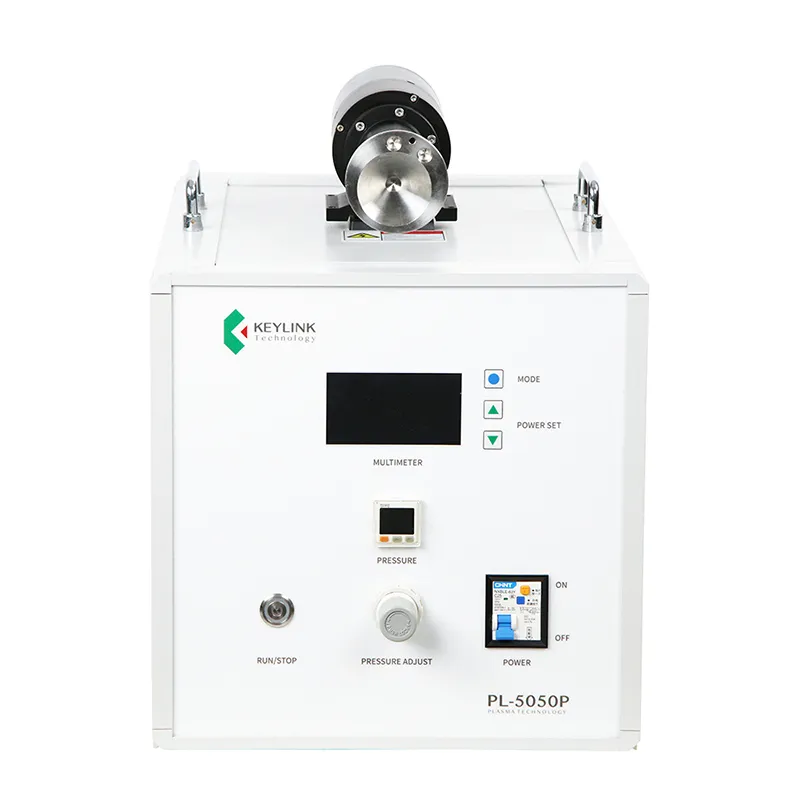

Keylink Advanced Plasma Etching System for Truck Semitrailer Surface Refinement

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	One Year

Send Inquiry

Product Description

Overview & Basic Information

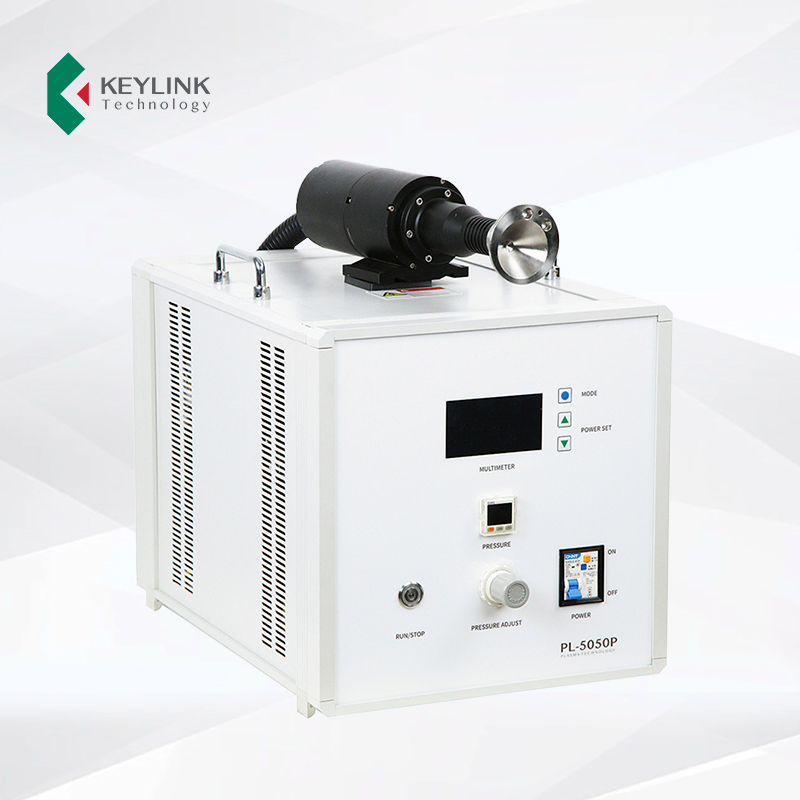

Model NO.

Pl-5050P

Type

Clean Machine

Voltage

220V

Color

White

Gun

Rotating Spray

Function

Improve Adhesion of Surface

Application

Printing, ED Interest and Creative Work etc

Origin

China

HS Code

8479899990

Package Size

66.00cm * 40.00cm * 53.00cm

Technical Specifications

Parameter		Value / Detail
Interface	4.3-inch LCD screen
Rated Voltage	AC220V ±10%
Output Power	750-1500W
Frequency	17.3-30kHz

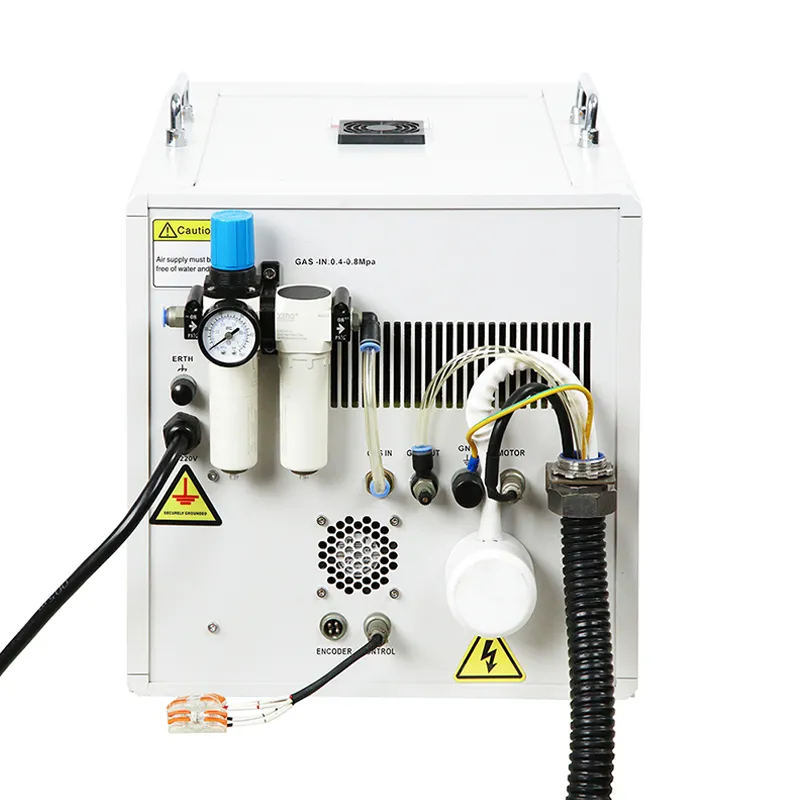

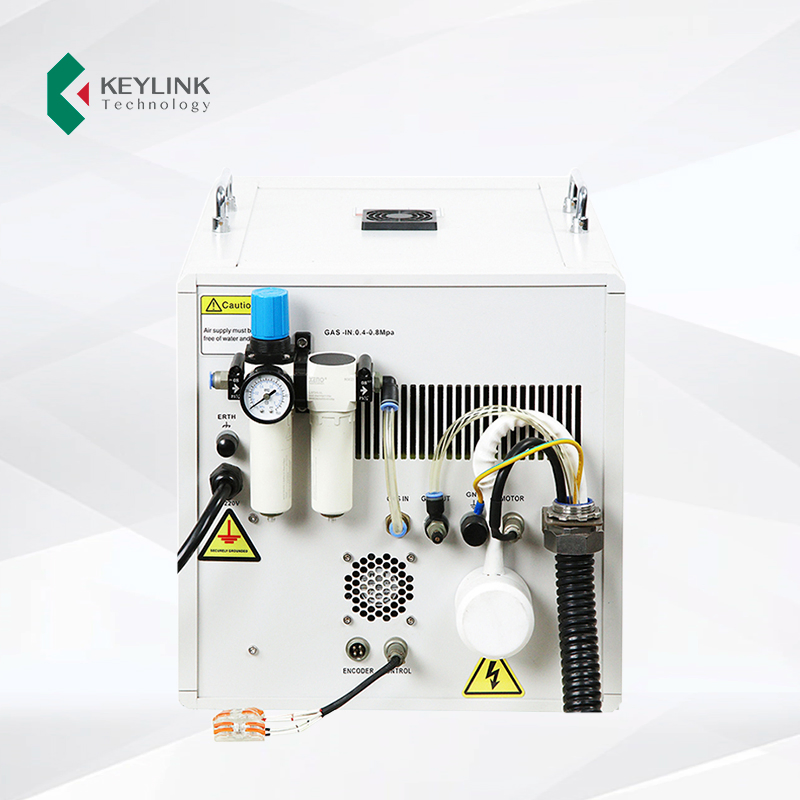

Air Source Requirement	External (60L/min, ≥0.6Mpa)
Operating Pressure	0.1-0.3Mpa
Cleaning Height	5-15mm
Treatment Width	≤110mm
Net Weight	28kg
Detection Functions	Air pressure, Overtemperature, Motor speed, Driver fault

Product Description

What is Plasma?

Plasma represents the quintessential state of high-energy matter, often referred to as the fourth state of matter. By inputting energy into a gas through a discharge process, chemical bonds are broken, creating free electrons, ions, and molecules. This energetic state is revolutionary for industries requiring superior surface bonding.

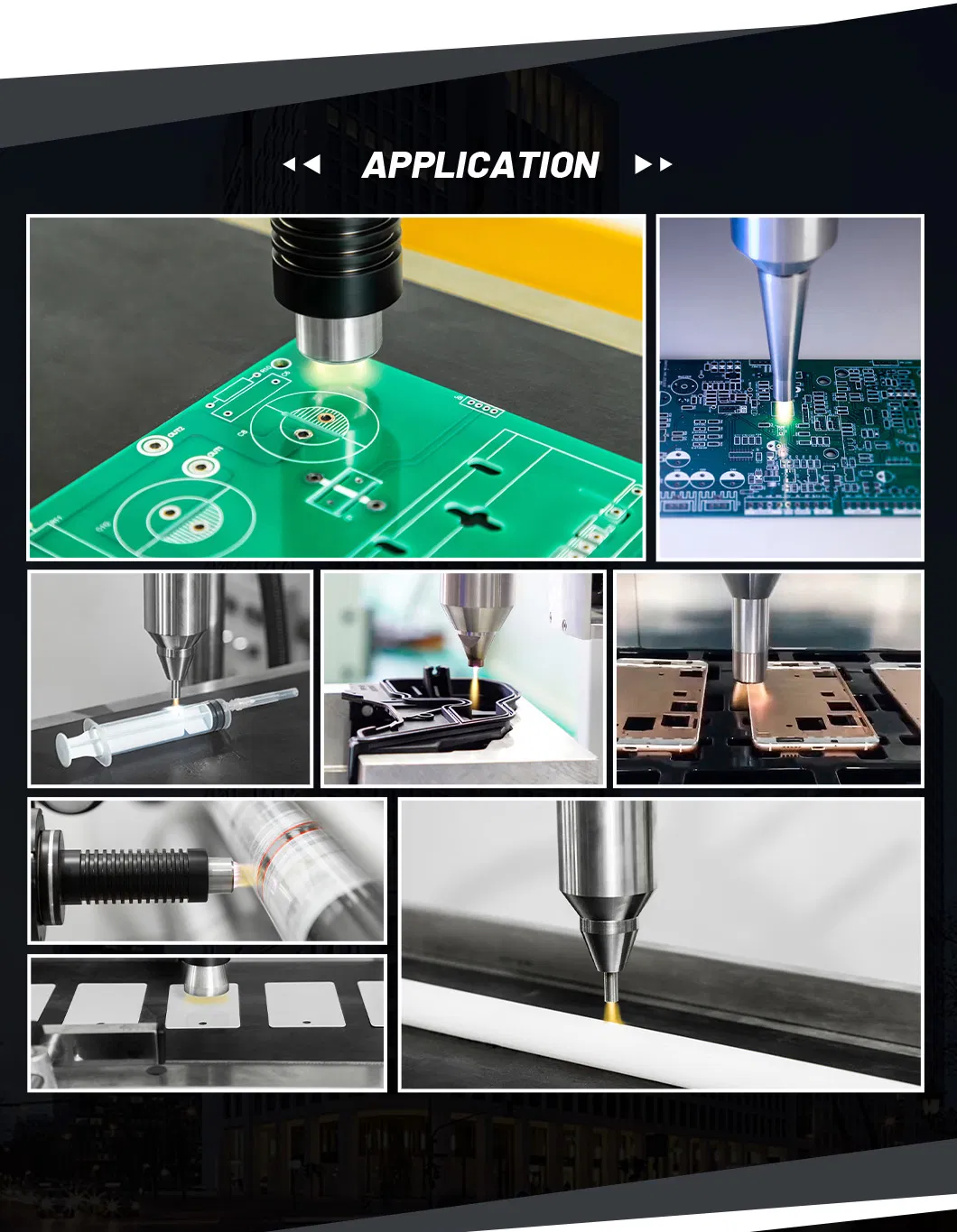

Industry Applications

Automotive & Aerospace

Car headlights & Control devices
EPDM profiles & Tyres
Aircraft manufacturing

Electronics & Digital

Mobile phones & Flat screens
Displays & Microphones
Computer components

Medical & Sterilization

Operating instruments
Cardiac pacemakers
Infusion devices

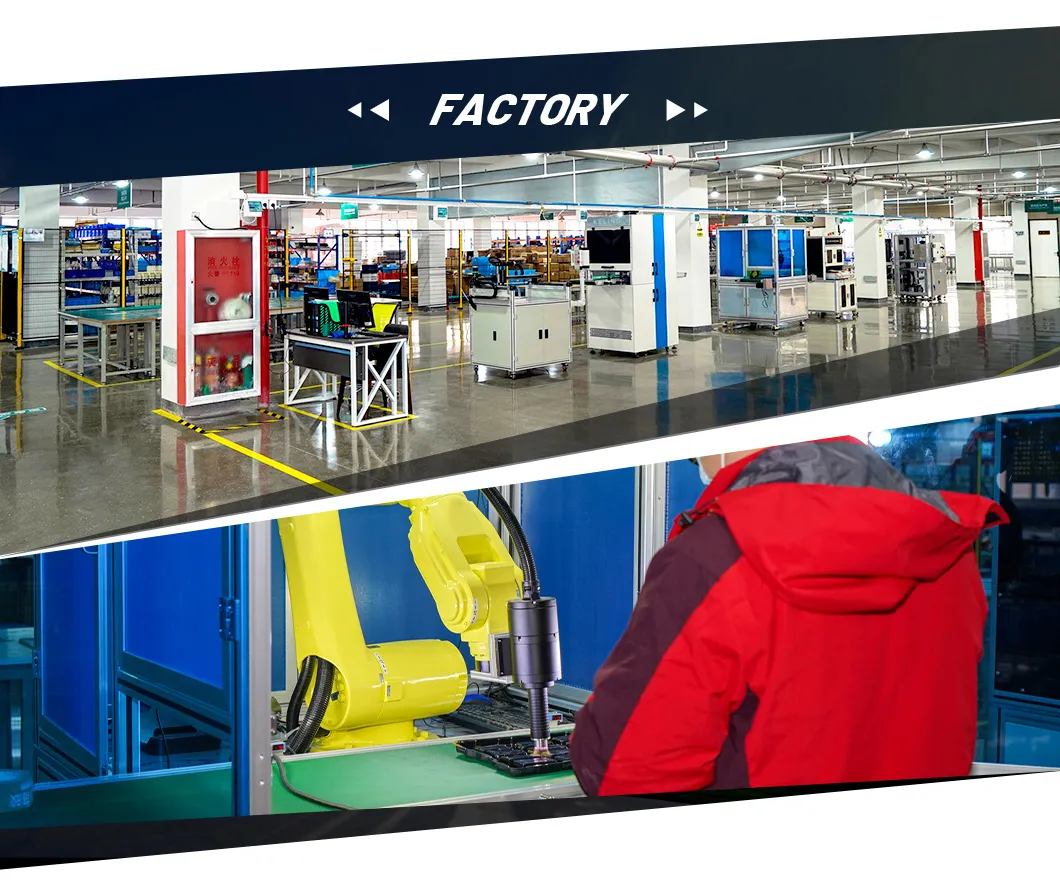

Manufacturing & Quality Control

Certifications & Exhibitions

Packaging & Shipping

Frequently Asked Questions

What is the production lead time?

Lead time varies based on order size. For small to medium orders (e.g., 10-20 machines), the lead time is approximately 3-4 workdays. We expedite production to meet tight deadlines whenever possible.

Can I customize my order for specific configurations?

Yes, customization is available. We can tailor machine configurations, spare parts, and accessories such as nozzles or cable lengths based on your specific industrial requirements.

What are the standard payment terms?

We offer flexible terms: 50% deposit upon order confirmation and the remaining balance before shipment. Payments are typically made via SWIFT transfer.

What kind of after-sales technical support is provided?

We provide comprehensive support including troubleshooting via email or video calls, quick access to spare parts, and detailed technical documentation (manuals and SOPs).

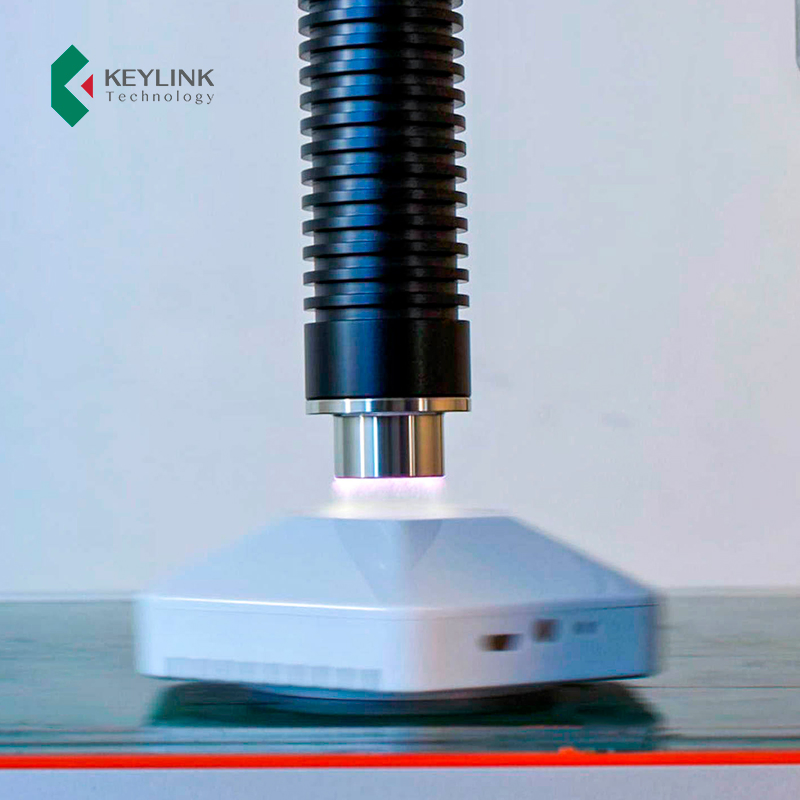

How does plasma treatment improve surface adhesion?

Plasma cleaning removes organic contaminants and activates the surface at a molecular level, increasing surface energy and allowing adhesives, inks, and coatings to bond much more effectively.

Is the machine compatible with automated production lines?

Yes, the system supports both Signal Mode and Encoder Mode, making it easy to integrate into existing automated assembly lines and robotic systems.
